1FK7062-2AC71-1DB2 SIEMENS Exclusive SIMOTICS S Synchronous Motor Original Brand New

1FK7062-2AC71-1DB2 SIEMENS Exclusive SIMOTICS S Synchronous Motor Original Brand New

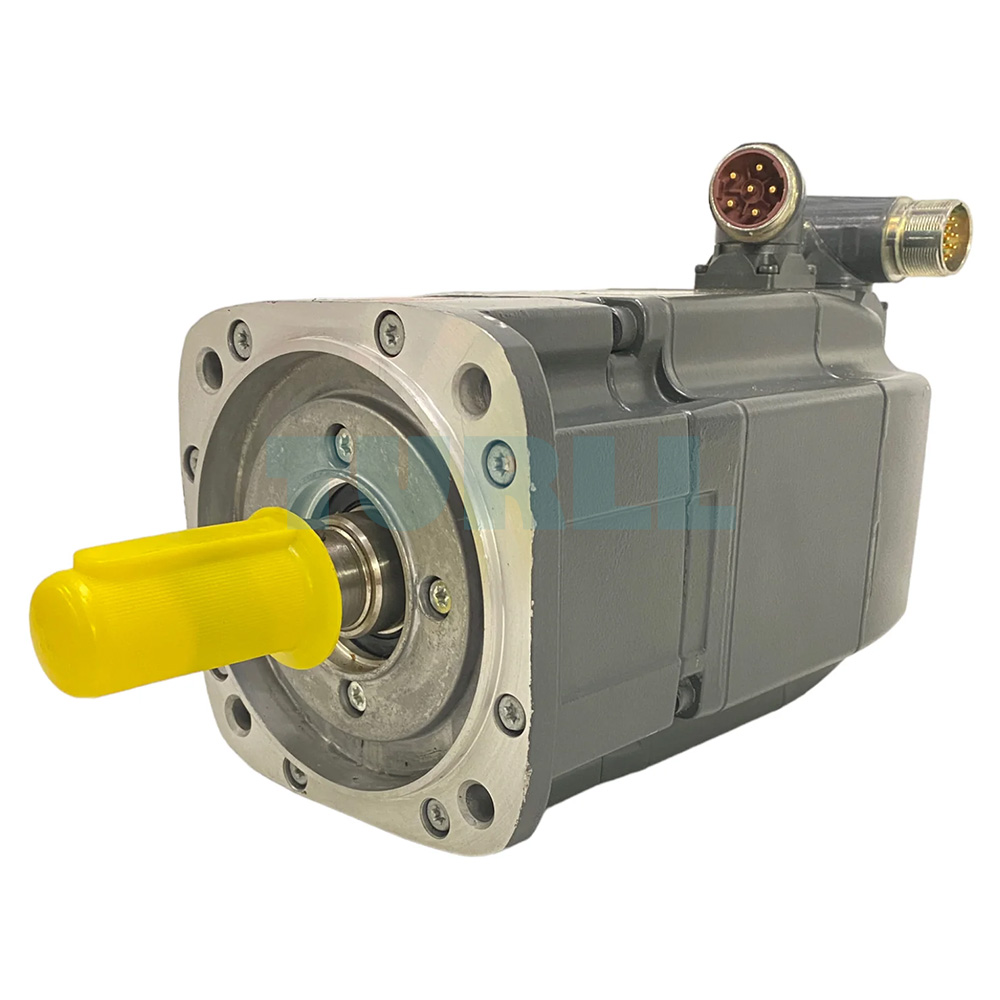

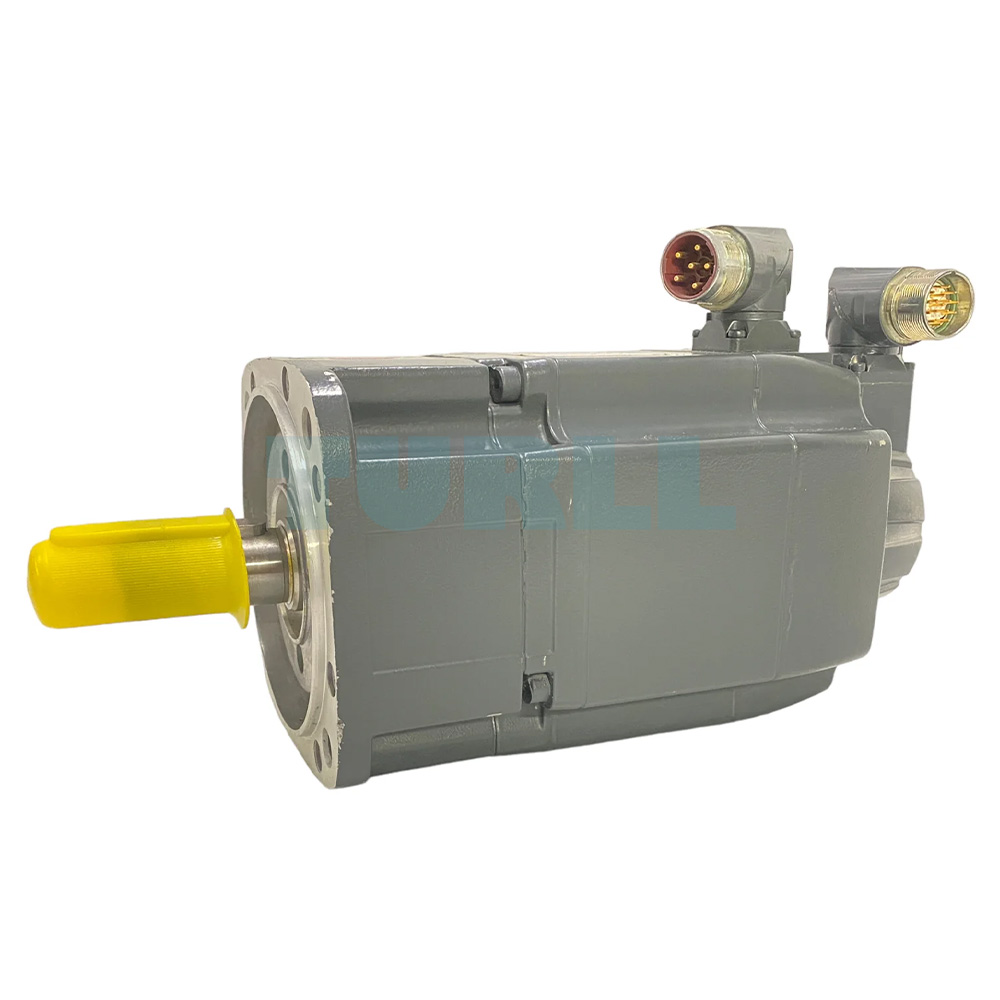

The SIEMENS 1FK7062-2AC71-1DB2 SIMOTICS S synchronous motor is a high-quality industrial drive solution designed for applications that demand precise movement, consistent torque output, and excellent long-term performance. As part of the proven SIMOTICS S-1FK7 CT series, this motor provides reliable mechanical stability combined with refined control characteristics. Featuring a rated torque of 8.5 Nm, a nominal speed of 2000 rpm, and a 1.5 kW power rating, the unit delivers well-balanced dynamics suitable for diverse environments across automation and machine engineering.

This motor incorporates natural cooling, allowing continuous operation without external cooling components. The rugged IMB 5 design enhances installation flexibility, while the rotatable power connector ensures optimal cable routing in compact assemblies. Equipped with a 22-bit incremental encoder using the DRIVE-CLiQ interface, the motor supports precise feedback for advanced motion coordination. Additional mechanical robustness is achieved through a shaft with a fitted key, engineered according to tolerance class N, further reinforced by an integrated holding brake for secure static positioning. Protection levels of IP65 and IP67 help safeguard internal components from dust, moisture, and challenging plant conditions.

Overview

SIMOTICS S-1FK7 motors are compact permanent-magnet synchronous motors designed for scalable integration across high-performance systems. Their flexible configuration options, encoder variants, and compatibility with SINAMICS S120/S220 drive systems enable tailored solutions for both simple and advanced tasks. These motors are engineered for stable thermal behavior and offer remarkable overload capacity for demanding production lines.

Thanks to their refined construction and efficient operation, SIMOTICS S-1FK7 motors are widely used in robotic applications, auxiliary motion axes, automated production cells, precision material handling, packaging machinery, and machine tools. Their dynamic response, combined with smooth running characteristics, supports consistent motion quality even under variable loads.

Design & Key Features

• Rated torque of 8.5 Nm with stable natural cooling
• Incremental encoder IC22DQ with 22-bit resolution (DRIVE-CLiQ)

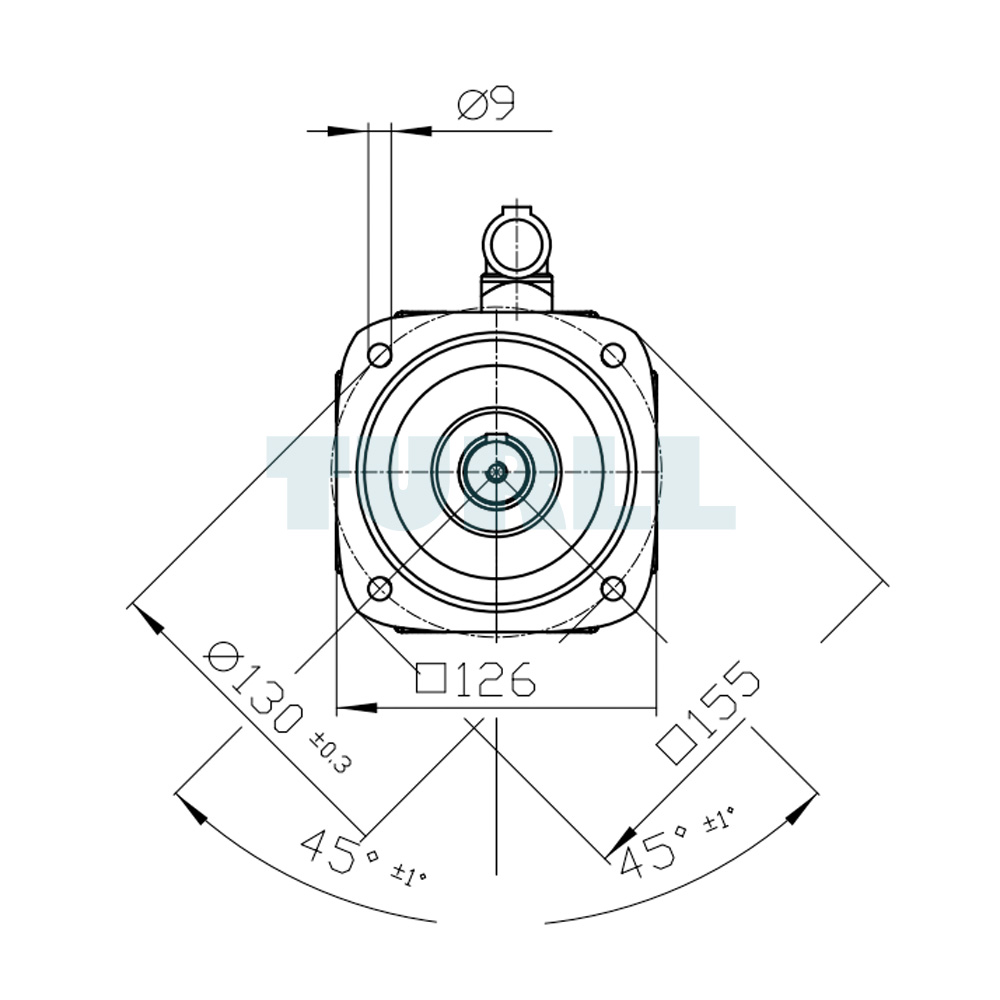

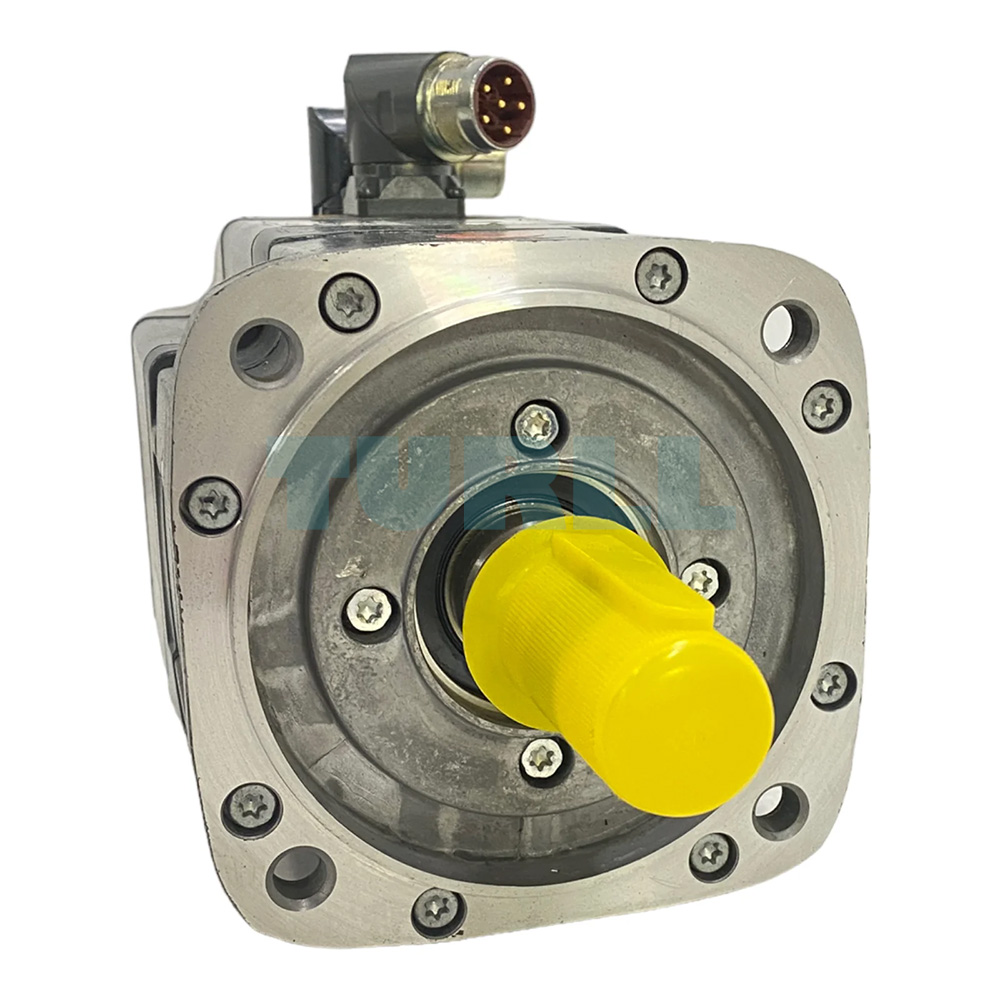

• IMB 5 mechanical design with flange mounting
• Rotatable power connector for efficient installation

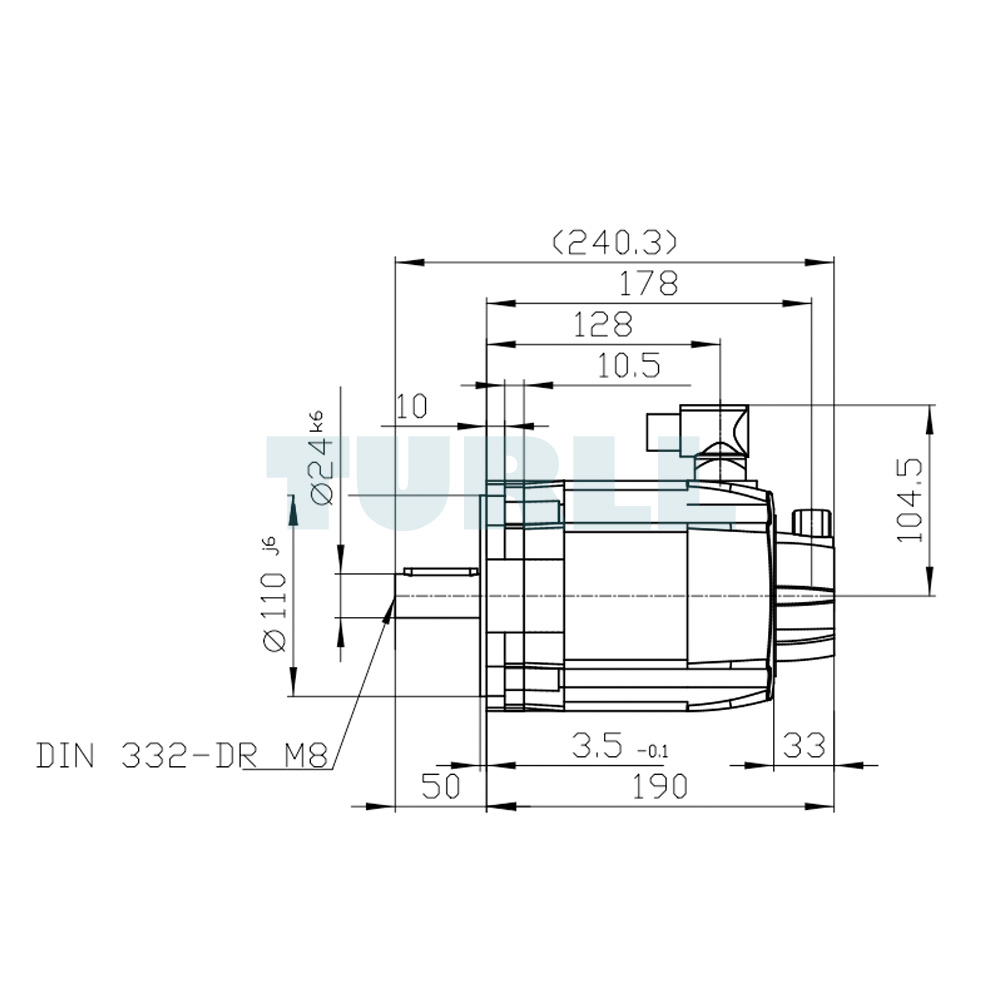

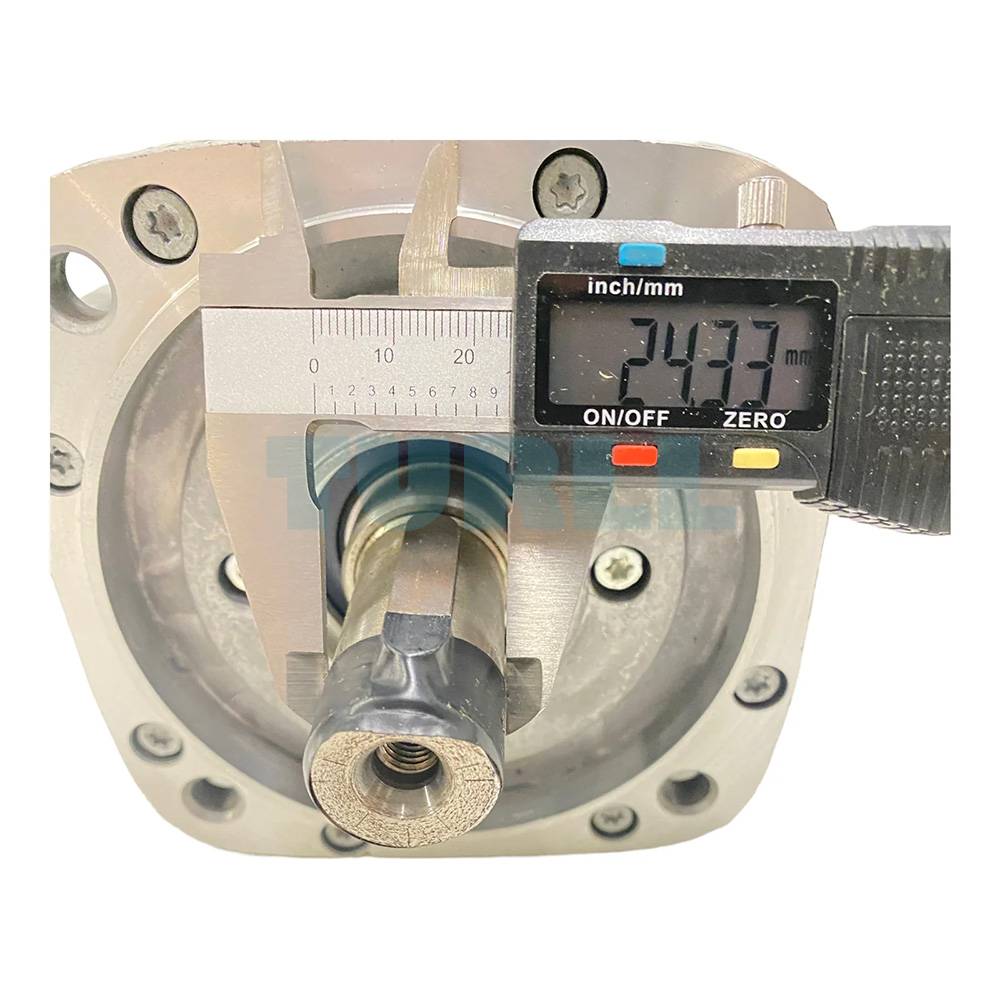

• Shaft with fitted key, tolerance class N
• Integrated holding brake for accurate static locking
• Ingress protection IP65/IP67 for harsh environments

Download

Data Sheet (PDF)

Product Code: 1FK7062-2AC71-1DB2
