1FK7062-2AF71-1CH1-ZJ22 SIEMENS Exclusive Synchronous Motor Original Brand New

1FK7062-2AF71-1CH1-ZJ22 SIEMENS Exclusive Synchronous Motor Original Brand New

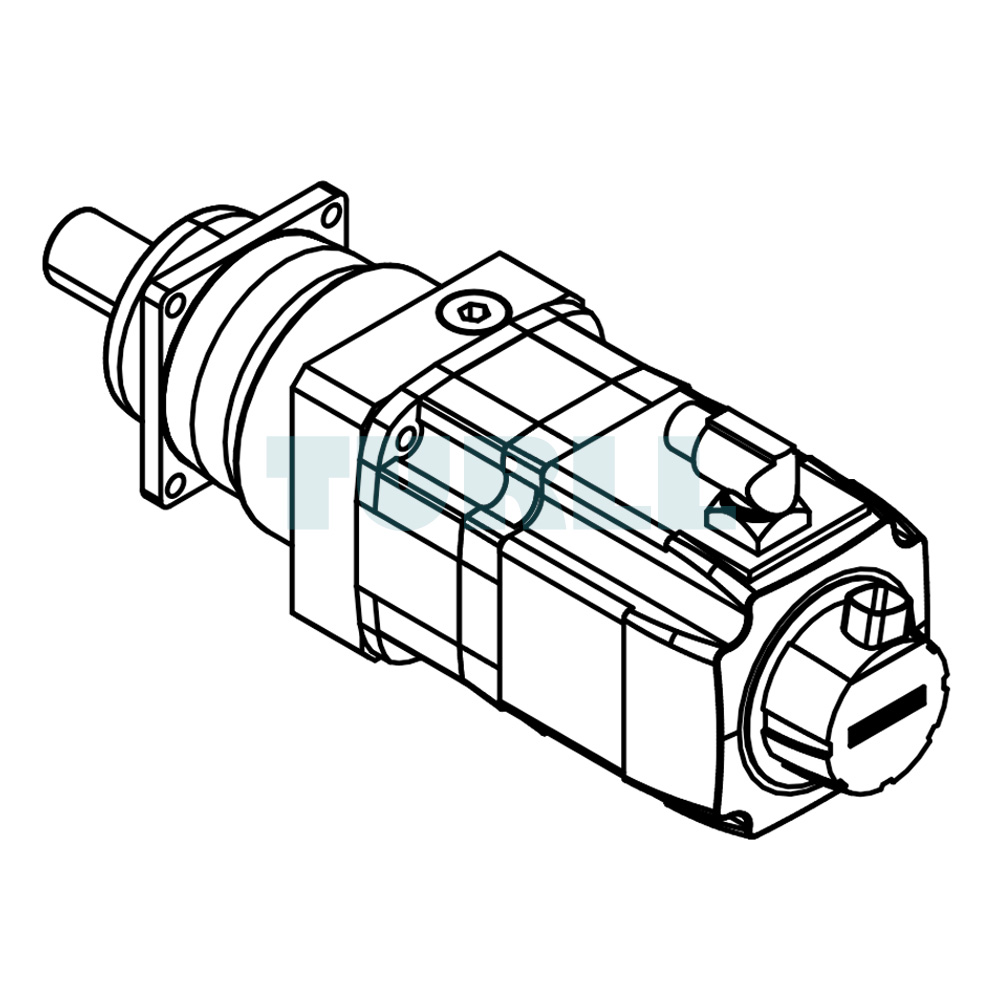

The 1FK7062-2AF71-1CH1-ZJ22 SIEMENS synchronous motor is engineered for high-performance automation environments requiring stable operation, precision control, and long-term mechanical reliability. As part of the SIMOTICS S-1FK7 family, this model incorporates advanced magnet technology, robust construction, and seamless compatibility with modern drive systems. Its naturally cooled configuration allows heat to dissipate effectively through the motor housing, making it suitable for continuous duty without external cooling devices.

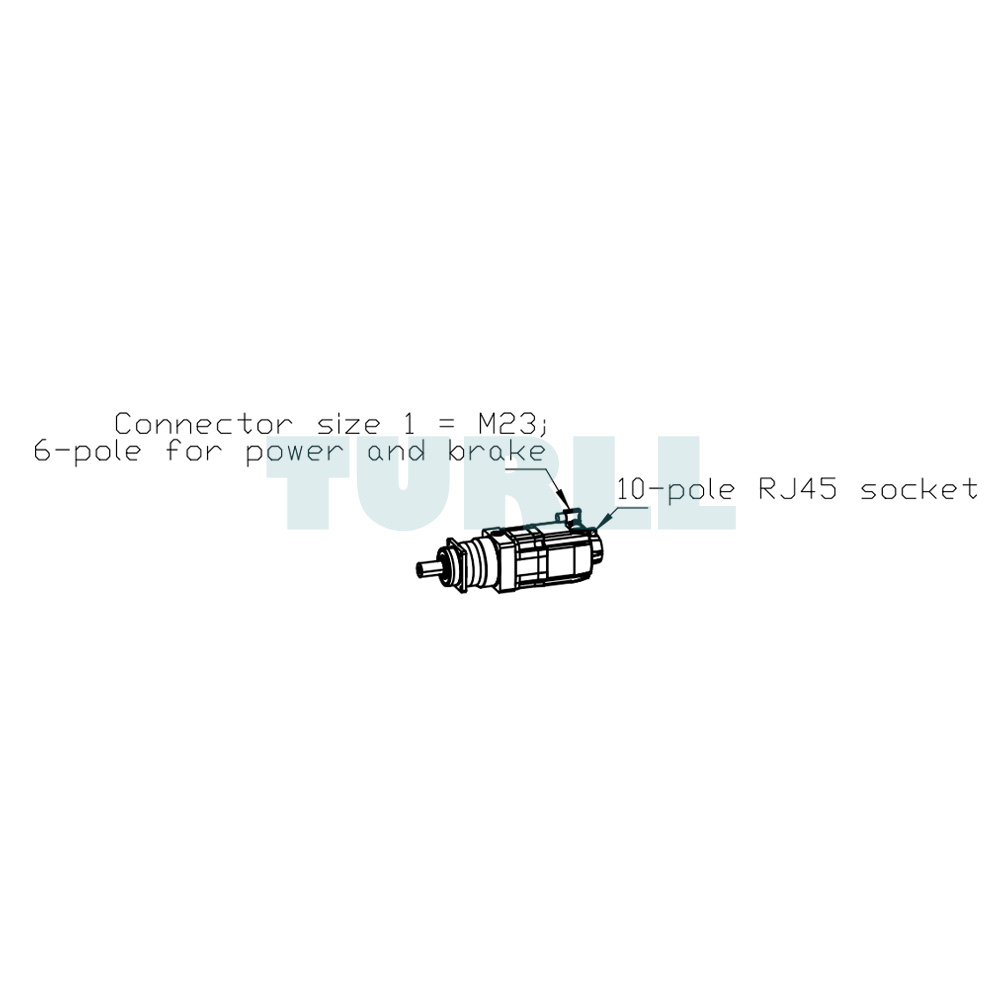

Featuring a 1.9 kW power rating, 600 V DC link voltage, and a nominal speed of 3000 rpm, the motor supports demanding motion profiles in dynamic applications. Its integrated AM24DQI encoder provides a 24-bit single-turn resolution with an additional 12-bit multi-turn capability, ensuring precise positioning and stable closed-loop control. The rotatable power connector simplifies cable routing, while the smooth shaft and holding brake enhance mechanical adaptability.

A key feature of this model is the ALPHA SP+ planetary gear configuration (SP 100S-MF1, 1-stage, i=10), offering high transmission efficiency and compact gearing performance. This combination allows the motor to deliver optimized torque transfer with low backlash, making it highly suitable for automation solutions that require controlled acceleration and consistent load handling.

Overview

SIMOTICS S-1FK7 motors are compact synchronous units designed for versatile industrial use. Their permanent-magnet structure, wide selection of encoders, and gearbox options provide flexibility across numerous machine concepts. When paired with SINAMICS S120 or S220 drive systems, they form a powerful and precise motion platform for modern factory applications.

These motors operate efficiently without external cooling and maintain a high overload tolerance. Their design supports long service cycles, stable handling of dynamic loads, and dependable performance even under frequent start-stop conditions.

Benefits

• High power density enabling compact machine layouts
• Broad range suitable for general and specialized uses
• Fast dynamic response due to low-inertia rotor design
• Stable closed-loop characteristics for systems with varying load inertia
• Minimal commissioning effort with reduced optimization requirements

Applications

• Machine tools and precision manufacturing
• Robotics and automated handling
• Material processing for wood, glass, ceramics, and stone
• Packaging and textile machinery
• Printing equipment
• Auxiliary industrial axes and automation modules

Download

Data Sheet (PDF)

Product Code: 1FK7062-2AF71-1CH1-ZJ22
