1FK7062-2AF71-1CH1-ZJ23 SIEMENS Exclusive Synchronous Motor Original Brand New

1FK7062-2AF71-1CH1-ZJ23 SIEMENS Exclusive Synchronous Motor Original Brand New

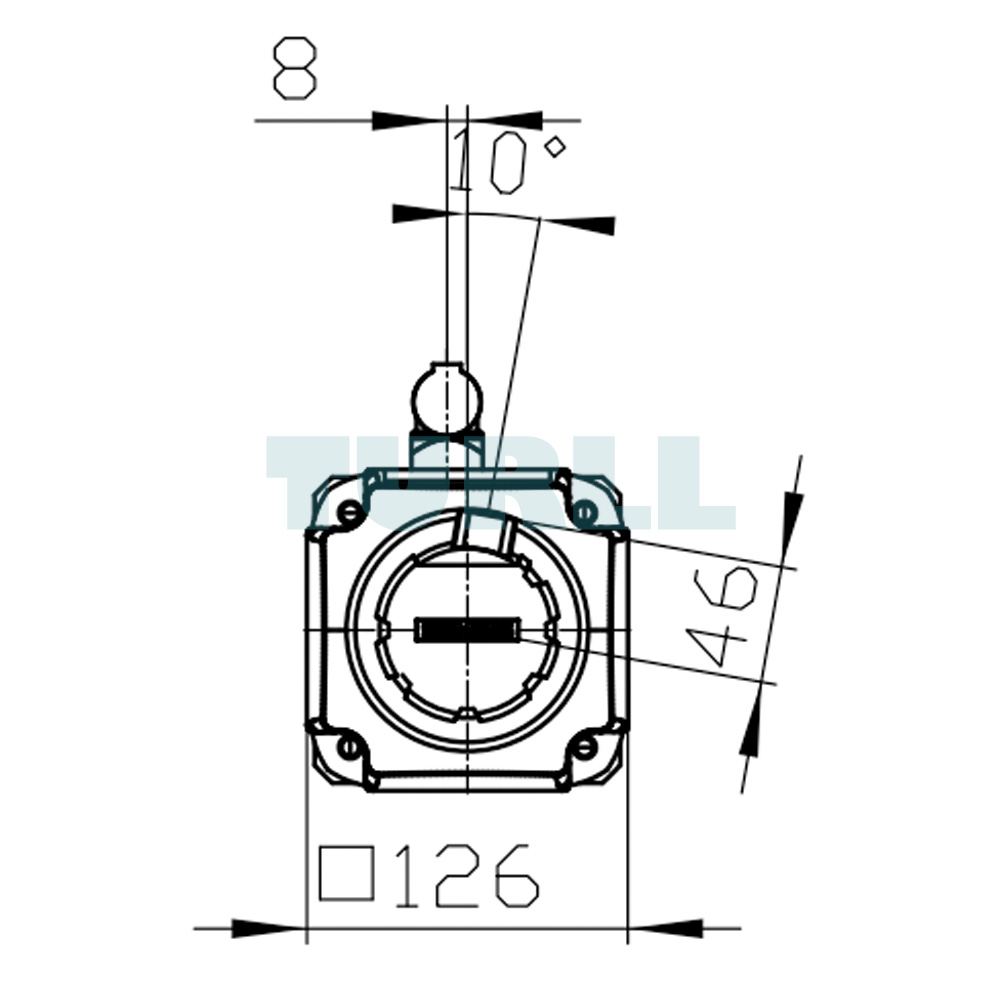

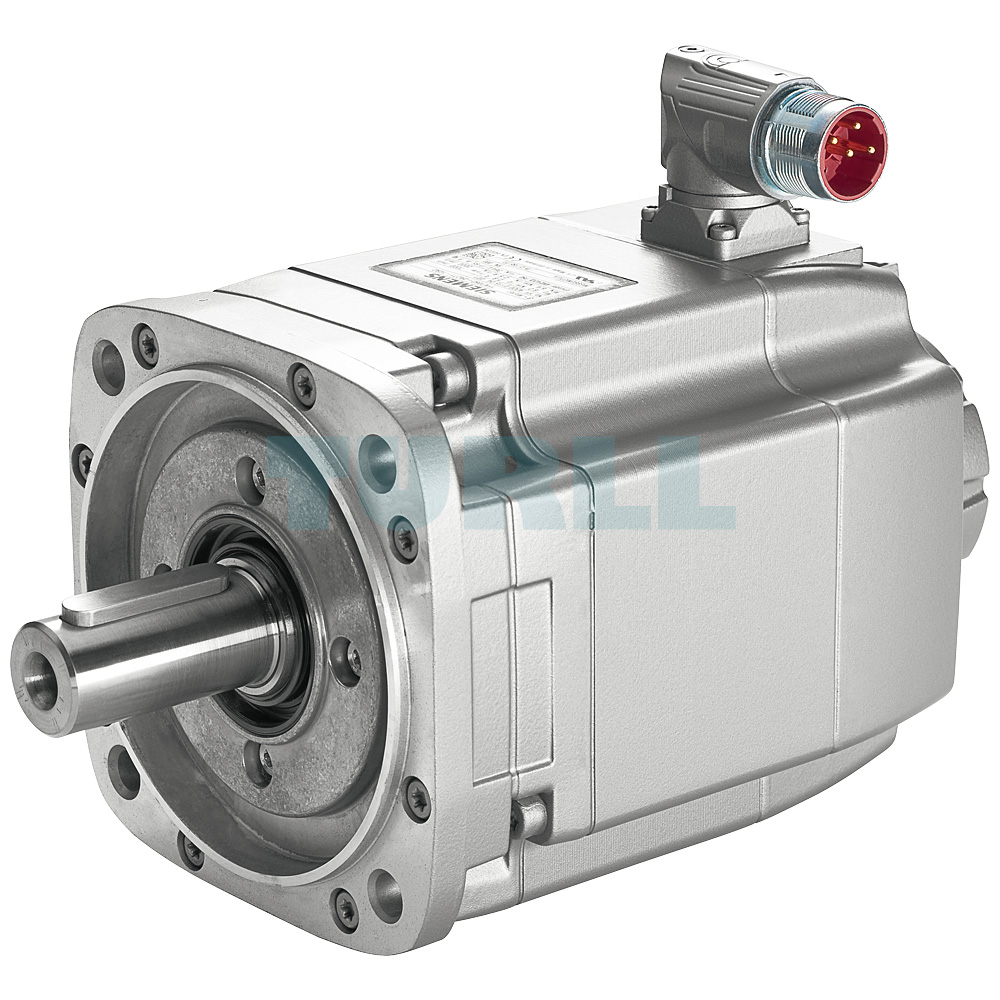

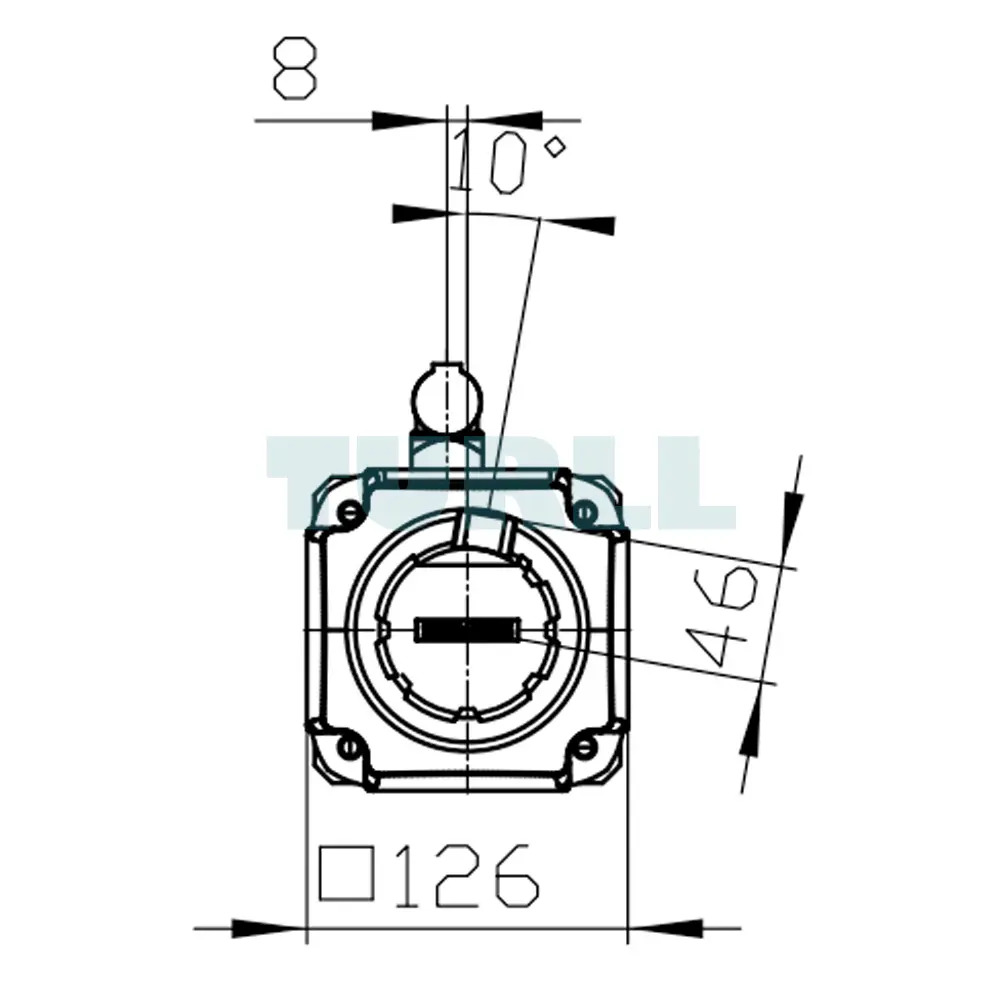

The 1FK7062-2AF71-1CH1-ZJ23 SIEMENS motor is a precision-engineered synchronous unit from the SIMOTICS S-1FK7 series, designed for applications that demand stability, responsiveness, and consistent long-term operation. This configuration offers a 1.9 kW power rating, 600 V DC link voltage, and 8.5 Nm continuous torque, enabling reliable performance in modern automation systems. Its naturally cooled construction ensures that heat dissipates directly through the motor housing, allowing the unit to run efficiently without external cooling accessories. The overall mechanical design supports a broad range of machine layouts due to its compact dimensions and practical connector orientation.

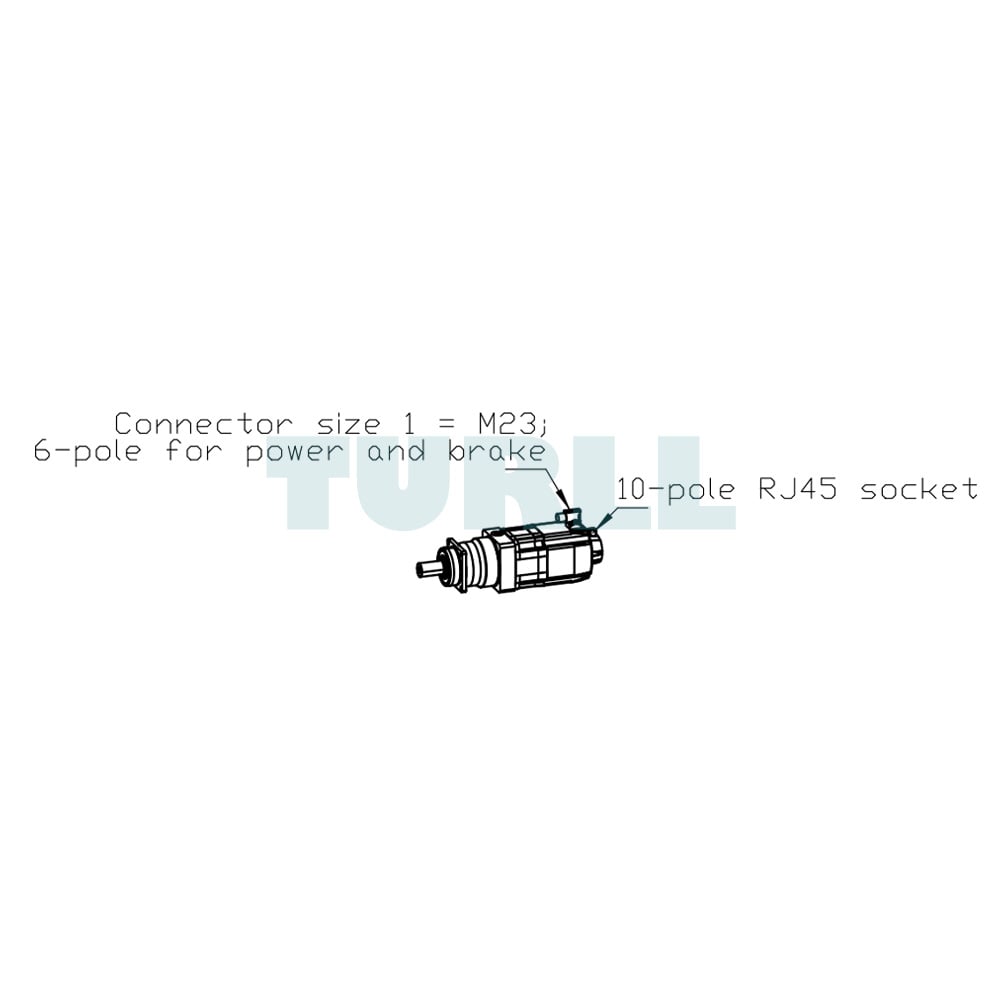

Equipped with a 24-bit plus 12-bit multi-turn absolute encoder AM24DQI, the motor provides high-resolution feedback for demanding motion sequences and precise positioning requirements. The DRIVE-CLiQ interface ensures seamless communication with compatible SIEMENS drive systems, maximizing signal reliability and diagnostic capabilities. Its smooth shaft configuration, combined with tolerance class N and an integrated holding brake, allows the unit to be installed in a variety of mechanical assemblies. The IP65 protection rating provides additional resistance to demanding operating conditions.

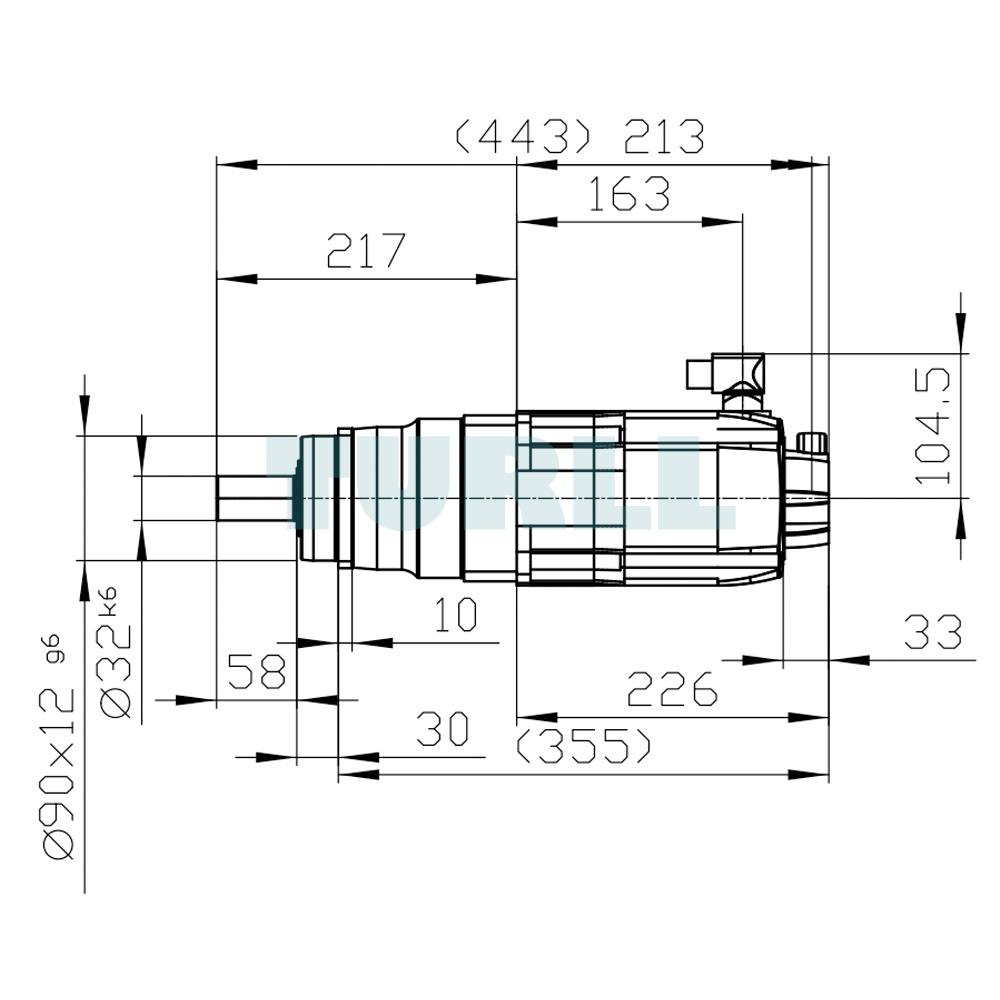

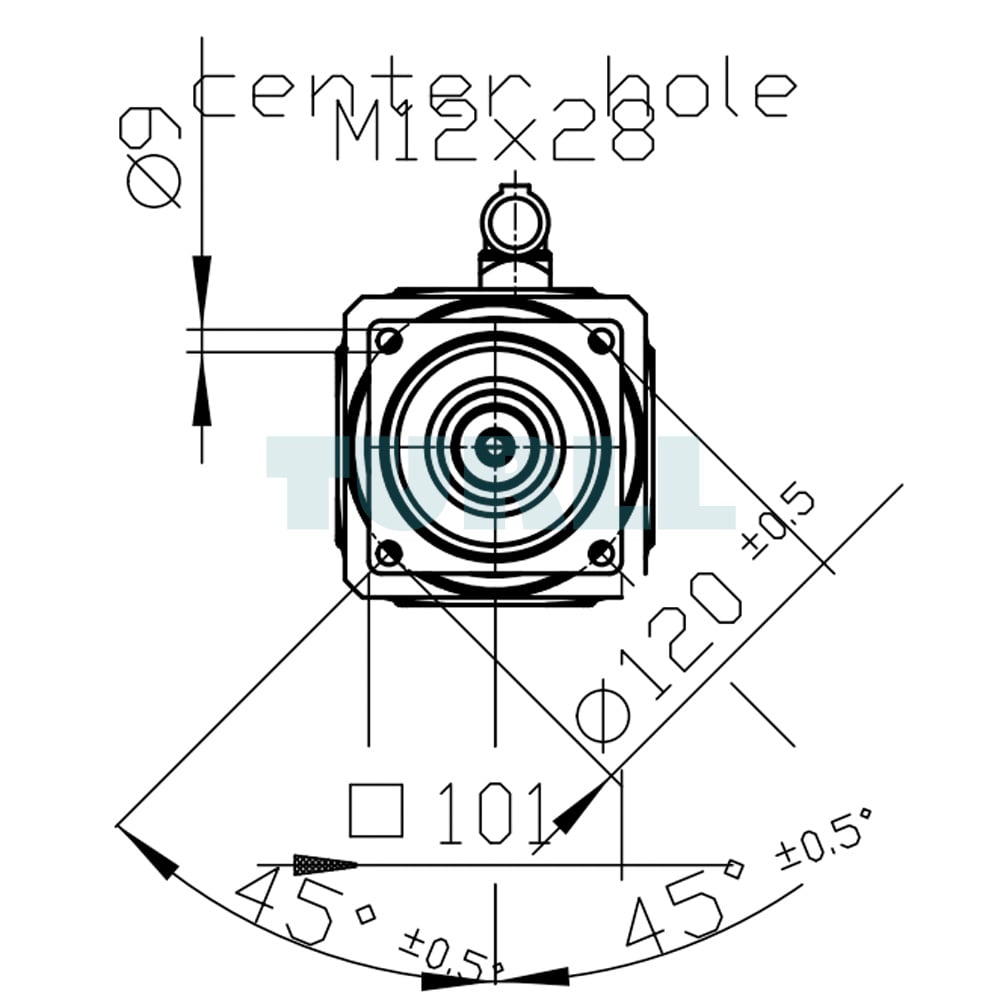

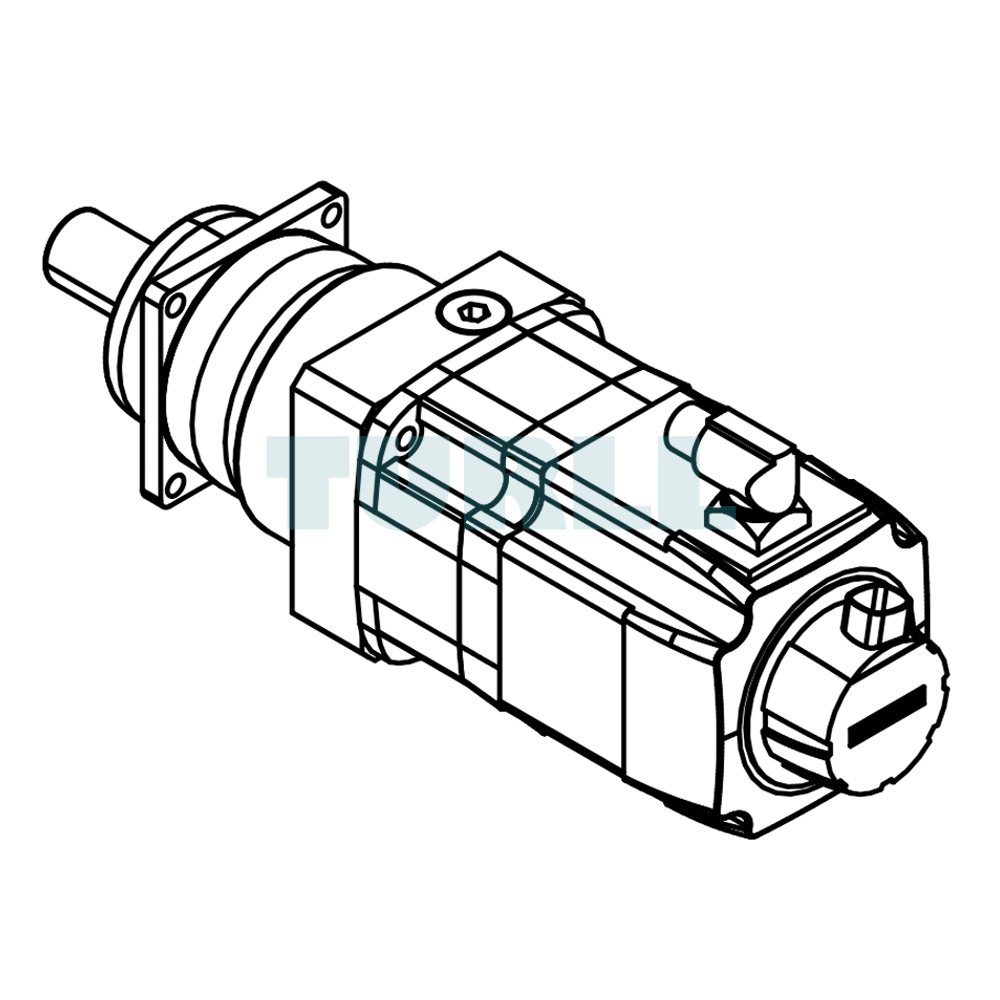

The ZJ23 code indicates integration with an ALPHA SP+ planetary gear unit, model SP 100S-MF1, with a single-stage ratio i=5. This gear system supports higher torque transfer, reduced backlash, and stable performance for applications requiring controlled rotational output. The combination of SIMOTICS motor technology and SP+ gearing delivers improved stiffness and motion accuracy, offering dependable behavior under frequent acceleration and deceleration cycles.

Overview

SIMOTICS S-1FK7 motors are compact synchronous models built with permanent-magnet technology. These motors feature multiple encoder and gearbox configurations, making them suitable for a wide assortment of industrial applications. When paired with SINAMICS S120 or S220 drive systems, they form a versatile and scalable drive platform capable of delivering high functionality and energy-efficient operation.

Their overload capacity, compact housing, and optimized cooling characteristics ensure dependable output whether used in continuous or cyclic processes.

Key Features

• High power density for reduced installation space
• Stable closed-loop dynamic behavior under varying loads
• Low-maintenance design with efficient heat dissipation
• Wide selection of compatible encoders and gear variants
• Minimal commissioning effort with advanced diagnostic functions

Applications

• Machine tools
• Robotics, automation, and handling systems
• Wood, glass, stone, and ceramics processing
• Plastic, packaging, and textile machinery
• Printing equipment
• Auxiliary and secondary industrial axes

Download

Data Sheet (PDF)

Product Code:1FK7062-2AF71-1CH1-ZJ23
