1FK7062-2AF71-1RG1-ZJ09 SIEMENS Exclusive Synchronous Motor Original Brand New

1FK7062-2AF71-1RG1-ZJ09 SIEMENS Exclusive Synchronous Motor Original Brand New

The 1FK7062-2AF71-1RG1-ZJ09 SIEMENS synchronous motor is part of the SIMOTICS S-1FK7 series, known for delivering highly efficient performance in precision-driven industrial operations. This model is engineered with a 1.9 kW power rating, a 600 V DC link voltage, and a nominal speed of 3000 rpm, offering stable behavior across varying operating conditions. Its naturally cooled construction efficiently dissipates heat through the motor’s outer surface, ensuring consistent operation without additional cooling components. The overall design allows flexible installation and integration into motion-control systems that require reliability and accuracy.

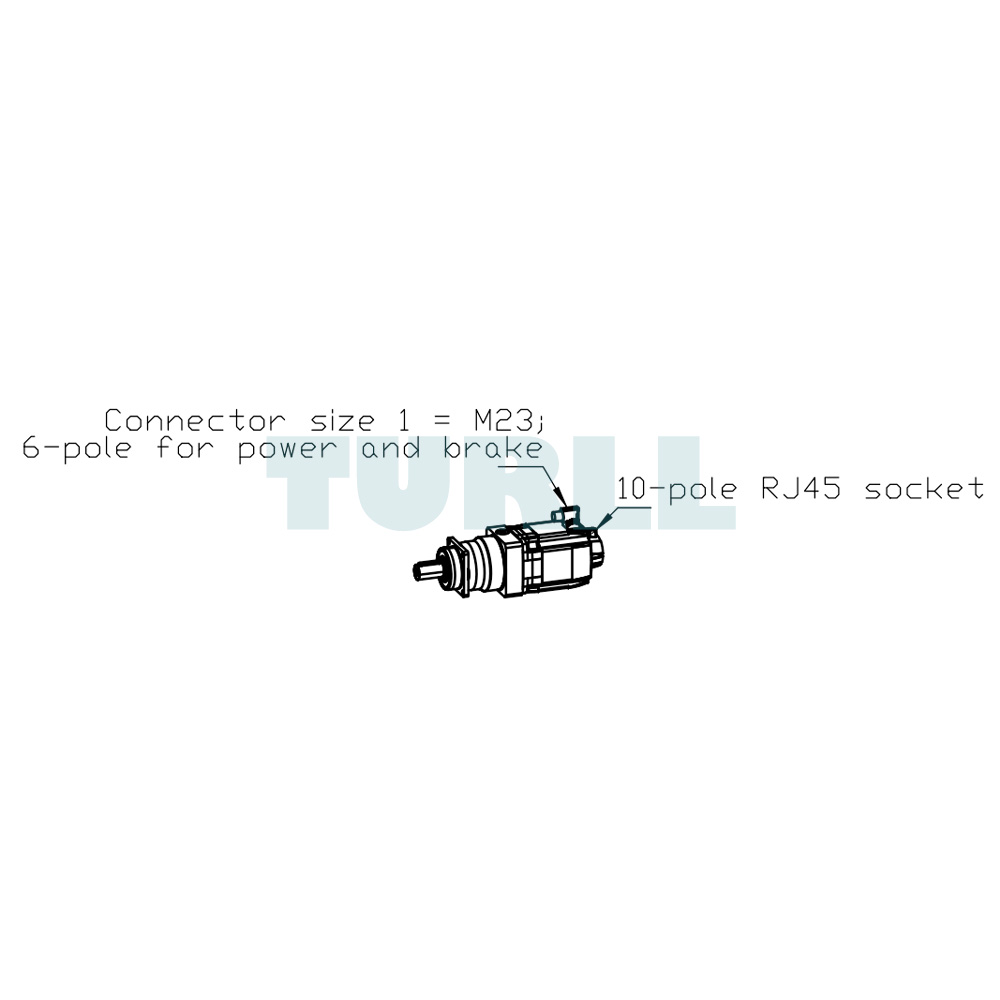

Featuring the AM20DQI absolute encoder with 20-bit resolution plus a 12-bit multi-turn function, the motor provides advanced feedback for demanding positioning requirements. The rotatable power connector further improves installation efficiency, particularly in environments with tight mounting clearances. This motor variant includes a smooth shaft without a holding brake and features IP65 protection, allowing it to withstand challenging industrial surroundings. A notable addition is the J09 ALPHA SP+ planetary gearing, configured as a 1-stage SP 100S-MF1 gearbox with a transmission ratio of i=10, built to provide enhanced torque output and improved mechanical compatibility.

The SIMOTICS S-1FK7 series is recognized for its adaptability, offering a wide selection of encoders, mechanical variations, and performance categories. When paired with SINAMICS S120 or S220 drive systems, the 1FK7062-2AF71-1RG1-ZJ09 forms a robust and responsive motion platform suitable for automation tasks requiring smooth dynamics and precise control. Its compact format, increased overload capacity, and advanced control features make it a dependable component for modern production environments.

Overview

SIMOTICS S-1FK7 motors are permanent-magnet synchronous units designed to deliver compact construction, high power density, and reliable operation. With numerous options for gearboxes and encoder technologies, they provide scalable solutions suitable for evolving industrial standards. They are built for operation without external cooling and maintain excellent overload capability.

Key Features

• High power density for space-efficient integration
• Wide selection of mechanical and encoder options
• Enhanced dynamic performance due to optimized rotor inertia
• Stable closed-loop control under variable load conditions
• Reduced setup time with minimal commissioning adjustments

Applications

• Machine tools and precision machining
• Robotic systems and advanced handling equipment
• Wood, stone, ceramic, and glass processing lines
• Packaging systems and automated production machinery
• Printing, plastics, and textile systems
• Auxiliary and secondary motion axes

Download

Data Sheet (PDF)

Product Code: 1FK7062-2AF71-1RG1-ZJ09
