1FK7062-2AF71-1RG1-ZJ13 SIEMENS Exclusive Synchronous Motor Original Brand New

1FK7062-2AF71-1RG1-ZJ13 SIEMENS Exclusive Synchronous Motor Original Brand New

The 1FK7062-2AF71-1RG1-ZJ13 SIEMENS synchronous motor is a high-performance model from the SIMOTICS S-1FK7 series, designed to deliver reliable torque output, accurate speed control, and consistent operation in advanced industrial environments. With a power rating of 1.9 kW and a 600 V DC link voltage, this motor provides dependable performance for systems requiring stability and smooth rotational precision. Its compact construction supports flexible integration in tight layouts, while the naturally cooled design ensures uniform thermal dissipation without requiring additional cooling components.

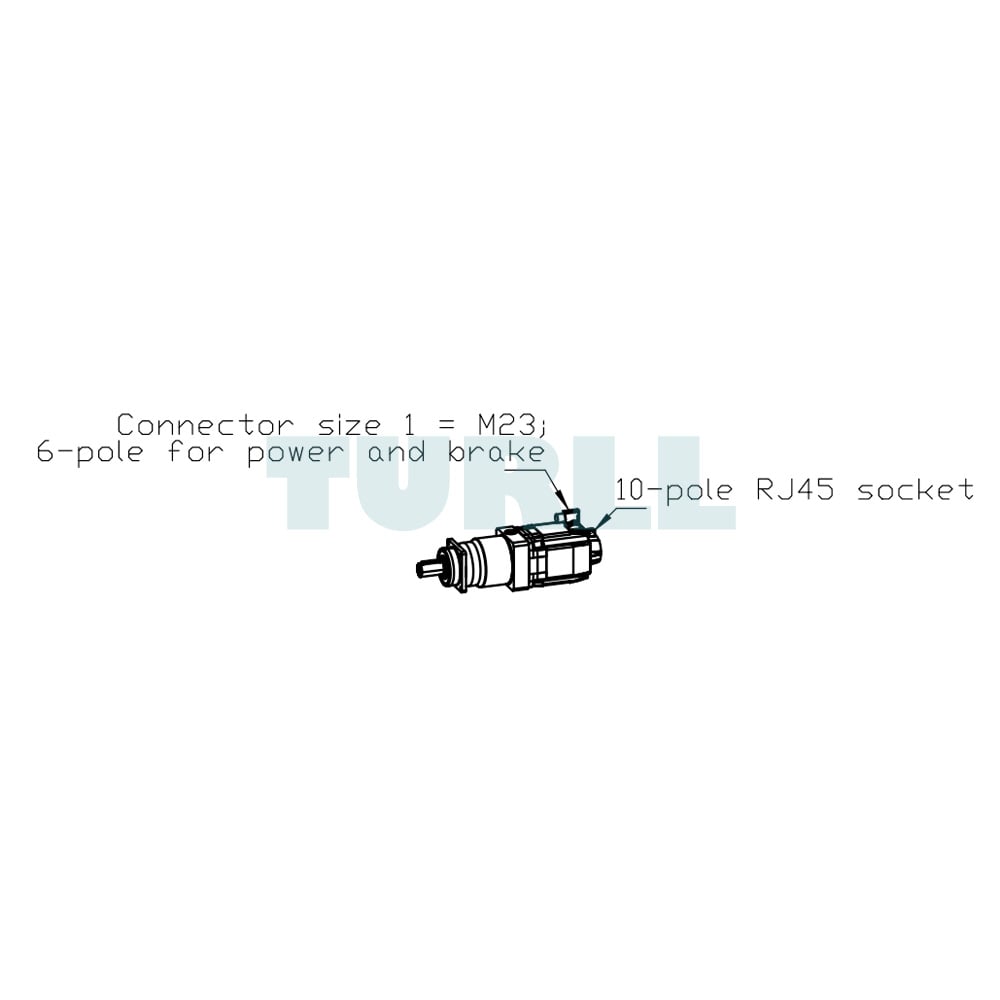

This motor features a continuous torque of 8.5 Nm at 100 K and a nominal speed of 3000 rpm, making it suitable for demanding applications that involve dynamic acceleration or controlled deceleration. The 20-bit absolute encoder combined with a 12-bit multi-turn system (AM20DQI) offers refined position feedback, enabling precise motion control within automated systems. Equipped with a rotatable power connector, flange-mounted structure, and IP65 degree of protection, the unit offers resilience against dust and moisture exposure. The smooth shaft with tolerance class N ensures stable mechanical coupling, and the absence of a holding brake makes it ideal for systems where free rotation is required.

The ZJ13 configuration integrates ALPHA SP+ planetary gearing, specifically the SP 100S-MF2 two-stage gearbox with a ratio of 20. This combination enhances torque transmission, increases efficiency, and supports applications requiring high mechanical durability. It also improves load handling capabilities, making the system suitable for both moderate-load and precision-oriented motion sequences.

Overview

SIMOTICS S-1FK7 motors are compact synchronous units engineered with permanent-magnet technology. The wide catalog of options, encoders, and gearboxes allows each motor to be adapted to diverse automation demands. When combined with SINAMICS S120/S220 drives, these motors form highly capable motion-control systems with accurate position regulation and smooth performance. Built for operation without external cooling, they dissipate heat effectively across the motor housing. The series is known for high overload capacity and long-term durability.

Benefits

• High power density for minimal installation space
• Versatile setup suitable for many industrial solutions
• Rapid dynamic response for demanding motion profiles
• Robust closed-loop control for varying inertia loads
• Reduced commissioning time and simplified optimization

Applications

• Machine tools and machining centers
• Robotics and automated handling systems
• Wood, stone, glass, and ceramic processing
• Packaging, plastics, and textile machinery
• Printing and finishing systems
• Auxiliary motion axes for integrated machines

Download

Data Sheet (PDF)

Product Code:1FK7062-2AF71-1RG1-ZJ13
