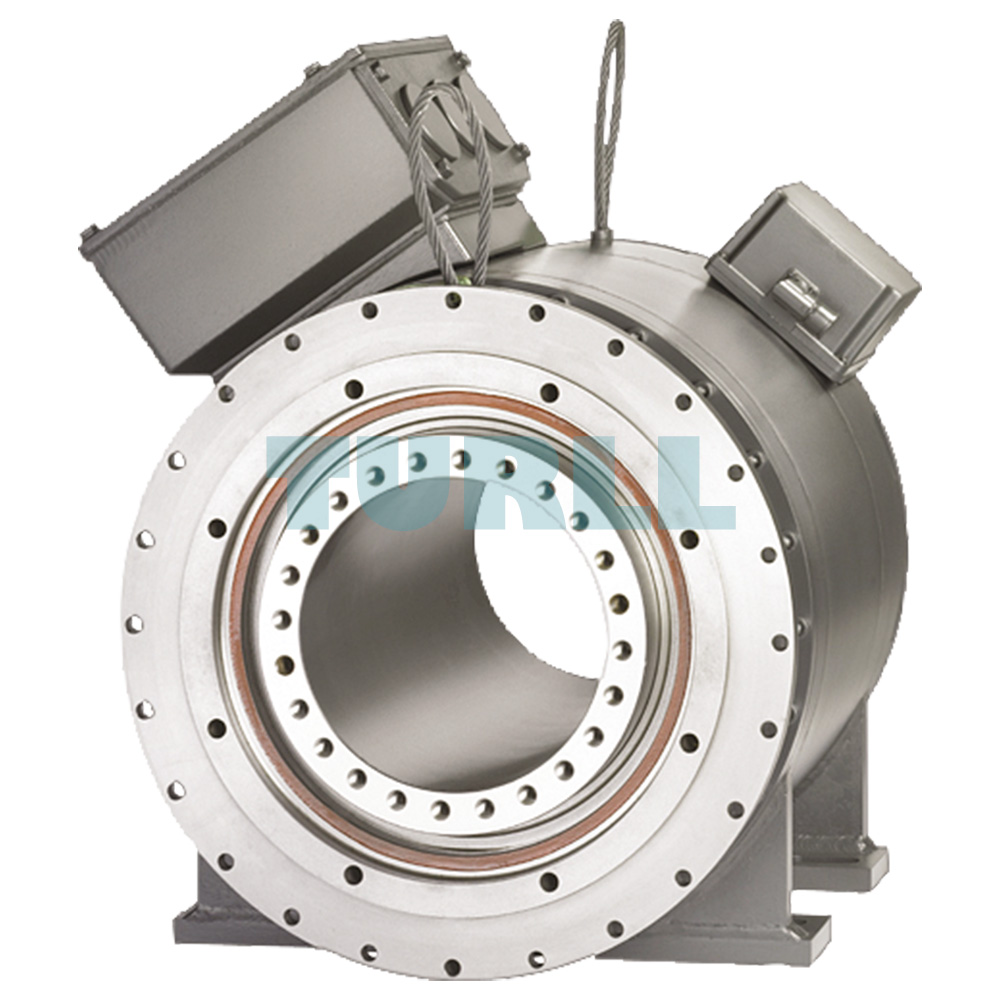

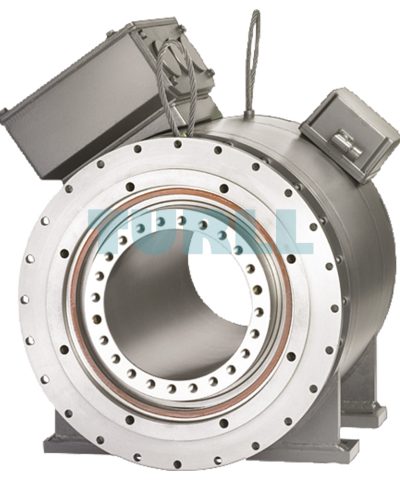

1FW3208-1FE72-5AA0 SIEMENS Exclusive SIMOTICS T Complete Torque Motor Original Brand New
$50,707.13
SIEMENS SIMOTICS T-1FW3 complete torque motor with 2000 Nm torque, water cooling, hollow shaft design, absolute encoder, and IP54 protection.
1FW3208-1FE72-5AA0 SIEMENS Exclusive SIMOTICS T Complete Torque Motor Original Brand New
The SIEMENS 1FW3208-1FE72-5AA0 is part of the renowned SIMOTICS T-1FW3 complete torque motor series, designed for high-performance applications that demand precise torque delivery and robust reliability. This model provides consistent torque output of 2000 Nm with a power range between 29.3 kW and 33.5 kW depending on operational speed. It is engineered for water cooling, offering efficient thermal management to ensure continuous operation in demanding environments. The integrated absolute encoder (22-bit + 12-bit multiturn) ensures highly accurate position feedback, making it suitable for applications where precision and stability are critical.

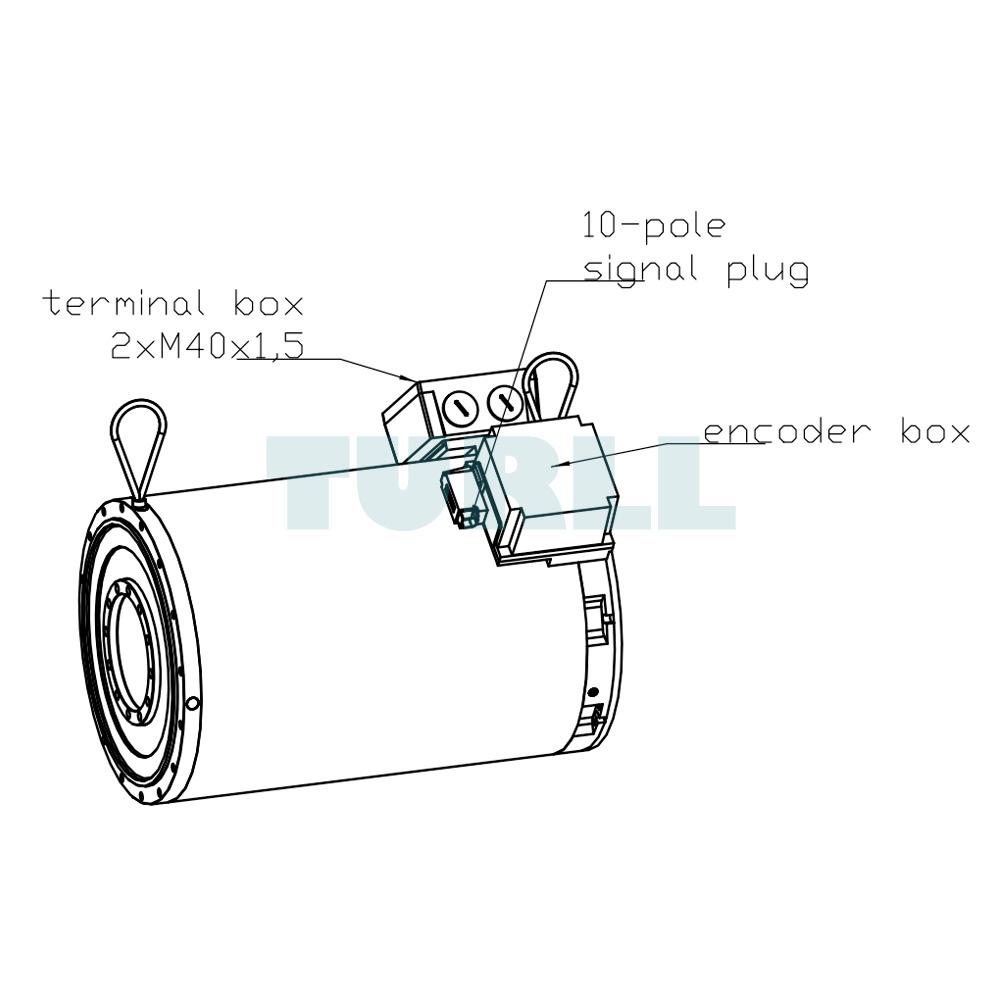

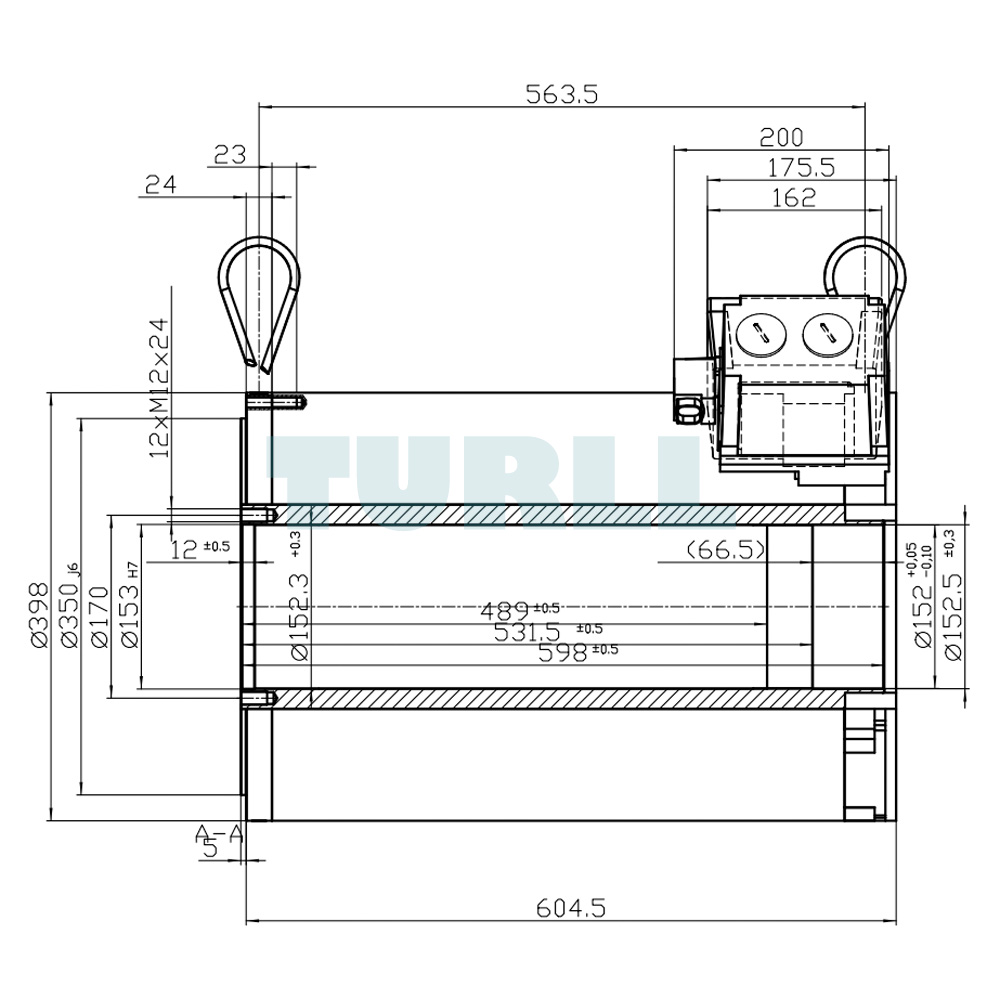

The motor is equipped with a hollow shaft, enabling convenient feed-through for cooling or heating media and measurement cables. Thanks to its modular design and integrated clamping element, the SIMOTICS T motor provides fast installation and secure coupling with the machine shaft. The IP54 degree of protection guarantees durability in industrial settings, while the DRIVE-CLiQ interface for temperature sensing ensures efficient monitoring and reliable protection.
Overview
The SIMOTICS T-1FW3 series represents water-cooled, high-pole permanent-magnet synchronous motors. Available in different diameters, lengths, and shaft variants, these motors deliver flexibility for various industrial uses. They are known for their ability to replace geared motors without mechanical adjustments, offering a simplified and cost-effective solution for system upgrades. The design includes quick encoder replacement and extended bearing lifetimes, enhancing maintainability and operational longevity.
Design
The design includes hollow shaft and solid shaft variants, both offering user-friendly assembly. The integrated shaft adapter allows simple installation, while the torque arms on the stator provide rigid mechanical connection for improved performance. When paired with the SINAMICS S120 drive system, the motor forms a powerful and versatile solution for motion control. With advanced encoder systems and robust cooling, this torque motor is ideal for applications requiring high efficiency, accuracy, and durability.
Download
Product Code: 1FW3208-1FE72-5AA0
More Siemens products at Turll.com
| Weight | 350 kg |
|---|
