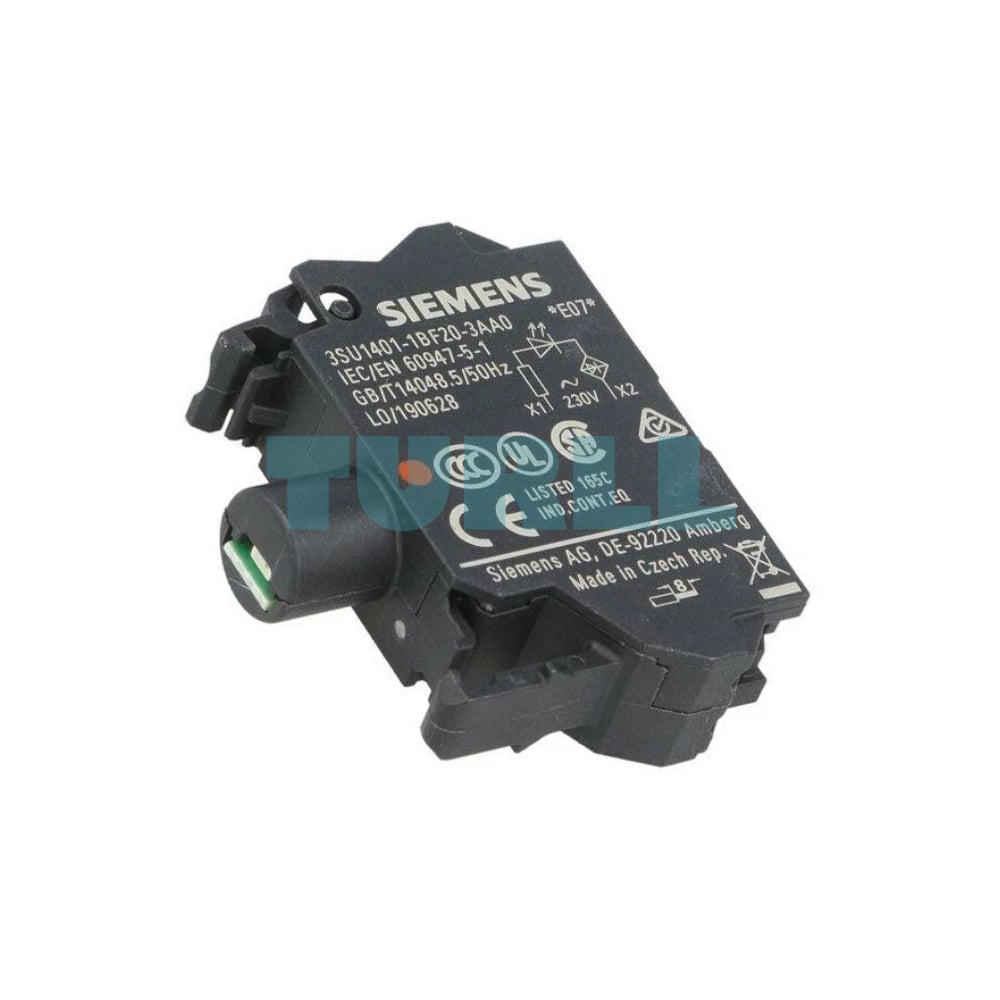

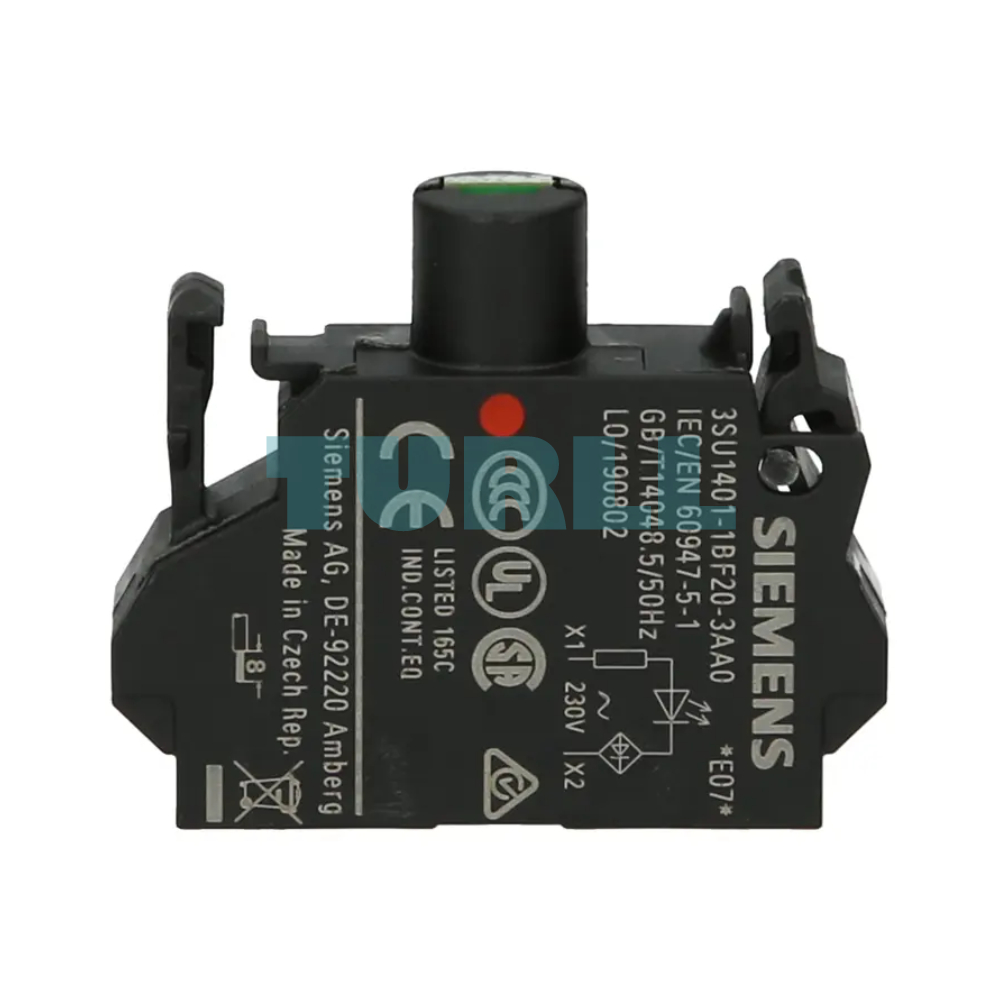

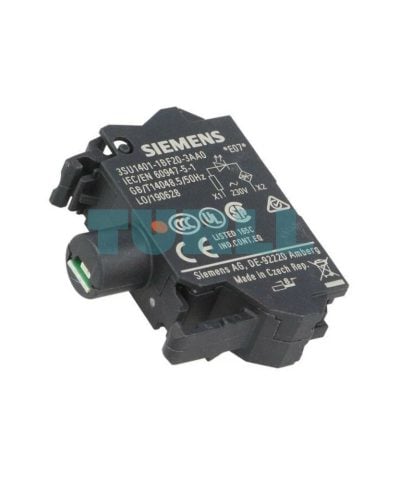

Siemens 3SU1401-1BF20-3AA0 LED Module, 230V AC, Red Indicator, Spring-Type Terminal Original Brand New
$12.22
High-performance LED module from the SIRIUS ACT series. Featuring an integrated red LED and 230V AC operation, this module utilizes vibration-resistant spring-type terminals for reliable front plate mounting in industrial control panels.
Availability: In stock
Overview
The Siemens 3SU1401-1BF20-3AA0 LED Module is a high-quality industrial signaling component designed for reliable visual indication in control panels and automation systems. Featuring an integrated red LED, this module operates on 230 V AC and is engineered for front plate mounting, ensuring quick installation and long-term durability. With a spring-type terminal, it provides secure and maintenance-free electrical connections, making it ideal for demanding industrial environments.
Benefit
-
Extreme Durability: Long-lasting LED technology reduces maintenance costs and downtime.
-
Vibration Resistant: Spring-type terminals ensure a secure electrical connection even in high-vibration environments.
-
Simple Installation: Designed for front plate mounting with the intuitive SIRIUS ACT “snap-on” mechanism.
-
High Visibility: Intense red illumination provides clear status signaling from a distance.
Function
-
Provides visual status and fault indication
-
Enhances safety and monitoring in control panels
-
Suitable for automation systems, machinery, and electrical cabinets
-
Ensures stable illumination under continuous operation
Technical Features
-
Brand: Siemens
-
Product Number: 3SU1401-1BF20-3AA0
-

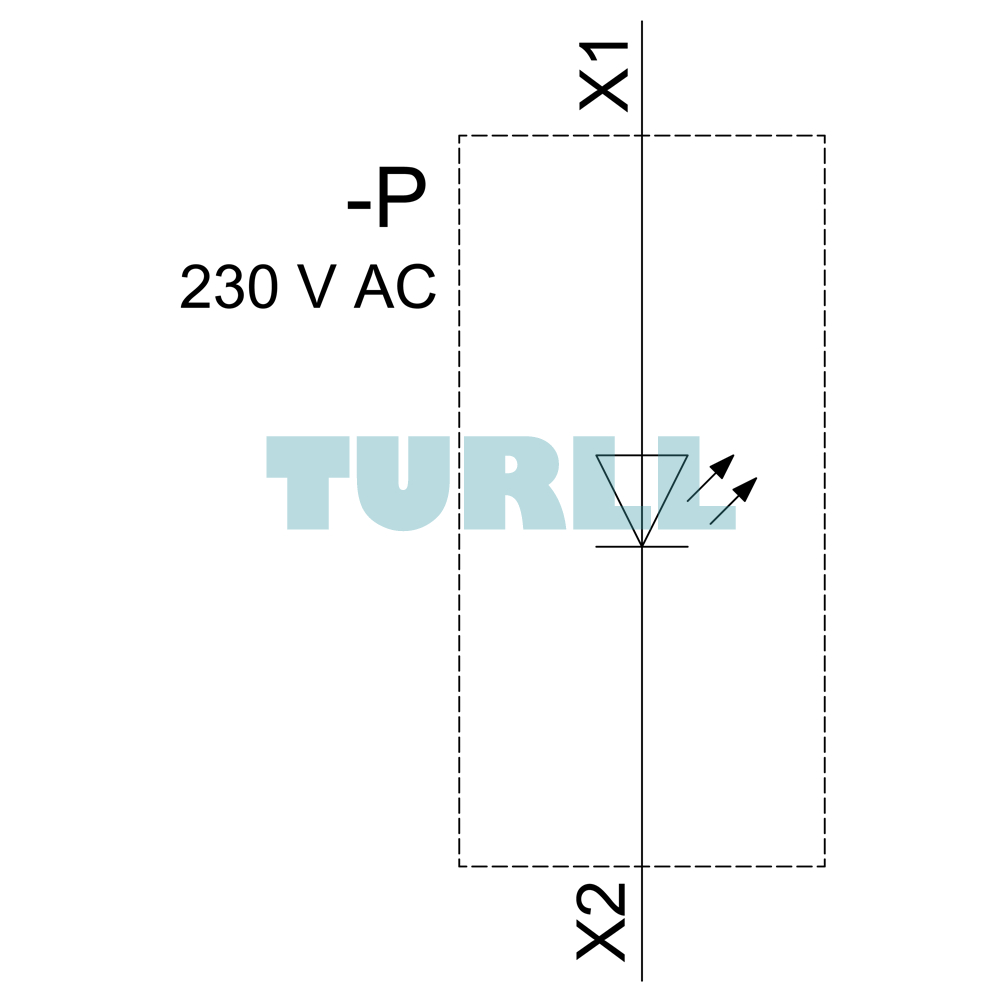

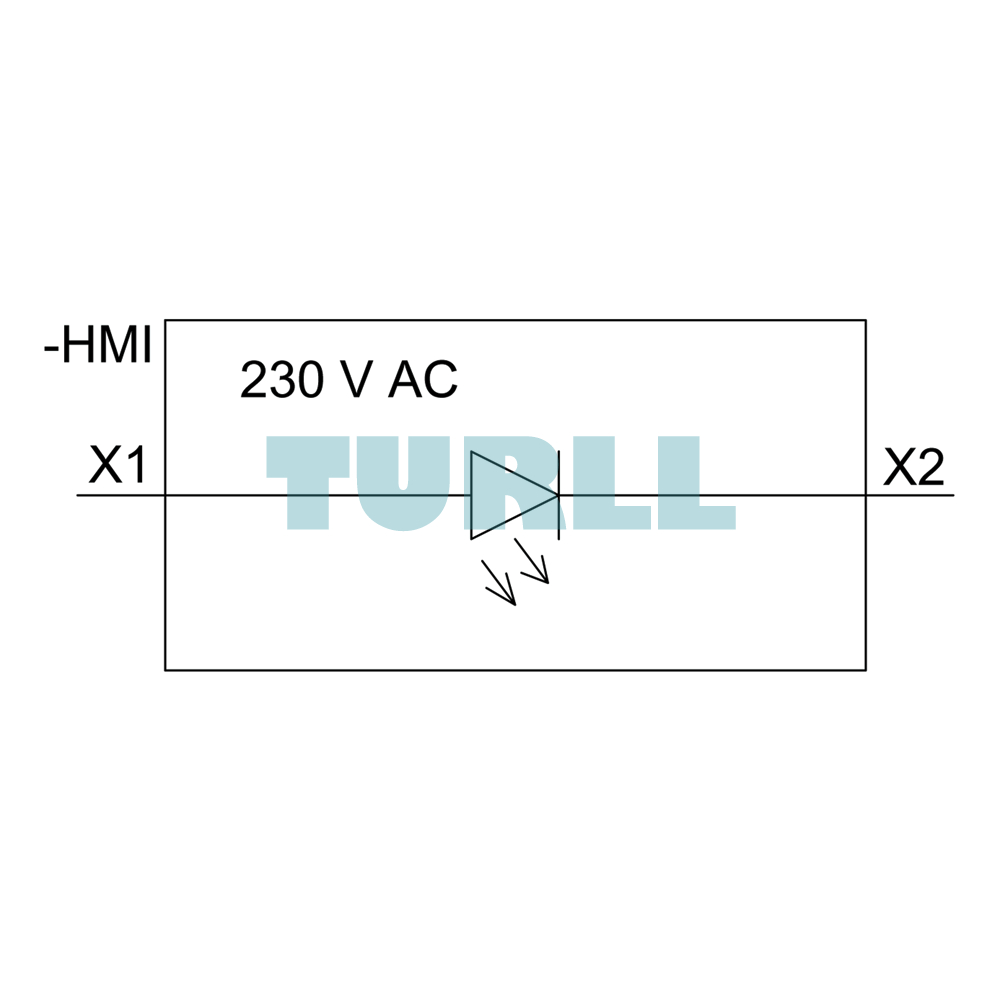

Voltage Rating: 230 V AC
-
LED Color: Red
-
Terminal Type: Spring-type terminal
-
Mounting Type: Front plate mounting
-
Application: Industrial signaling and control systems
Visit 3SU1401-1BF20-3AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.009 kg |
|---|---|
| Dimensions | 52.00 × 106.00 × 20.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | LED module |
| product type designation | 3SU1 |
| product component | – |
| ● diode | Yes |
| ● lamp transformer | No |
| ● light source | Yes |
| ● series resistor | No |
| insulation voltage rated value | 320 V |
| degree of pollution | 3 |
| type of voltage of the operating voltage | AC |
| ● for actuation | AC |
| surge voltage resistance rated value | 4 kV |
| consumed current maximum | 20 mA |
| protection class IP | – |
| ● of the enclosure | IP40 |
| ● of the terminal | IP20 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| ● for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| operating period typical | 100 000 h |
| reference code acc. to IEC 81346-2 | P |
| operating voltage 1 | – |
| ● at AC | – |
| — at 50 Hz rated value | 230 V |
| — at 60 Hz rated value | 230 V |
| relative positive tolerance of the operating voltage | 20 % |
| relative negative tolerance of the operating voltage | 20 % |
| inrush current maximum | 3 A |
| type of electrical connection | spring-loaded terminals |
| type of connectable conductor cross-sections | – |
| ● solid without core end processing | 2x (0.25 … 1.5 mm²) |
| ● finely stranded with core end processing | 2x (0.25 … 0.75 mm²) |
| ● finely stranded without core end processing | 2x (0.25 … 1.5 mm²) |
| ● at AWG cables | 2x (24 … 16) |
| type of light source | LED |
| color of the light source | red |
| light intensity | 450 … 1 120 mcd |
| certificate of suitability | – |
| ● ATEX | No |
| ● IECEx | No |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %, no condensation in operation permitted) |
| fastening method | – |
| ● of modules and accessories | Front plate mounting |
| last modified: | 10/6/2021 |
