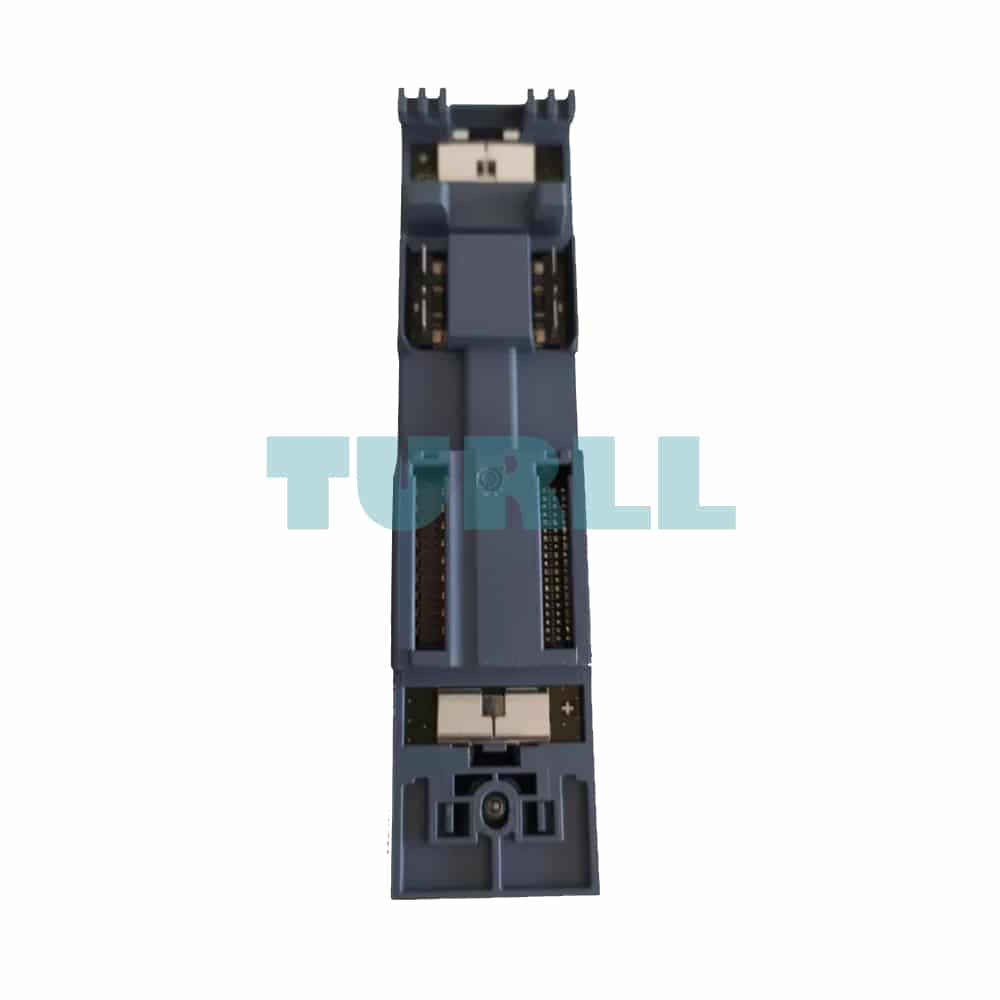

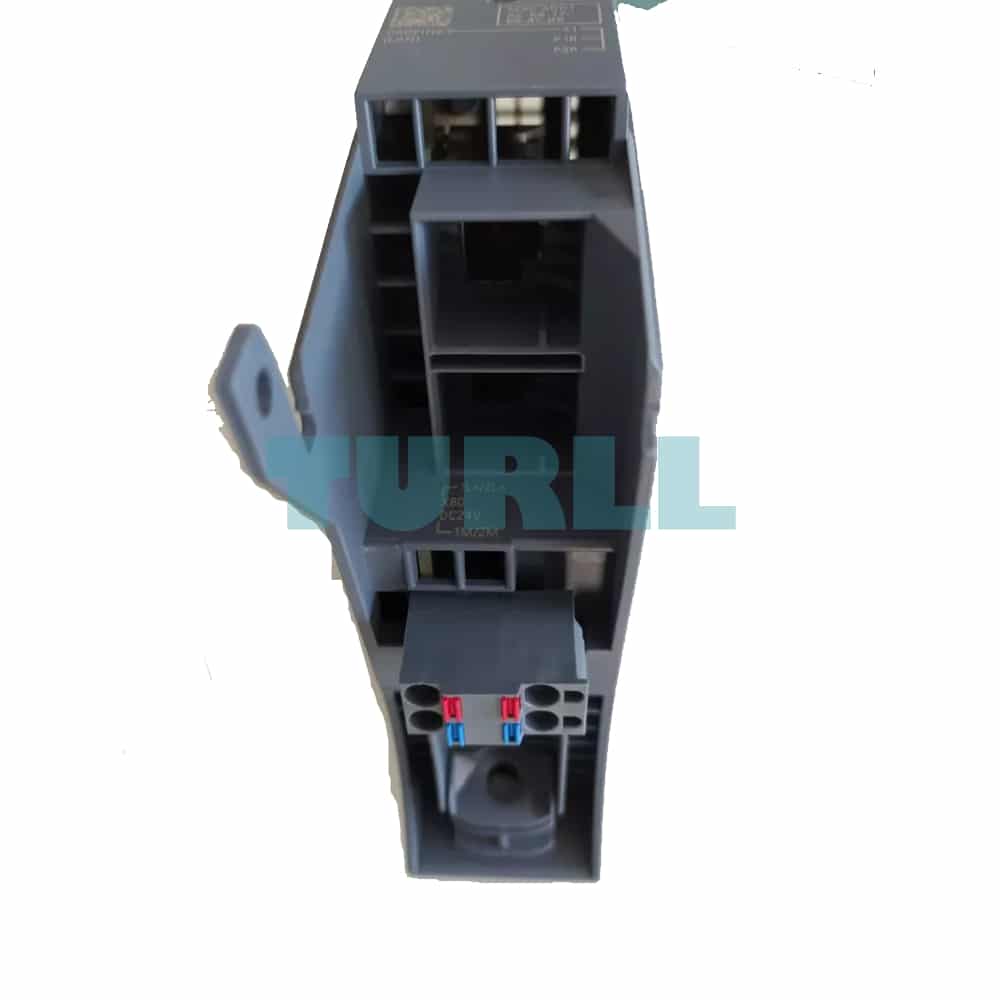

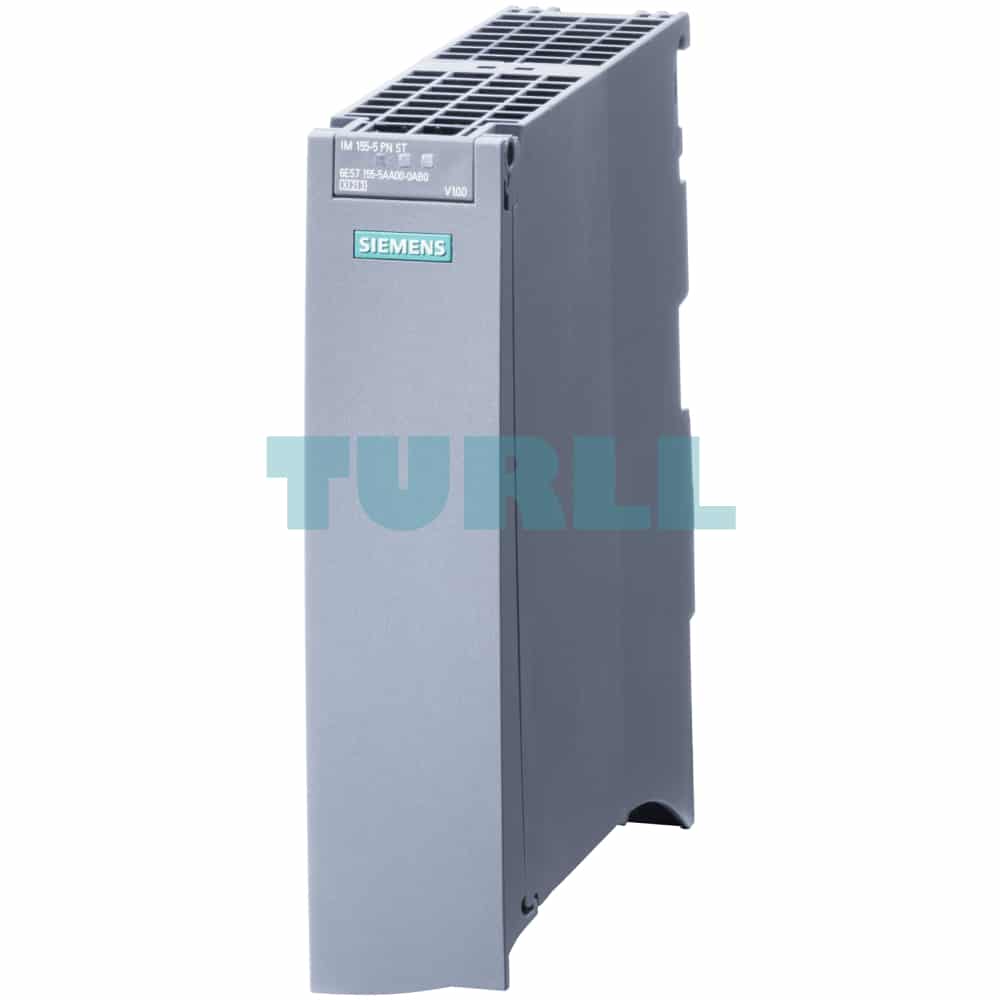

6AG1155-5AA00-2AC0 Siemens SIPLUS ET 200MP IM155-5 PN HF Original Brand New
$2,558.37
6AG1155-5AA00-2AC0
Siemens SIPLUS ET 200MP IM155-5 PN HF based on 6ES7155-5AA00-0AC0 with conformal coating, -40…+60 °C, PROFINET IO device interface module for ET 200MP electronic modules; up to 12 IO modules without PS; up to 30 IO modules with additional PS; integrated 2-port switch; RJ45 shared device; MRP; IRT >=0.25 ms; isochronous mode FW update; IM0…3; prioritized run-up S2 redundancy; shared device
[ez-toc]
Overview
- Interface module for linking the ET 200MP to PROFINET
- Handles data exchange with the PROFINET I/O controller in the PLC
- Integrated 2-port switch for line topology
- Max. 30 I/O modules
- Shortest bus cycle 250 µs
- Linking to the isochronous task of the CPU
- Prioritized fast startup (FSU) with 500 ms (max. 12 I/O modules)
- Media Redundancy Protocol (MRP)
- Shared device on up to 2 I/O controllers (when configuring using GSD file; depends on the respective configuration tool)
- Omission of SIMATIC Memory Card (SMC); IM replacement without PG using LLDP
Note:
SIPLUS extreme products are based on SIMATIC standard products. The contents listed here were taken from the corresponding standard products. SIPLUS extreme-specific information was added.
Application
The IM 155-5 interface modules enable the ET 200MP to be connected to PROFINET, Ethernet/IP, Modbus TCP and PROFIBUS and handle communication between the modules and the higher-level I/O controller autonomously.
The following modules are available:
IM 155-5 MF HF
- MultiFieldbus for connection to PROFINET, Ethernet/IP and Modbus TCP
- Max. 30 I/O modules
- Max. 1,440 byte inputs or outputs
- BusAdapter concept for universal connection with various connection systems and transmission media
- Operation of F-modules and PROFIsafe
- Operation on active backplane bus
- Support for security features such as PN Security Class 1
- Shortest bus cycle time 250 µs
- Media Redundancy Protocol (MRP)
- Support for the MRPD function (media redundancy with planned duplication)
- S2 redundancy for operation with an S7-1500 R/H
- Shared device on up to four IO controllers (when configuring using GSD file; depends on the respective configuration tool)
- Submodule-granular shared device with up to four IO controllers
- Module shared input and module shared output (MSI/MSO), i.e. the inputs or outputs of a module can be made available simultaneously to up to four IO controllers
- Configuration control (option handling)
- Operation on a highly available SIMATIC S7-400H
- Optional cable grip for increased mechanical stress
IM 155-5 PN HF
- For connection to PROFINET
- Max. 30 I/O modules
- Max. 512 byte inputs or outputs
- Shortest bus cycle time 250 µs
- Connecting to the isochronous task of the CPU
- Prioritized fast startup (FSU) with max. 12 I/O modules
- Media Redundancy Protocol (MRP)
- Shared device on up to two IO controllers (when configuring using GSD file; depends on the respective engineering tool)
- Omission of SIMATIC Memory Card (SMC); IM replacement without PG using LLDP
- Operation of F-modules and PROFIsafe
- Submodule-granular shared device with up to two IO controllers
- Configuration control (option handling)
- Module shared input and module shared output (MSI/MSO), i.e. the inputs or outputs of a module can be made available simultaneously to up to two IO controllers
- Shared device on up to 4 IO controllers
- Module shared input and module shared output (MSI/MSO) on up to four IO controllers
- Operation on a highly available SIMATIC S7-400H
- Support for the MRPD function (media redundancy with planned duplication)
- S2 redundancy for operation with an S7-1500 R/H
- Operation on the active backplane bus (as of FW V 4.4.1)
IM 155-5 PN ST
- For connection to PROFINET
- Max. 30 I/O modules
- Max. 512 byte inputs or outputs
- Shortest bus cycle time 250 µs
- Connecting to the isochronous task of the CPU
- Prioritized fast startup (FSU) with max. 12 I/O modules
- Media Redundancy Protocol (MRP)
- Shared device on up to two IO controllers (when configuring using GSD file; depends on the respective engineering tool)
- Omission of SIMATIC Memory Card (SMC); IM replacement without PG using LLDP
- Operation of F-modules and PROFIsafe
- Submodule-granular shared device with up to two IO controllers
- Configuration control (option handling)
- Module shared input and module shared output (MSI/MSO), i.e. the inputs or outputs of a module can be made available simultaneously to up to two IO controllers
IM 155-5 PN BA
- For connection to PROFINET
- Max. 64 byte inputs or outputs
- Max. 12 I/O modules
- Operation of F-modules and PROFIsafe
- Shortest bus cycle time 1 ms
- Media redundancy (MRP)
- Shared device on up to 2 IO controllers
- Omission of SIMATIC Memory Card (SMC); IM replacement without PG using LLDP
IM 155-5 DP ST
- For connection to PROFIBUS
- Max. 64 byte inputs or outputs
- Max. 12 I/O modules
- Automatic detection of baud rate 9.6 kBd … 12 MBd
- PROFIBUS addresses 1 … 125; adjustable using DIP switches
- Identification and maintenance data IM0 … IM3
Design
The IM 155-5 interface modules are screwed directly onto the S7-1500 mounting rail. They feature:
- Diagnostics displays for errors (Error), operation (RUN), maintenance (MAINT) and one Link-LED per port (not for PROFIBUS)

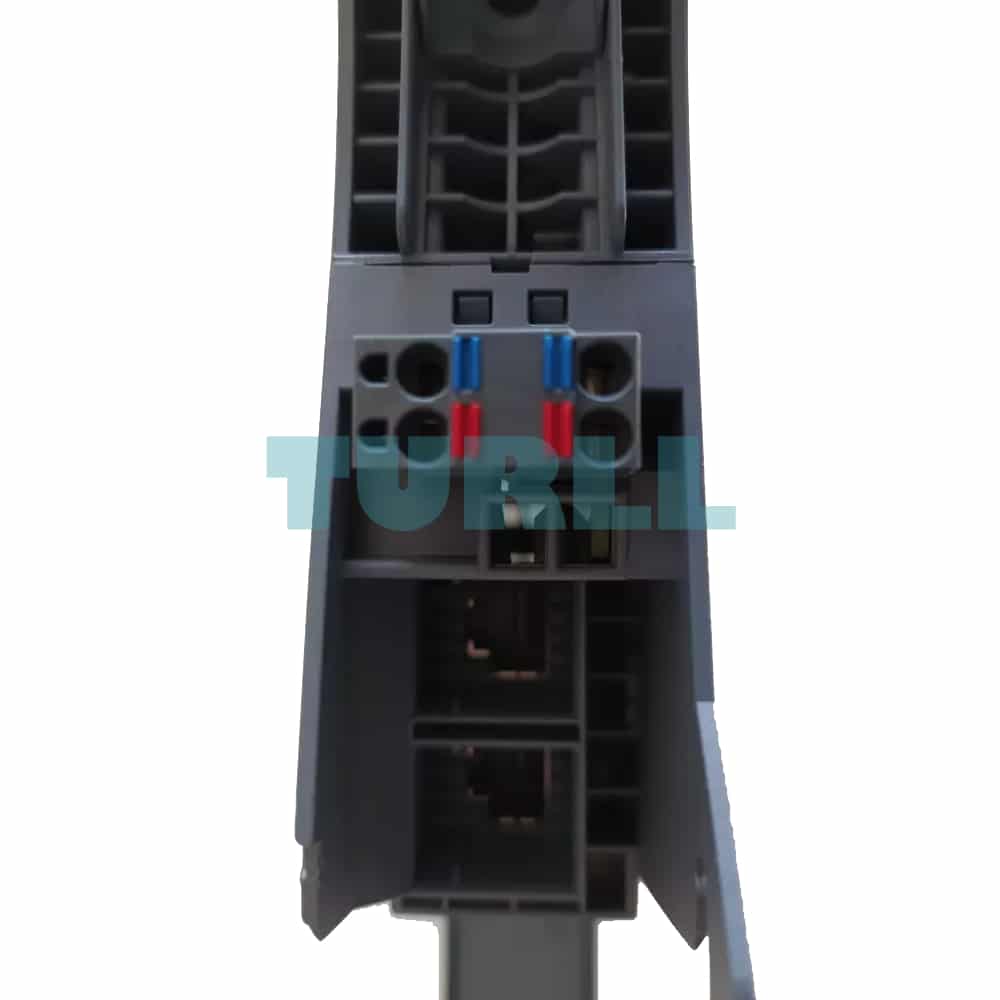

- 24 V DC supply unit for looping through the supply voltage
- Protection of interface module against unauthorized access possible using lock, seal or cable tie
The connection system differs depending on the module:
- IM 155-5 MF HF to PROFINET, Ethernet/IP and Modbus TCP via MultiFieldbus and pluggable BusAdapters with various connection systems and transmission media

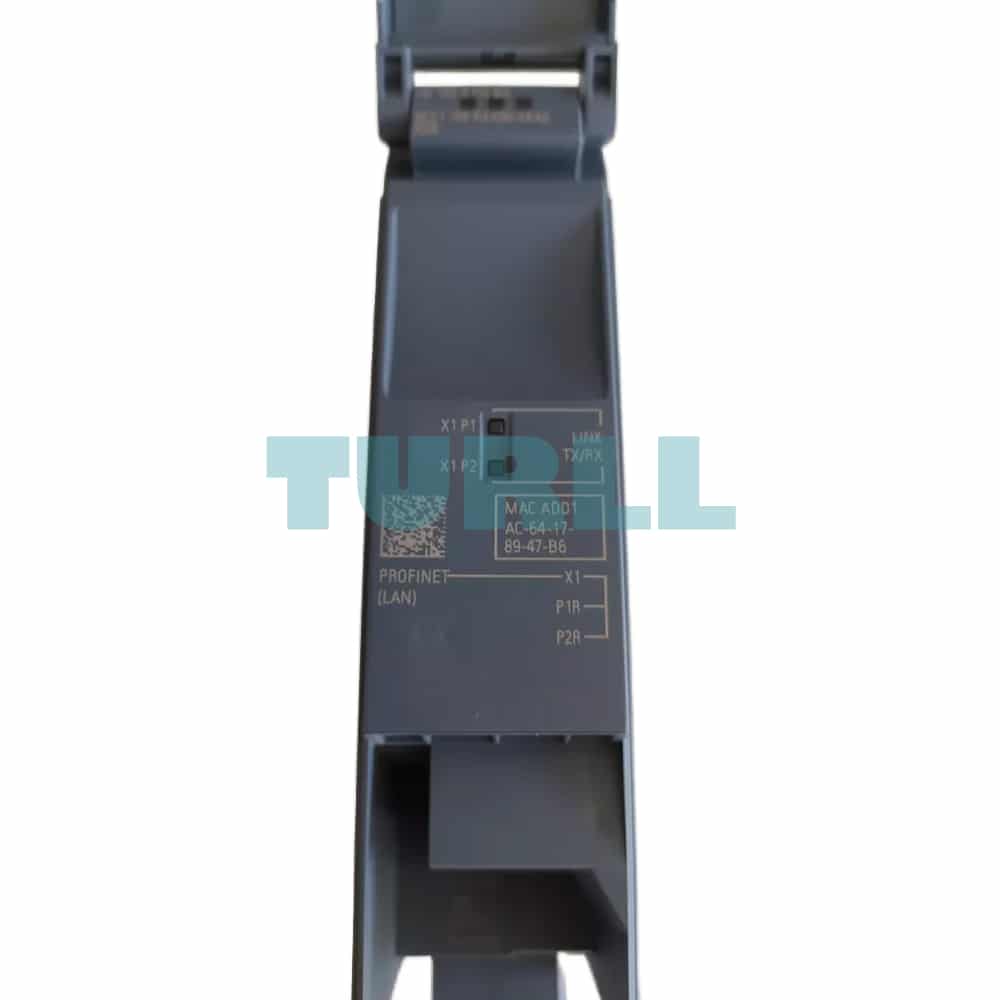

- IM 155-5 PN BA/ST/HF to PROFINET via RJ45 connector
- IM 155-5 DP ST to PROFIBUS using 9-pin D-sub connector; one PROFIBUS connector of type 6ES7972-0BB70-0XA0 is included in the scope of supply.
6AG1155-5AA00-2AC0
Siemens SIPLUS ET 200MP IM155-5 PN HF based on 6ES7155-5AA00-0AC0 with conformal coating, -40…+60 °C, PROFINET IO device interface module for ET 200MP electronic modules; up to 12 IO modules without PS; up to 30 IO modules with additional PS; integrated 2-port switch; RJ45 shared device; MRP; IRT >=0.25 ms; isochronous mode FW update; IM0…3; prioritized run-up S2 redundancy; shared device
Visit 6AG1155-5AA00-2AC0
For more our products visit turll.com
| Weight | 0.373 kg |
|---|---|
| Dimensions | 150 × 150 × 44 mm |
