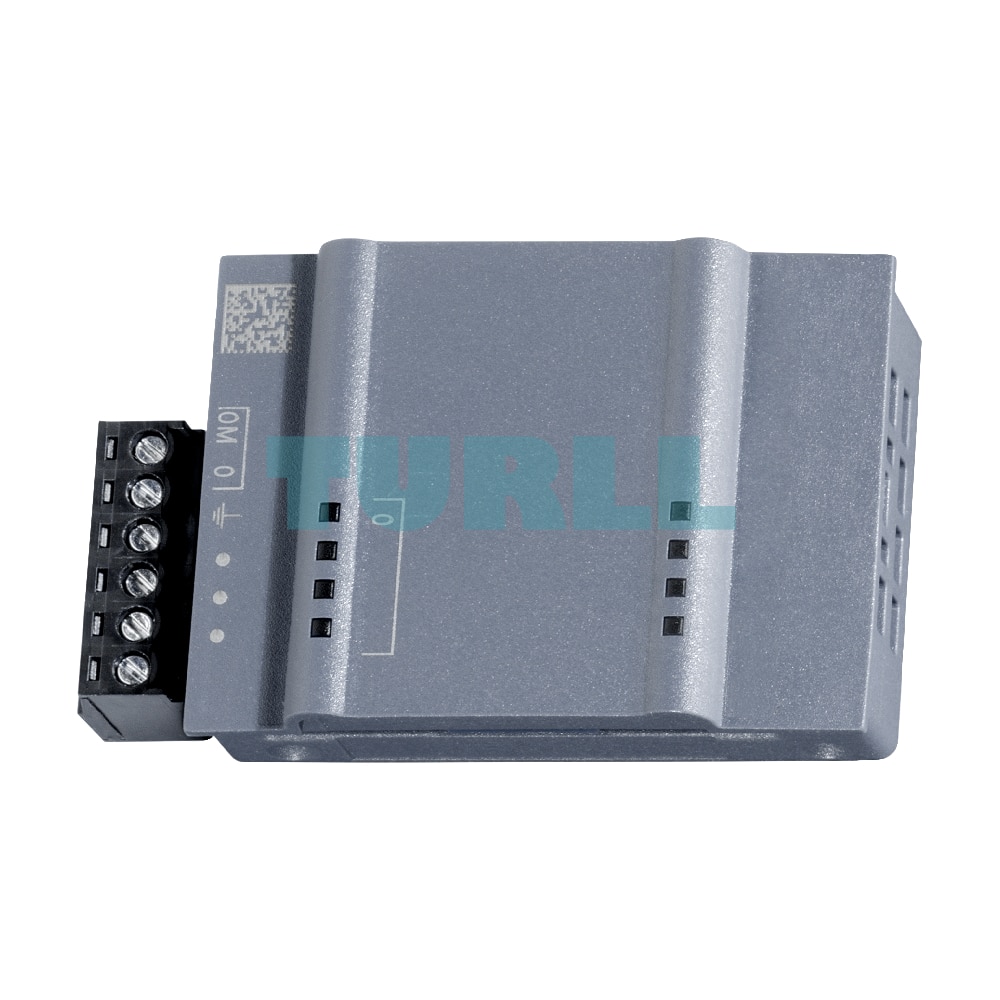

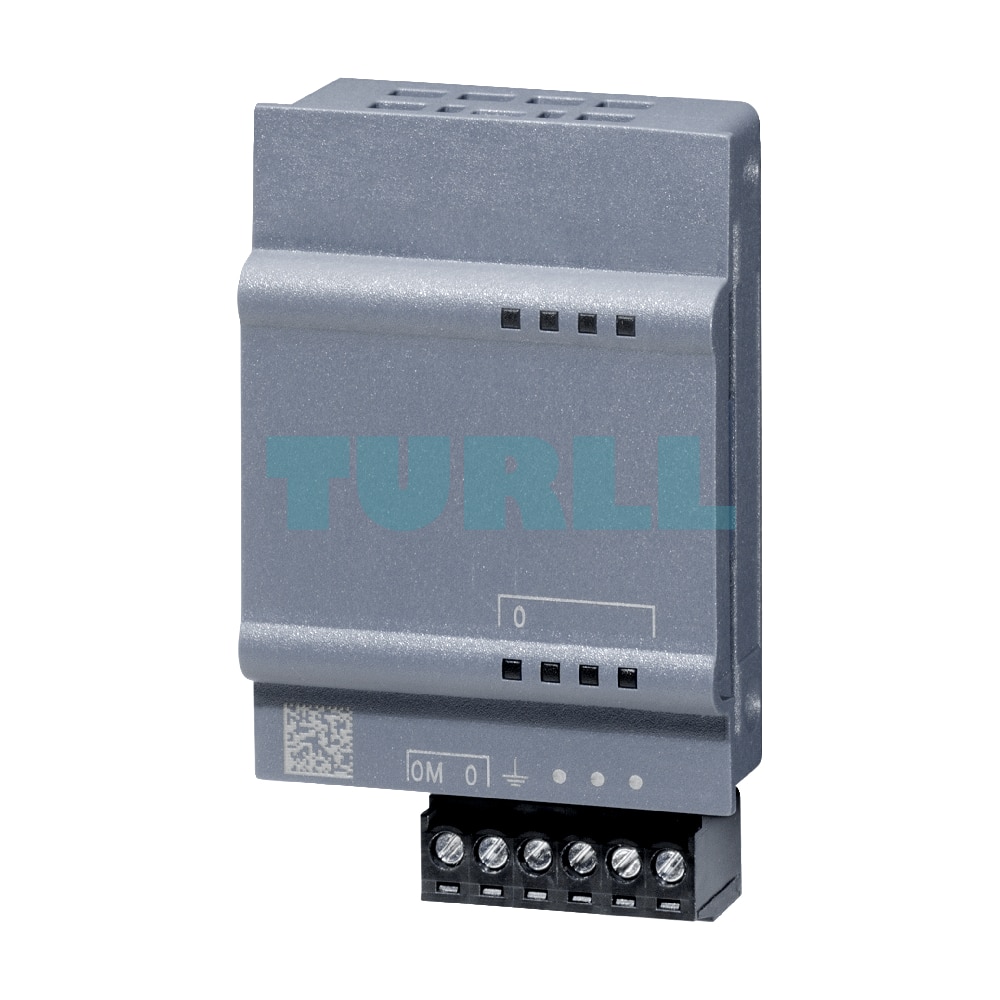

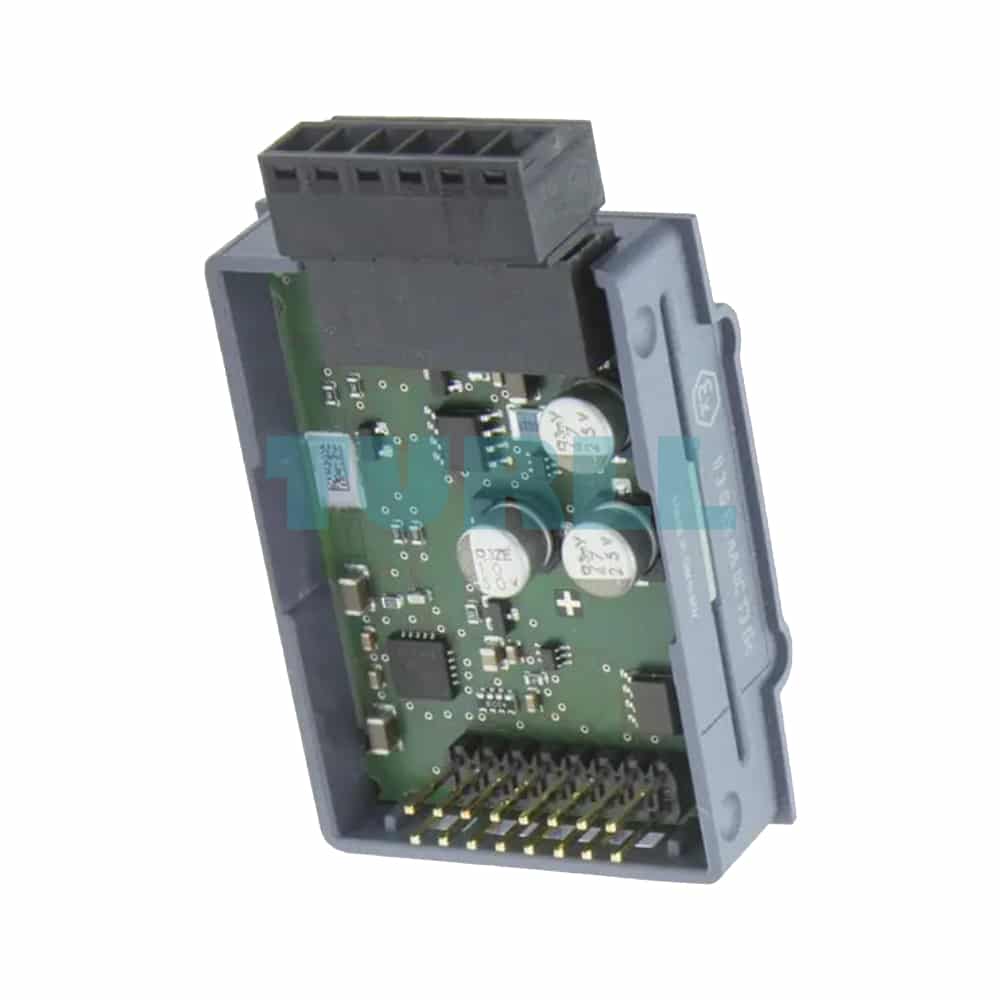

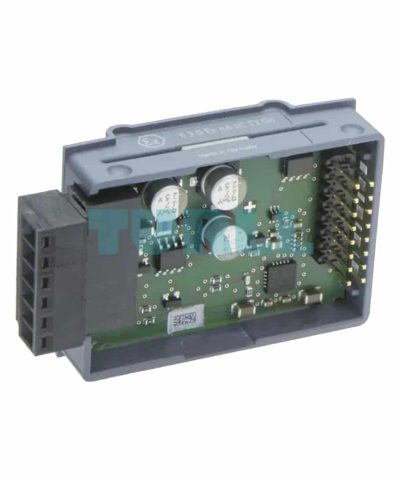

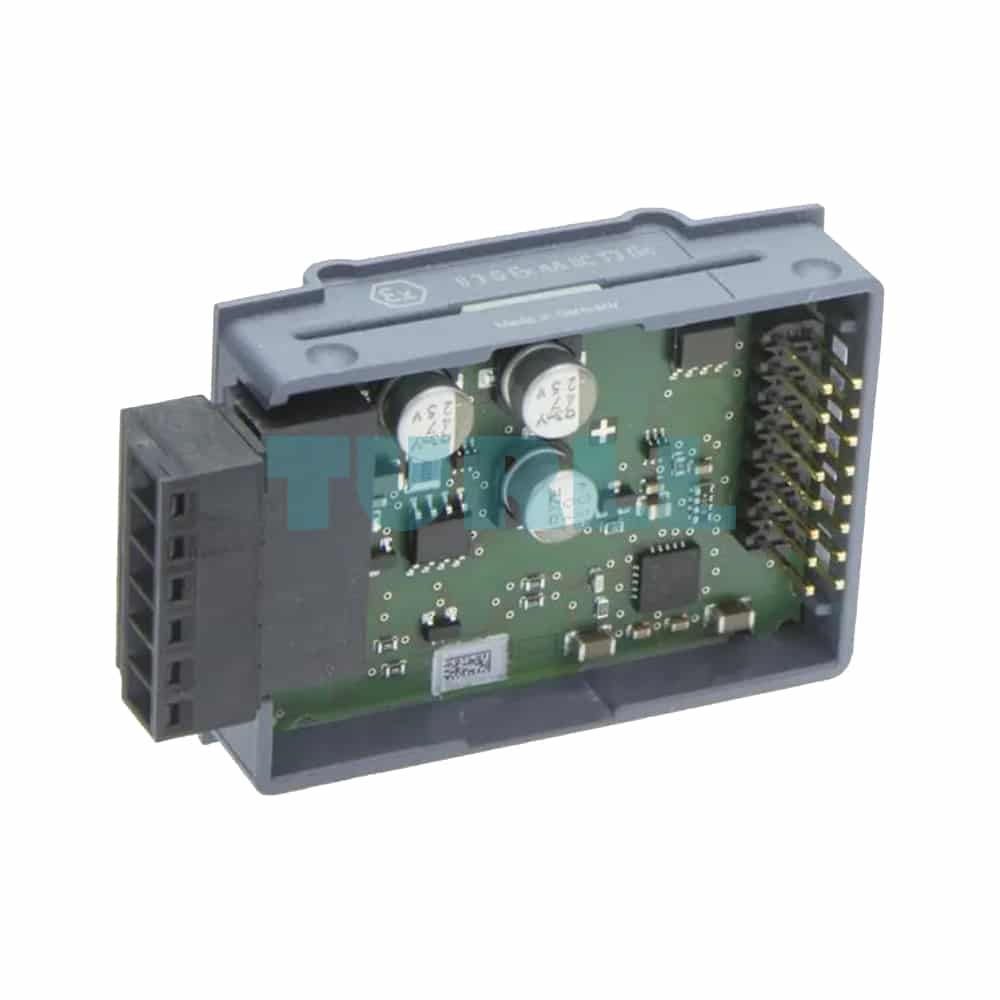

6AG1232-4HA30-4XB0 Siemens SIPLUS S7-1200 SB 1232 1AQ Original Brand New

Model / SKU6AG1232-4HA30-4XB0

6AG1232-4HA30-4XB0

Siemens SIPLUS S7-1200 SB 1232 1AQ based on 6ES7232-4HA30-0XB0 with conformal coating, -20…+60 °C, analog output 1 AQ, +/-10 V DC (12 bit resolution) or 0-20 mA (11 bit resolution)

$376.89
Available on backorder
  • ConditionOriginal Brand New
  • Warranty12 months

Backorder available · Factory lead time 2–3 weeks.

Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

[ez-toc]

Overview

  • Analog output for SIPLUS S7-1200
  • Can be plugged directly into the CPU (cannot be used for +70 °C version)
Note:

SIPLUS extreme products are based on SIMATIC standard products. The contents listed here were taken from the respective standard products. SIPLUS extreme-specific information was added.

Application

The SB 1232 analog output signal board permits the use of analog outputs.

This provides users with the following advantages:

  • Optimal adaptation:
    Signal boards can be used where space is limited or if only a few additional inputs/outputs are required. Each S7-1200 CPU can be modularly expanded by a signal board. This does not increase the mounting space required for the controller.
  • Direct connection of sensors and actuators:
    Up to 14 bit resolution and different output ranges permit the connection of actuators without additional amplifier.
  • Flexibility:
    If the task is expanded subsequently, the controller can be upgraded. Updating of the user program is extremely simple.

Design

The signal boards are plugged directly into the receptacle on the front of each S7-1200 CPU.

  • Mounting:
    Signal boards are plugged directly into the SIMATIC S7-1200 CPU and are thus electrically and mechanically connected to the CPU.
  • The CPU mounting dimensions remain unchanged.
  • All signal boards are easy to replace thanks to removable connecting terminals ("independent wiring").

Function

The SB 1232 analog output signal board converts digital signals of the S7-1200 controller into analog signals for the process.

6AG1232-4HA30-4XB0

Siemens SIPLUS S7-1200 SB 1232 1AQ based on 6ES7232-4HA30-0XB0 with conformal coating, -20…+60 °C, analog output 1 AQ, +/-10 V DC (12 bit resolution) or 0-20 mA (11 bit resolution)

Visit 6AG1232-4HA30-4XB0

For more our products visit turll.com

Specifications

SKU / Model6AG1232-4HA30-4XB0
Weight0.03 kg
Dimensions50 × 80 × 25 mm
