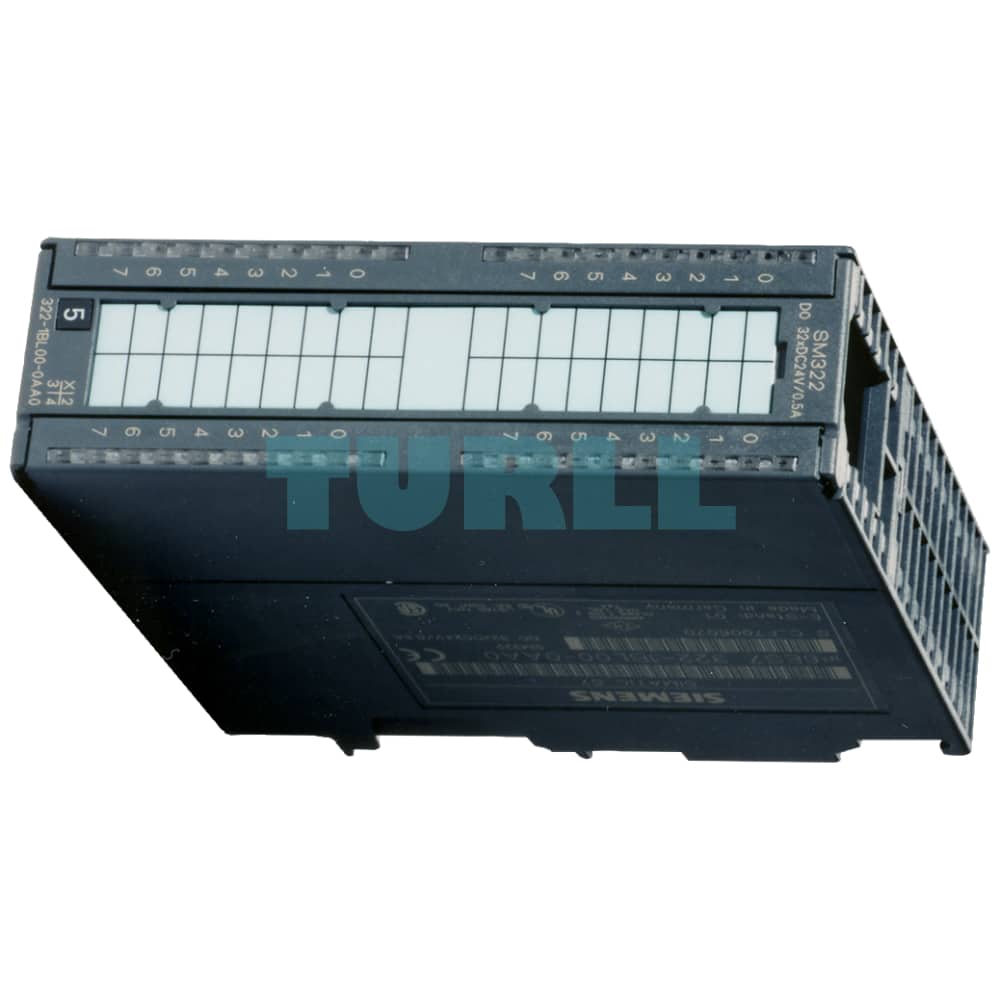

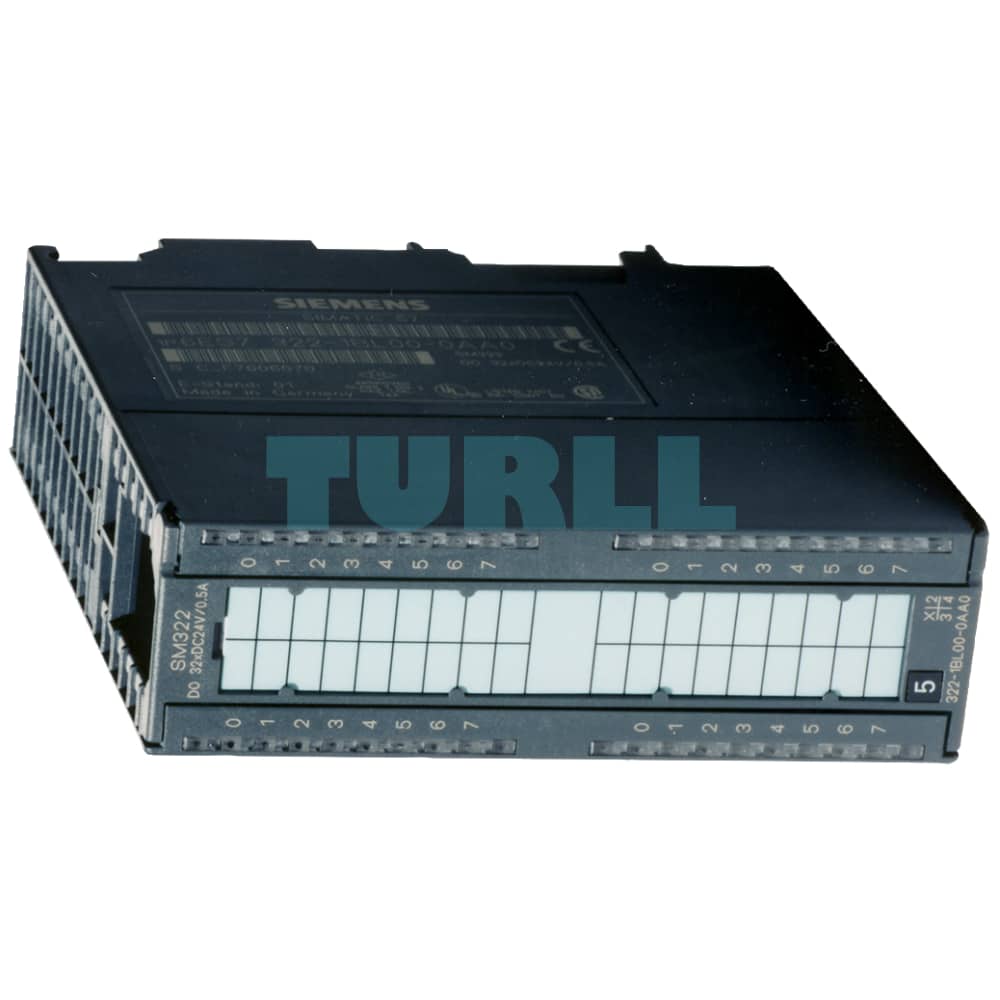

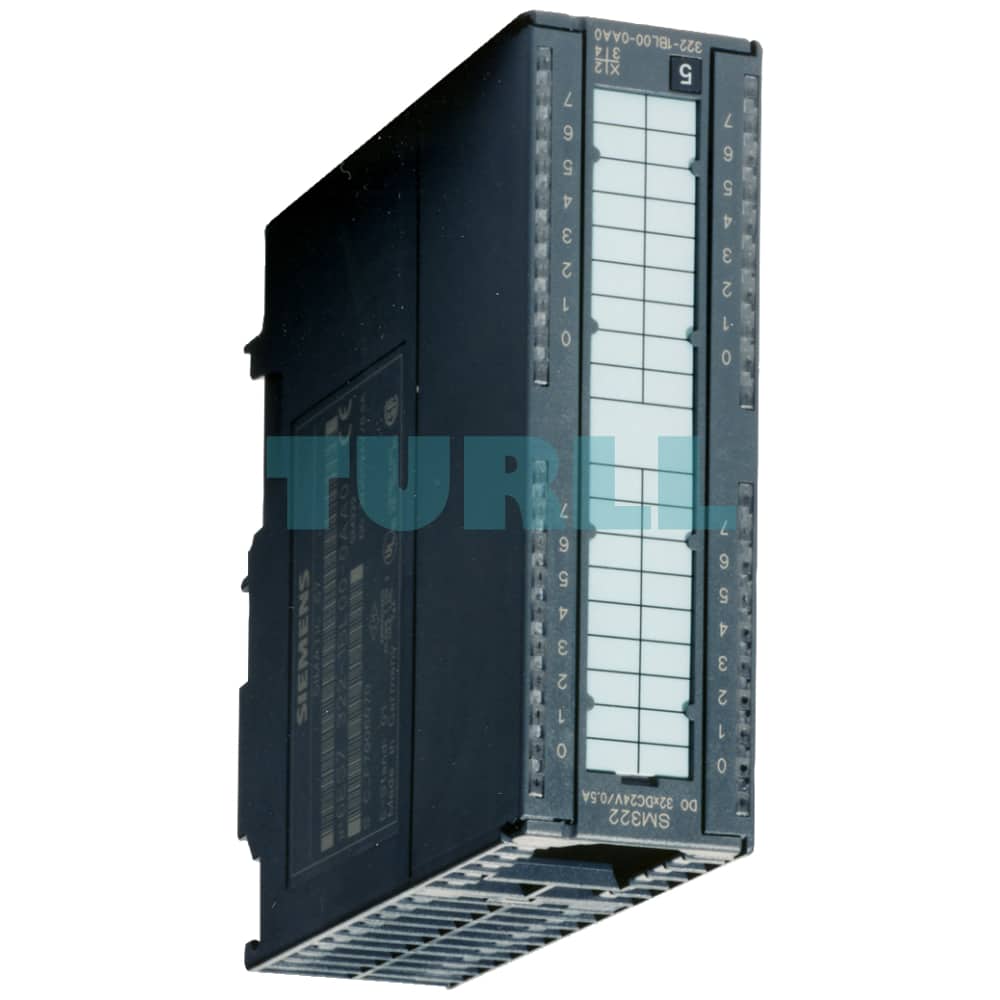

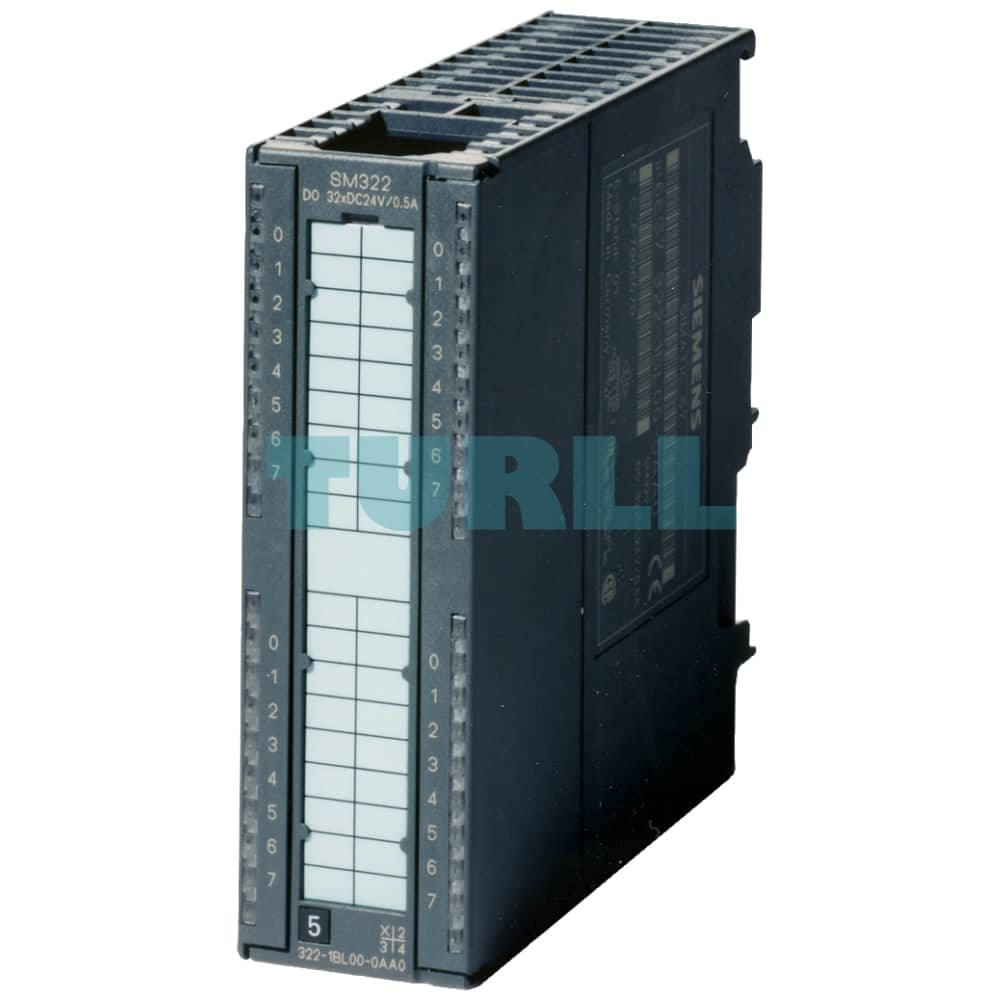

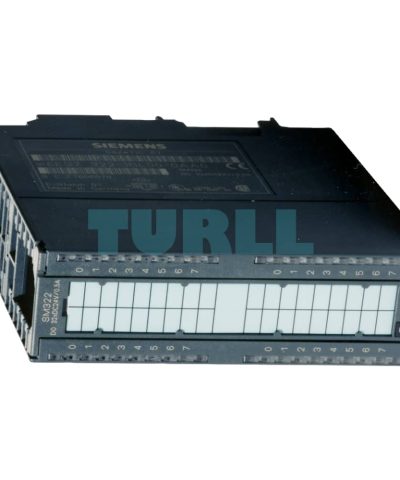

6AG1322-8BF00-2AB0 Siemens SIPLUS S7-300 SM 322 Original Brand New
$1,885.73
6AG1322-8BF00-2AB0
Siemens SIPLUS S7-300 SM 322-20-pole based on 6ES7322-8BF00-0AB0 with conformal coating, -25…+60 °C,
[ez-toc]
Overview
- Digital outputs
- For connecting solenoid valves, contactors, small-power motors, lamps and motor starters
Note:
SIPLUS extreme products are based on SIMATIC standard products. The contents listed here were taken from the respective standard products. SIPLUS extreme-specific information was added.
Application
Digital output modules permit the output of digital signals from the PLC to the process by converting the internal signal level of the S7-300 into the external signal level required by the process.
They are suitable for connecting solenoid valves, contactors, small-power motors, lamps and motor starters, for example.
Design
Digital output modules feature the following mechanical characteristics:
- Compact design:
- Green LEDs for indicating the signal status at the outputs.
- Socket for the front connector, protected, behind the front door.
- Labeling field on the front door.
- Connector pin assignment for the wiring on the inside of the front door.
- Easy installation:
There are no slot rules, the addresses of the outputs are determined by the slot.
When used in ET 200M in combination with active bus modules, hot swapping is possible without any reaction. - User-friendly wiring.
- RC filter (for relay module 6ES7 322-1HF20):
Relay module 6ES7 322-1HF20-0AA0 has a connectable RC damping network (300 Ω/0.1 μF) for reducing the arcing at the contacts when large inductive loads are switched (power factor = 0.4). This results in, for example:- An increase in the service life of the contacts from 100,000 to 200,000 switching cycles when a motor starter for a NEMA motor of frame size 5 is activated.
The modules are available with 8, 16, 32, or 64 channels.
Function
Digital output modules convert the internal signal level of the controller (logical “0” or “1”) to the external signal level required by the process.
Various output voltages support the output of different process signals:
- 24 V DC, rated current 0.5 A/channel
- 24 V DC, rated current 2 A/channel
- 48 to 125 V DC
- 120/230 V AC
Apart from cost-effective, easy-to-handle digital output modules, modules with special functions are also available for process engineering.
6AG1322-8BF00-2AB0
Siemens SIPLUS S7-300 SM 322-20-pole based on 6ES7322-8BF00-0AB0 with conformal coating, -25…+60 °C,
Visit 6AG1322-8BF00-2AB0
For more our products visit turll.com
| Weight | 0.249 kg |
|---|---|
| Dimensions | 150 × 130 × 50 mm |
