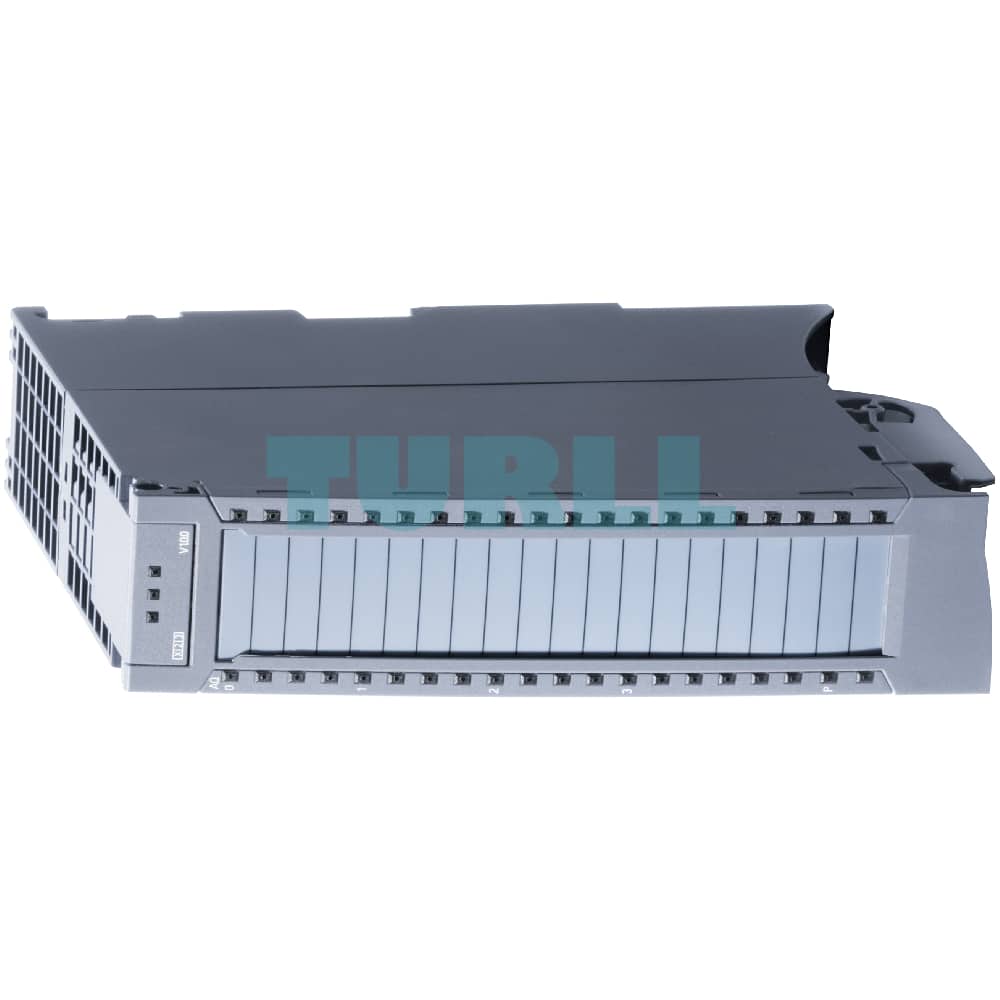

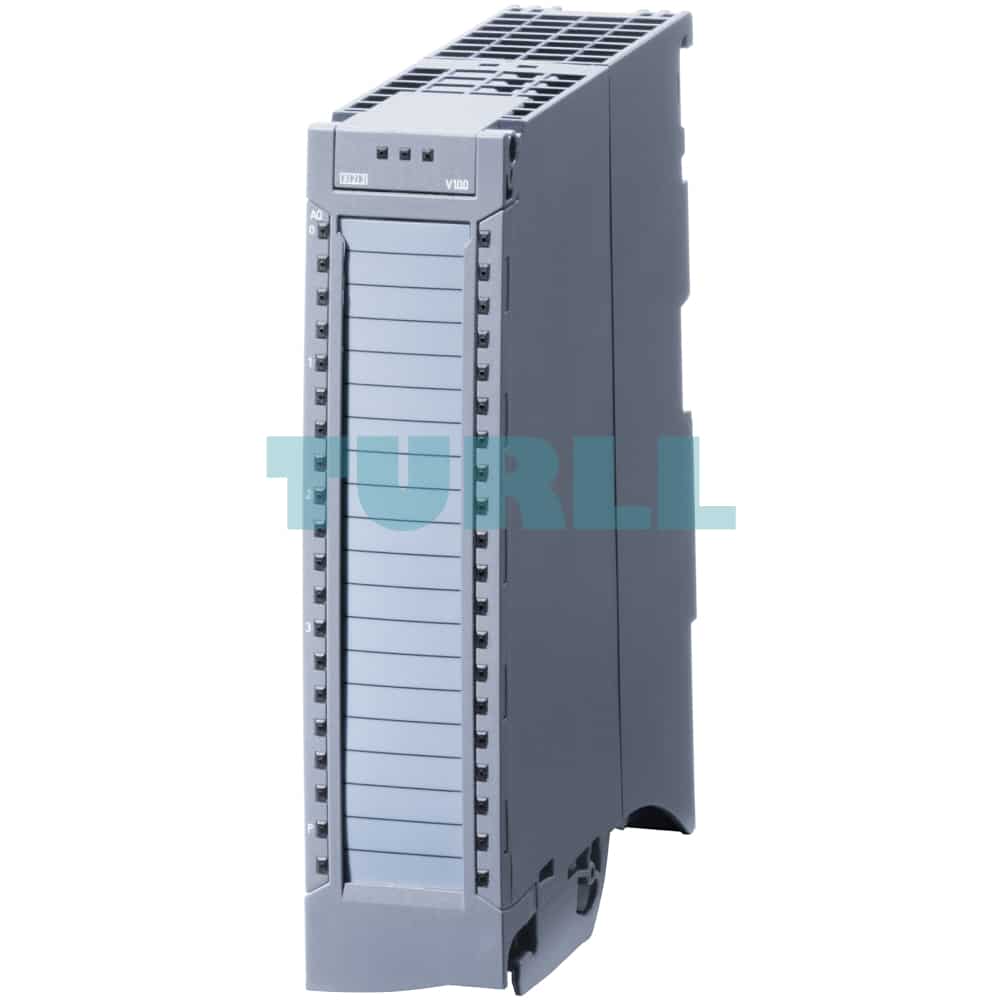

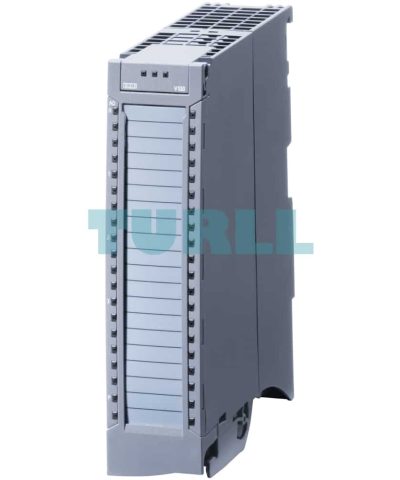

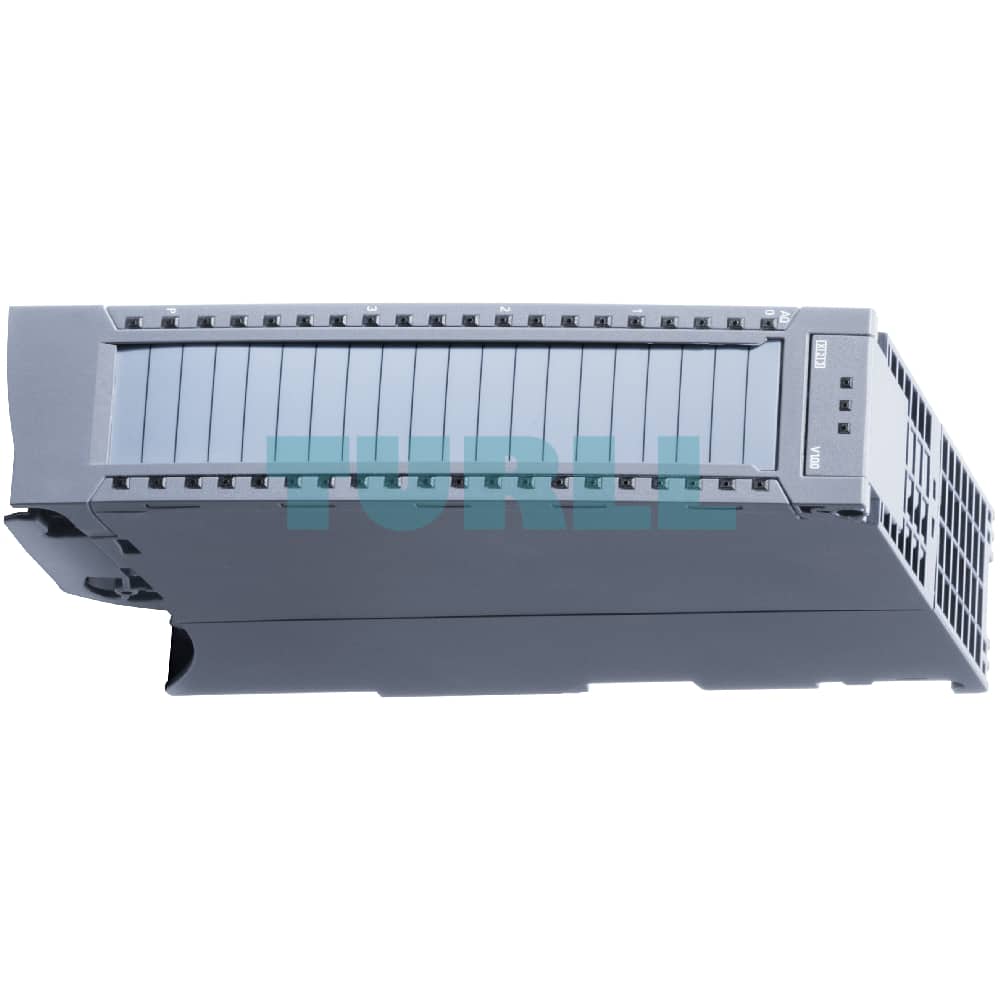

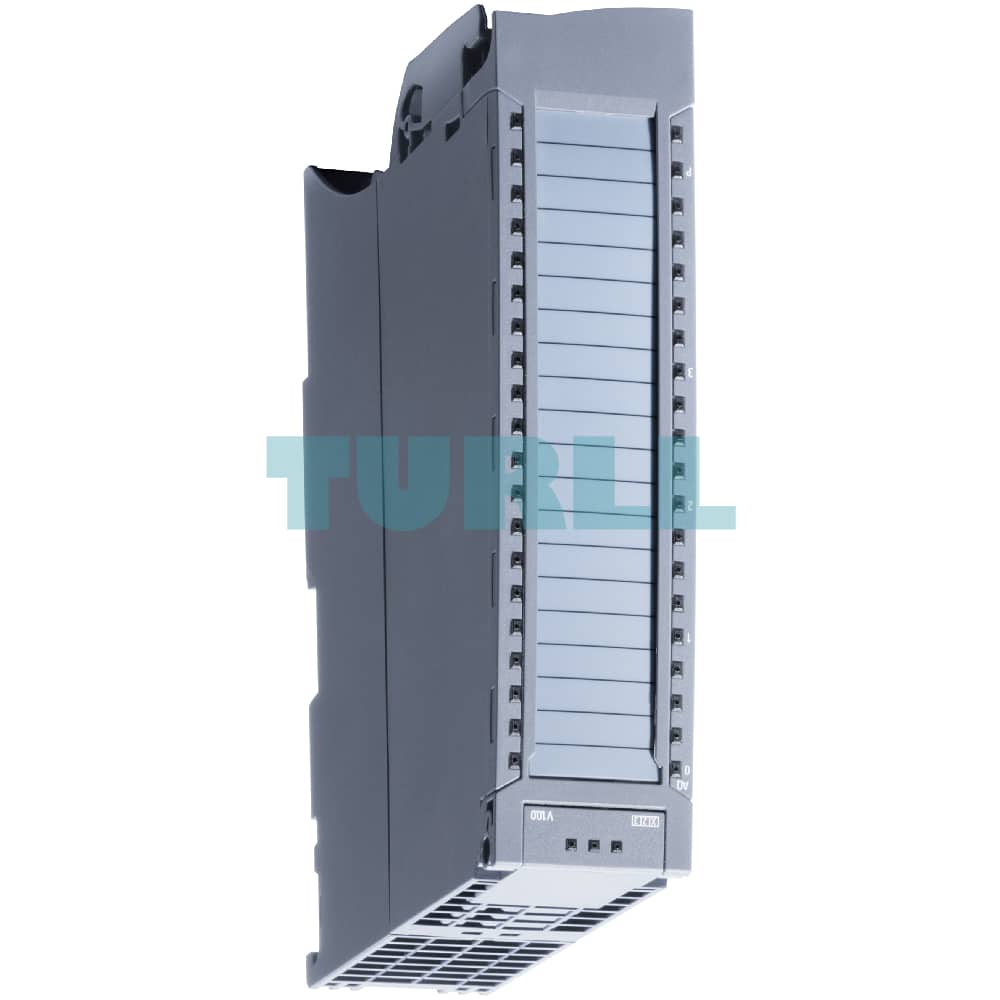

6AG1532-5HD00-7AB0 Siemens SIPLUS S7-1500 AQ 4xU/I ST Original Brand New
$2,200.59
6AG1532-5HD00-7AB0
Siemens SIPLUS S7-1500 AQ 4xU/I ST based on 6ES7532-5HD00-0AB0 with conformal coating, -40…+70 °C, analog output module 16-bit resolution, accuracy 0.3%. 4 channels in groups of 4, diagnostics; substitute value including infeed element, shielding bracket and shield terminal
[ez-toc]
Overview
- 4 and 8-channel analog output modules
- Optionally with extremely short conversion times
- For connecting analog actuators without additional amplifiers
- Even solves more complex automation tasks
Note:
SIPLUS extreme products are based on SIMATIC standard products. The contents listed here were taken from the respective standard products. SIPLUS extreme-specific information was added.
Application
Analog output modules convert a 16-bit digital value into a current or a voltage and output this to the process. They are suitable, for example, for controlling proportional valves or small servo drives.
Design
- Installation on the S7-1500 mounting rail using one single screw
- Standardized 40-pin front connector using screw terminal or push-in technology
- Connectable core cross-sections: 0.25 mm2 to 1.5 mm2 (AWG24 to 16), regardless of the front connector used
- Front connector can be set to prewiring position
- Front flap with expandable cable compartment, even if fully wired
- Integrated shielding concept
- Unambiguous labeling on front of module:
- Module type
- Article No.
- Hardware and firmware version
- Channel numbers labeling
- Cabling diagram
Included in the scope of delivery:
- Infeed element, shield clamp, and shield terminal
- One labeling strip for manual labeling
- One U connector
- Printed front door
Function
- Uniform display and diagnostics concept:
- Module status display for ERROR (red LED) and RUN (green LED)
- Channel status display (channel activated or deactivated, green LED) or diagnostics display (red LED)
- Display for monitoring the 24 V DC supply voltage (green LED)
- Supported functions:
- Consistently high resolution of 16 bits
- Identification and maintenance data IM0 to IM3
- Firmware update
- Channel-specific parameter assignment
- Channel-granular diagnostics (depends on measurement type/measuring range)
- Substitute values can be parameterized for the outputs
- Calibration during runtime
- Isochronous mode (dependent on the module)
6AG1532-5HD00-7AB0
Siemens SIPLUS S7-1500 AQ 4xU/I ST based on 6ES7532-5HD00-0AB0 with conformal coating, -40…+70 °C, analog output module 16-bit resolution, accuracy 0.3%. 4 channels in groups of 4, diagnostics; substitute value including infeed element, shielding bracket and shield terminal
Visit 6AG1532-5HD00-7AB0
For more our products visit turll.com
| Weight | 0.2 kg |
|---|---|
| Dimensions | 410 × 191 × 164 mm |
