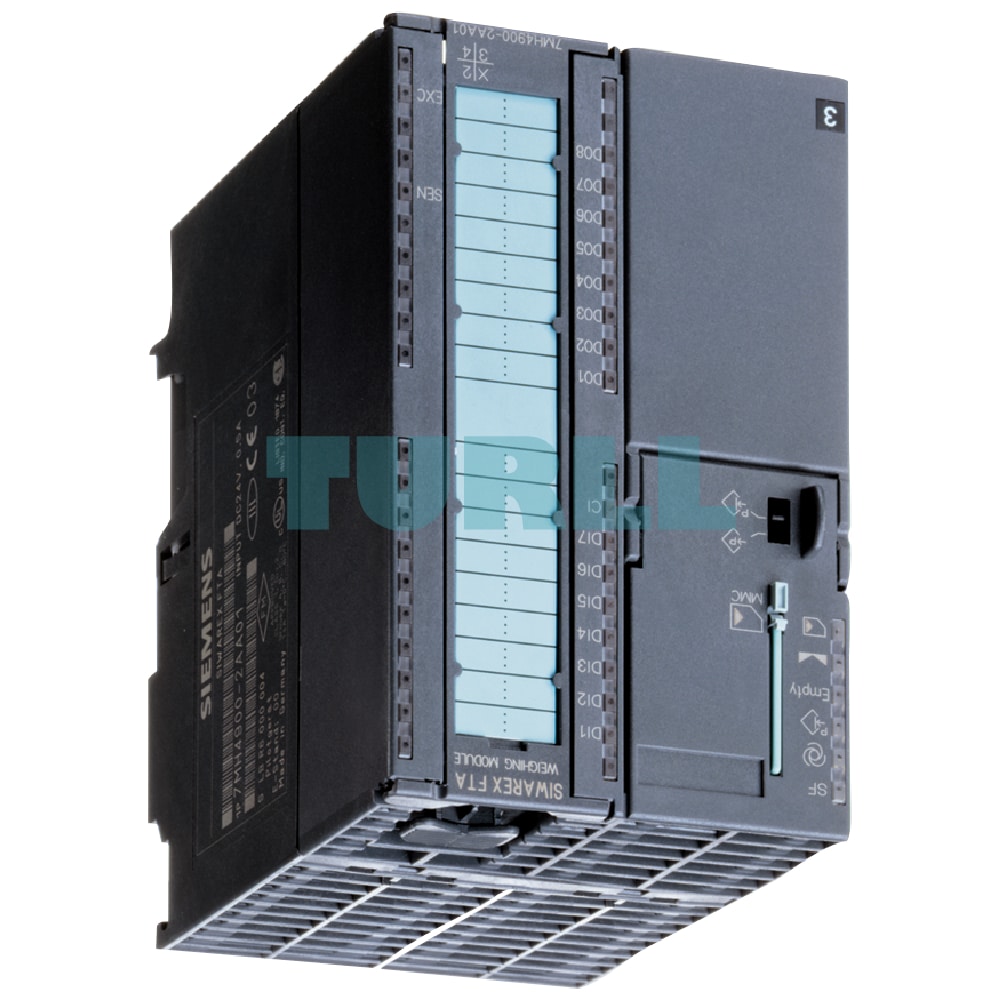

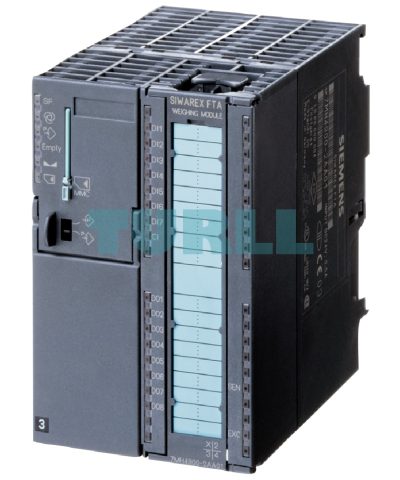

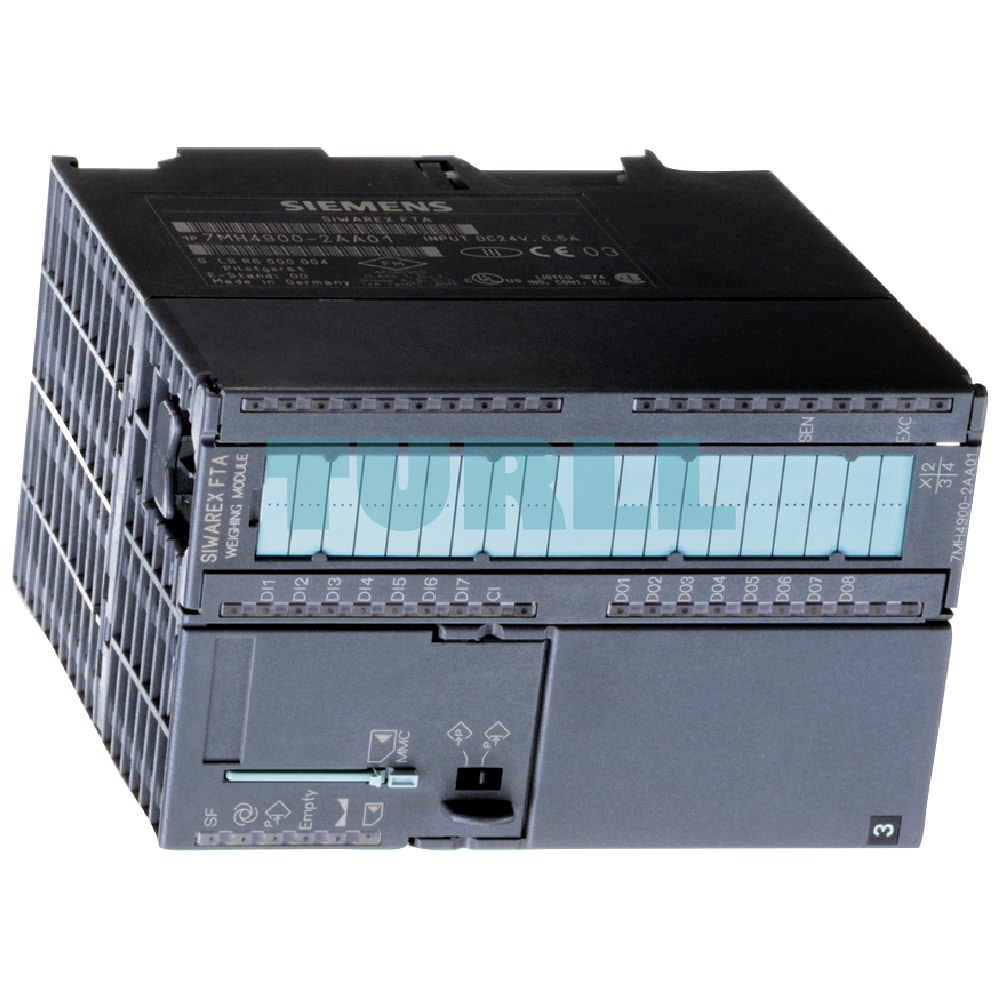

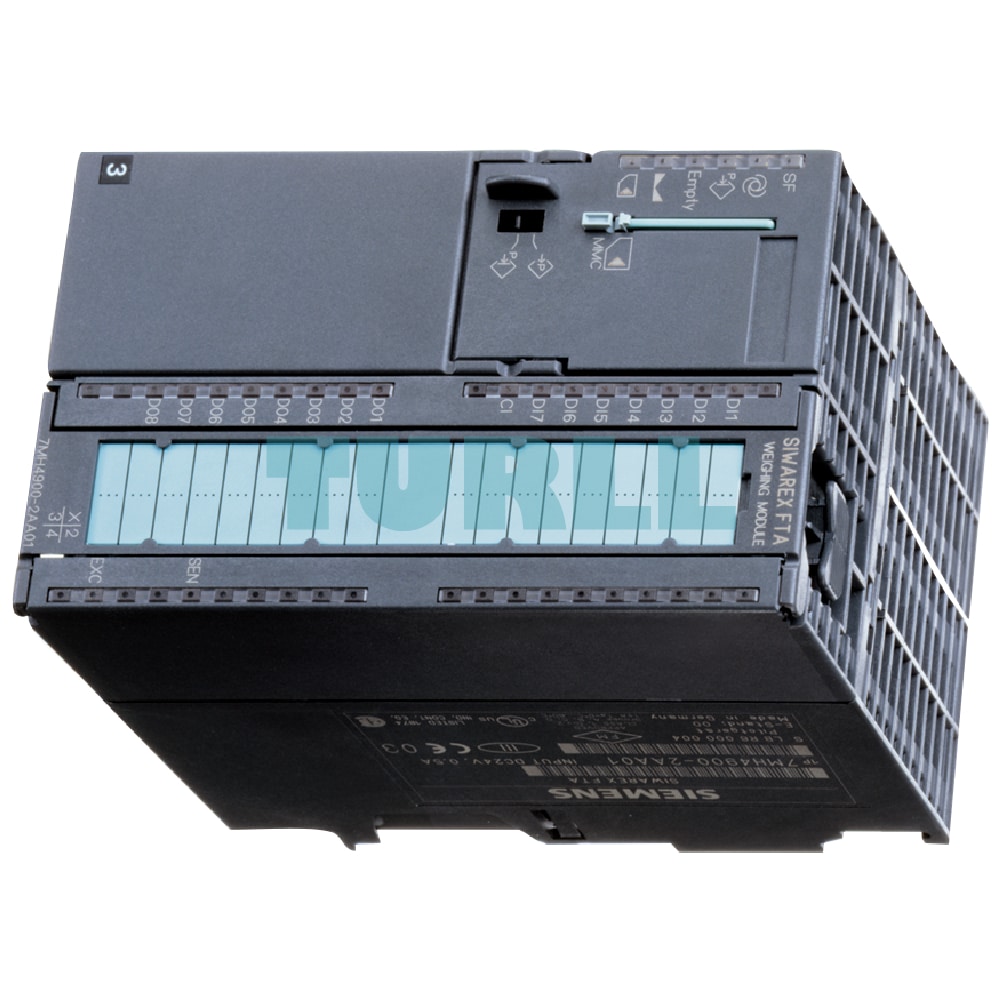

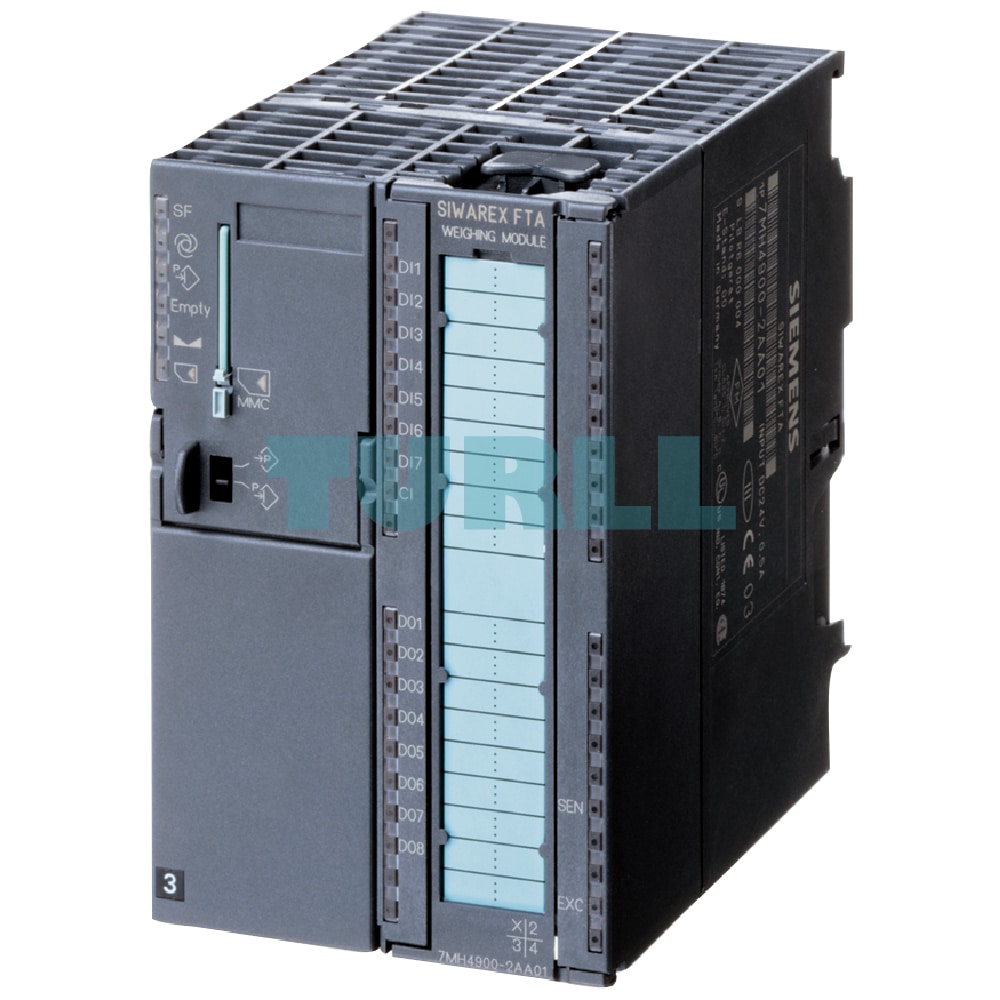

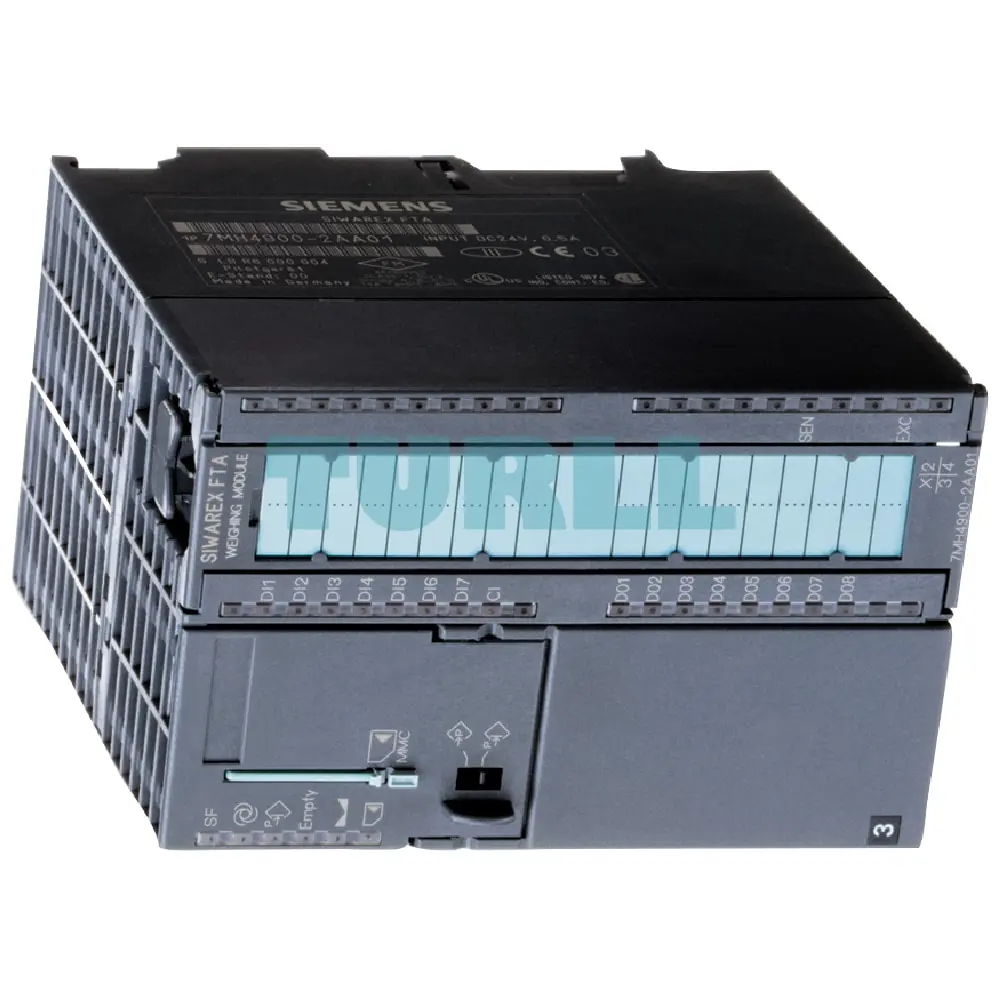

6AG1900-2AA01-4AA0 Siemens SIPLUS S7-300 FTA Original Brand New
$9,252.37
6AG1900-2AA01-4AA0
Siemens SIPLUS S7-300 FTA based on 7MH4900-2AA01 with conformal coating, -10…+60 °C, calibratable electronic weighing system for autonomous (automatic) scales for S7-300 and ET200M. EC design approval 3 x 6000D application areas: dosing, filling/bagging and loading. Attention: for applications requiring official calibration, observe calibration regulations of the destination country – suitable Micro Memory Card: only for calibratable applications
[ez-toc]
Overview
SIPLUS SIWAREX FTA (Flexible Technology, Automatic Weighing Instrument) is a versatile and flexible weighing module for industrial use. It can be used in both non-automatic and automatic weighing operation, for example the production of mixtures, and for filling, loading, monitoring and bag filling.
It has the corresponding scale approvals and is also suitable for legal-for-trade weighing systems.
The SIPLUS SIWAREX FTA function module is integrated in SIMATIC S7/PCS7 and uses the features of this modern automation system, such as integrated communication, diagnostics and configuration tools.
Note:
SIPLUS extreme products are based on SIMATIC standard products. The contents listed here were taken from the corresponding standard products. SIPLUS extreme specific information has been added.
Benefits
SIWAREX FTA is characterized by the following features:
- Uniform design and totally integrated communication in SIMATIC S7 and SIMATIC PCS 7
- Uniform configuration with SIMATIC
- Direct use in the SIMATIC automation system
- Use in distributed plant concept through connection to PROFIBUS DP/PROFINET using ET 200M
- Measurement of weight or force with high resolution of 16 million intervals
- High accuracy 3 × 6 000d, legal-for-trade according to OIML R-76, R-51, R-61 and R-107
- For use with analog strain gauge load cells
- Alternative option of connecting individual load cells from the manufacturers METTLER TOLEDO, Wipotec and PESA
- Legal-for-trade display with Windows-based Panels, e.g. SIMATIC Comfort Panels
- Stepless or stepped dosing control
- Exact switching of dosing signals (< 1 ms)
- Parameterizable inputs and outputs
- Parameterizable for highly versatile applications
- Flexible adaptation to different requirements with SIMATIC
- Simple adjustment of scale using the SIWATOOL FTA program
- Theoretical adjustment without calibration weights
- Replacement of module without renewed adjustment of scale
- Recording of weighing sequence
- Alibi memory with calibration capability
- Can be used in Ex applications
Application
The SIWAREX FTA weighing module is the optimum solution wherever high demands are placed on accuracy and speed.
Thanks to its outstanding measuring properties, weights can be measured with extreme accuracy in up to three ranges.
SIWAREX FTA can be used to design legal-for-trade dosing systems, such as filling plants, loading stations, bagging stations, rotopackers, mixers or test stations.
Typical fields of application include:
- Filling of liquids
- Bagging of solid matter (also big bag)
- Proportioning as deduction weighing or fill weighing
- Checking of individual quantities
- Loading or receiving of materials
- Static checking scale
- Check weigher (in combination with Wipotec load cells)
Design
SIWAREX FTA is a function module of SIMATIC S7-300 which can be directly snapped onto the SIMATIC S7‑300 or ET 200M backplane bus. The rail mounting of the 80 mm wide weighing module means that it is extremely easy to mount/wire.
The load cells, the RS 485 serial interface, the analog output and the digital inputs and outputs are connected by means of the 40‑pin standard front connector, the PC (RS 232) by means of a 9‑pin SUB-D connector and the power supply by means of a separate 2-pin connector.
Operation of SIWAREX FTA in SIMATIC enables the weighing system to be completely integrated into the automation system.
6AG1900-2AA01-4AA0
Siemens SIPLUS S7-300 FTA based on 7MH4900-2AA01 with conformal coating, -10…+60 °C, calibratable electronic weighing system for autonomous (automatic) scales for S7-300 and ET200M. EC design approval 3 x 6000D application areas: dosing, filling/bagging and loading. Attention: for applications requiring official calibration, observe calibration regulations of the destination country – suitable Micro Memory Card: only for calibratable applications
Visit 6AG1900-2AA01-4AA0
For more our products visit turll.com
| Weight | 0.36 kg |
|---|---|
| Dimensions | 134 × 154 × 89 mm |
