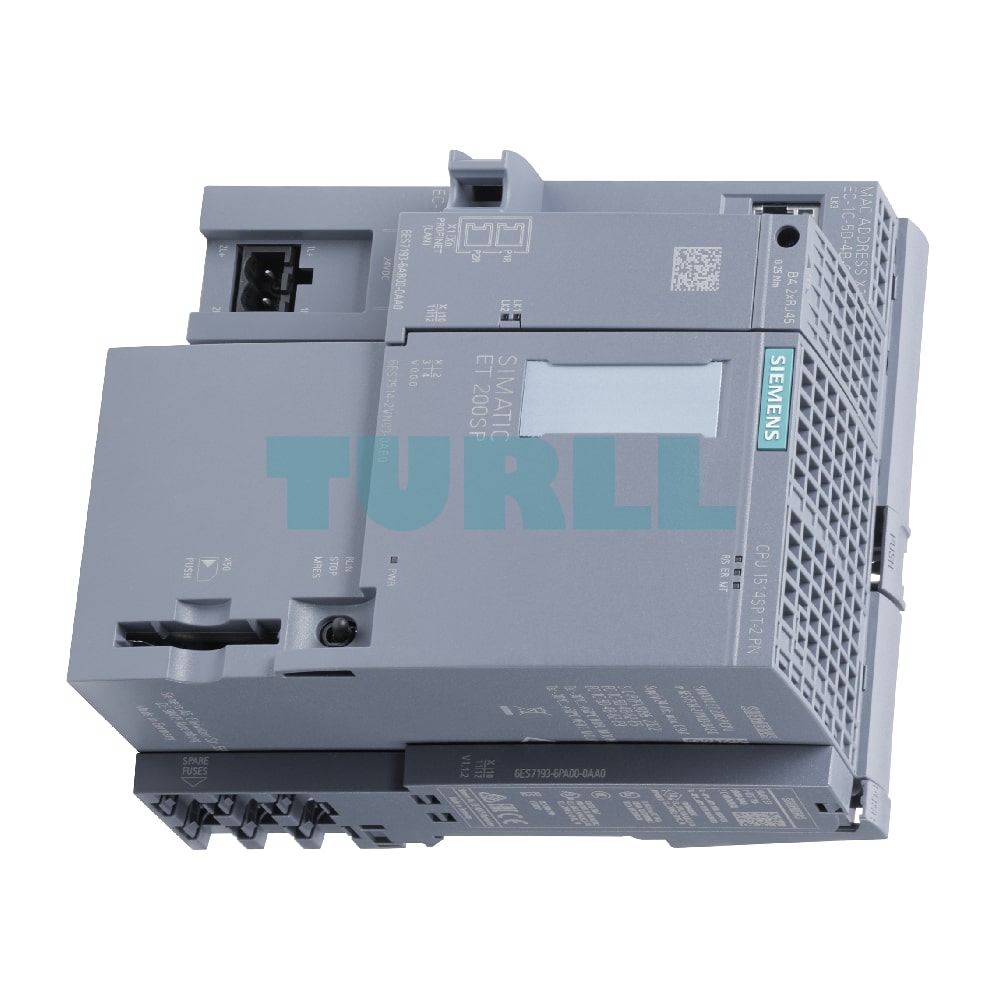

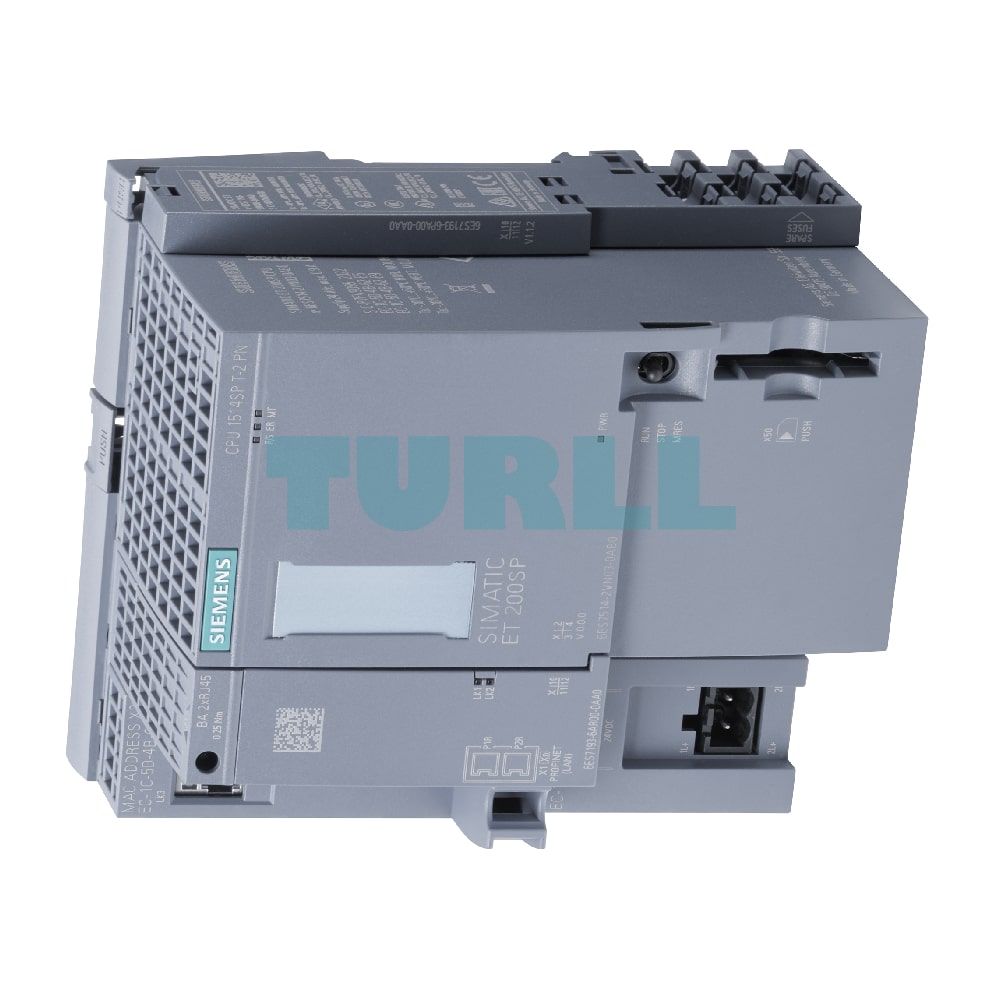

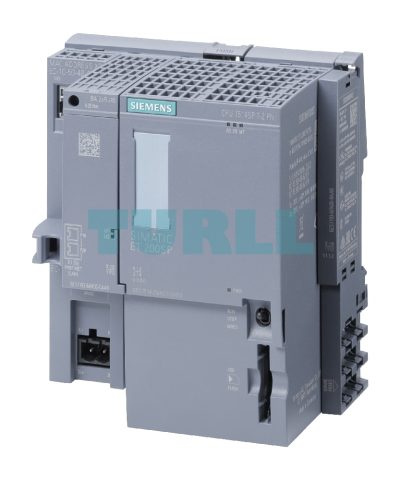

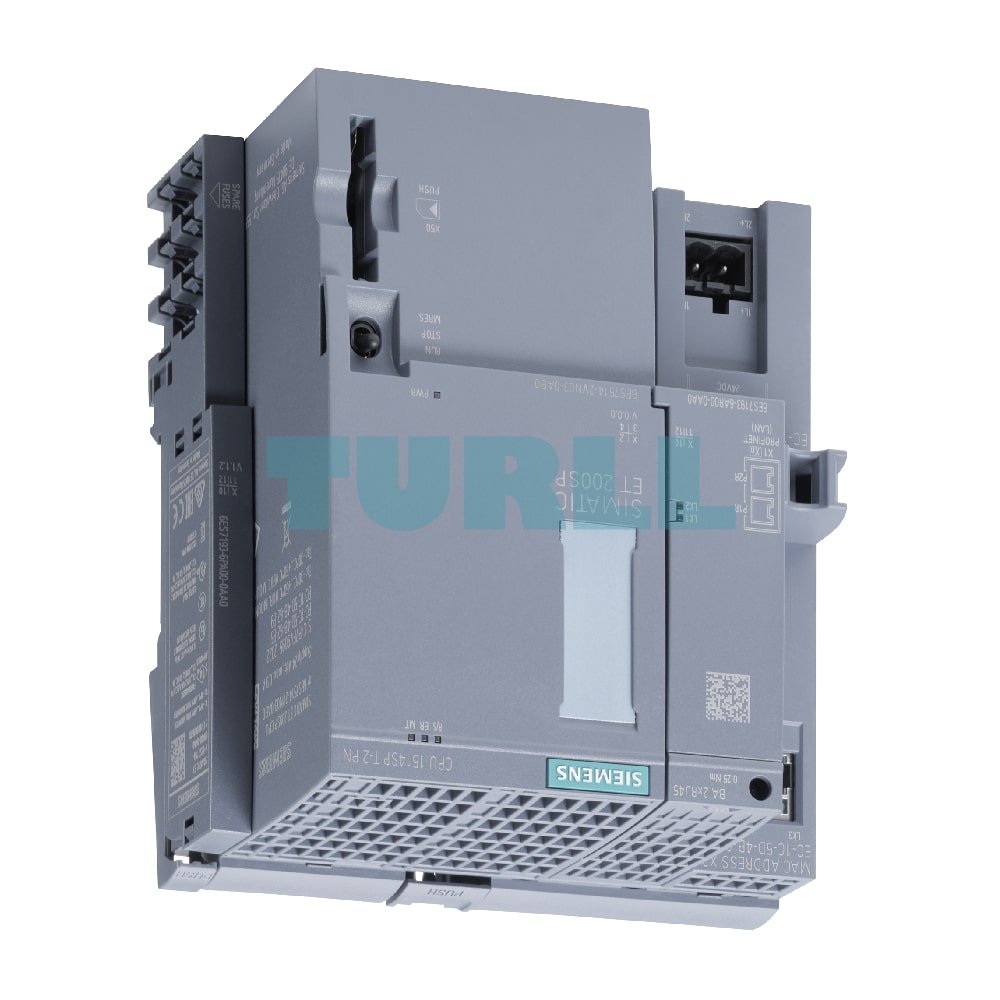

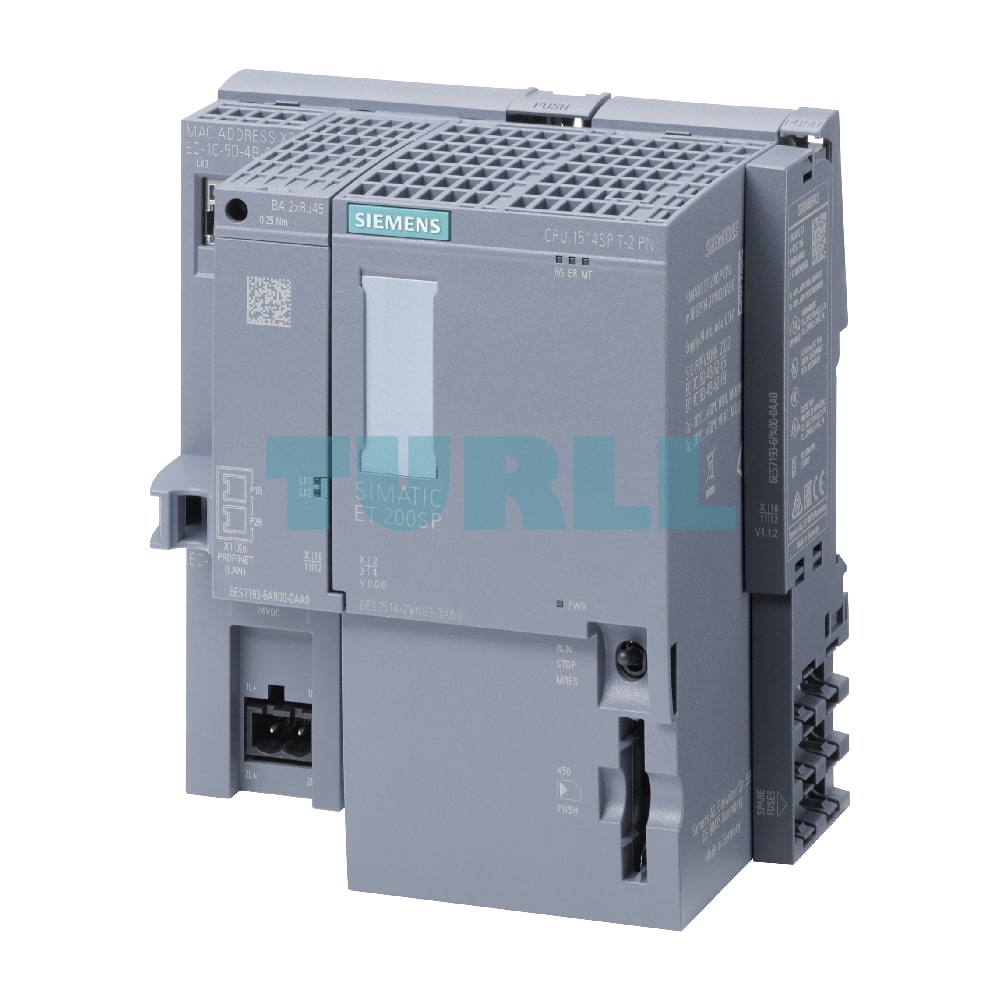

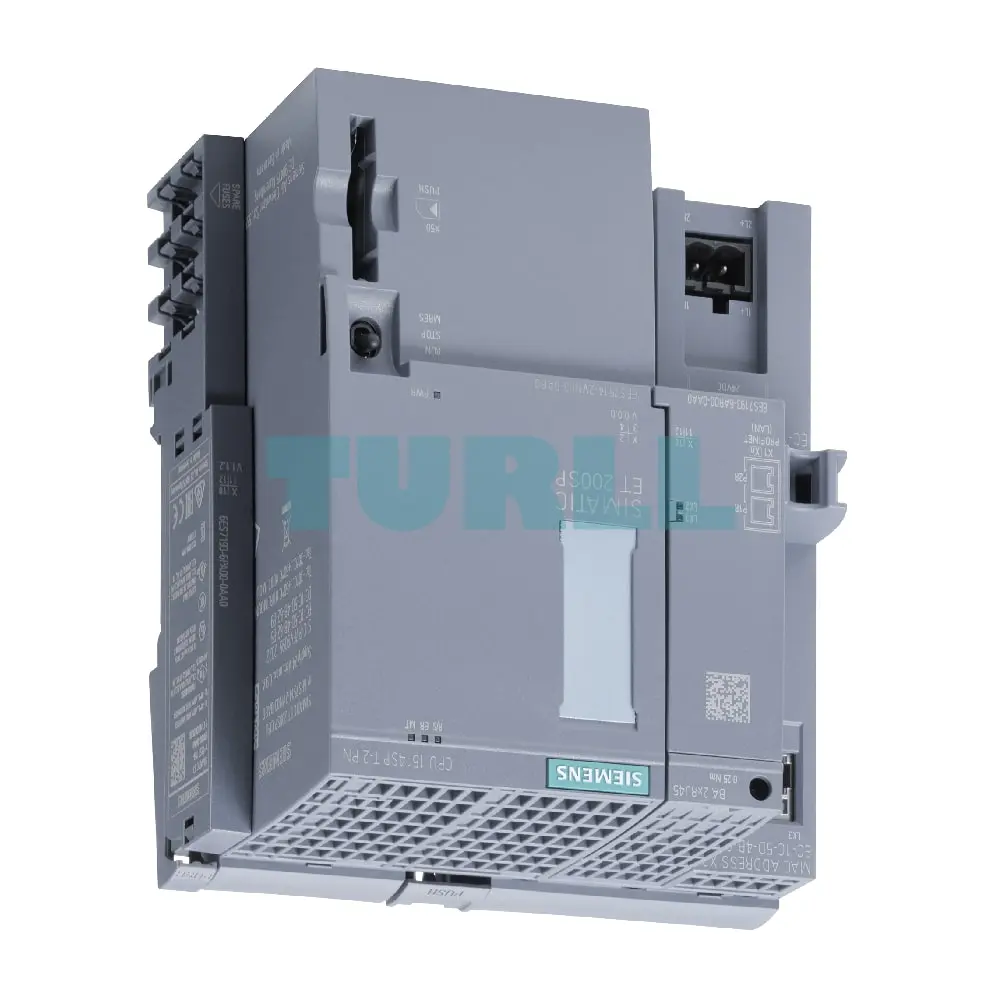

6AG2512-1DM03-1AB0 Siemens SIPLUS ET 200SP CPU 1512SP-1 PN Original Brand New
$3,436.44
6AG2512-1DM03-1AB0
Siemens SIPLUS ET 200SP CPU 1512SP-1 PN rail based on 6ES7512-1DM03-0AB0 with conformal coating OT2: -40…+55 °C ST1/2: 70 °C for 10 minutes . central processing unit with work memory 400 KB for program and 2 MB for data, 1st interface: PROFINET IRT with 3-port switch, 25 ns bit performance, SIMATIC Memory Card required, BusAdapter required for port 1 and 2
[ez-toc]
Overview
- SIPLUS ET 200SP CPU 1512SP-1 PN RAIL for SIPLUS extreme RAIL ET 200SP based on SIPLUS S7-1500 CPU 1513-1 PN
- Approved in accordance with the EN 50155, EN 15121, EN 50124, EN 50125 and EN 45545 railway standards for use in rail traffic
- For applications with average requirements regarding the program scope and processing speed, for distributed setup via PROFINET IO or PROFIBUS DP
- Increase in availability of systems and machines
- PROFINET IO controller for up to 128 IO devices
- PROFINET I-Device for connecting the CPU as an intelligent PROFINET device with a SIMATIC or third-party PROFINET IO controller
- PROFINET Shared I-Device for 4 controllers
- PROFINET IO IRT interface with integrated 3-port switch
- Isochronous mode on PROFINET
- With multiple communication options:
PG/OP communication, PROFINET IO, open IE communication (TCP, ISO-on-TCP and UDP), web server and S7 communication (with loadable FBs) - OPC UA server and client (data access) as runtime option for easy connection of the SIMATIC ET 200SP to third-party devices/systems
- Optional PROFIBUS DP device for 125 PROFIBUS DP devices (with CM DP module 6ES7545-5DA00-0AB0)
- Optional PROFIBUS DP device (with CM DP module 6ES7545-5DA00-0AB0)
- Configuration control (option handling)
- Integrated Motion Control functionalities for controlling speed-controlled, positioning and synchronous axes (gearing), support for external encoders, output cams/cam tracks and probes
Note
SIMATIC Memory Card required for operation of the CPU.
BusAdapter is not included in scope of supply and is to be ordered separately.
SIPLUS extreme products are based on SIMATIC standard products. The contents listed here were taken from the respective standard products. SIPLUS extreme-specific information was added.
Application
SIPLUS ET 200SP CPU 1512SP-1 PN RAIL is designed for applications with average requirements in terms of processing performance and response speed in discrete production technology. SIPLUS ET 200SP CPU 1512SP-1 PN RAIL can be used as a PROFINET IO controller or as distributed intelligence (PROFINET I-Device). The integrated PROFINET IO IRT interface is designed as a 3-port switch enabling configuration of a linear topology in the system via port 1 and 2, such that a PG/PC or HMI device can also be connected via port 3.
When used as an I-device, the SIPLUS ET 200SP CPU 1512SP-1 PN RAIL facilitates local preprocessing of process data and only delivers the information actually required to the higher-level controller. This has the following advantages:
- Less load on central controller
- Short response times to critical local signals
- Less load on the bus system due to smaller data volumes
- Faster commissioning due to pre-tested units and parallel commissioning
- Increased availability and flexibility thanks to autonomous machine units
- Transparent configuration
The SIPLUS ET 200SP CPU 1512SP-1 PN RAIL operates completely independently of the central controller. If it fails, the SIPLUS ET 200SP CPU 1512SP-1 PN RAIL continues to run.
The bit-modular design of the ET 200SP I/O system, together with SIPLUS ET 200SP CPU 1512SP-1 PN RAIL, enables functionally oriented station design.
In addition, the CPU offers comprehensive control functionalities via easy-to-configure blocks as well as the ability to connect drives via standardized PLC-open blocks.
Design
The SIPLUS ET 200SP CPU 1512SP-1 PN CPU RAIL is directly snapped onto the standard DIN rail and features:
- Powerful processor:
CPU achieves command execution times as low as 48 ns per binary instruction. - Large work memory:
200 KB for programs, 1 MB for data - SIMATIC Memory Cards as load memories
Permits additional functions such as firmware updates, datalog and archives - Bit-modular expandability for maximum flexibility
Up to 64 I/O modules (I/O, technology, and communication modules) in any combination. Station width up to 1 m. - Mixed configuration with ET 200AL
Possible to integrate up to 16 I/O modules of the ET 200AL (IP65/IP67) I/O system in a scalable I/O system ET 200SP (IP20) installation via a “BU-Send” BaseUnit and a “BA-Send” BusAdapter. - PROFINET IO IRT interface with 3 integrated switch ports:
- Port 1 and 2 via BusAdapter
(SIPLUS ET 200SP CPU 1512SP-1 PN CPU RAIL is supplied without the BusAdapter and can also be operated without it.
An appropriate BusAdapter can be ordered separately if needed) - Port 3 integrated RJ45 socket
- Port 1 and 2 via BusAdapter
- Integrated communication functions:
- PG/OP communication
- PROFINET IO
- Open IE communication (TCP, ISO-on-TCP and UDP)
- OPC UA server (data access)
- Web server
- S7 communication
- S7 routing
- Data set routing
- Maintenance-free data backup without battery
- Diagnostics displays for errors (Error), operation (RUN/Stop), maintenance (MT), power supply (PWR) and one link LED per port
- Optional labeling using light gray or yellow labeling strips. Choice of 2 materials:
- Foil and roll with 500 strips, for thermal transfer roll printers
- Paper (280 g/m2), DIN A4 sheets with 100 strips each, for laser printers
- The ET 200SP CPU can be equipped with an equipment labeling plate.
- Different PROFINET connection types by means of BusAdapter
- SIMATIC BusAdapters with an RJ45 interface, e.g. BusAdapter BA 2xRJ45, can be used in standard applications with moderate mechanical and low EMC loads
- For machines and systems in which higher mechanical and/or EMC loads act on the devices, a SIMATIC BusAdapter with connection via FastConnect (FC) or FO cable (SCRJ or LC) is recommended. Likewise, all SIMATIC BusAdapters with an FO cable connection (SCRJ, LC) can be used with increased loads.
- BusAdapters with connections for FO cables can be used to cover high potential differences between two stations and/or with high EMC loads.
- Dark BaseUnit as first BaseUnit behind the ET 200SP CPU when using an AC I/O module or an AI Energy Meter ST as the first I/O module.
Scope of delivery:
CPU 1512SP-1 PN including server module, 24 V DC connector and cover for BusAdapter port (BusAdapter must be ordered separately).
Function
- Performance
- High-speed command processing
- Powerful network connection:
CPU is equipped with a PROFINET IO IRT (3-port switch) as the standard interface
- Integrated technology
- Connection of analog and PROFIdrive-capable drives via standardized blocks (PLCopen)
- Support of speed-controlled and positioning axes as well as external encoders
- Precise position gearing for synchronous operation between axes
- Trace functions for all CPU tags, both for diagnostics in real time as well as for sporadic error detection
- Comprehensive control functionalities, e.g. easily configurable blocks for automatic optimization of the control parameters for optimum control quality
- Isochronous mode
- Synchronous coupling of distributed signal acquisition, signal transmission, and program execution to the PROFINET cycle with constant bus cycle time
- Security Integrated
- Password-based know-how protection against unauthorized read-out and modification of program blocks
- Copy protection for tying individual blocks to the serial number of the SIMATIC Memory Card: The block can only run if the configured memory card is inserted into the CPU.
- 4-level authorization concept: Communication to the HMI devices can also be restricted.
- Manipulation protection: The controller recognizes changed or unauthorized transmissions of the engineering data.
- Integrated system diagnostics
- System diagnostics information is displayed consistently and in plain text in the TIA Portal, HMI devices and Web server, even for messages from the drives, and is updated even if the CPU is in STOP mode.
- Integrated into the firmware of the CPU, no special configuration is required
- Configuration control (option handling) in central setup
- Various hardware configurations can be stored in the controller:
Modification of the configuration in the user program (startup OB100)
Retrofitting of options at end of configuration
Use of placeholder modules is possible.
- Various hardware configurations can be stored in the controller:
- SIMATIC Memory Card (required for operation of the CPU)
- Used as a plug-in load memory or for updating the firmware.
- Also for storing additional documents or csv files (for recipes and archives)
- Creation of data blocks for storage/reading of data via SFCs of the user program
- Datalog (archives) and recipes
- Storage of csv files for recipes and archives on the SIMATIC Memory Card;
easy access to plant-relevant operating data using Office tools or via a Web server - Easy access to machine configuration data by means of a Web browser or SD card reader (two-way data exchange from and to the controller)
- Storage of csv files for recipes and archives on the SIMATIC Memory Card;
- Programming
- Programming with STEP 7 Professional, V13 update 3 and higher
6AG2512-1DM03-1AB0
Siemens SIPLUS ET 200SP CPU 1512SP-1 PN rail based on 6ES7512-1DM03-0AB0 with conformal coating OT2: -40…+55 °C ST1/2: 70 °C for 10 minutes . central processing unit with work memory 400 KB for program and 2 MB for data, 1st interface: PROFINET IRT with 3-port switch, 25 ns bit performance, SIMATIC Memory Card required, BusAdapter required for port 1 and 2
Visit 6AG2512-1DM03-1AB0
For more our products visit turll.com
| Weight | 0.386 kg |
|---|---|
| Dimensions | 131 × 132 × 88 mm |
