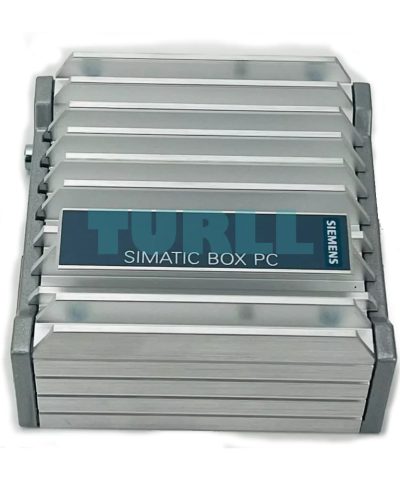

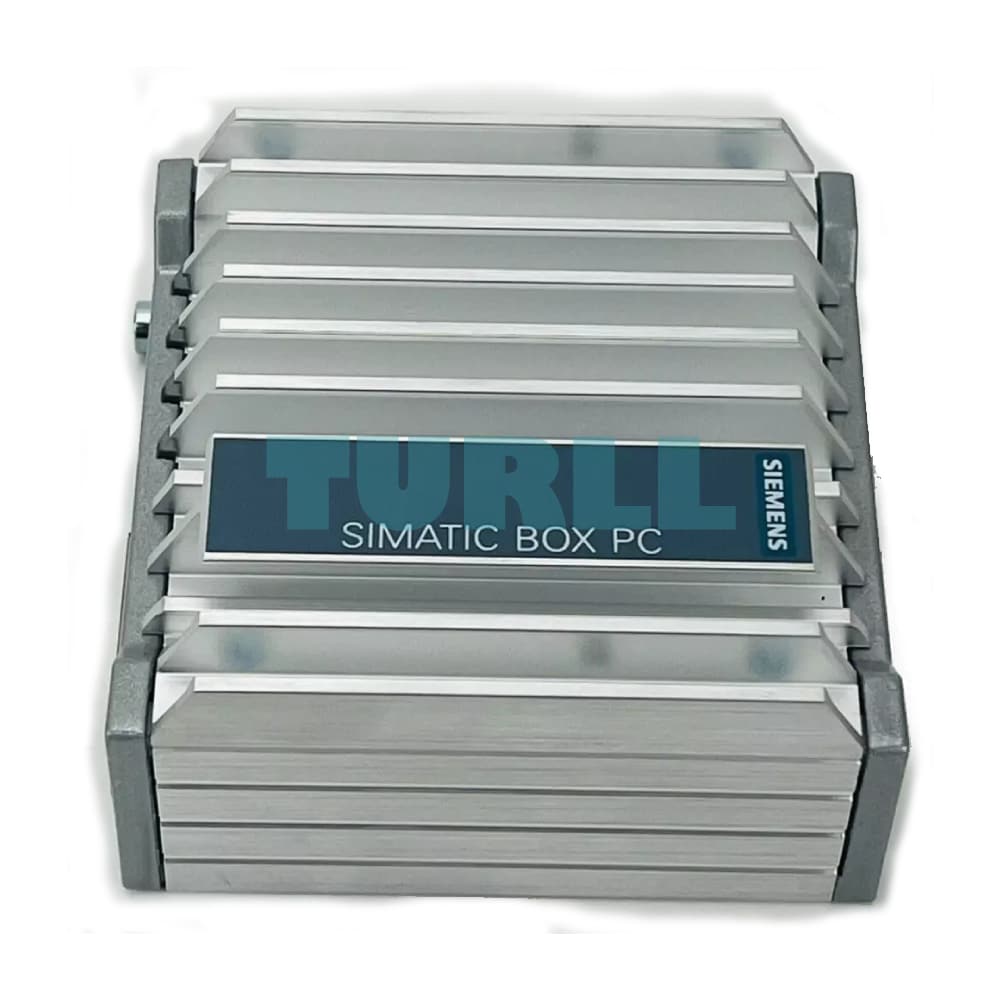

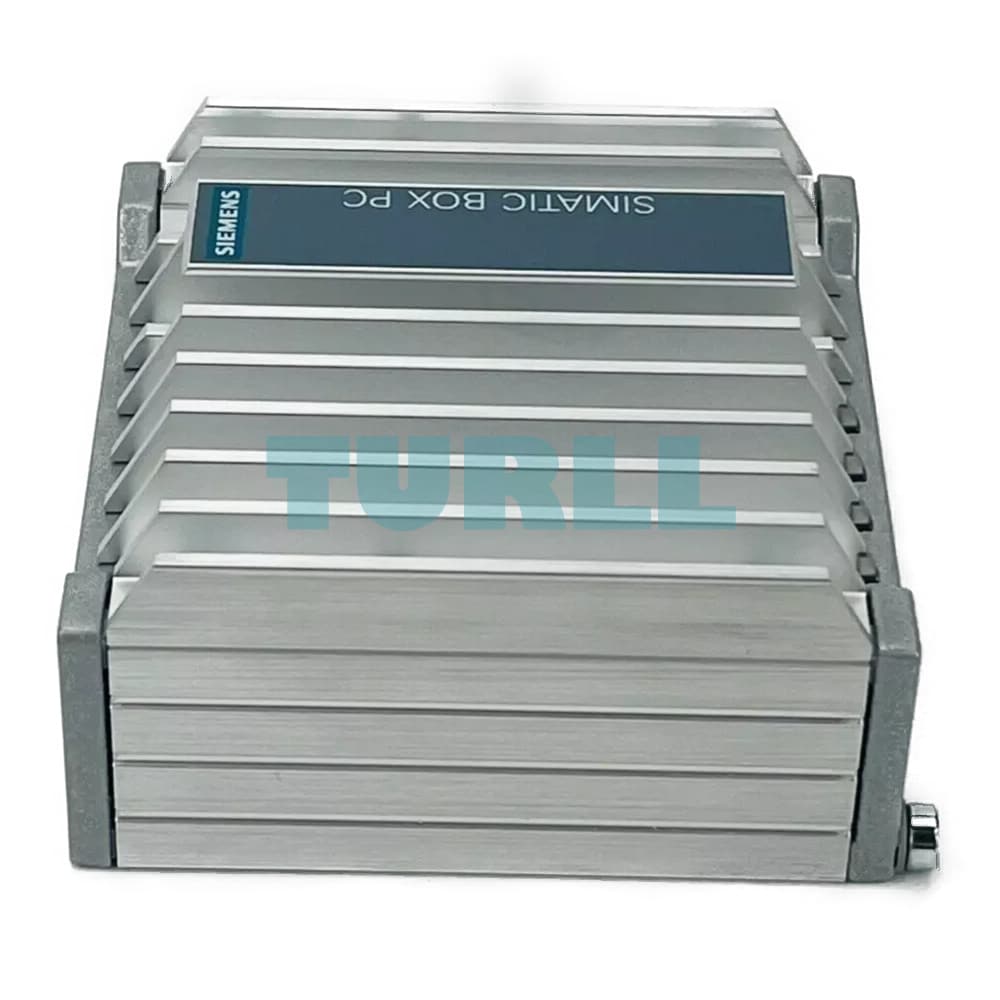

6AG4021-0AD11-0BA0 Siemens SIMATIC IPC127E Atom E3940 Original Brand New

SIMATIC IPC127E:
Ultra-compact IoT gateway for data collection, pre-processing, and forwarding of data

Thanks to the ultra-compact enclosure, which has a volume of just 0.3 liters, the SIMATIC IPC127E can be easily – even subsequently – integrated into the control cabinet or directly on the machine with minimal space requirements.

The enclosed all-metal enclosure enables the new industrial PC to be used flexibly and maintenance-free even under harsh conditions. Thus the SIMATIC IPC127E makes it possible to reliably record / collect / process / transfer data directly in the production environment and can be flexibly used as an IoT gateway between the cloud or the corporate IT level and production. Thanks to pre-configured versions, the right product is available to users in a very short time.

High-performance data processing with extremely compact design

• Current CPU technology of the Intel-Apollo-Lake series
• 2-core: Intel E3930 and 4-core: Intel E3940; in each case without / with TPM option
• Power consumption <= 15 W, i.e. low heat dissipation in the enclosure/control cabinet
• Wake-on-LAN for remote-controlled switching between standby and active state

High degree of industrial functionality for implementing an embedded solution

• Solid-state drive as rugged mass storage: 32 / 64 / 128 GB
• 2x / 3x Gbit Ethernet (teaming-capable); PROFINET with RT functionality (via Standard Ethernet)
• 2x / 4x USB 3.0 ports
• 1x DisplayPort as graphics connection
• Windows 10 IoT Enterprise 2016 LTSB
• Windows 10 IoT Enterprise 2019 LTSC
• Windows 10 IoT Enterprise 2021 LTSC

High system availability in order to reduce the risk of potential failures and maintenance costs

• Maintenance-free since there are no rotating parts (fans, HDD)
• Self-diagnostics by means of local diagnostics software SIMATIC IPC DiagBase

Optimum flexibility for adaptation to the machine

• Flexible mounting (DIN rail and wall mounting)
• In all vertical installation positions
• Minimal space requirements (installation volume approx. 0.3 liters; integrated 24 V DC industrial power supply)
• Up to 55 °C ambient temperature; dust protection due to closed enclosure
• LEDs for efficient self-diagnostics; optimized for headless operation

High investment security in order to reduce engineering costs

• Long-term availability: Service & Support period of 8 – 10 years after market launch

Diverse range of applications, for example:

• IoT gateway for the acquisition / collection / processing / transmission of data
• Integration of machines in Cloud/Edge solutions
• Retrofitting of digitalization tasks in brownfield systems
• Simple visualization tasks

Basic design

• All-metal enclosure, resistant to vibrations and shocks, also with high electromagnetic compatibility
  • Basic version
  • Extended version
• Industrial power supply
  • 24 V DC (19.2 to 28.8 V; without electrical isolation)
• Graphics connection DisplayPort
  • Resolution: Up to 4 096 x 2 160 pixels

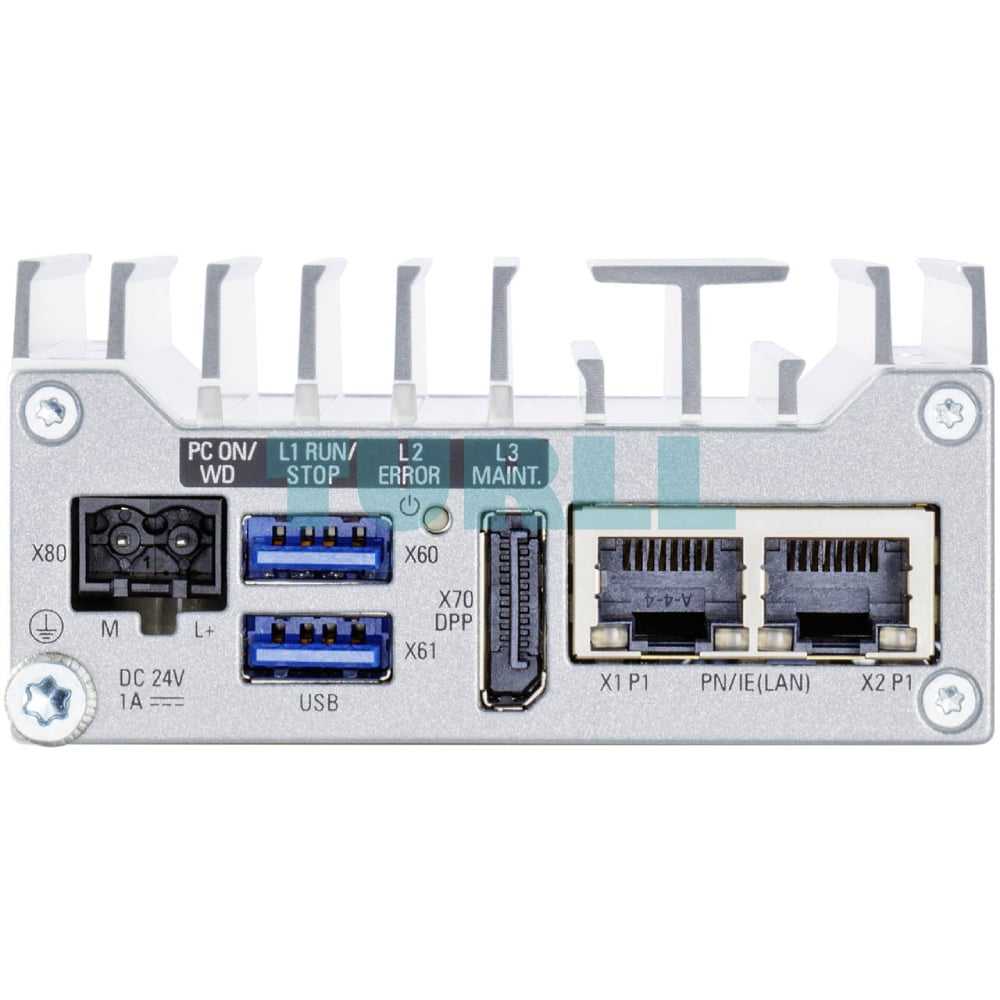

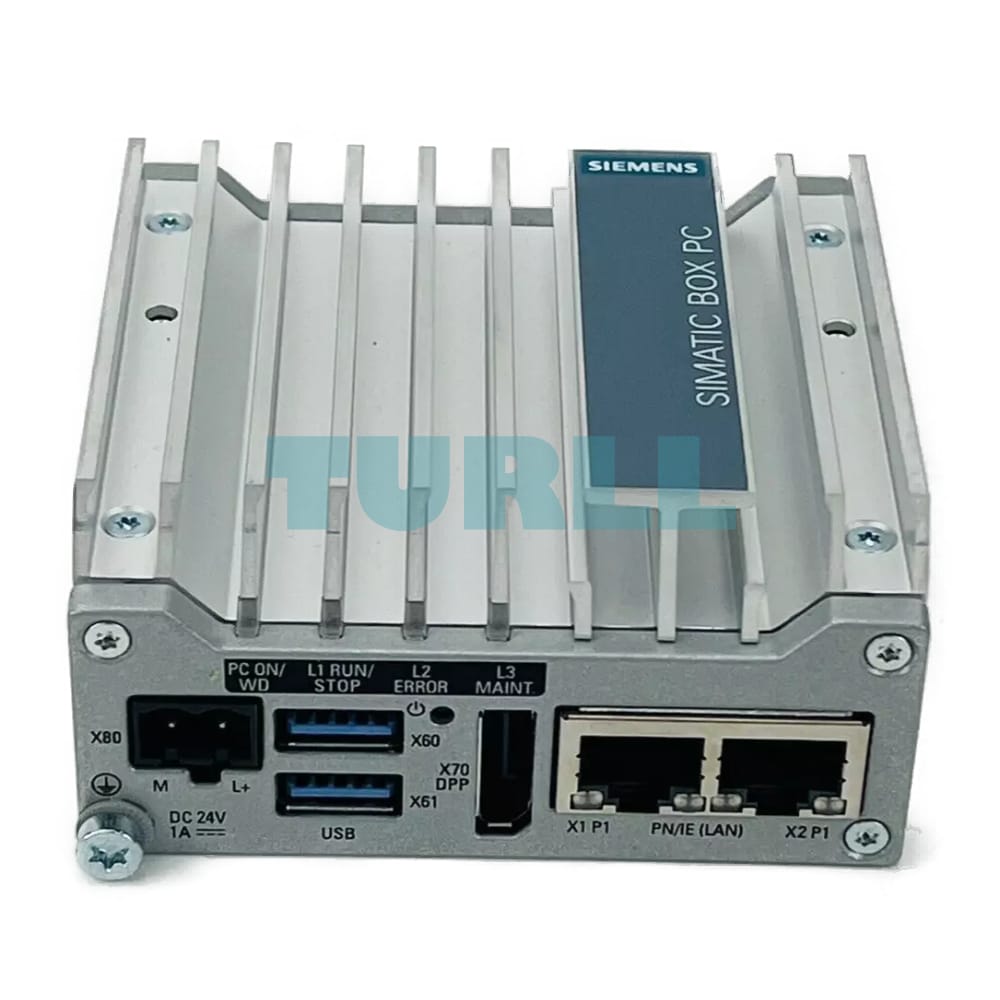

• Interfaces (accessible from one side):
  • Basis: 2x LAN 10/100/1000 Mbps Ethernet interface (RJ45); 2 x USB V3.0
  • Extended: 3x LAN 10/100/1000 Mbps Ethernet interface (RJ45); 4 x USB V3.0
• Fieldbus
  • PROFINET Realtime via Standard Ethernet interface

Design variants

• Processor/main memory configuration:
  • Intel Atom E3930, 1.3 GHz, Dual Core / 2 GB; without / with TPM option
  • Intel Atom E3940, 1.6 GHz, Quad Core / 4 GB; without / with TPM option
• Drives:
  • Solid-state drive 32, M.2, internal
  • Solid-state drive 64, M.2, internal
  • Solid-state drive 128, M.2, internal
• Preinstalled operating systems/software:
  • Windows 10 IoT Enterprise 2016 LTSB
  • Windows 10 IoT Enterprise 2019 LTSC
  • Windows 10 IoT Enterprise 2021 LTSC
  • Versions with SIMATIC/SINUMERIK Edge

Integrated diagnostics DiagBase

• Integrated, parameterizable monitoring functions (program execution/watchdog, internal enclosure temperature, mass storage)
