6AV2128-3XB06-0AX1
6AV2128-3XB06-0AX1 Siemens SIMATIC HMI MTP2200 Original Brand New
Price on request
USDAvailability on request
Estimated 2–8 weeks; confirm by quote
- Condition
- Original brand new
- Warranty
- 12 months
Review shipping and applicable charges at checkout. Dispatch time excludes transit.
Select a configuration to check its price, availability and supply terms.
Send your model and quantity. We will confirm the price and lead time.
Specifications & documents ↓Payments, shipping & warranty
PayPal- Bank transfer
See available methods at checkout.Payment guide →
PRODUCT DATA
Specifications
Check the full model number and every required specification.
| SKU / model | 6AV2128-3XB06-0AX1 |
|---|---|
| Weight for shipping | 8.260 kg |
| Dimensions for shipping | 390.00 × 620.00 × 150.00 mm |
No public document is linked for this model.
Ask for technical documentationDescription
[ez-toc]
Overview
SIMATIC HMI Unified Comfort Panels – standard devices
SIMATIC HMI Unified Comfort Panels consist of six different devices with varying display sizes.
All devices come with the same number of hardware interfaces and the same functionality – just select the perfect device for your needs based on the screen size.
Each Unified Comfort Panel is available in the standard design with Siemens and SIMATIC HMI branding and a silver-colored aluminum frame.
All Unified Comfort Panels come with integrated Edge functionality.
SIMATIC WinCC Unified contains visualization, communication, alarms/warnings, report creation, administration of parameter sets, archiving of user administration.
Furthermore, a WinCC Unified Client Operate (V17 or higher) for remote operator control and monitoring, and a WinCC Unified Client Monitor (V18 or higher) for monitoring only are also included. Additional clients can be enabled with a license. Up to three client licenses can be used.
Client access is based on native web technologies such as HTML5, SVG and JavaScript. The visualization can be accessed via any modern web browser – without the need for additional installation.
Siemens Industrial Edge can be used in two different ways:
- Device-managed Edge
- Centrally-managed Edge (planned)
SIMATIC HMI Unified Comfort Panels can also be ordered with a neutral design.
Note:
The technical specifications of the neutral design devices correspond to the technical specifications of the devices with standard design.
Benefits
- Performance
Improved hardware performance and significantly higher system limits for larger applications. - Operation
Especially rugged multi-touch technology optimized for the specific requirements in industrial environments. - Openness
The new SIMATIC HMI Unified Comfort Panels are Edge-enabled. This opens up completely new possibilities, such as functional expansion by using apps and the processing and analysis of data directly at the machine. - Industrial Security Integrated
The proprietary operating system based on SIMATIC Industrial OS offers maximum security. You can deactivate or uninstall the interfaces and system apps you don’t need.
Despite their open structure and expandability, the Unified Comfort Panels are more secure than ever. - Powered by SIMATIC WinCC Unified
SIMATIC WinCC Unified is the fundamentally redesigned visualization software in the TIA Portal.
Once components have been created, they can be used both for PC systems and on the SIMATIC HMI Unified Comfort Panels, which are part of the WinCC Unified System. - Functions for all visualization tasks:
- Operator functions
- Graphics and trend displays
- Alarm system
- Local archiving
- Management of parameter sets
- Audit (optional)
- Report creation
- Automated report creation (optional)
- User administration
- Configuration of distributed Unified systems – panels and PC (optional)
- Flexible runtime
Functionality with Java scripts:
- Consistently scalable expandable from single-user station to distributed systems
- Additional process visualization using any modern HTML5-capable web browser
Part of the Totally Integrated Automation Portal:
- Support of the SIMATIC S7-1200/1500 and the SIMATIC S7-300/400 Controllers
- Access to tags with symbolic and absolute addressing
- Full text alarms of the SIMATIC S7-1500 Controller
- Support of OPC UA DA (Client and Server), OPC UA A&C (Server)
Open standards for simple integration
- OpenPipe interface
- Integration of your own HTML5 controls in the user interface of WinCC Unified
Design
Edge-enabled
All Unified Comfort Panels come with integrated Edge functionality.
Siemens Industrial Edge can be used in two different ways:
- Device-managed Edge
Allows the user to expand the standard functionality with apps based on Docker technology. These apps can be managed either on the device itself via web browser or remotely from another PC. The manageability allows the user to easily execute, start, stop and update apps independently from each other. This reduces software maintenance effort and ensures easy ability to update as well as system stability.
Device-managed Edge is available by default starting from the delivery release and can be activated on the Control Panel of the Unified Comfort Panel.
For productive usage of Device-managed Edge, a license is required. - Centrally-managed Edge (V17 Update 2 or higher)
In addition to Device-managed Edge, the Unified Comfort Panel can also be managed centrally with the Siemens Industrial Edge Management System. After its onboarding, apps can be managed on the device using the central management system. Each device connected to the centrally managed solution needs to be licensed separately. More information can be found in the device documentation.
6AV2128-3XB06-0AX1

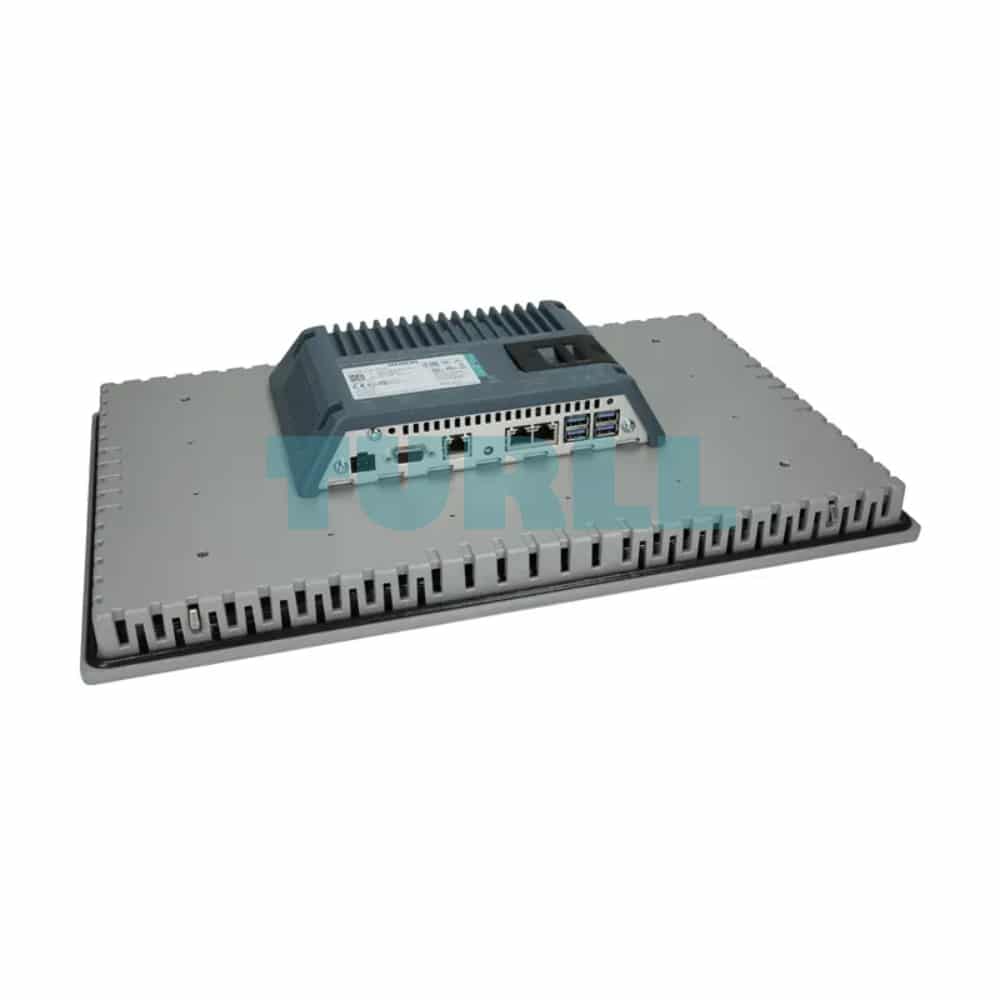

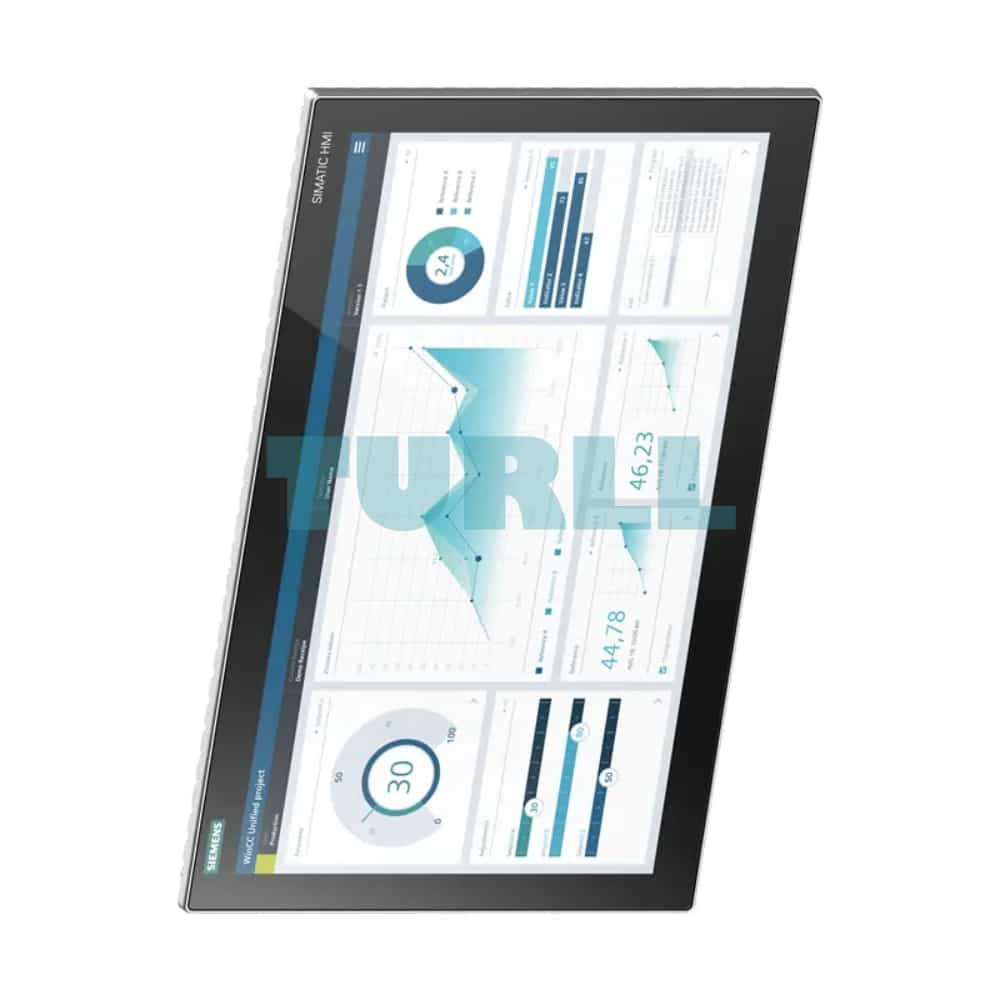

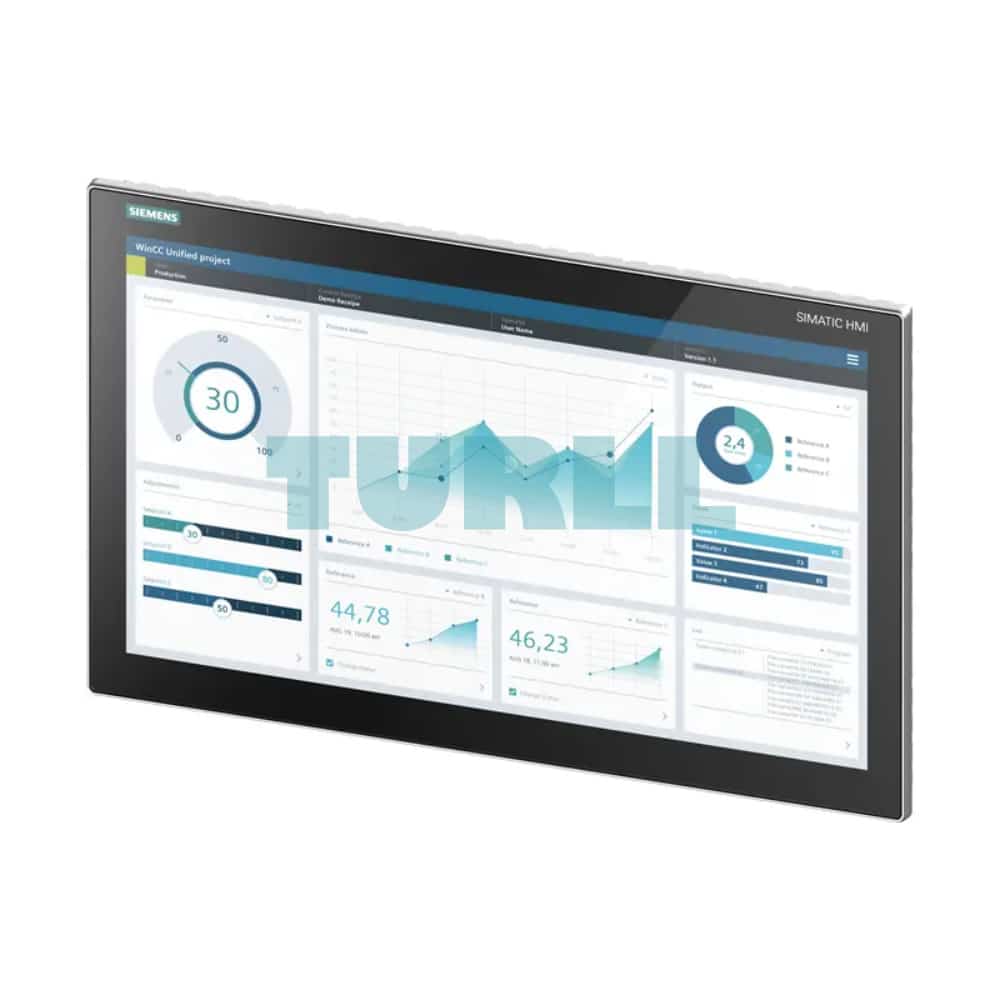

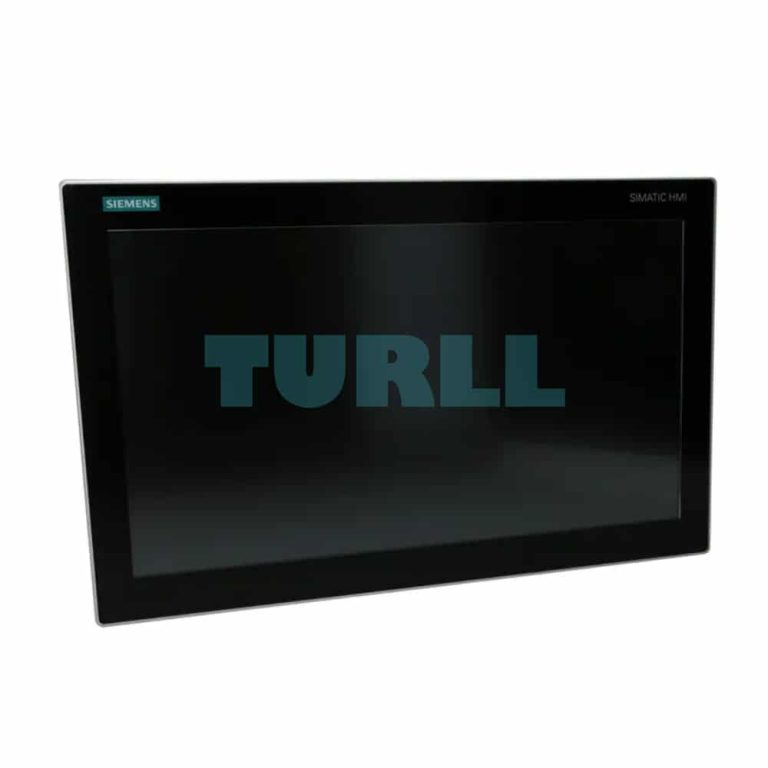

Siemens SIMATIC HMI MTP2200, Unified Comfort Panel, touch operation, 21.5″ widescreen TFT display, 16 million colors, PROFINET interface, configurable as of WinCC Unified Comfort V16, contains open-source software, which is provided free of charge see enclosed DVD
Visit 6AV2128-3XB06-0AX1
