6AV6381-2BF07-5AX0 Siemens WinCC System Software Original Brand New
$9,707.79
6AV6381-2BF07-5AX0

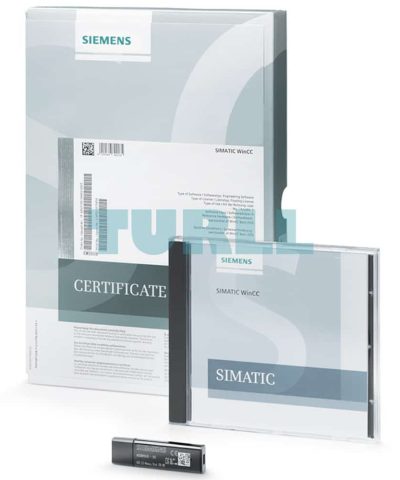

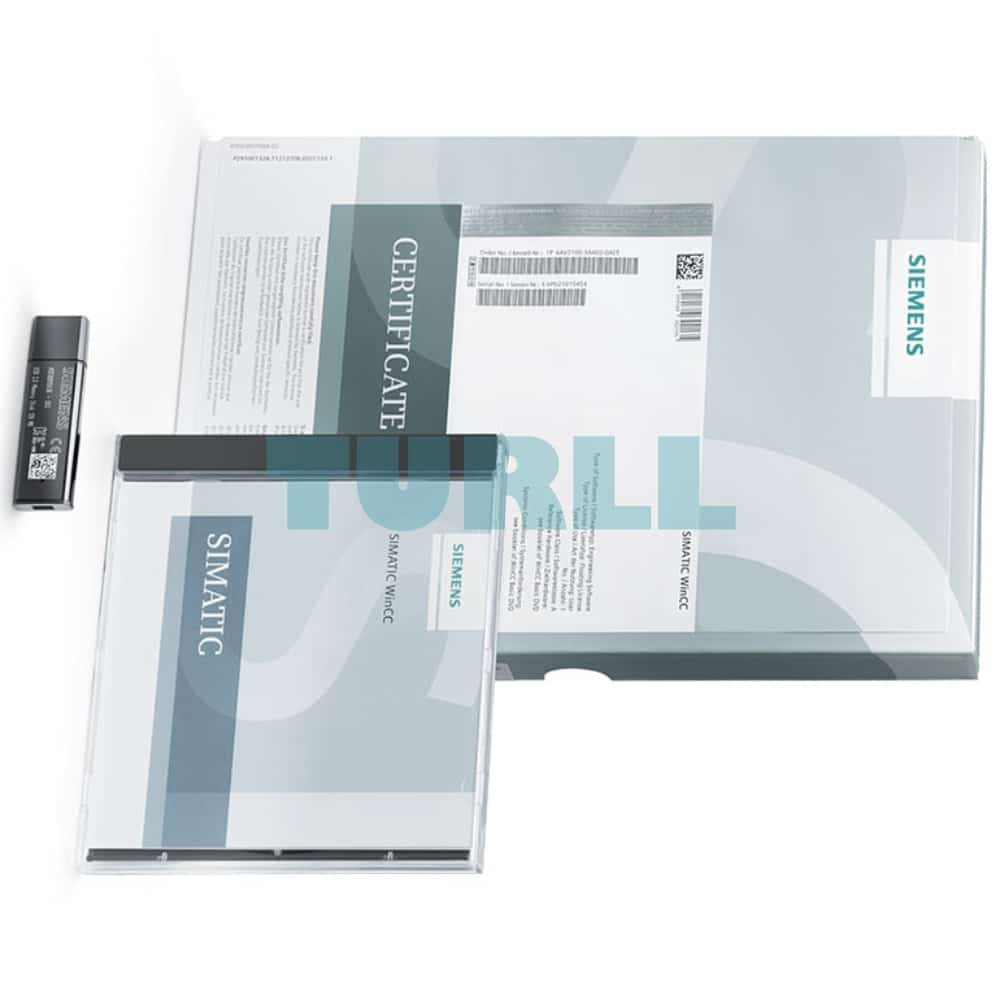

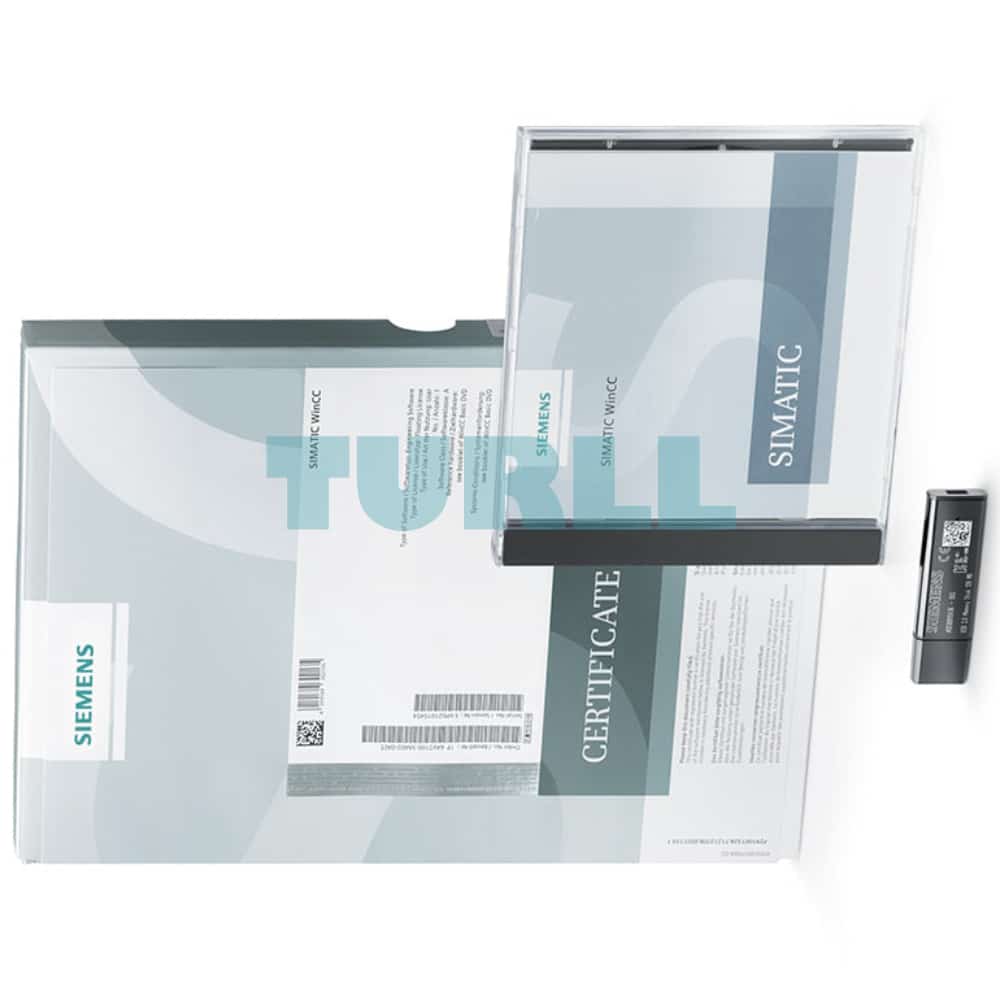

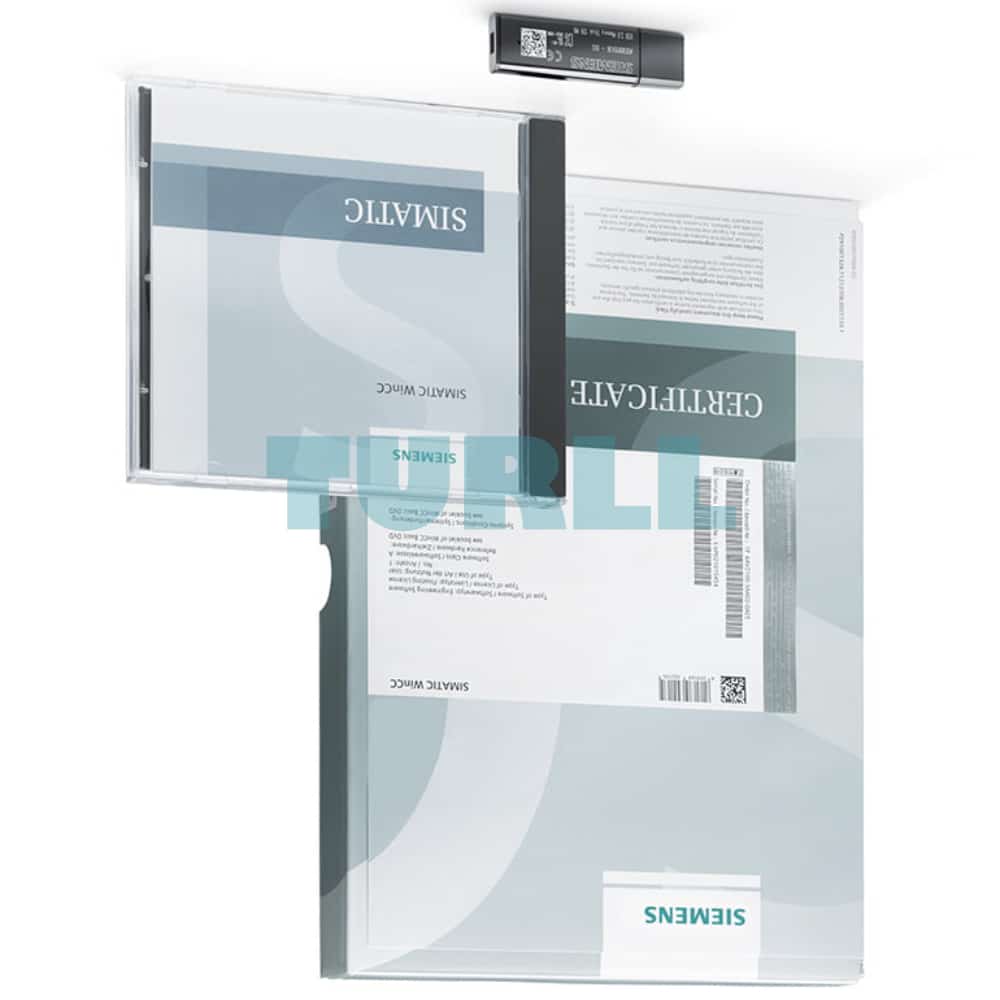

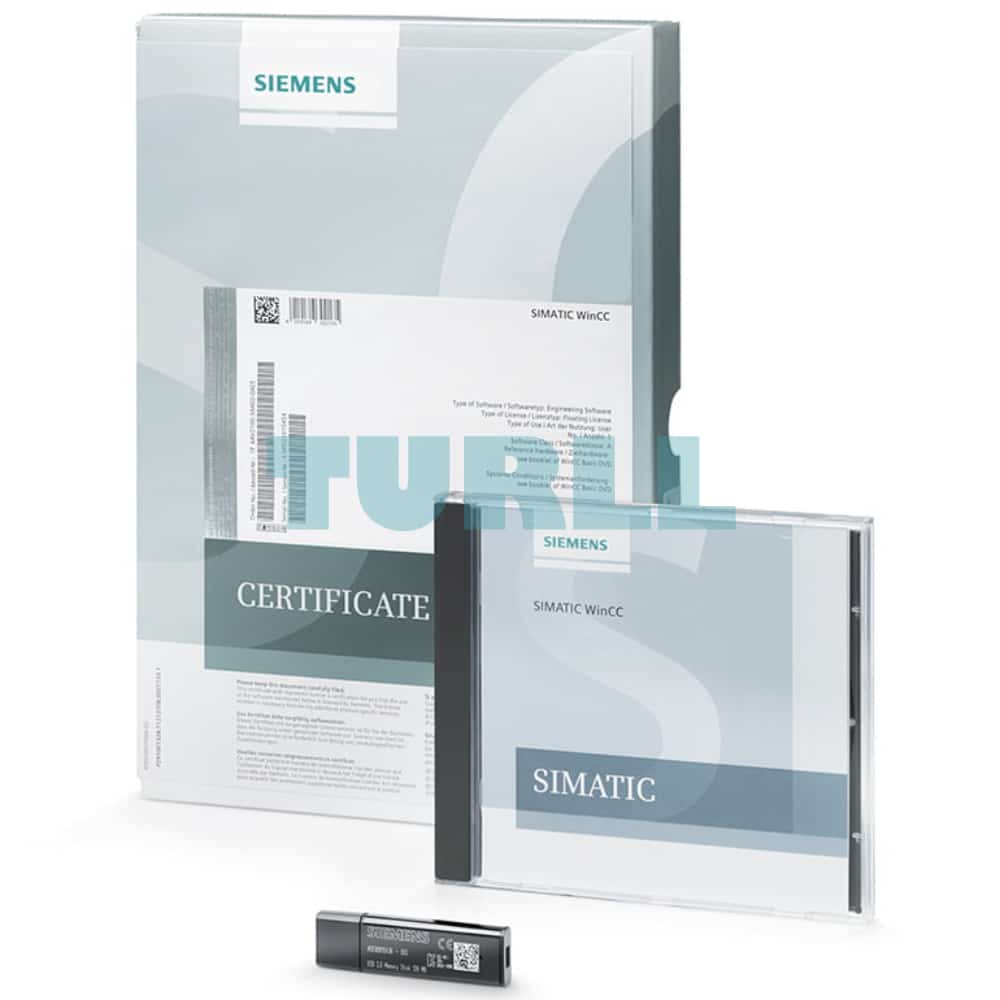

Siemens WinCC system software V7.5 SP2, RT 65536 (65536 PowerTags), runtime software, single license, software and documentation on DVD, license key on USB flash drive, class A, 5 languages (de,en,fr,es,it), please observe product release: support.industry.siemens.com SIOS entry ID: 109783852 – – content: set (3x DVD + 1x USB)
[ez-toc]
Overview
- PC-based operator control and monitoring system for visualizing and operating processes, production flows, machines and plants in all sectors – from the simple single-user station through to distributed multi-user systems with redundant servers and cross-location solutions with web clients. WinCC is the information hub for corporation-wide vertical integration.
- The basic system configuration (WinCC Basic Software) includes industry-standard functions for signaling and acknowledging events, archiving of messages and measured values, logging of all process and configuration data, user administration and visualization.
- The WinCC Basic Software forms the core of a wide range of different applications. Based on the open programming interfaces, a wide range of WinCC options (from Siemens Industry Automation) and WinCC Add-ons have been developed (by Siemens-internal and external partners).
- WinCC can be operated with every PC that meets the given HW requirements. The SIMATIC IPC product range is available in particular for the industrial use of WinCC systems. SIMATIC IPCs impress with their powerful PC technology, are designed for round-the-clock operation, and can be operated in both office areas and harsh industrial environments.
Current version:
SIMATIC WinCC V8.0
WinCC V8.0 supports the Microsoft operating systems listed below:
- Windows 11 Professional, Enterprise (64-bit)
- Windows 10 Professional, Enterprise (64-bit)
- Windows Server 2022 Standard, Datacenter (64-bit)
- Windows Server 2019 Standard, Datacenter (64-bit)
Details (e.g. information about specific Windows editions) and, if applicable, updated compatibility statements, are available at this link
SIMATIC SCADA and SIMATIC IPCs
Perfect interaction for optimum productivity.
- Price advantage as “Package” comprising hardware and software
- System-tested solutions reduce testing overhead
- Simple ordering and synchronized logistics
Only if ordered together with the SIMATIC IPC.
Benefits
- All-purpose
- Solutions for all sectors
- Multi-language for worldwide usage
- Can be integrated into all automation solutions
- All operator control & monitoring functions on board
- User administration
- Operator control and monitoring
- Reporting, acknowledging, and archiving of events
- Collecting, consolidating and archiving measured values (including long-term backup)
- Logging and documenting of process and configuration data
- Can be configured simply and efficiently
- Configuration wizards let the user focus on the essentials
- In the picture by means of cross-reference lists and screen property displays
- Configuration of multi-language applications
- Configuration tool for configuring bulk data
- Universally scalable
- Expandable from single station to client-server configurations
- Increased availability by means of redundant servers
- Process visualization via the Web with the WinCC WebNavigator or WebUX
- Open standards for simple integration
- Efficient real-time database MS SQL Server
- Open for application modules with ActiveX and web controls
- Powerful scripting for individual extensions
- OPC, MQTT and REST for cross-vendor communication
- Process visualization with Plant Intelligence
- Integrated evaluation functions for the online analysis (statistical process control)
- Production optimization with the help of diverse options
- Expandable using options and add-ons
- Options for scalable configurations
- Options for increasing the availability
- Options for IT & business integration
- Options for SCADA expansions
- Options for validation in accordance with FDA 21 CFR Part 11
- Options for the use of telecontrol protocols
- Part of Totally Integrated Automation
- Direct access to the tag and message configuration of the SIMATIC control system
- Integrated diagnostic functions for increasing productivity
Application
SIMATIC WinCC is designed for visualization and operation of processes, production flows, machines and plants. With its powerful process interface, especially to the SIMATIC family, and the secure data archiving, WinCC enables highly available solutions for the process control.
The sector-neutral basic system enables universal usage in all automation applications. Sector-specific solutions can, for example, be implemented using WinCC options (e.g. FDA options for the pharmaceutical industry) and sector-specific add-ons (e.g. for the water industry).
Design
SIMATIC WinCC is available as a complete package and as a runtime package with 128, 512, 2 048, 8 192, 65 536, 102 400, 153 600, 262 144 PowerTags. PowerTags are data points that are connected to controllers or other data sources over a WinCC channel. Up to 32 alarms can be obtained from one data point. Moreover, internal tags without coupling are available for additional system performance. In addition WinCC also contains 512 archive tags. Additional archive licenses can be obtained for larger quantity structures.
Licenses for a multi-user configuration
The system software with the required number of PowerTags and additionally the option WinCC/Server must be installed on the WinCC server. In the basic configuration, one RT Client License is sufficient for the WinCC Clients 1). An RC Client License is required to configure on clients 1). Remote configuration is possible if WinCC Clients without their own project (Uni Client) are configured on the server project.
1) The SQL Server Express is installed for RT / RC Clients.
Function
The powerful configuration functions of SIMATIC WinCC contribute to a reduced engineering and training overhead and lead to a more flexible use of personnel and greater operational reliability.
Anyone familiar with Microsoft Windows can also operate the WinCC Explorer, the central switching point of WinCC. Even large quantities of data can be processed intuitively and efficiently with the WinCC Configuration Studio.
In combination with other SIMATIC components, the system is also equipped with supplementary functions, such as process diagnostics and maintenance. All SIMATIC engineering tools work together in the configuration of the functions.
SIMATIC WinCC offers a complete basic functionality for process visualization and operation. To this end WinCC has a number of editors and interfaces that can be used to individually configure this functionality according to the respective application. Expansions of a WinCC station for control tasks are also possible with minimal engineering effort.
Integration
Archiving and data exchange
WinCC integrates a powerful and scalable archiving feature using database technology This provides the user with a variety of options: from high-performance archiving of current process data, to long-term archiving with high data compression, through to a connection to the central information hub in the form of a company-wide Process Historian. Versatile clients and tools for evaluation, the open interfaces, and special options (Connectivity Pack, Connectivity Station, IndustrialDataBridge) provide the basis for effective IT and business integration.
WinCC offers various security mechanisms, such as encrypted communication, to ensure secure operation of the plant. If external networks are accessed, for example, suitable protective measures (incl. IT security measures, such as network segmentation) should still also be taken.
More information is available on the topic of Industrial Security on the Internet at:
http://www.siemens.com/industrialsecurity
Integration in automation solutions
WinCC is an open process visualization system and provides the option to connect the most diverse controllers.
S7 communication software
Use communications software with the listed product versions. Corresponding SIMATIC NET upgrades are available for upgrading older versions.
Connection to third-party controllers
If a native driver is not available, OPC or OPC UA is available for connection to third-party controllers.
Current notes and information about OPC Servers from various suppliers can be found at:
WinCC supports:
- OPC UA server for DA, A&C, and HDA
- OPC server for DA, A&E, and HDA
- OPC UA client for DA, A&C, and methods
- OPC client for DA
6AV6381-2BF07-5AX0
Siemens WinCC system software V7.5 SP2, RT 65536 (65536 PowerTags), runtime software, single license, software and documentation on DVD, license key on USB flash drive, class A, 5 languages (de,en,fr,es,it), please observe product release: support.industry.siemens.com SIOS entry ID: 109783852 – – content: set (3x DVD + 1x USB)
Visit 6AV6381-2BF07-5AX0
For more our products visit turll.com
| Weight | 0.295 kg |
|---|---|
| Dimensions | 187.00 × 269.00 × 32.00 mm |
