6DR5020-0EG01-0AA0 SIEMENS Exclusive SIPART PS2 Electropneumatic Positioner Original Brand New

6DR5020-0EG01-0AA0 SIEMENS Exclusive SIPART PS2 Electropneumatic Positioner Original Brand New

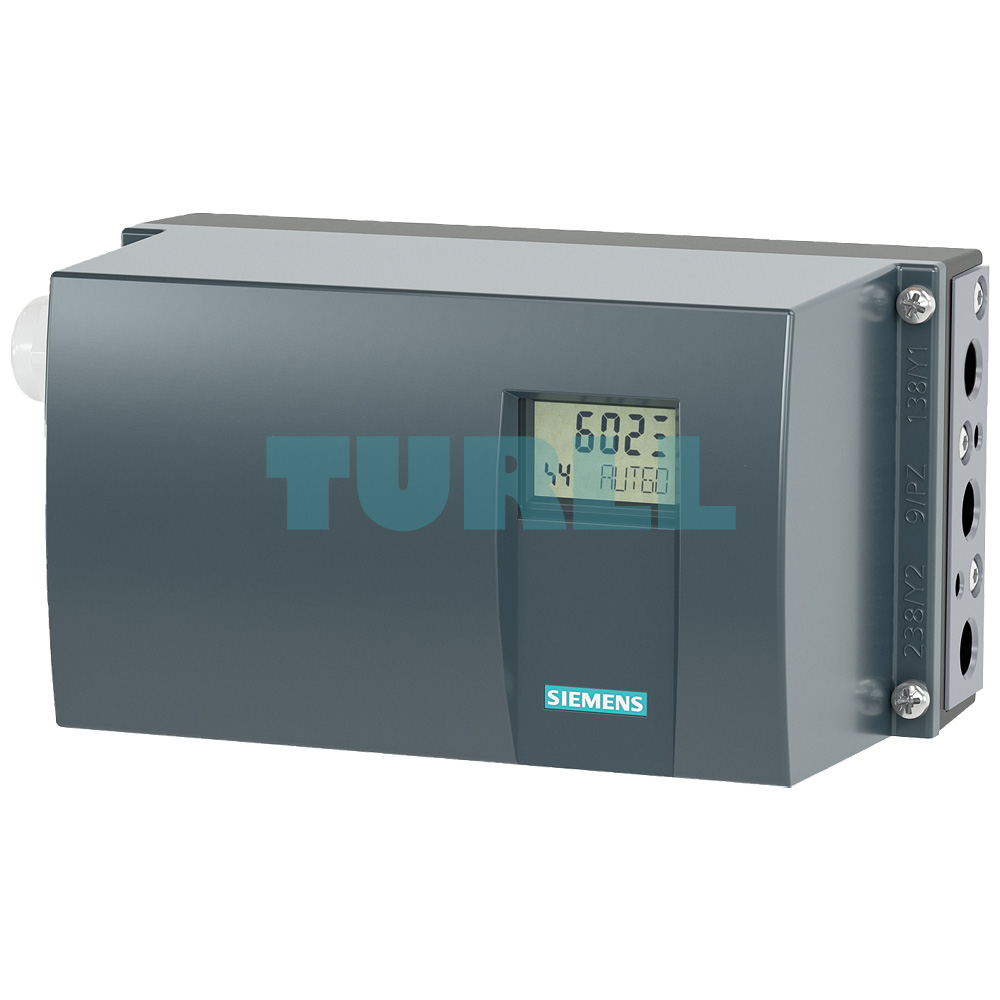

The SIEMENS 6DR5020-0EG01-0AA0 is a high-precision, intelligent SIPART PS2 electropneumatic positioner designed for reliable valve positioning in pneumatic linear and part-turn actuators. It features a non-contacting sensor (NCS) for wear-free position detection and supports standard 4 to 20 mA analog signal control. This model is double-acting and housed in a durable polycarbonate enclosure with intrinsic safety (Ex i) protection.

Offering flexibility and efficiency, it supports analog feedback via the Analog Output Module (AOM) and can be optionally expanded with digital I/O modules, limit switches, and inductive or mechanical signaling. Its versatile design makes it suitable for standard and fail-safe applications in a wide range of industrial automation systems.

Overview

SIPART PS2 positioners adjust valve positions based on setpoint signals in pneumatic systems. The device offers intelligent online and offline diagnostics to ensure operational accuracy and reduce downtime. Enhanced diagnostic capabilities are available with optional pressure sensors. Designed for high reliability, it fits both linear and rotary actuators using appropriate mounting kits.

Design

The SIPART PS2 comprises several advanced components and design elements:

• Base plate with lid (optional inspection window)
• Electronics with 4–20 mA, HART, PROFIBUS PA, or FOUNDATION Fieldbus interfaces
• Non-contacting or potentiometric position feedback
• Pneumatic block for actuation and air supply, positioned on the right side

The unit supports optional accessories like:

• Gauge block, venting gauge block, booster, or solenoid valve
• Digital I/O Module with alarm signaling and limit monitoring
• Inductive or mechanical limit switches with integrated fault indication

Optional Expansion

SIPART PS2 can be expanded with:

• Analog Output Module (AOM): Analog 4–20 mA position feedback
• Digital I/O Module (DIO): 3 digital outputs, 1 digital input
• Inductive Limit Switches (ILS): NAMUR-compatible limit detection
• Mechanical Limit Switches (MLS): Robust mechanical feedback

All modules are electrically isolated and easy to retrofit.

Product Code: 6DR5020-0EG01-0AA0
