6DR5110-0NG01-0AA0 SIEMENS Exclusive SIPART PS2 Electropneumatic Positioner Original Brand New

6DR5110-0NG01-0AA0 SIEMENS Exclusive SIPART PS2 Electropneumatic Positioner Original Brand New

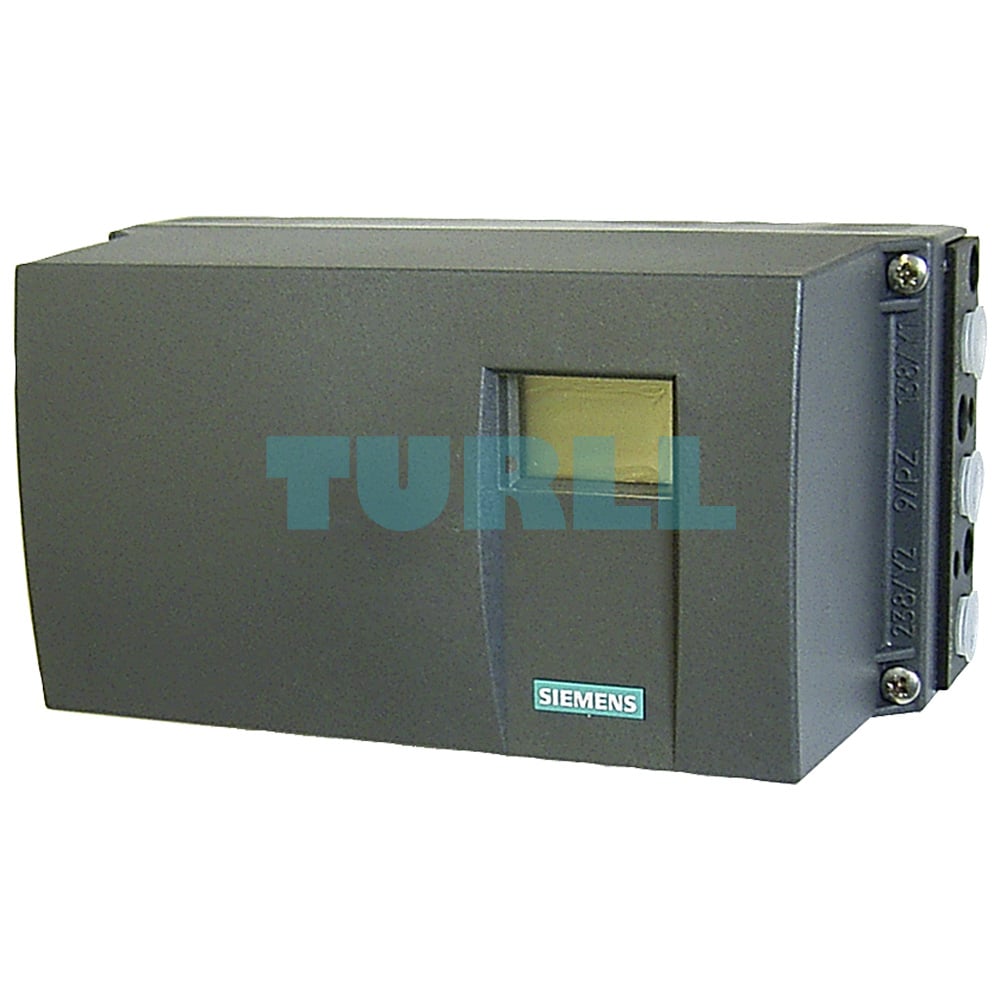

The 6DR5110-0NG01-0AA0 SIEMENS SIPART PS2 is a state-of-the-art electropneumatic positioner built for precision control in demanding industrial environments. This smart positioner accepts a 4...20 mA signal with HART communication and features a wear-free non-contacting sensor (NCS) for reliable, long-term operation. Designed for single-acting pneumatic linear and part-turn actuators, this model ensures accurate positioning and enhanced diagnostics.

Its polycarbonate enclosure and standard configuration make it suitable for general applications without explosion protection. It includes analog position feedback (AOM) via 4...20 mA output, and M12 device plug support (optional). Designed to depressurize the actuator in the event of auxiliary power failure, the SIPART PS2 ensures operational safety under fail-safe conditions.

Overview

SIPART PS2 positioners control pneumatic valves according to analog setpoint values and provide extensive diagnostic capabilities. Both online and offline diagnostics enhance system monitoring, and pressure sensors can optionally expand this functionality. The unit enables precise actuator control for increased efficiency and reduced maintenance.

Design

The digital SIPART PS2 consists of several robust components:

• Base plate and lid (with or without inspection window)
• Electronics with screw-type terminals supporting various standards including HART, PROFIBUS PA, and FOUNDATION Fieldbus
• Non-contacting sensor (NCS) or potentiometer for position feedback
• Pneumatic block with optional connections for gauge blocks, boosters, or solenoid valves

Mounting is flexible and supported by a wide range of accessories. Electrical and pneumatic connections are designed for efficient installation and integration.

Optional Modules and Expansion

The SIPART PS2 can be expanded with:

• Analog Output Module (AOM): Analog position feedback 4...20 mA
• Digital I/O Module (DIO): 3 digital outputs, 1 input for alarms and safety functions
• Inductive or Mechanical Limit Switches (ILS/MLS): For position monitoring with integrated fault indicators

All signals are isolated and self-monitoring for enhanced reliability. Separate mounting is also possible, allowing the positioner to be installed away from the valve in more protected environments.

Product Code: 6DR5110-0NG01-0AA0
