6DR5110-0NM00-0AA0 SIEMENS Exclusive SIPART PS2 Electropneumatic Positioner Original Brand New

6DR5110-0NM00-0AA0 SIEMENS Exclusive SIPART PS2 Electropneumatic Positioner Original Brand New

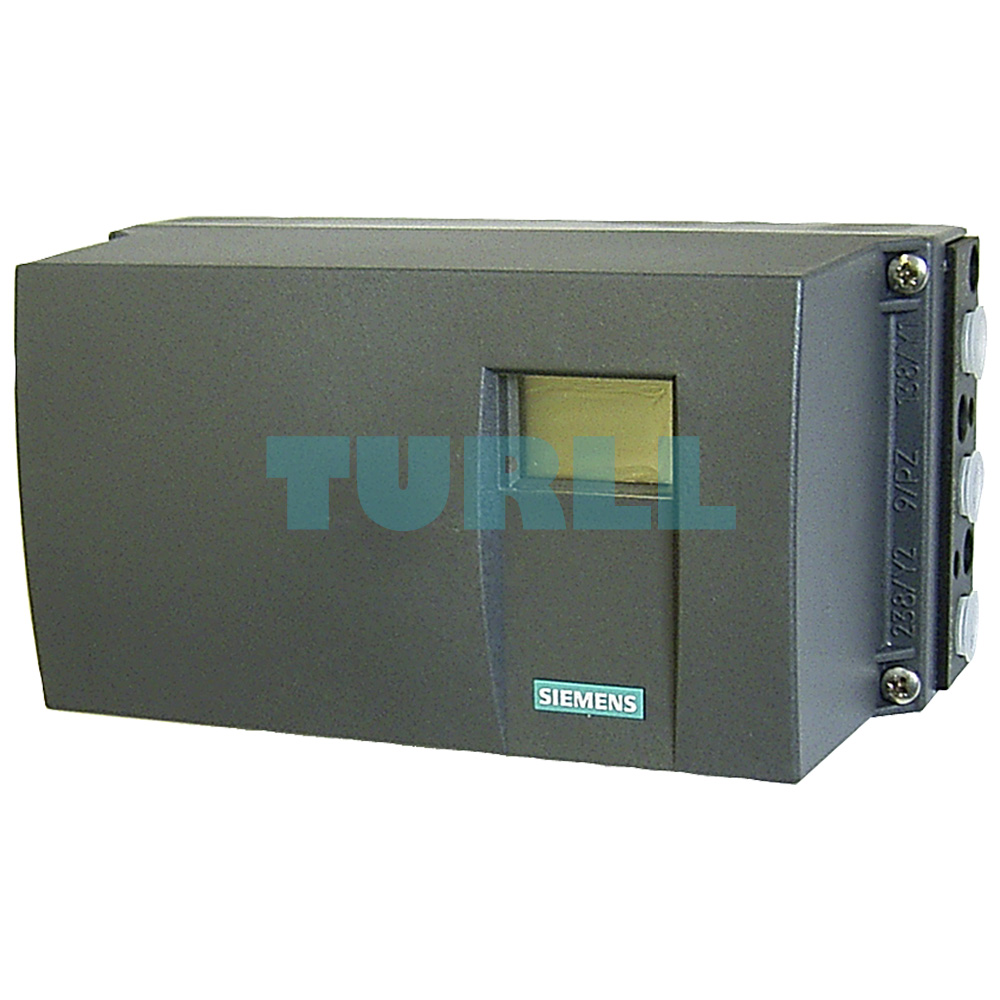

The SIEMENS 6DR5110-0NM00-0AA0 SIPART PS2 electropneumatic positioner is engineered to provide reliable and precise valve control in process automation. This smart positioner operates via a 4–20 mA signal with HART communication protocol and is designed for use with single-acting pneumatic linear and part-turn actuators. Featuring a non-contacting, wear-free position detection system (NCS), this unit ensures long service life and maintenance-free operation in demanding industrial environments.

Enclosed in a durable polycarbonate housing, this positioner supports Ex/nEx applications and includes standard fail-safe functionality, which depressurizes the actuator upon auxiliary power loss. It includes English, German, and Chinese instructions and is ideal for integration into systems requiring safety, precision, and long-term reliability.

Overview

SIPART PS2 controls valve positions based on analog setpoints for pneumatic actuators. It enables valve diagnostics both online during operations and offline between batches. Optional pressure sensors can be added for enhanced diagnostics.

Design

The SIPART PS2 features include:

• Base plate and lid (with or without inspection window)
• Electronics with screw terminals: 4–20 mA, HART, PROFIBUS PA, or FOUNDATION Fieldbus
• Position feedback via potentiometer or NCS sensor
• Right-side pneumatic block for supply and actuation air
• Supports optional accessories like boosters, gauge blocks, solenoid valves

Optional Modules

• Analog Output Module (AOM): 4–20 mA feedback
• Digital I/O Module (DIO): 3 DOs, 1 DI with alarms and safety functions
• Inductive Limit Switches (ILS): NAMUR signal monitoring and fault indication
• Mechanical Limit Switches (MLS): 2 limits with integrated fault indicators

All modules are electrically isolated and self-monitoring. They are easily retrofitted.

Remote Mounting Option

The SIPART PS2 allows for remote installation of the position detection system. Measurement can occur at the actuator while the controller is mounted in a protected zone, ideal for harsh environments involving vibration, radiation, or magnetic interference.

Product Code: 6DR5110-0NM00-0AA0
