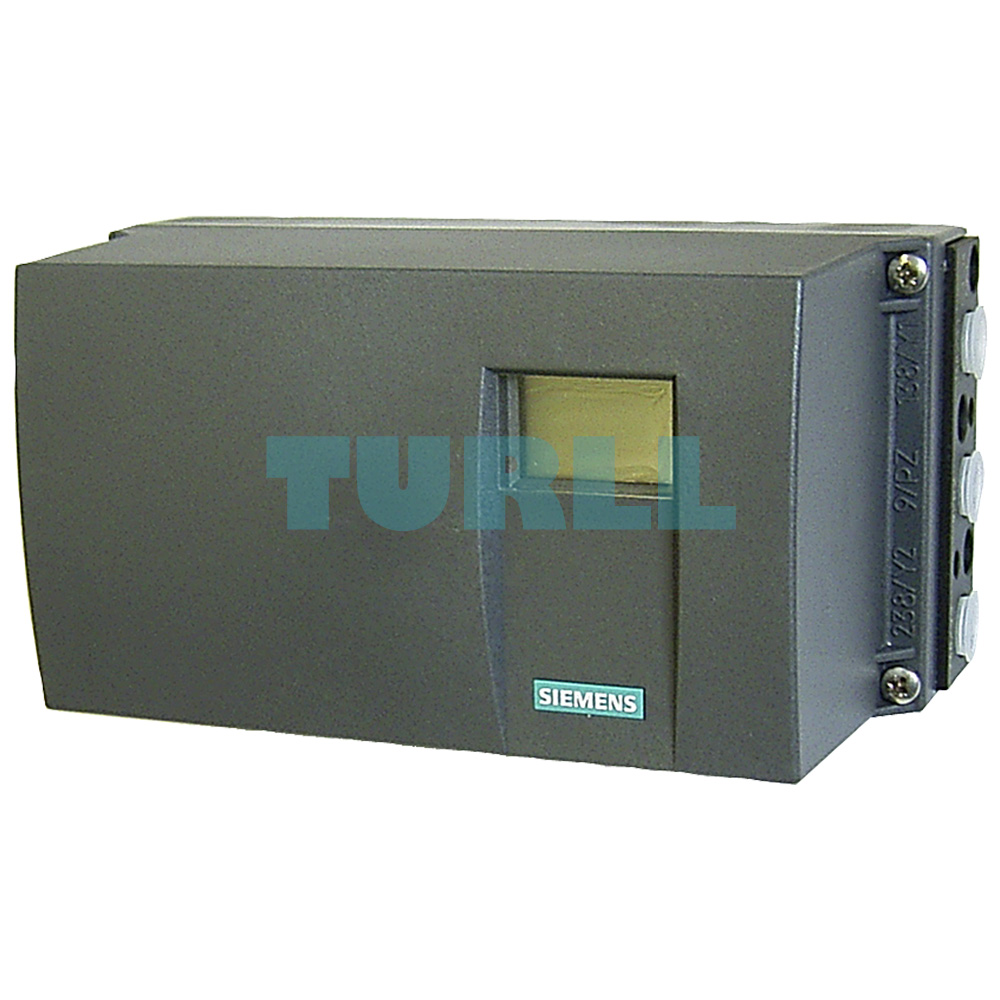

6DR5110-0NN01-0AA0 SIEMENS Exclusive SIPART PS2 Electropneumatic Positioner Original Brand New

6DR5110-0NN01-0AA0 SIEMENS Exclusive SIPART PS2 Electropneumatic Positioner Original Brand New

The SIEMENS 6DR5110-0NN01-0AA0 SIPART PS2 electropneumatic positioner offers intelligent and reliable valve positioning for a wide range of pneumatic actuator applications. Engineered for precision and long-term durability, this single-acting smart device features a wear-free, non-contacting position detection system (NCS), a polycarbonate enclosure, and advanced control capabilities via a 4–20 mA HART interface.

This model is optimized for use with linear and part-turn actuators and includes analog position feedback with an integrated Analog Output Module (AOM). Designed with flexibility in mind, it can be installed locally or remotely and enhanced with optional modules such as digital I/O, inductive or mechanical limit switches, and pressure sensors for expanded diagnostics and monitoring.

Overview

SIPART PS2 positioners precisely regulate the valve's position based on the input setpoint. With integrated diagnostics available both during operation and between batches, this unit enhances process reliability. Additional pressure sensors can be installed to extend its diagnostic scope.

Design

This digital positioner consists of several robust components:

• Base plate with cover (with or without inspection window depending on variant)
• Electronics supporting 4–20 mA, HART, PROFIBUS PA, and FOUNDATION Fieldbus communication
• Non-contacting sensor (NCS) for position feedback
• Pneumatic block with 1/4" NPT connections for supply air and actuation

It can be mounted directly on the actuator or separately in harsh environments using cables and pneumatic tubing.

Optional Expansion Modules

• Analog Output Module (AOM): Provides 4–20 mA feedback signal
• Digital I/O Module: Adds 3 digital outputs and 1 input for travel limit alerts or valve faults
• Inductive Limit Switches (ILS): Enable NAMUR-compliant monitoring with integrated fault detection
• Mechanical Limit Switches (MLS): Offer hardware-based monitoring with built-in alarms

All expansion options are electrically isolated and designed for seamless retrofit, enhancing diagnostic and safety functionality without extensive modifications.

Product Code: 6DR5110-0NN01-0AA0
