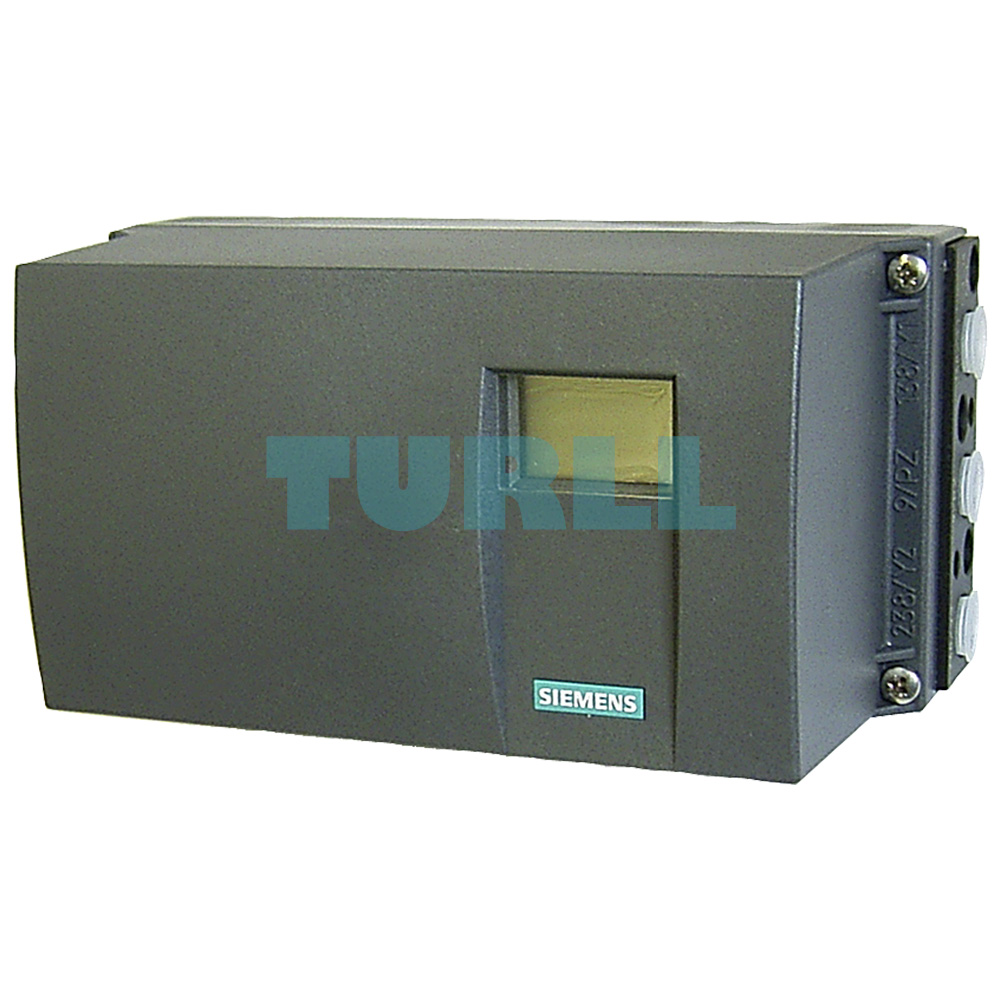

6DR5210-0EG01-0AA0 SIEMENS Exclusive SIPART PS2 Smart Electropneumatic Positioner Original Brand New

6DR5210-0EG01-0AA0 SIEMENS Exclusive SIPART PS2 Smart Electropneumatic Positioner Original Brand New

The 6DR5210-0EG01-0AA0 SIEMENS SIPART PS2 Smart Positioner offers superior valve control in demanding industrial automation environments. Engineered with electropneumatic technology and supporting a 4…20 mA interface with HART protocol, this intelligent positioner ensures accurate and reliable valve positioning. Built for single-acting actuators, the device operates in both standard and fail-safe modes, depressurizing the actuator in the event of power failure.

Its polycarbonate enclosure provides protection in harsh environments, while modular options such as Analog Output Module (AOM) for 4…20 mA feedback allow enhanced flexibility. This model features intrinsic safety protection (Ex i), and supports pneumatic linear and part-turn actuators with electrical connections via M20x1.5 and pneumatic ports of G 1/4.

Overview

SIPART PS2 positioners are advanced solutions for controlling valve positions in real time based on precise setpoint inputs. They feature intelligent diagnostics, supporting both online (during operation) and offline (between batch processes) testing. Optional pressure sensors can extend the range of diagnostics for even greater accuracy and monitoring capabilities.

Design

The SIPART PS2 comprises:

• Base plate with or without inspection window
• Electronics supporting 4-20 mA, HART, PROFIBUS PA, and FOUNDATION Fieldbus protocols
• Non-contacting or potentiometric position feedback sensors
• Right-side pneumatic connections for supply and actuation

Add-ons include gauge blocks, boosters, and solenoid valves. Its modularity supports future expansion with digital or analog modules for alarms, signal feedback, and limit switching.

Optional Expansion

• Analog Output Module (AOM) with analog feedback (4–20 mA)
• Digital I/O Module (3 digital outputs, 1 digital input)
• Inductive Limit Switches (ILS) and Mechanical Limit Switches (MLS) for position monitoring

Separate Mounting Capability

The SIPART PS2 can be mounted separately from the actuator, allowing electrical and pneumatic connections via cables and tubing. This setup protects the device in extreme environments like vibration or radiation zones.

Product Code: 6DR5210-0EG01-0AA0
