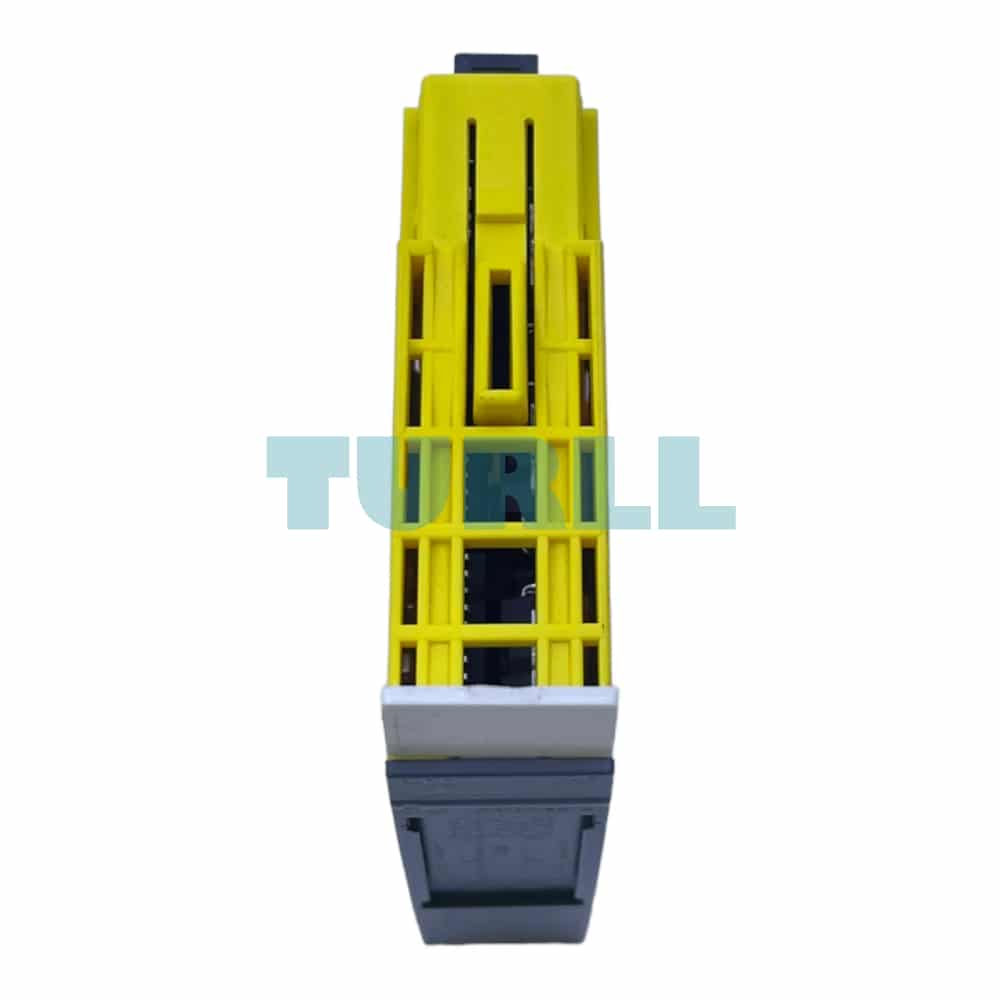

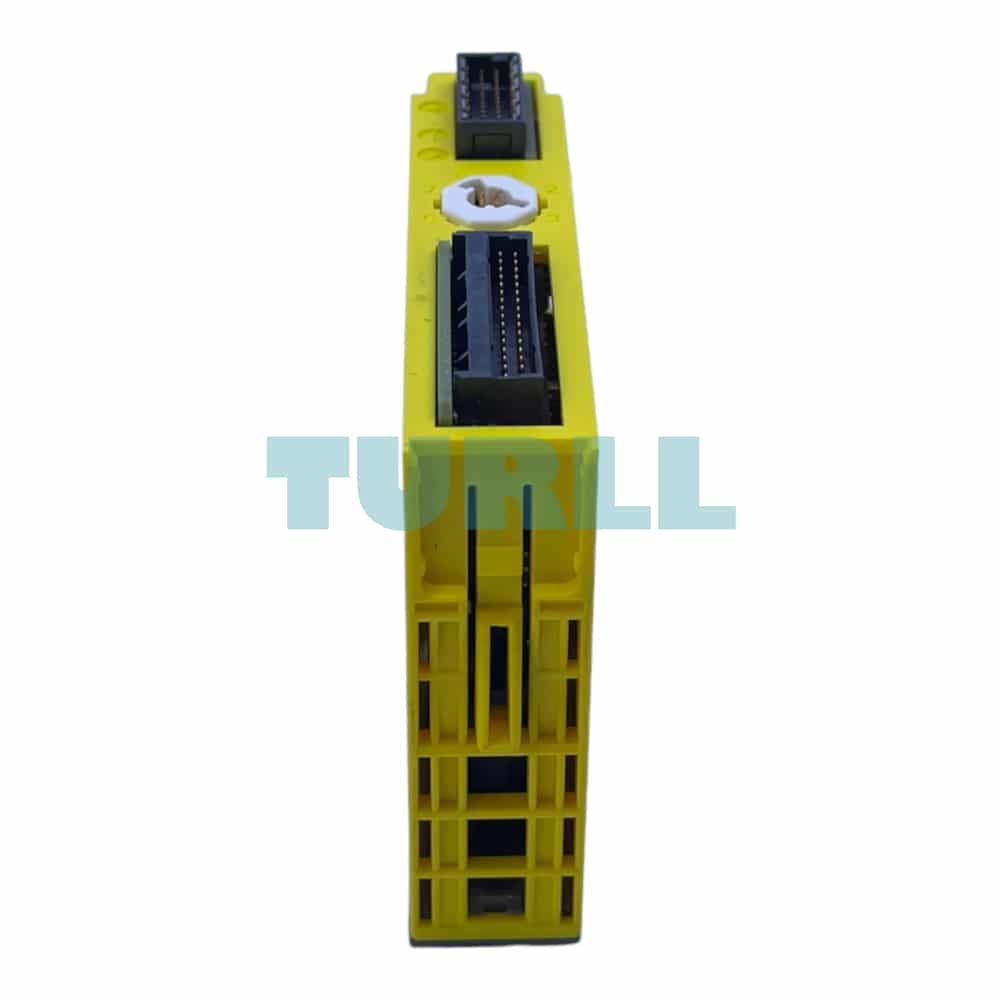

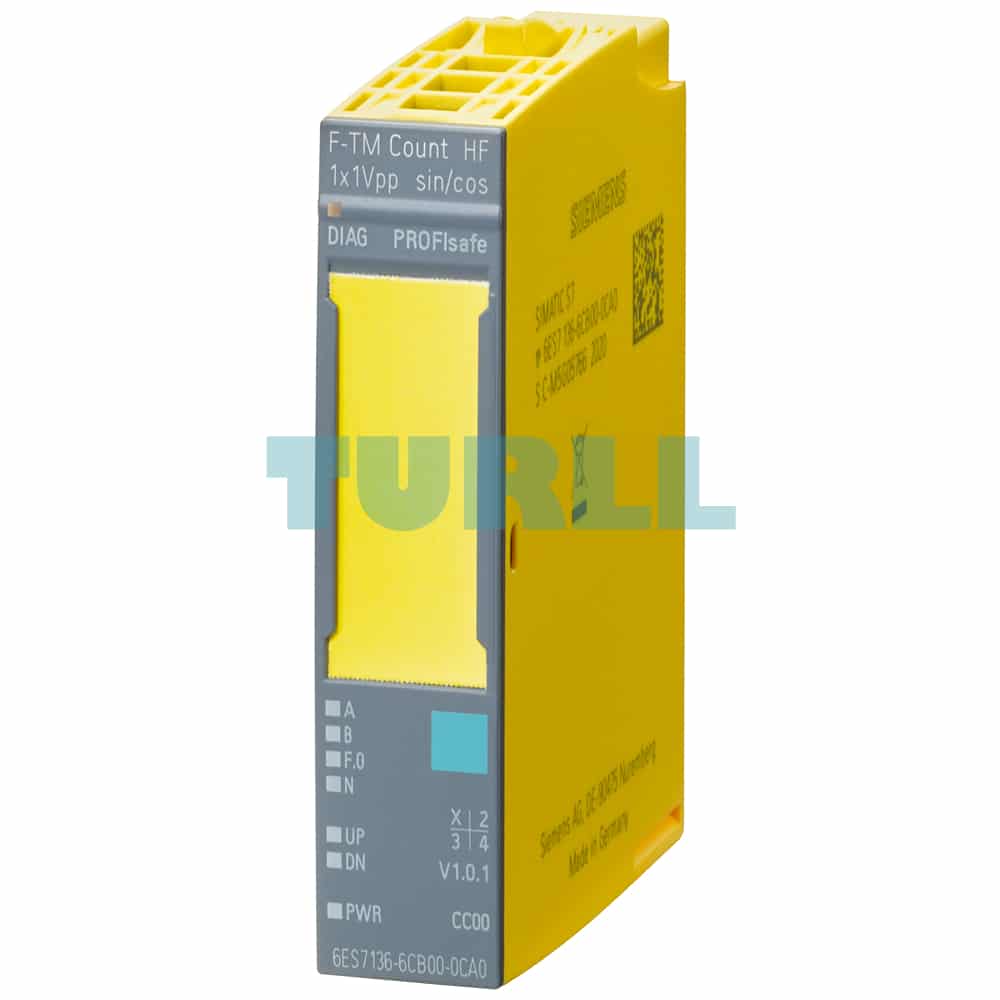

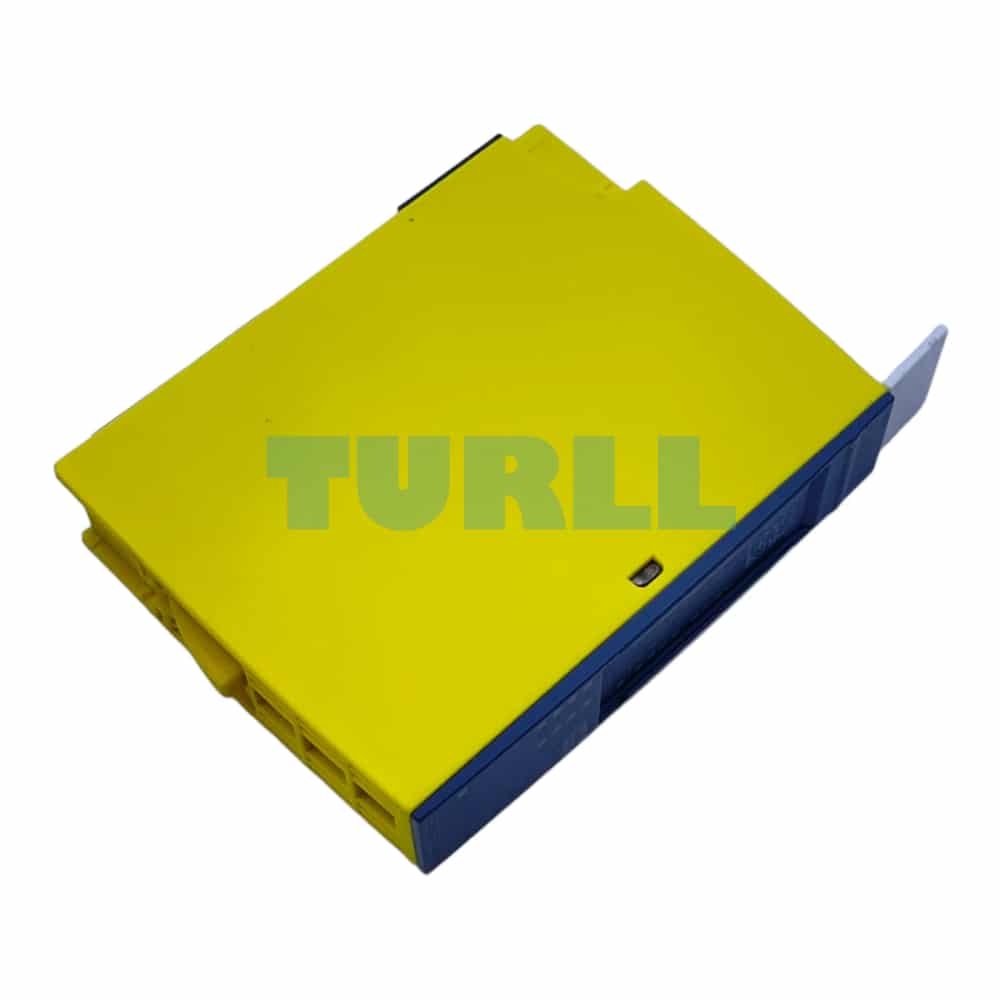

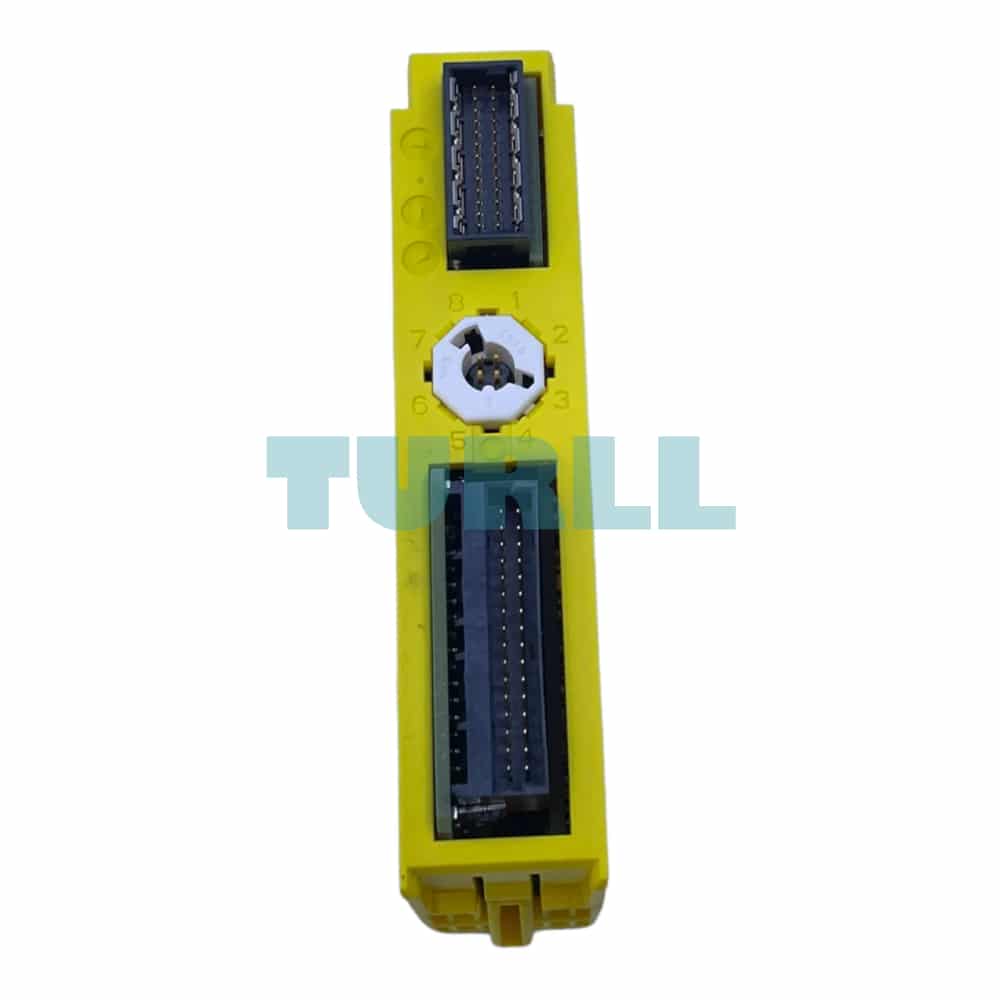

6ES7136-6CB00-0CA0 Siemens SIMATIC ET 200SP Fail-safe Technology Module Original Brand New
$709.59
6ES7136-6CB00-0CA0
Siemens SIMATIC ET 200SP, F-TM Count 1x1Vpp sin/cos HF, PROFIsafe, 1 channel, for incremental rotary encoders, sin/cos 1 Vpp, suitable for BU type A0, pack quantity: 1 unit
[ez-toc]
Overview
Fail-safe technology module:
F-TM Count, 1x1Vpp sin/cos High Feature for BU type A0, color code CC00
Important properties:
- Technological, fail-safe counter module for ET 200SP
- Certified up to SIL 3 (IEC 61508), PL e (ISO 13849)
- 1x sin/cos interface for recording sin/cos differential encoder signals A, A/, B, B/, N and N/
- Option to connect sin/cos differential encoders
- Short-circuit-proof 5 V DC encoder supply
- High-speed count input up to 200 kHz
- Counting range: 32-bit (-2.147.483.648 to +2.147.483.647)
- SW gate for counter control
- Measured values:
- Speed
- Frequency
- Period duration
- Integrated safety functions:
- SOS (Safe Operation Stop)
- SLS (Safely Limited Speed)
- SDI (Safe Direction)
- Can be plugged onto type A0 BaseUnits (BU)
- LED display for error, operation, supply voltage and status
- Monitoring of encoder signals for wire break, short-circuit and signal strength
- Firmware update
- Identification data I&M
- Value status
- Clear labeling on front of module
- Plain text identification of the module type and function class
- 2D matrix code (order and serial number)
- Connection diagram
- Hardware and firmware version
- Color code CC for module-specific color coding of the potentials at the terminals of the BU
- Complete Article No.
- Optional labeling accessories:
- Labeling strips
- Equipment labeling plate
- Optional module-specific color identification of the terminals according to the color code CC
- Optional system-integrated shield connection
- The modules support PROFIsafe in both PROFIBUS and PROFINET configurations. Can be used with all fail-safe SIMATIC S7 CPUs.
Application
The fail-safe ET 200SP modules can be used to implement the safety-related application requirements as an integrated part of the overall automation. The safety functions required for fail-safe operation are integrated in the modules. Communication with the fail-safe SIMATIC S7 CPUs takes place via PROFIsafe.
The modules can be operated both in centralized and distributed configurations.
Design
Suitable BaseUnits
BaseUnits with an appropriate number of terminals are available for single and multi-conductor connections.
A light BaseUnit opens a new load group. The supply voltage to the sensors must be fed via this BU. The first BU next to the interface module must always be a light BU.
A dark BaseUnit forwards the supply voltage of the adjacent light BaseUnit on the left via self-assembling voltage buses. A new infeed is therefore only required on the next light BaseUnit to the right.
All variants that correspond to the BU type of the I/O module can be used as BaseUnits.
Color identification of the terminals
The potentials at the terminals of the BaseUnit are defined by the I/O module. Optionally, the potentials of the terminals can be identified by module-specific color-coding labels to prevent wiring errors. The color-coded label that matches the respective I/O module is defined by the color code CCxx of the I/O module. This color code is also printed on the front of the module.
In BaseUnits with the 10 internally jumpered AUX terminals, these can also be identified with color-coding labels. For the 10 AUX terminals, color-coding labels are available in red, blue, and yellow/green.
System-integrated shield connection
For the space-saving and EMC-optimized connection of cable shields, a shield connection is available that is quick and easy to mount. It consists of one shield connection element that can be plugged onto the BaseUnit and one shield terminal for each module. The low-impedance connection to the functional ground (DIN rail) is achieved without any additional wiring by the user.
6ES7136-6CB00-0CA0
Siemens SIMATIC ET 200SP, F-TM Count 1x1Vpp sin/cos HF, PROFIsafe, 1 channel, for incremental rotary encoders, sin/cos 1 Vpp, suitable for BU type A0, pack quantity: 1 unit
Visit 6ES7136-6CB00-0CA0
For more our products visit turll.com
| Weight | 0.054 kg |
|---|---|
| Dimensions | 68.00 × 77.00 × 27.00 mm |
