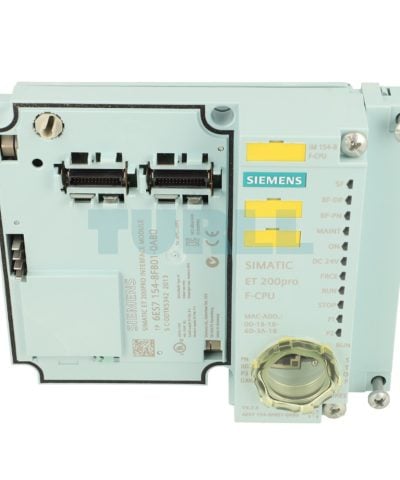

The 6ES7154-8FB01-0AB0 SIEMENS SIMATIC DP IM154-8F PN/DP CPU is a powerful and fail-safe interface module designed for the ET 200 PRO distributed I/O system. Equipped with an integrated fail-safe CPU equivalent in performance to the S7-315F PN/DP, this module delivers advanced control functionality combined with high reliability for safety-critical industrial applications.

With 512 KB of work memory, integrated PROFINET interface, and PROFIBUS DP master/slave capability, this module ensures efficient communication and processing in complex automation systems. Designed for cabinet-free installation, it features a robust IP65/67 protection rating, making it ideal for harsh industrial environments directly at the machine level.

The module supports fail-safe automation systems compliant with SIL3 (IEC 61508 and IEC 62061) and Performance Level e (ISO 13849-1), ensuring maximum operational safety. It also includes an integrated web server for diagnostics and visualization, along with multiple communication protocols such as TCP, ISO-on-TCP, UDP, and S7 communication.

Overview

The SIEMENS 6ES7154-8FB01-0AB0 is an intelligent interface module with integrated fail-safe CPU designed for high-performance automation systems requiring advanced safety and distributed processing capabilities.

• Integrated fail-safe CPU equivalent to S7-315F PN/DP
• 512 KB work memory for efficient processing
• PROFINET interface with integrated 3-port switch
• PROFIBUS DP master/slave communication support
• Certified up to SIL3 and PL e for safety applications
• Supports up to 128 PROFINET IO devices

The module enables distributed intelligence by allowing preprocessing at the field level, improving system performance and reducing central CPU load.

Design

The 6ES7154-8FB01-0AB0 SIEMENS module features a rugged and compact design optimized for industrial environments. It consists of the IM 154-8 F PN/DP CPU and requires a separate connection module for full operation.

• High protection rating IP65/67 for machine-level installation
• 3 PROFINET ports (2x M12, 1x RJ45) for flexible networking
• 2 MPI/PROFIBUS connections with M12 connectors
• RUN/STOP switch and protected RJ45 interface
• Supports SIMATIC Micro Memory Card (required for operation)

The modular design ensures flexibility and scalability, allowing easy integration into ET 200 PRO systems. The integrated web server and advanced communication features make system monitoring and configuration straightforward and efficient.

Download

Data sheet (PDF)

Product Code: 6ES7154-8FB01-0AB0
