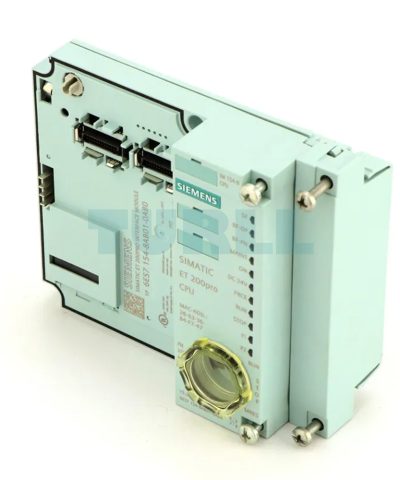

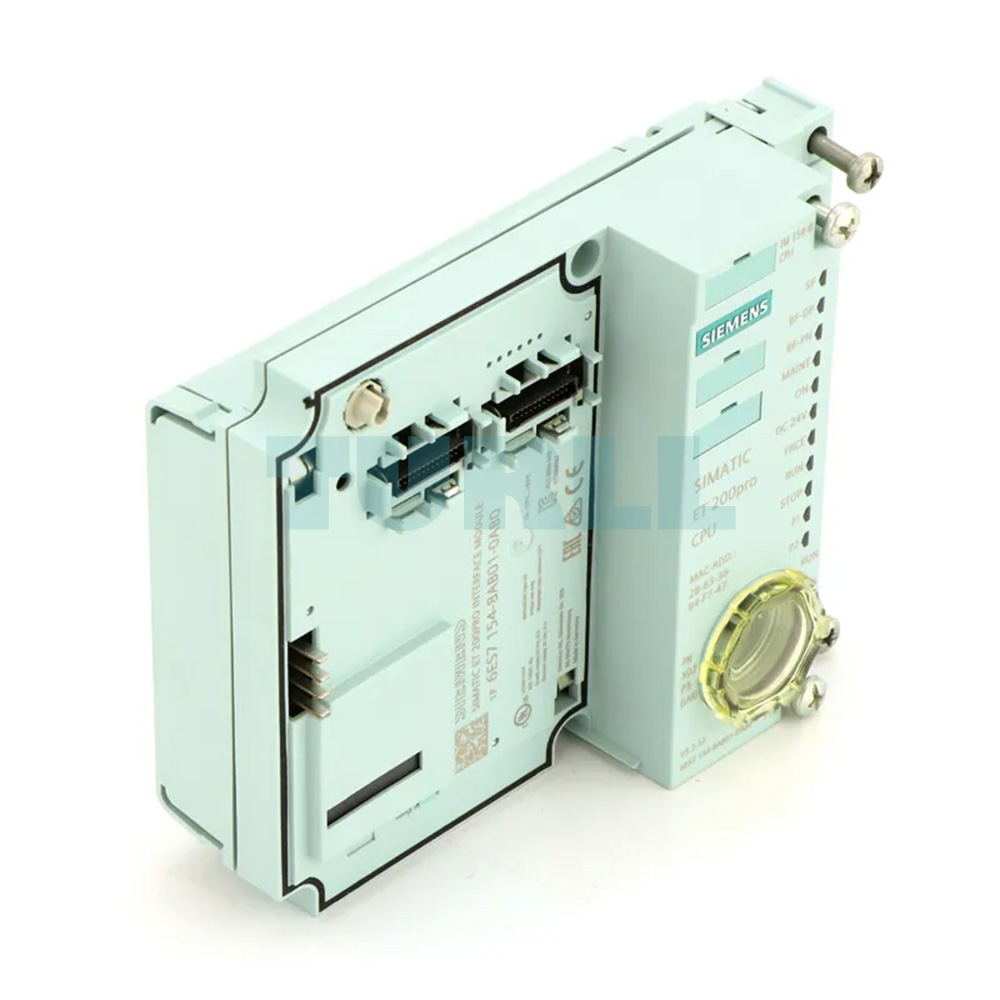

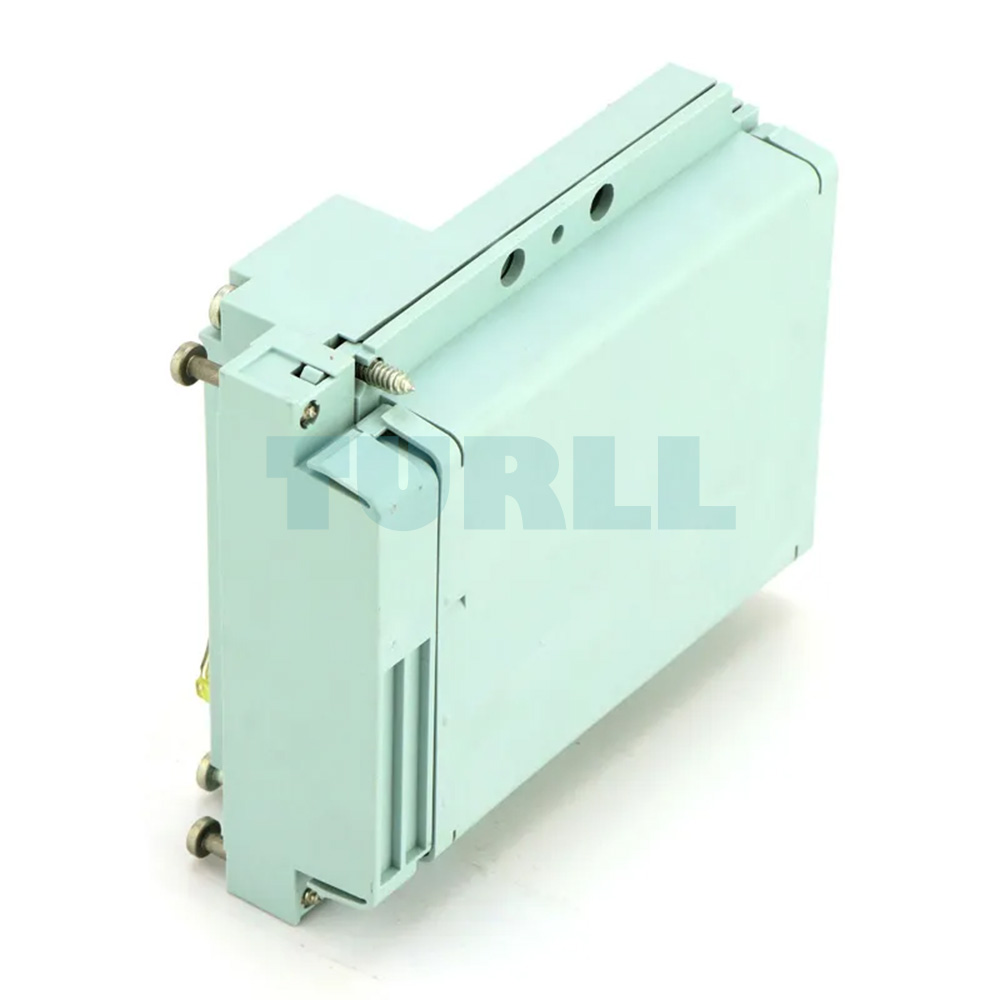

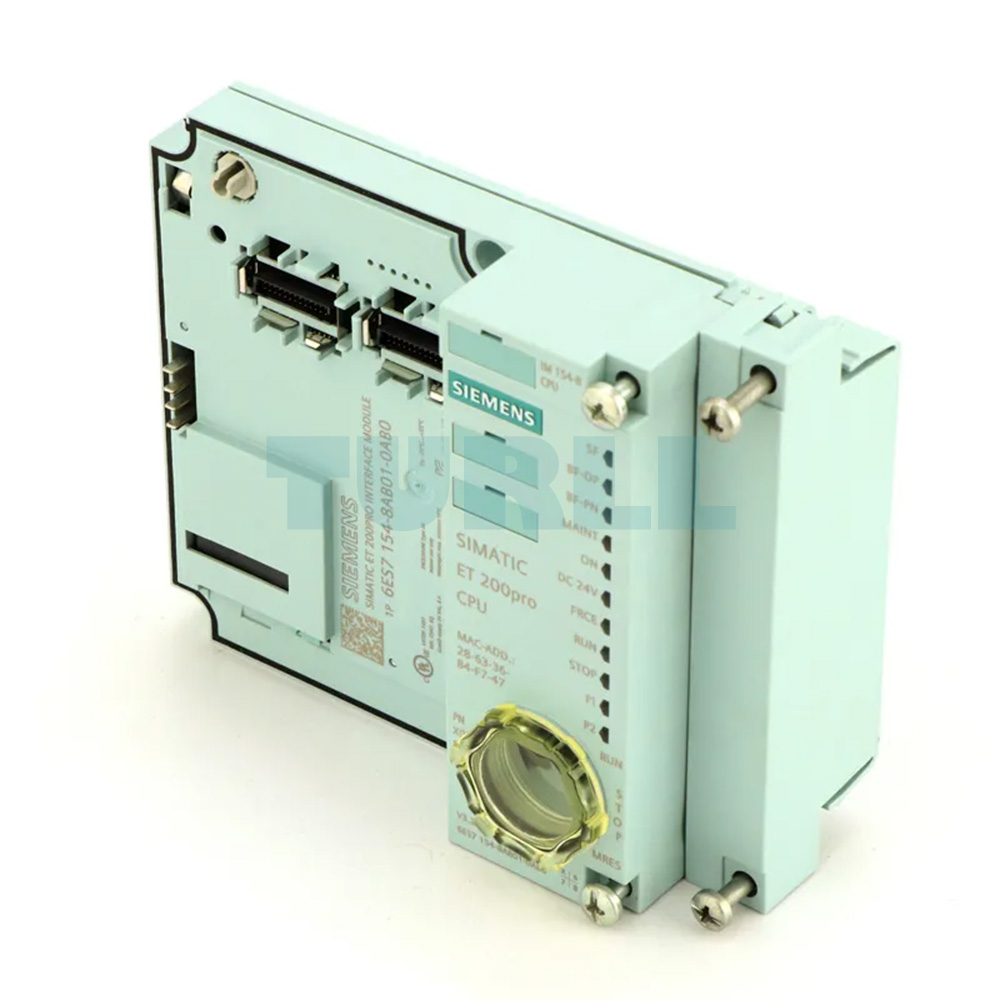

6ES7154-8AB01-0AB0 Siemens SIMATIC DP IM154-8 PN/DP CPU Original Brand New

• CPU with PLC functionality equivalent to S7-315-2 PN/DP provides distributed intelligence for preprocessing
• Interface module for exchanging pre-processed I/O data between the ET 200pro and a higher-level master/IO controller via PROFIBUS DP/PROFINET IO
• PROFINET IO controller for operating distributed I/O on PROFINET
• Component-based Automation (CBA) on PROFINET
• PROFINET proxy for intelligent devices on PROFIBUS DP in Component-based Automation (CBA)
• PROFINET interface with 3-port switch
• Isochronous mode on PROFIBUS or PROFINET
• Integrated web server with the option of creating user-defined web pages
• CPU with PLC functionality equivalent to S7-315-2 PN/DP provides distributed intelligence for preprocessing
• Fast, simple and end-to-end programming of a system with modular programs via STEP 7
• Fail-safe IM 154-8F PN/DP CPU PROFIsafe available

Note

SIMATIC Micro Memory Card required for operation of CPU.

The IM 154-8 PN/DP CPU can be used simultaneously as an IO Controller and as an I-Device on PROFINET via the integral PROFINET interface. The intelligent 154-8 CPU interface module has integrated PLC functionality. The functions included correspond to those of the S7-300 CPU 315-2 PN/DP.

These PLC functions allow ET 200pro to be used as a control for autonomous technological functional units, e.g.:

• Conveyor systems, switches
• Lifting stations
• Positioning tasks
• Thanks to its PROFIBUS interface in addition to the PROFINET interface, the IM 154-8 PN/DP also offers the option of operating other distributed I/Os via PROFIBUS. The IM 154-8 PN/DP CPU can be used on PROFIBUS not only as a master but also as a slave. The CPU’s potential applications are therefore extended manufacturing cells with preprocessing, whereby stand-alone operation is also an option. Cabinet-free installations are possible due to the high IP67 rating.

The IM154-8 PN/DP CPU intelligent interface module consists of two parts:

• IM154-8 PN/DP CPU (6ES7154-8ABxx-0AB0) and
• CM IM PN DP M12 7/8” connection module (6ES7194-4AN00-0AA0)

Both components are sold separately.

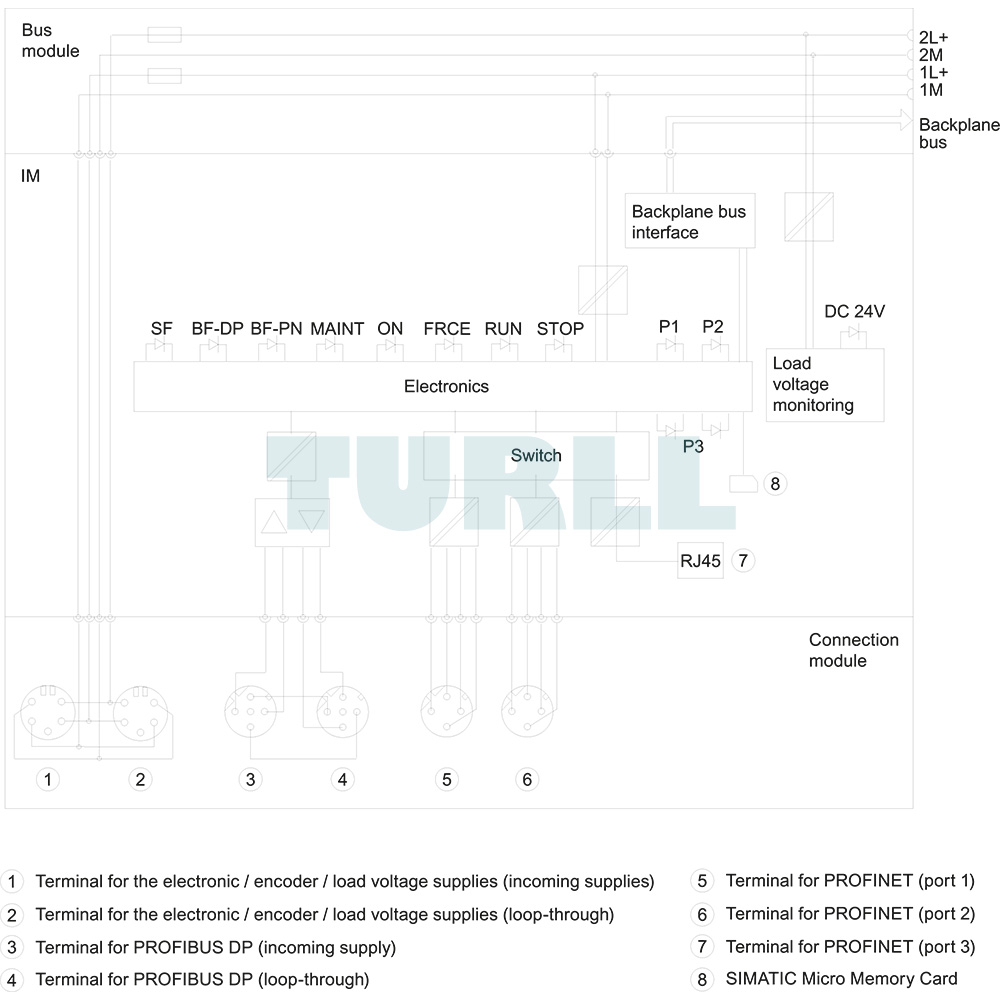

The IM154-8 PN/DP CPU interface module has:

• 3 PROFINET ports (2 x M12, 1 x RJ45)
• 2 MPI/PROFIBUS connections (input and output, M12)
• Integral CPU with the performance power of an S7-300 CPU 315-2 PN/DP
• RUN/STOP switch and RJ45 PROFINET port behind a sealed cover
• SIMATIC Micro Memory Card below the connection module
