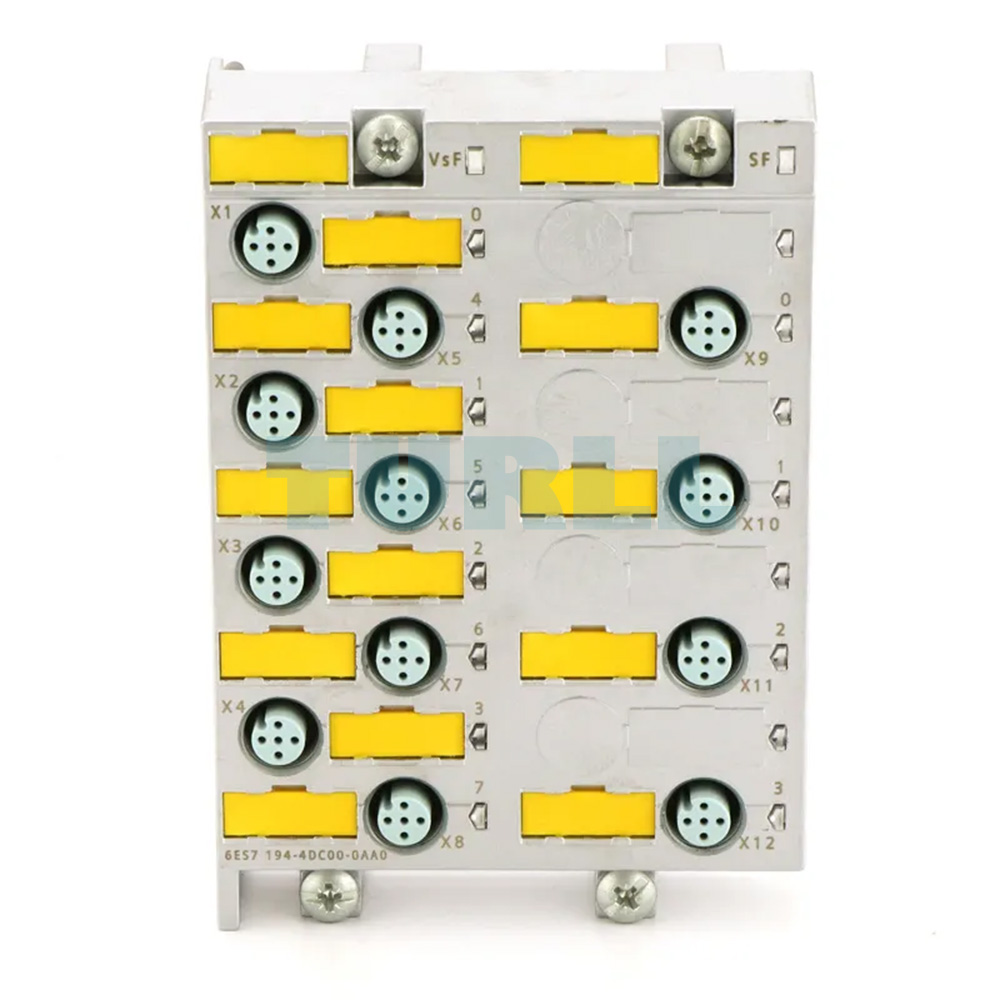

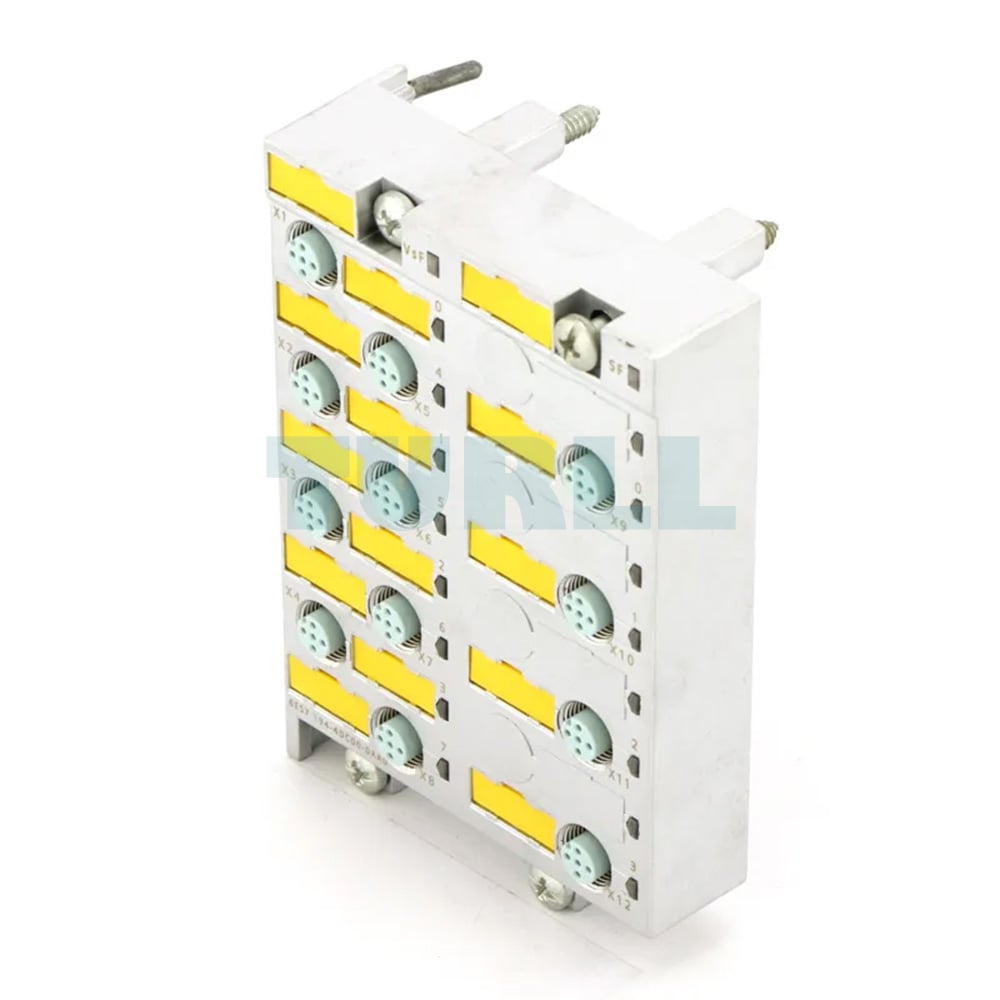

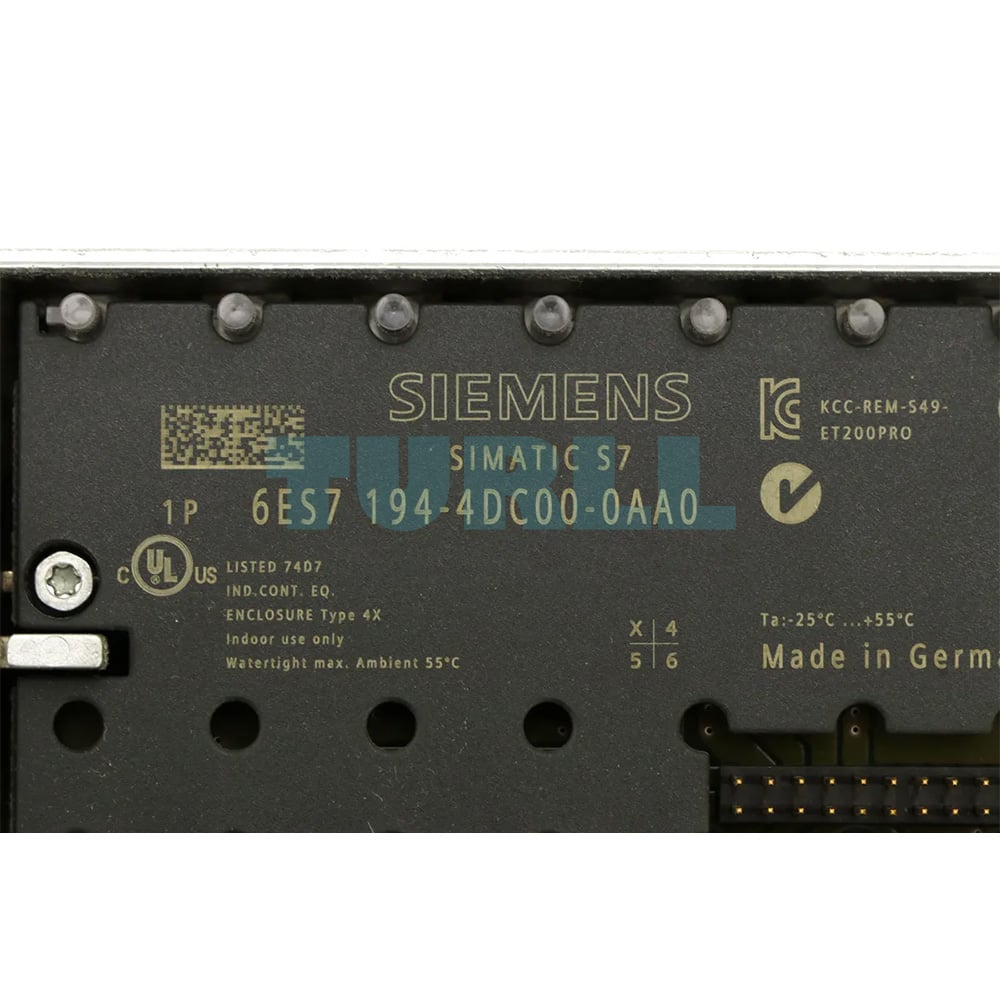

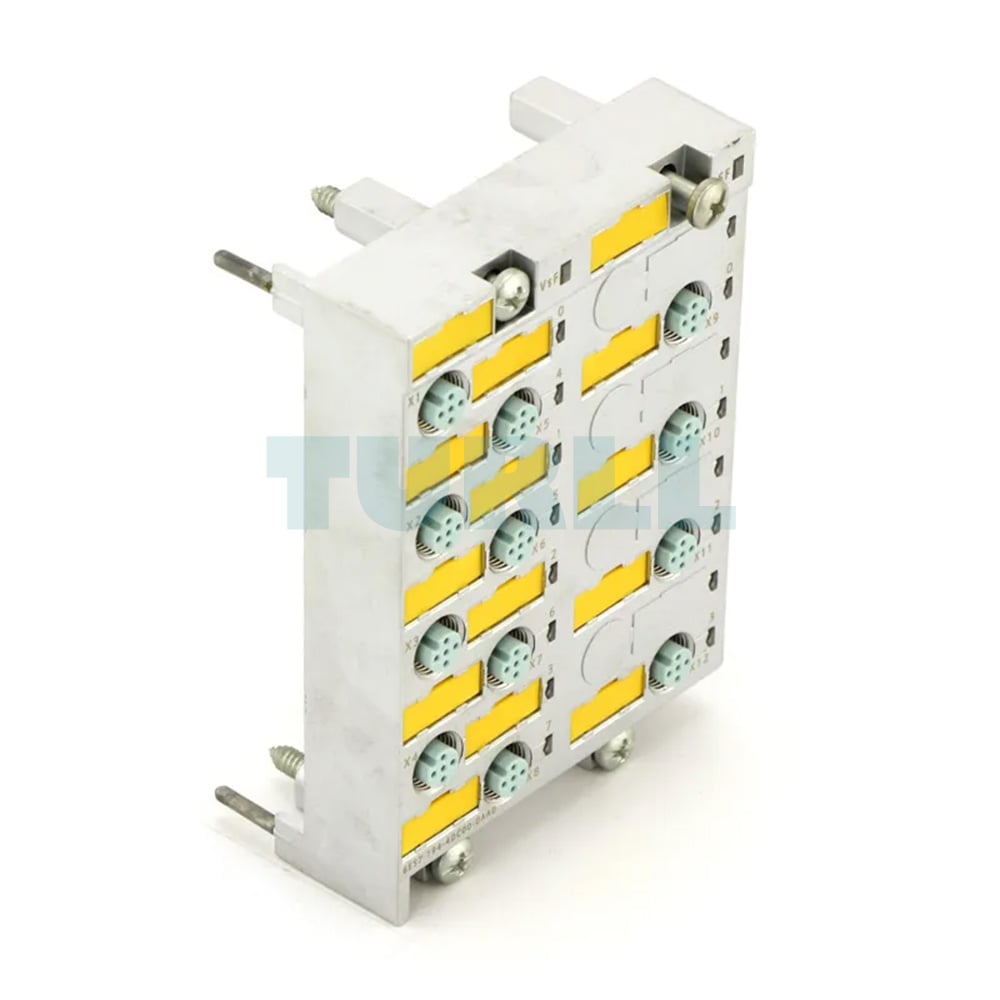

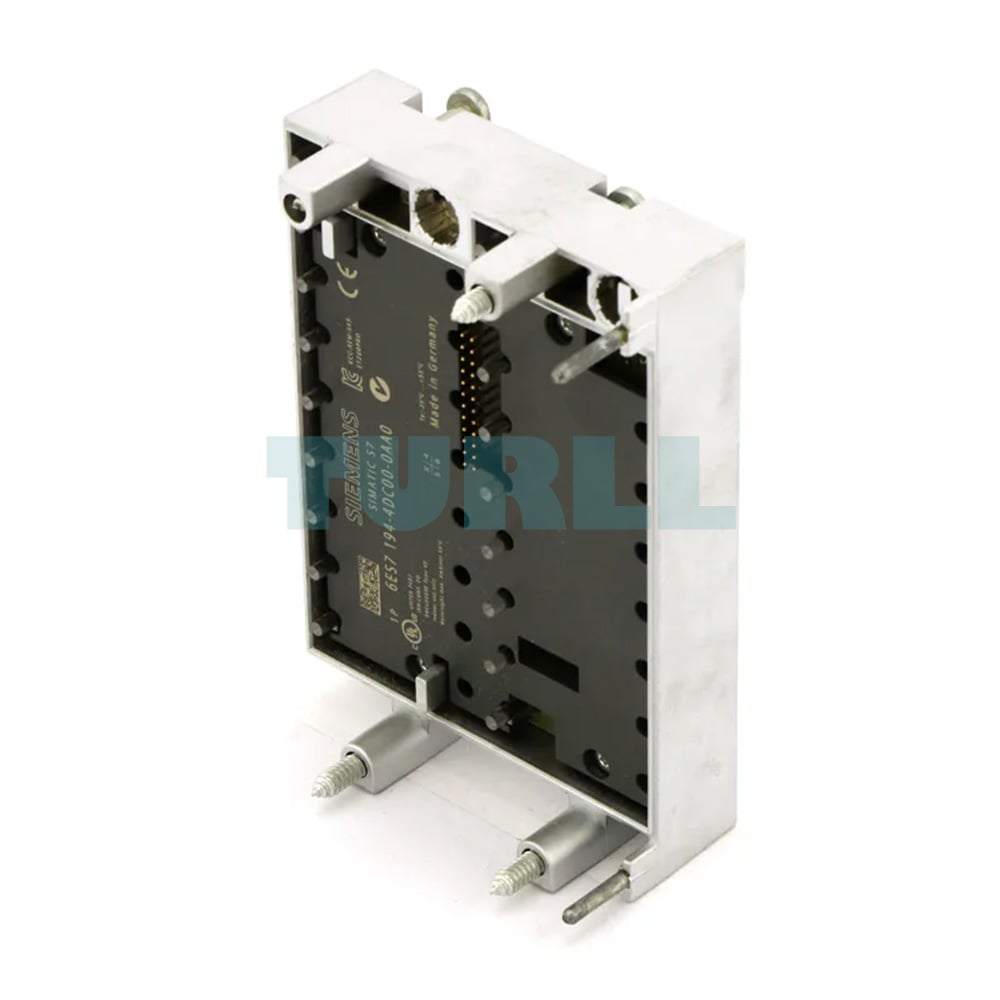

6ES7194-4DC00-0AA0 SIEMENS Exclusive Connection Module Original Brand New

6ES7194-4DC00-0AA0 SIEMENS Exclusive Connection Module Original Brand New

The 6ES7194-4DC00-0AA0 Siemens connection module is a high-performance component designed for SIMATIC DP ET 200 PRO systems. Engineered for fail-safe electronic modules, it supports configurations with 4/8 fail-safe digital inputs (F-DI) and 4 fail-safe digital outputs (F-DO) operating at 24 V DC with a current capacity of up to 2A. This module is ideal for demanding industrial automation environments where safety, reliability, and performance are critical.

Designed for cabinet-free installation, this connection module features a robust housing with IP65/66/67 protection rating, making it suitable for machine-level applications exposed to harsh conditions. It ensures seamless integration into distributed automation systems while maintaining high operational efficiency and safety compliance.

Overview

The Siemens ET 200 PRO system offers fail-safe digital inputs and outputs for advanced safety applications. These modules enable precise monitoring and control of industrial processes while ensuring compliance with stringent safety standards.

• Fail-safe digital inputs for reading sensor signals in 1 or 2-channel configurations
• Integrated discrepancy evaluation for 2-out-of-2 signal processing
• Internal sensor power supply with built-in test functions
• Fail-safe digital outputs for actuator control with 2-channel activation
• Support for both sinking and sourcing output configurations
• Actuator control capability up to 2 A

Design

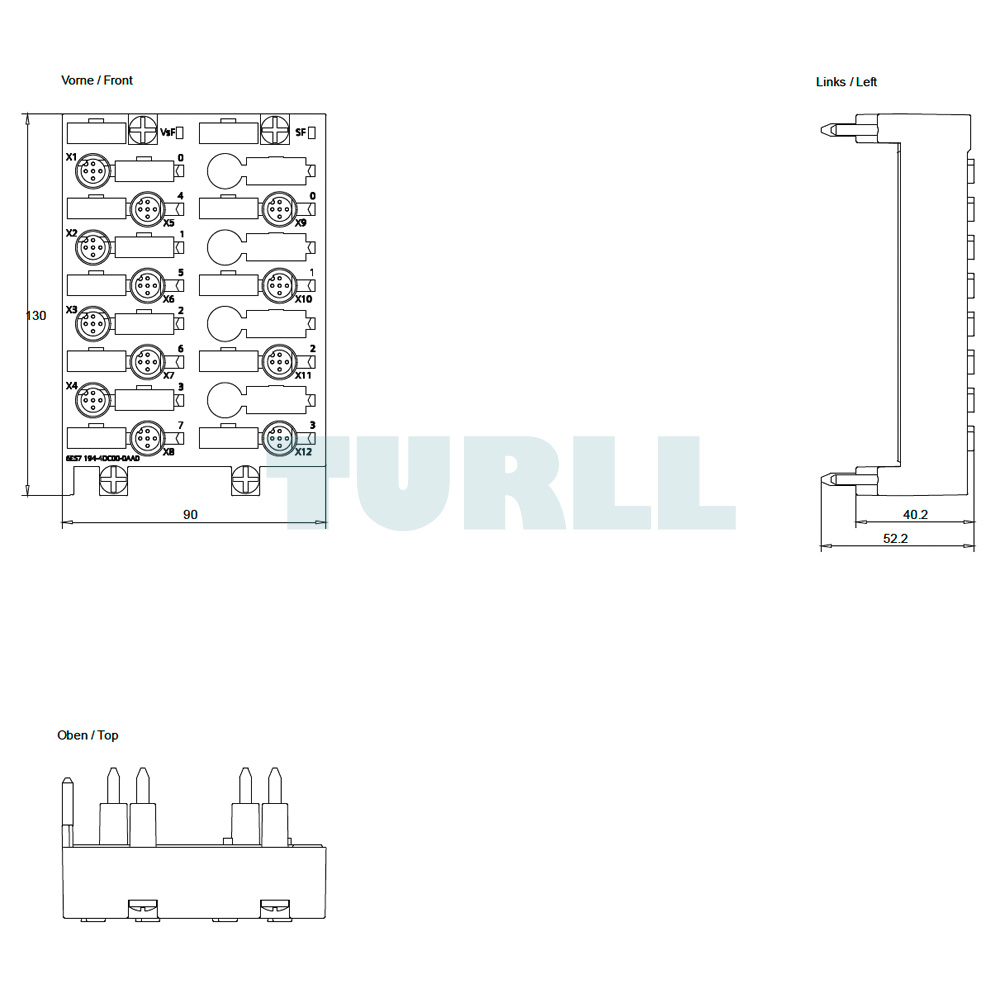

The 6ES7194-4DC00-0AA0 is engineered with a rugged and compact design, ensuring durability and long-term performance in industrial environments. Its high protection rating (IP65/66/67) allows installation directly on machines without the need for protective cabinets.

All modules are certified up to SIL 3 according to IEC 61508 standards, providing maximum safety for critical applications. The module supports PROFIsafe communication over both PROFIBUS and PROFINET, ensuring flexible integration into existing systems. It is compatible with controllers such as IM151-7 F-CPU, CPU31xF-2 DP, CPU31xF-2 PN/DP, and CPU416F-2, making it a versatile solution for safety-oriented automation systems.

Download

Data sheet (PDF)

Product Code: 6ES7194-4DC00-0AA0
