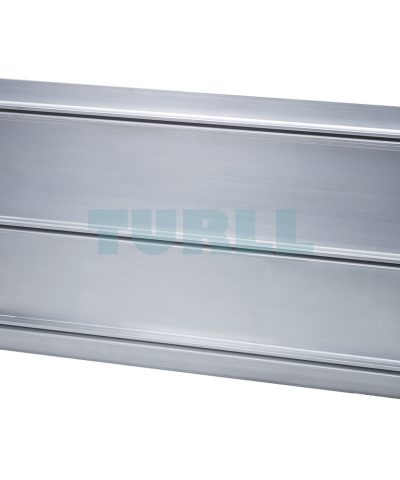

6ES7194-4GB20-0AA0 Siemens SIMATIC DP Module Rack Broad Original Brand New
$236.52
6ES7194-4GB20-0AA0

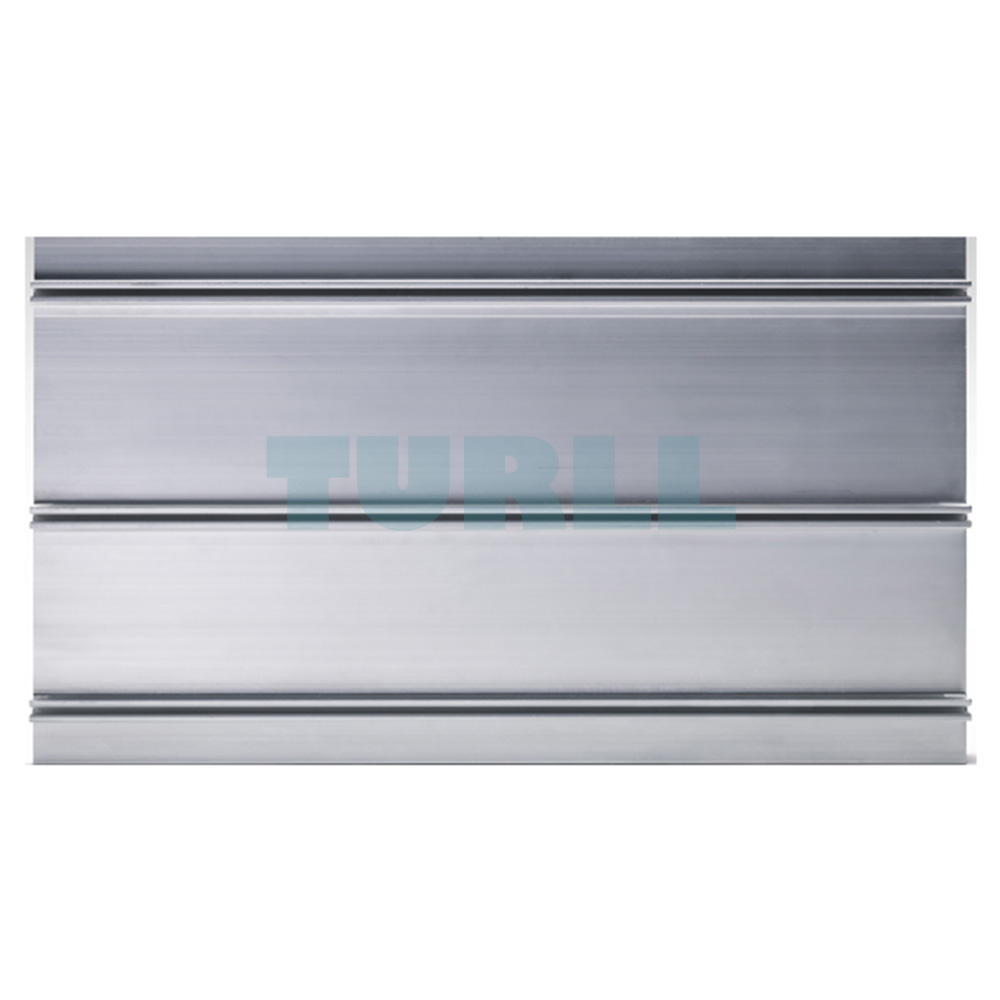

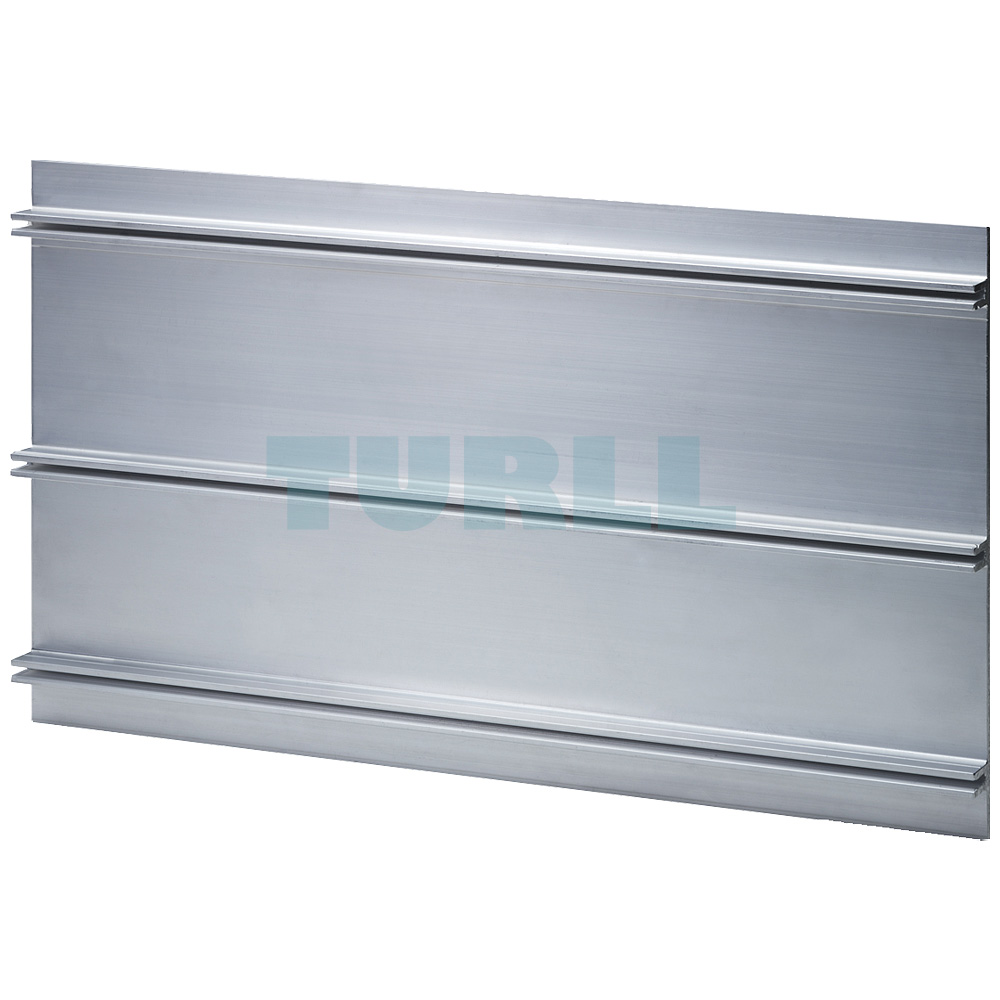

Siemens SIMATIC DP, Module rack Broad version for I/O modules and motor starters ET 200 PRO, Sold by the meter for self-configuration Length 2000 mm,
6ES7194-4GB20-0AA0
Siemens SIMATIC DP, Module rack Broad version for I/O modules and motor starters ET 200 PRO, Sold by the meter for self-configuration Length 2000 mm,
Overview
Power bus
The power supply to the field devices (ET 200pro motor starters, M200D motor starters) is provided via the power bus, in which the power T terminal connectors or power double-T terminal connectors are connected by power bus cables.
Feeders
From the terminal connectors, spur lines with Han Q4/2 plugs lead to the field devices, from which the motors are supplied with power via motor connection cables.
Interruption-free thanks to power terminal connectors
In finger-safe connection technology the power T terminal connectors and power double-T terminal connectors connect the components of a feeder to the power bus. They ensure interruption-free operation, i.e. the power bus is not interrupted when the components are unplugged.
Motor control via PROFIBUS
The interface modules (IM) for PROFIBUS can be combined with two different connection modules for connecting PROFIBUS DP and the power supply:
- Direct connection with cable gland
- M12, 7/8″ connection
- with M12 connecting cable and M12 plugs for data transmission with PROFIBUS DP
- with 7/8″ connecting cable and 7/8″ plugs for the power supply
For connection modules with the relevant accessories, see IM 154-1 and IM 154-2 interface modules.
Motor control via PROFINET
For connection modules with the relevant accessories, see IM 154-3 PN and IM 154-4 PN interface modules.
Download
Visit 6ES7194-4GB20-0AA0
For more our products visit turll.com
| Weight | 9.700 kg |
|---|---|

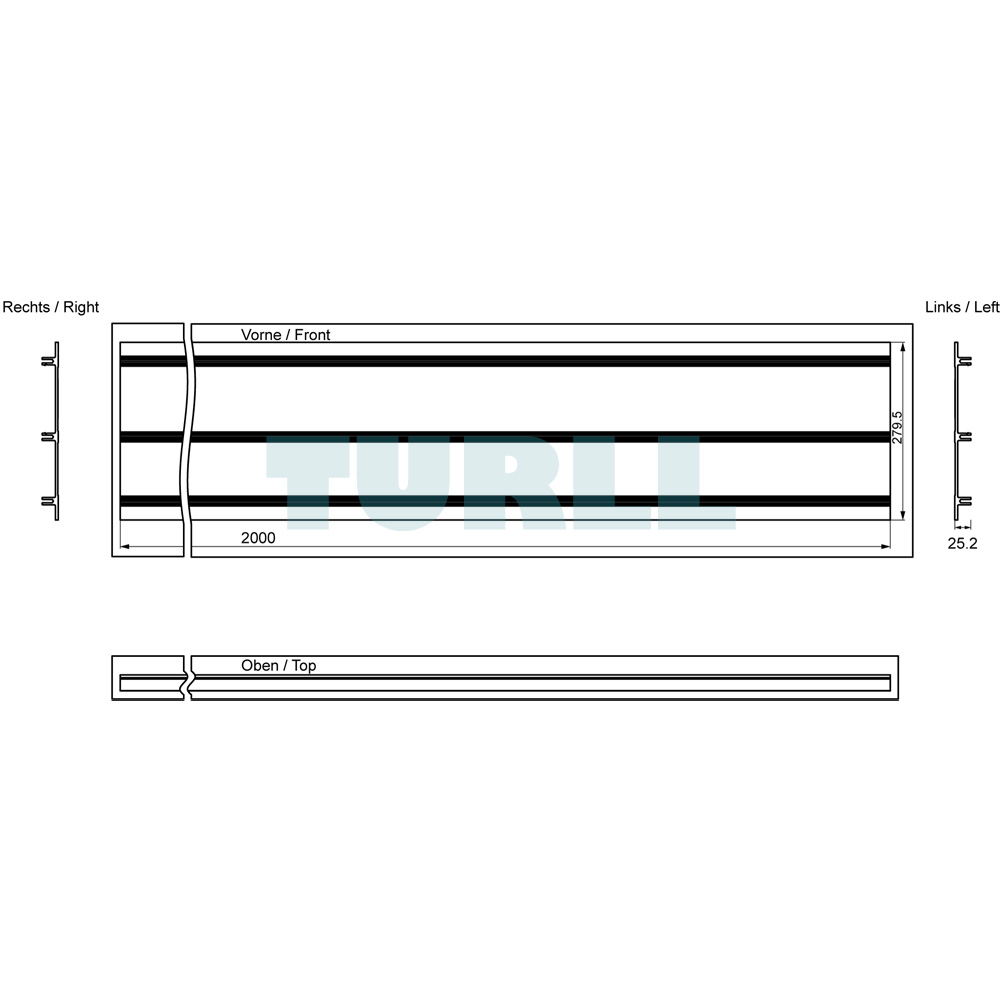

| Dimensions | 287.00 × 2000.00 × 35.00 mm |
