SIEMENS

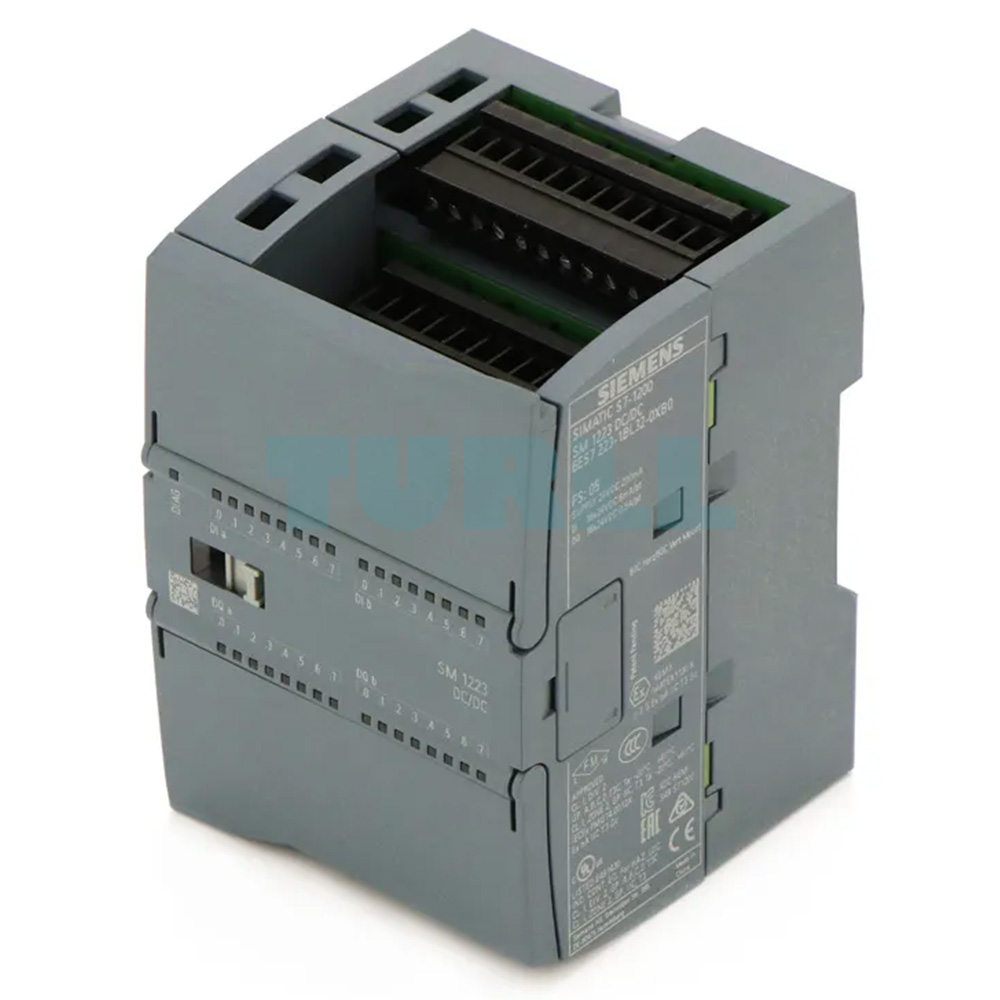

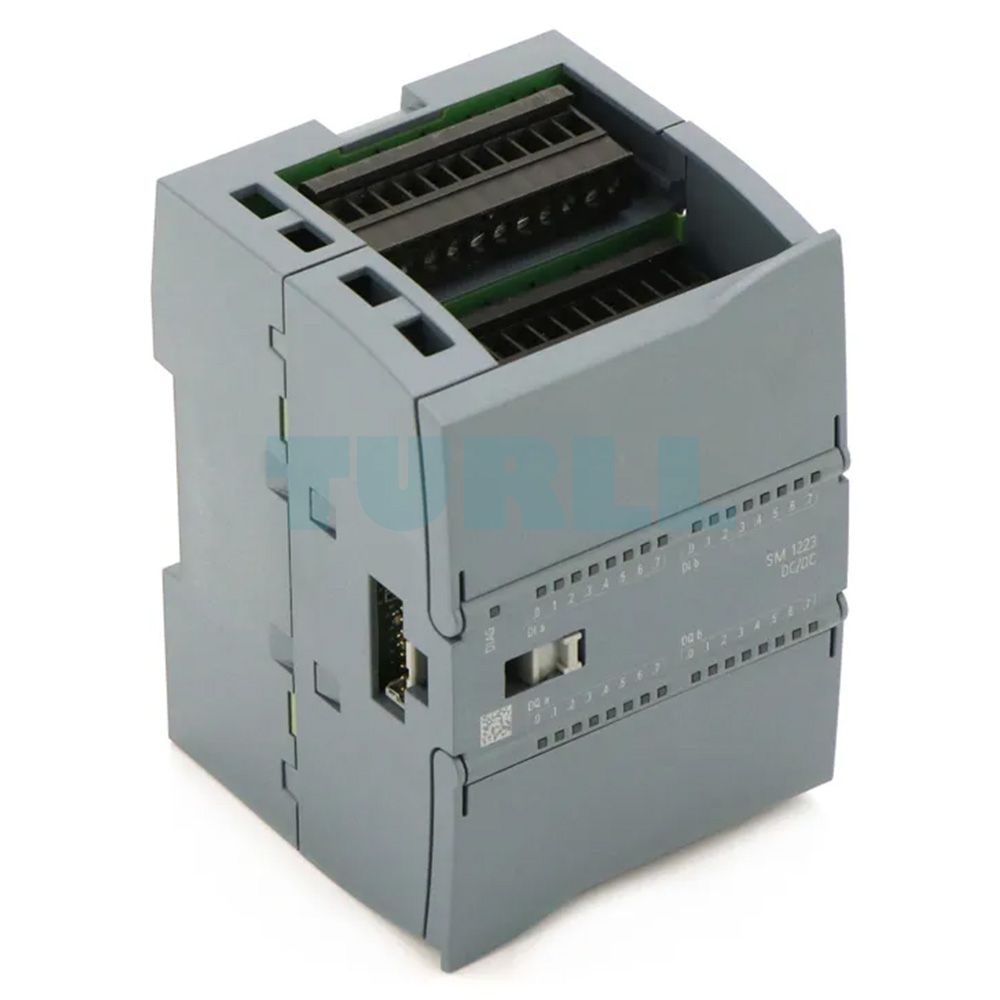

6ES7223-1BL32-0XB0 Siemens SM 1223 DC/DC Original Brand New
Model / SKU6ES7223-1BL32-0XB0
- 6ES7223-1BL32-0XB0
- SIMATIC S7-1200
- Digital input/output SM 1223
- 16 digital inputs 24 V DC
- 16 digital outputs
- Transistor 0.5 A
Original price was: $593.46.$257.78Current price is: $257.78.
In stockShips in 1–3 business days
- ConditionOriginal Brand New
- Warranty12 months
- Genuine Products
- Up to 1-Year Warranty
- Global Shipping
- Secure Payment
- PI / Bank Transfer Available
- Bulk Quote Support
Description
6ES7223-1BL32-0XB0
Overview
- Digital inputs and outputs as supplement to the integral I/O of the CPUs
- For flexible adaptation of the controller to the relevant task
- For subsequent expansion of the system with additional inputs and outputs
Application
Digital input/output modules permit:
- Connection of the controller to digital signals of the process
- Output of digital signals from the controller to the process
This provides users with the following advantages:
- Optimum adaptation:
With signal modules which can be mixed as desired, users can adapt their controllers exactly to the relevant task. This avoids superfluous investments. Modules with 8, 16, and 32 input/output channels are available. - Flexibility:
If the task is expanded subsequently, the controller can be upgraded. Updating of the user program is extremely simple
Function
The SM 1223 digital input/output signal modules convert:
- the level of the external digital signals from the process into the internal signal level of the S71200 controller and
- the internal signal level of the SIMATIC S7-1200 Controller into the external signal level required for the process.
Download
Visit 6ES7223-1BL32-0XB0
For more products visit turll.com
Specifications
| SKU / Model | 6ES7223-1BL32-0XB0 |
|---|---|
| Brand | SIEMENS |
| Product type designation | SM 1223, DI 16x24 V DC, DQ 16x24 V DC |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| from backplane bus 5 V DC, max. | 185 mA |
| ● from load voltage L+ (without load), max. | 4 mA; per channel |
| ● present | Yes |
| Power loss, typ. | 4.5 W |
| Number of digital inputs | 16 |
| Input characteristic curve in accordance with IEC 61131, type 1 | Yes |
| — up to 40 °C, max. | 16 |
| ● Type of input voltage | DC |
| ● for signal "0" | 5 V DC at 1 mA |
| ● for signal "1" | 15 V DC at 2.5 mA |
| ● for signal "0", max. (permissible quiescent current) | 1 mA |
| ● for signal "1", typ. | 4 mA |
| — parameterizable | Yes |
| Number of digital outputs | 16 |
| ● in groups of | 1 |
| Short-circuit protection | No; to be provided externally |
| Limitation of inductive shutdown voltage to | L+ (-48 V) |
| ● with resistive load, max. | 0.5 A |
| ● on lamp load, max. | 5 W |
| ● Rated value (DC) | 24 V |
| ● for signal "0", max. | 0.1 V; with 10 kOhm load |
| ● for signal "1", min. | 20 V DC |
| ● for signal "1" rated value | 0.5 A |
| ● for signal "1" permissible range, max. | 0.5 A |
| ● for signal "0" residual current, max. | 10 µA |
| ● "0" to "1", max. | 50 µs |
| ● "1" to "0", max. | 200 µs |
| — up to 50 °C, max. | 8 A; Current per mass |
| — with inductive load, max. | 0.5 A |
| — on lamp load, max. | 5 W |
| — with resistive load, max. | 0.5 A |
| ● shielded, max. | 500 m |
| ● unshielded, max. | 150 m |
| ● Diagnostic alarm | Yes |
| ● for status of the inputs | Yes |
| ● for status of the outputs | Yes |
| ● between the channels, in groups of | 1 |
| ● between the channels and backplane bus | 500 V AC |
| IP degree of protection | IP20 |
| CE mark | Yes |
| CSA approval | Yes |
| UL approval | Yes |
| cULus | Yes |
| FM approval | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| Marine approval | Yes |
| ● Fall height, max. | 0.3 m; five times, in product package |
| ● horizontal installation, min. | -20 °C |
| ● horizontal installation, max. | 60 °C |
| ● vertical installation, min. | -20 °C |
| ● vertical installation, max. | 50 °C |
| ● permissible temperature change | 5°C to 55°C, 3°C / minute |
| ● min. | -40 °C |
| ● max. | 70 °C |
| ● Storage/transport, min. | 660 hPa |
| ● Storage/transport, max. | 1 080 hPa |
| ● Operation at 25 ℃ without condensation, max. | 95 % |
| required front connector | Yes |
| Enclosure material (front) | - |
| ● Plastic | Yes |

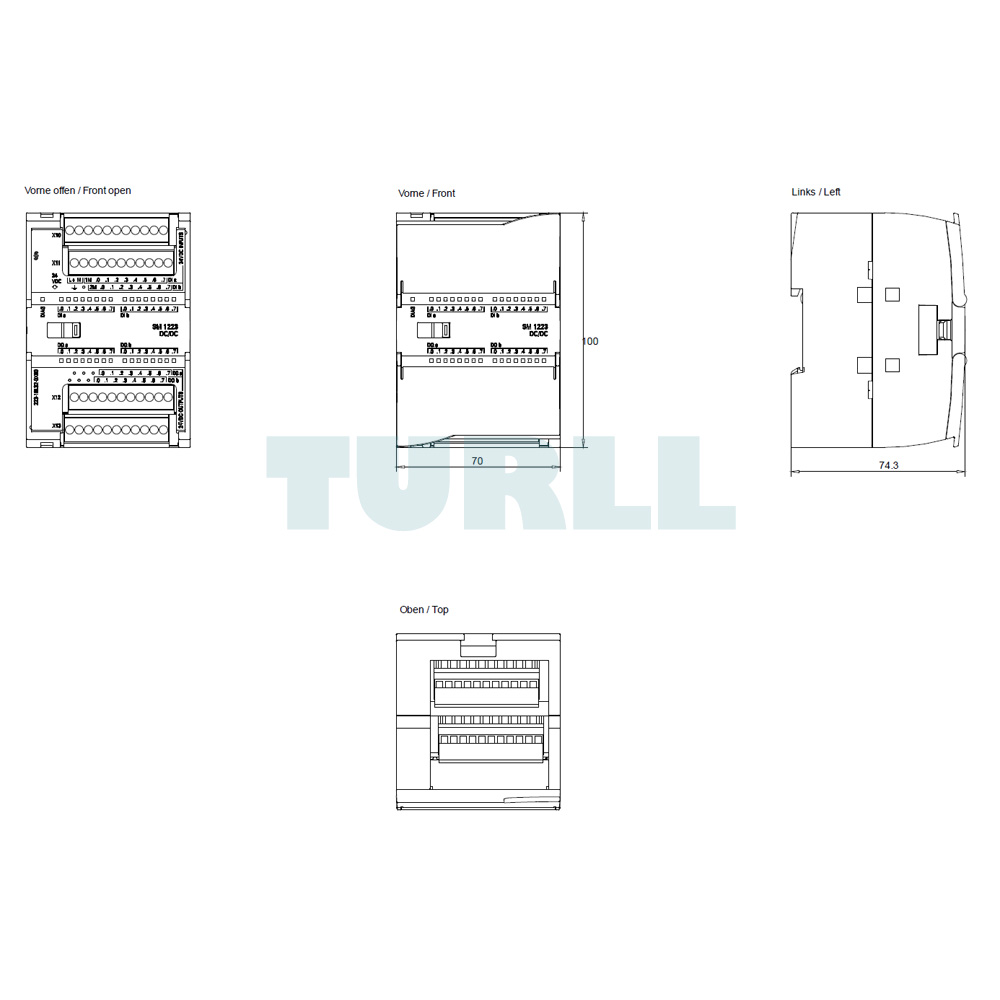

| Width | 70 mm |
| Height | 100 mm |
| Depth | 75 mm |
| Weight, approx. | 310 g |
| last modified: | 2/26/2021 |
| Product Condition | Brand New, New - Backlog, New - No Original Box, New - Original Box Opened, Used - Average, Used - Below Average, Used - Excellent, Used - Fairly Good, Used - Good, Used - Poor, Used - Very Good |
| Weight | 0.310 kg |
| Dimensions | 9.00 × 10.90 × 8.60 mm |
