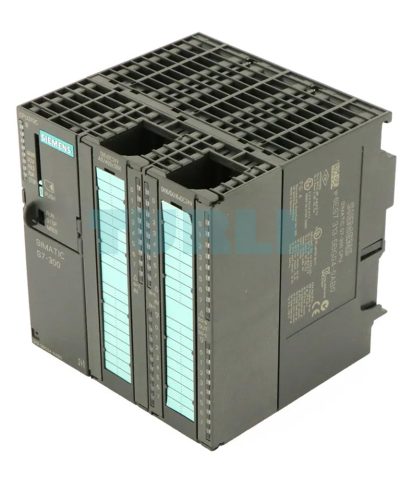

6ES7313-5BG04-0AB0 Siemens SIMATIC S7-300 CPU 313C Original Brand New
$1,853.50
6ES7313-5BG04-0AB0
Siemens SIMATIC S7-300, CPU 313C, Compact CPU with MPI, 24 DI/16 DO, 4 AI, 2 AO, 1 Pt100, 3 high-speed counters (30 kHz), Integr. power supply 24 V DC, work memory 128 KB, Front connector (2x 40-pole) and Micro Memory Card required
6ES7313-5BG04-0AB0
Siemens SIMATIC S7-300, CPU 313C, Compact CPU with MPI, 24 DI/16 DO, 4 AI, 2 AO, 1 Pt100, 3 high-speed counters (30 kHz), Integr. power supply 24 V DC, work memory 128 KB, Front connector (2x 40-pole) and Micro Memory Card required.
Overview
- The compact CPU with integral digital and analog inputs/outputs
- For plants with high processing performance and response time requirements
- With technological functions
SIMATIC Micro Memory Card required for operation of the CPU.
Application
The CPU 313C is the compact CPU for systems with demanding requirements regarding processing performance and speed of response. Integrated digital and analog inputs/outputs permit direct connection to the process.
Other possible uses result from the integrated technological functions:
- Counting
- Frequency measurement
- Period measurement
- Pulse-width modulation
- PID control
Design
The CPU 313C is equipped with the following:
- Microprocessor;
the processor achieves a processing time of 70 ns per binary instruction. - Extensive memory;
128 KB high-speed work memory (equals approx. 42 K instructions) for program sections relevant to execution offer user programs sufficient memory space;
SIMATIC Micro Memory Cards (max. 8 MB) as load memory for the program also allow the project to be stored in the CPU (complete with symbols and comments). - Flexible expansion capability;
max. 31 modules, (4-tier configuration) - MPI multi-point interface;
the integrated MPI interface can establish as many as 8 connections simultaneously to S7-300/400 or to the programming device, PC, OP. Of these connections, one is always reserved for programming devices and one for OPs. The MPI makes it possible to set up a simple network with a maximum of 16 CPUs via “global data communication”. - Integrated inputs/outputs;
24 digital inputs (all can be used for alarm processing) and 16 digital outputs as well as 5 analog inputs and 2 analog outputs for current/voltage signals and an additional input for measuring temperature are available on the CPU 313C.
Download
Visit 6ES7313-5BG04-0AB0
For more our products visit turll.com
| Weight | 0.710 kg |
|---|---|

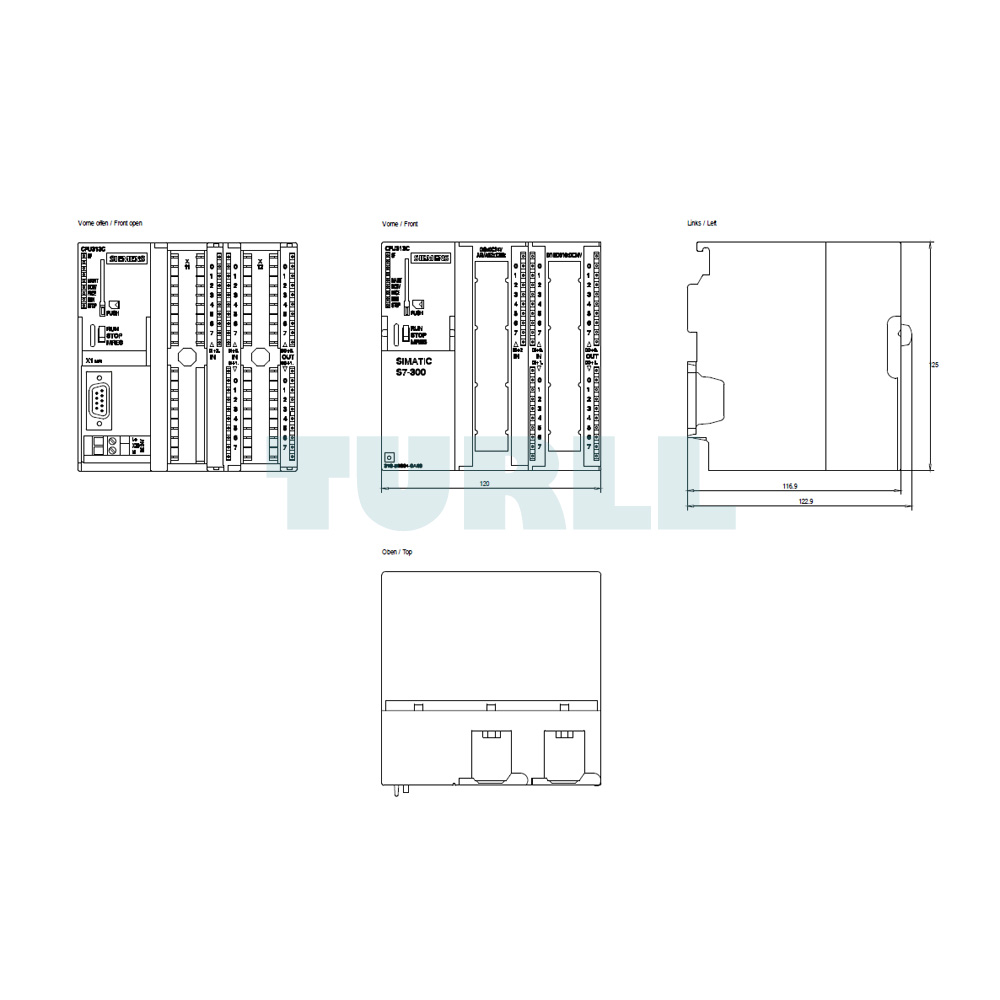

| Dimensions | 131.00 × 152.00 × 127.00 mm |
