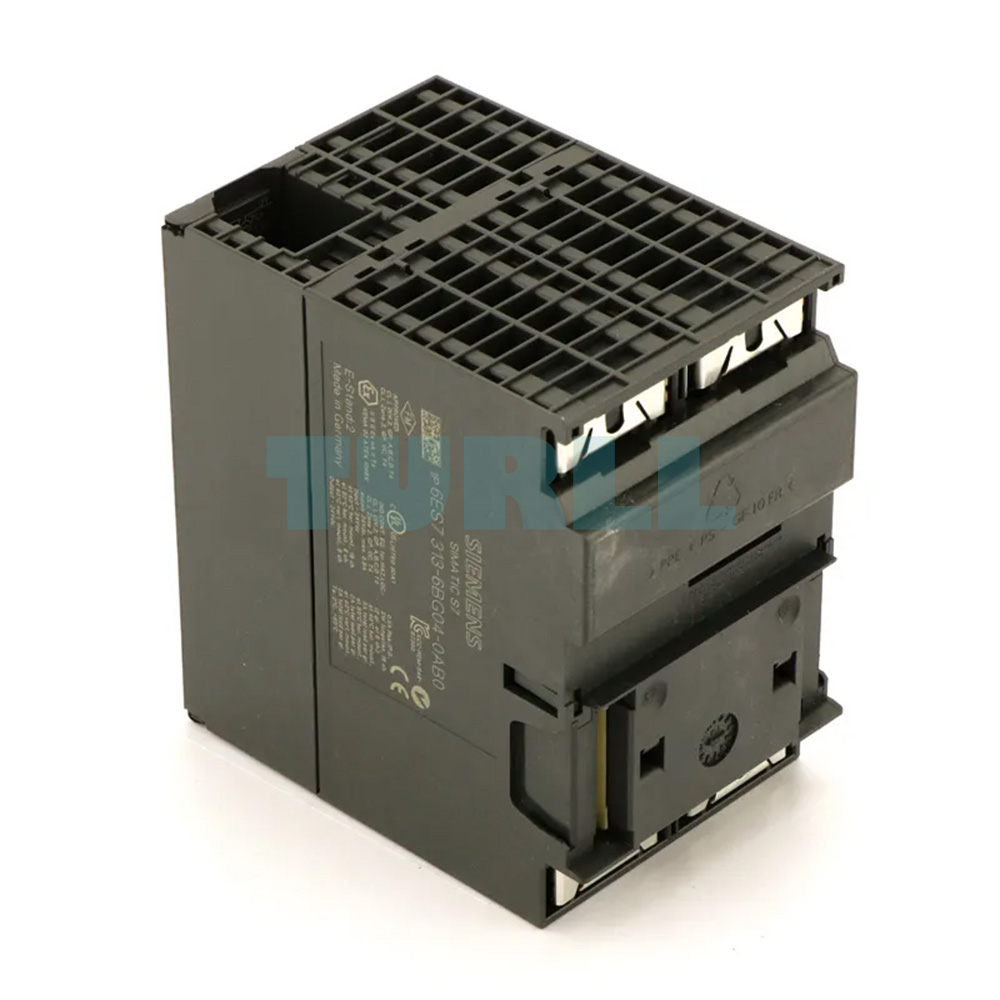

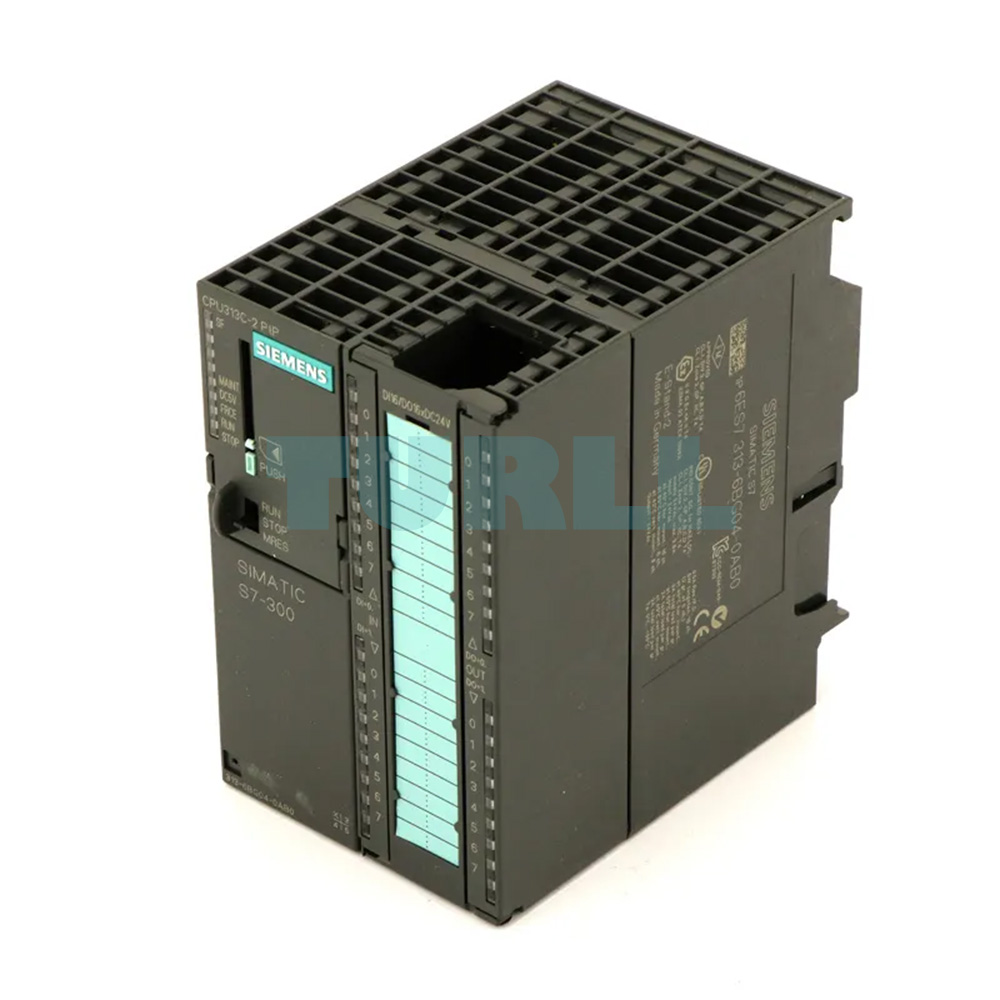

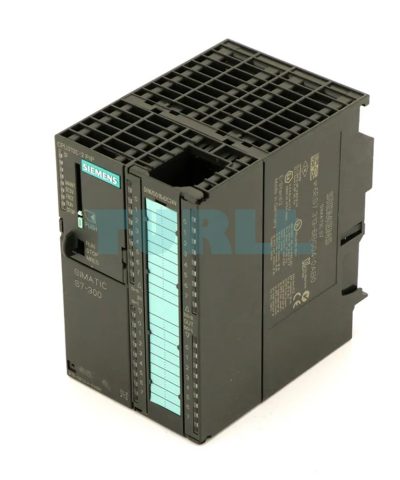

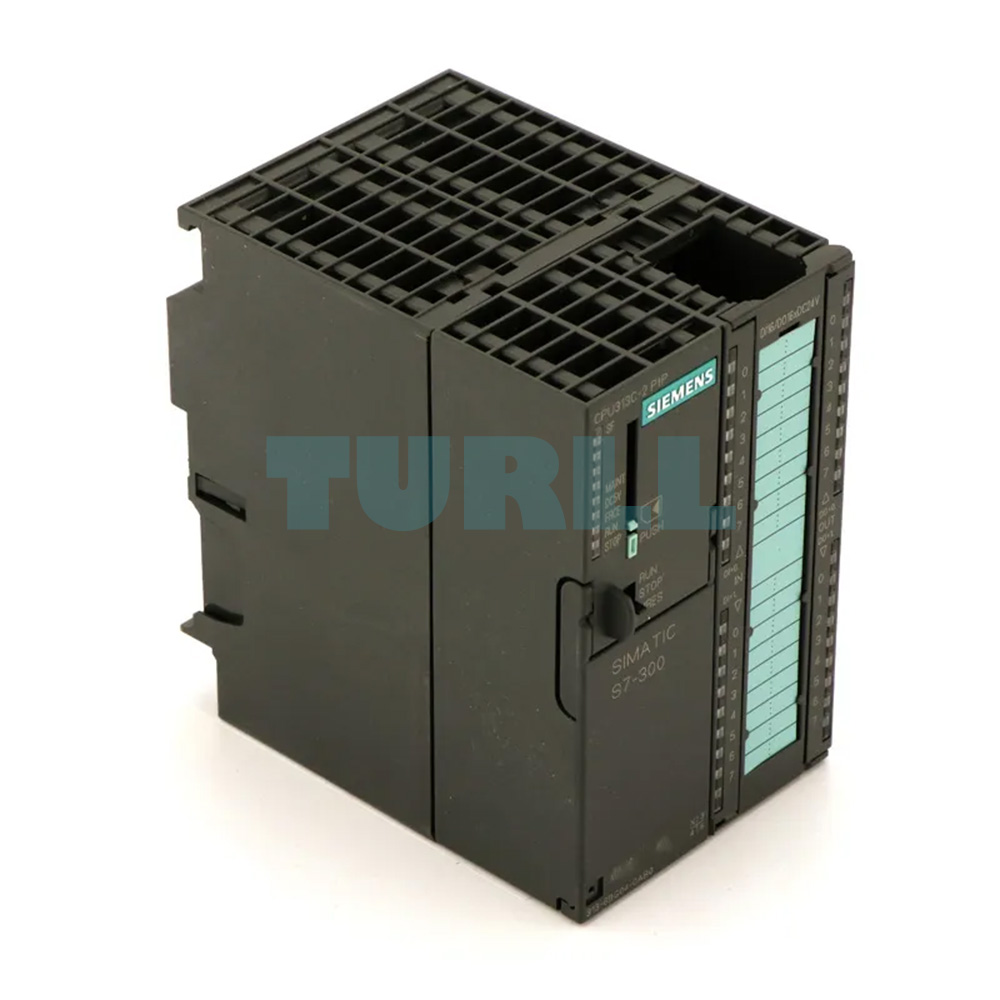

6ES7313-6BG04-0AB0 Siemens SIMATIC S7-300 CPU 313C-2 Original Brand New

• The compact CPU with integrated digital inputs/outputs as well as second serial interface
• For plants with high processing performance and response time requirements
• With technological functions

SIMATIC Micro Memory Card required for operation of the CPU.

The CPU 313C-2 PtP is the compact CPU for systems with demanding requirements regarding processing performance and speed of response. Integrated digital inputs/outputs permit a direct connection to the process, the second serial interface allows the connection of additional I/O devices such as printer, barcode scanner, etc.

Other possible uses result from the integrated technological functions:

• Counting
• Frequency measurement
• Period measurement
• Pulse-width modulation
• PID control

The CPU 313C-2 PtP is equipped with the following:

• Microprocessor;
  the processor achieves a processing time of 70 ns per binary instruction.
• Extensive memory;
  128 KB high-speed RAM (equals approx. 42 K instructions) for program components relevant to execution offers sufficient space for user programs;
  SIMATIC Micro Memory Cards (max. 8 MB) as load memory for the program also allow the project to be stored in the CPU (complete with symbols and comments).
• Flexible expansion capability;
  max. 31 modules, (4-tier configuration)
• MPI multi-point interface;
  the integrated MPI interface can establish as many as 8 connections simultaneously to S7-300/400 or to the PG, PC, OP. Among these connections, one is always reserved for programming devices and another for OPs. The MPI makes it possible to set up a simple network with a maximum of 16 CPUs via "global data communication"
• Second serial interface PtP;
  additional I/O devices such as scanners, weighing systems, etc., can be connected via the serial interface.
• Integrated inputs/outputs;
  16 digital inputs (all for alarm processing) and 16 digital outputs are available on the CPU 313C-2 PtP.
