6ES7392-2AX00-0AA0 Siemens SIMATIC S7-300 Labeling Sheets Original Brand New

Labeling sheets

• Film sheets for the application-specific labeling of SIMATIC S7-300 I/O modules using standard laser printers
• Plain color films, tear-resistant, dirt-repellent
• Simple handling:
  • perforated labeling sheets in DIN A4 format for easy separation of the labeling strips.
  • the separated strips can be attached directly onto the I/O modules.
• Different colors to distinguish between different module types or preferred applications:
  The labeling sheets are available in the following colors: petrol, light beige, red, and yellow. Yellow is reserved for fail-safe systems.

Labeling covers

• Petrol-colored film
• For sealing and fixing of custom labeling strips on normal paper
• Accessories, 10 units

Labeling sheets

The machine printable labeling sheets for SIMATIC S7-300 I/O modules, including FMs, are prerequisite for professional and convenient labeling of SIMATIC modules.

Efficient labeling enables:

• Time and money to be saved during wiring
• Time and money to be saved during the commissioning (e.g. signal test)
• Possibility of quick assignment of hardware/software (e.g. during servicing)
• Quick and convenient creation of labels

The application-specific, mechanical labeling can be performed without any great effort, using standard laser printers, in two ways:

• Printing with the help of templates, downloaded free of charge from the Internet, or
• Printing using the Add On-Tool “S7 SmartLabel” for SIMATIC STEP 7.

Module labeling ensures a tidy appearance in all phases of the project.

The label sheets can be ordered separately. The labeling strips that have previously been enclosed with the modules will continue to be delivered.

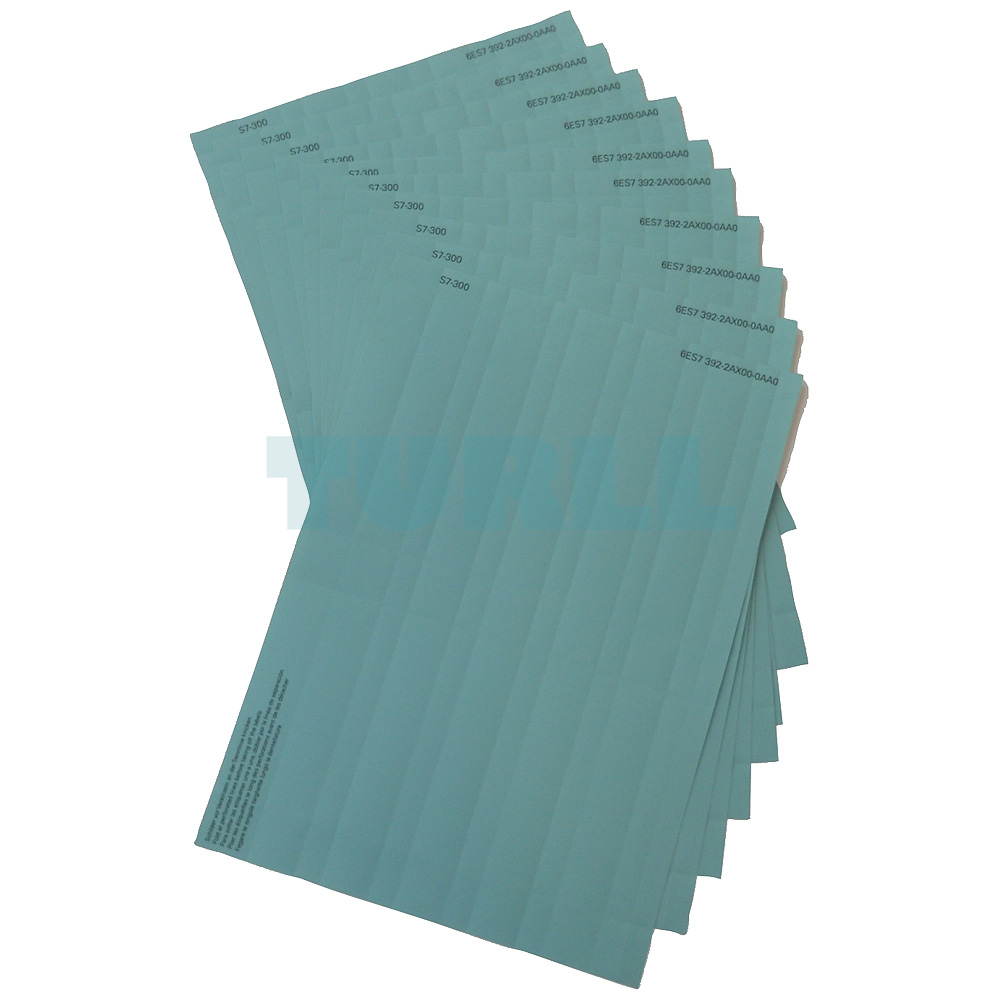

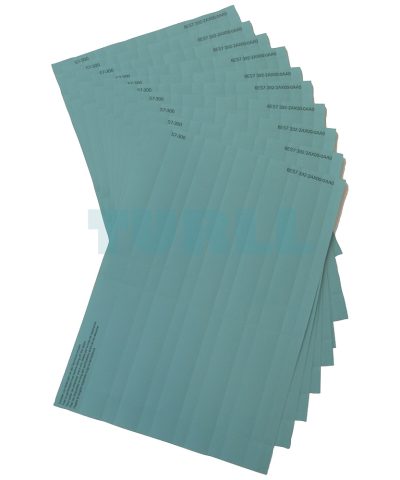

Labeling sheets

The labeling sheets are single-color, tear-resistant and dirt-repellent films. The labeling sheets are available in the following colors: petrol, light-beige, red, and yellow. This allows them to be easily distinguished, for example according to different module types or application areas.

The labeling sheets for S7-300 I/O modules are available in DIN A4 size.

They contain pre-perforated labeling strips which can be separated easily from one another without the use of tools. The edges of the removed strips have a clean appearance.
