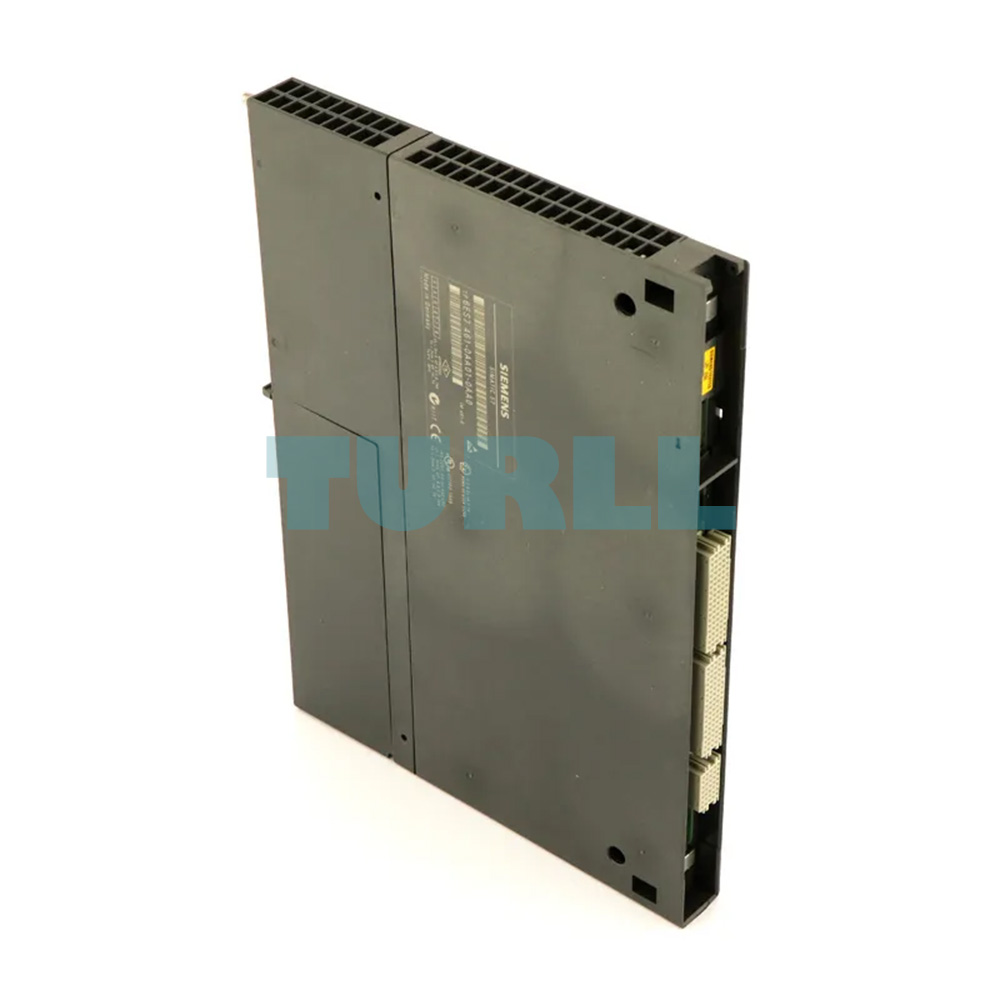

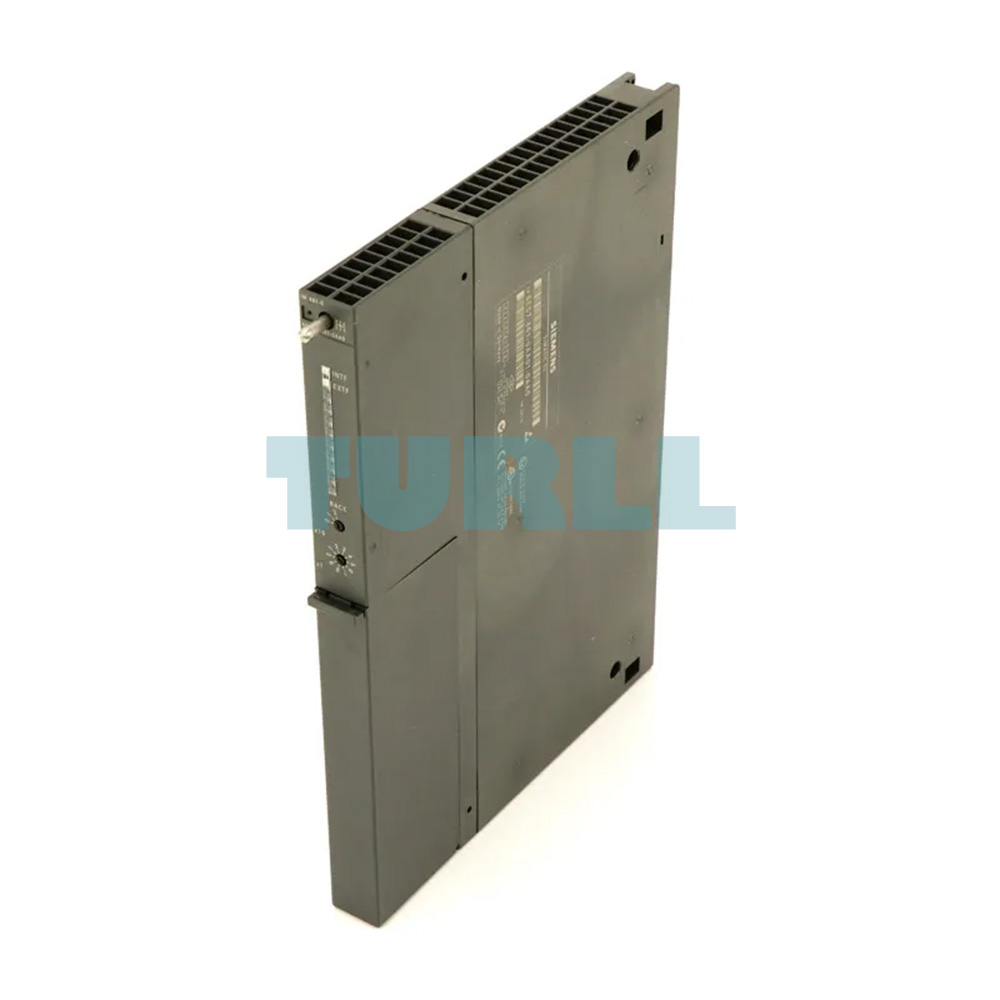

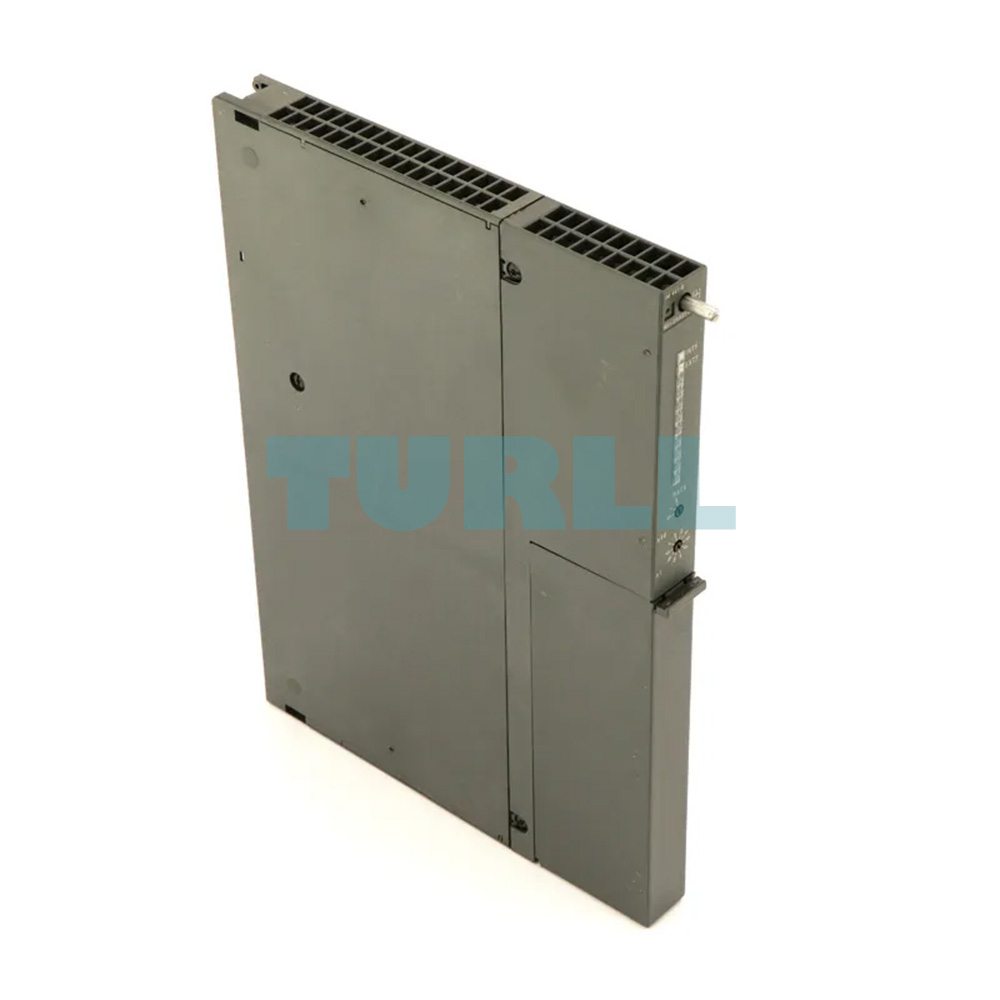

6ES7461-0AA01-0AA0 SIEMENS Exclusive SIMATIC S7-400 Interface Module IM 461-0 Original Brand New

6ES7461-0AA01-0AA0 SIEMENS Exclusive SIMATIC S7-400 Interface Module IM 461-0 Original Brand New

The 6ES7461-0AA01-0AA0 SIEMENS SIMATIC S7-400 interface module IM 461-0 is a robust and reliable receiver module designed for central coupling without power supply transfer, utilizing C-bus communication. As an original brand new unit, it is built to deliver consistent performance in industrial control systems, especially within central extensions of up to 5 meters.

This module ensures secure signal transfer via the P and K Bus, and is designed for seamless integration into SIMATIC S7-400 expansion racks. With precise rack identification through a built-in coding switch and LED indicators for fault detection, the IM 461-0 delivers both operational clarity and dependable interfacing.

Overview

This receiver interface module allows a reliable central extension for SIMATIC S7-400 up to 5 meters. It supports P and K Bus communication and is intended exclusively for use with IM 460-0 modules. It can be easily plugged into the expansion unit, ensuring a quick and flexible installation process.

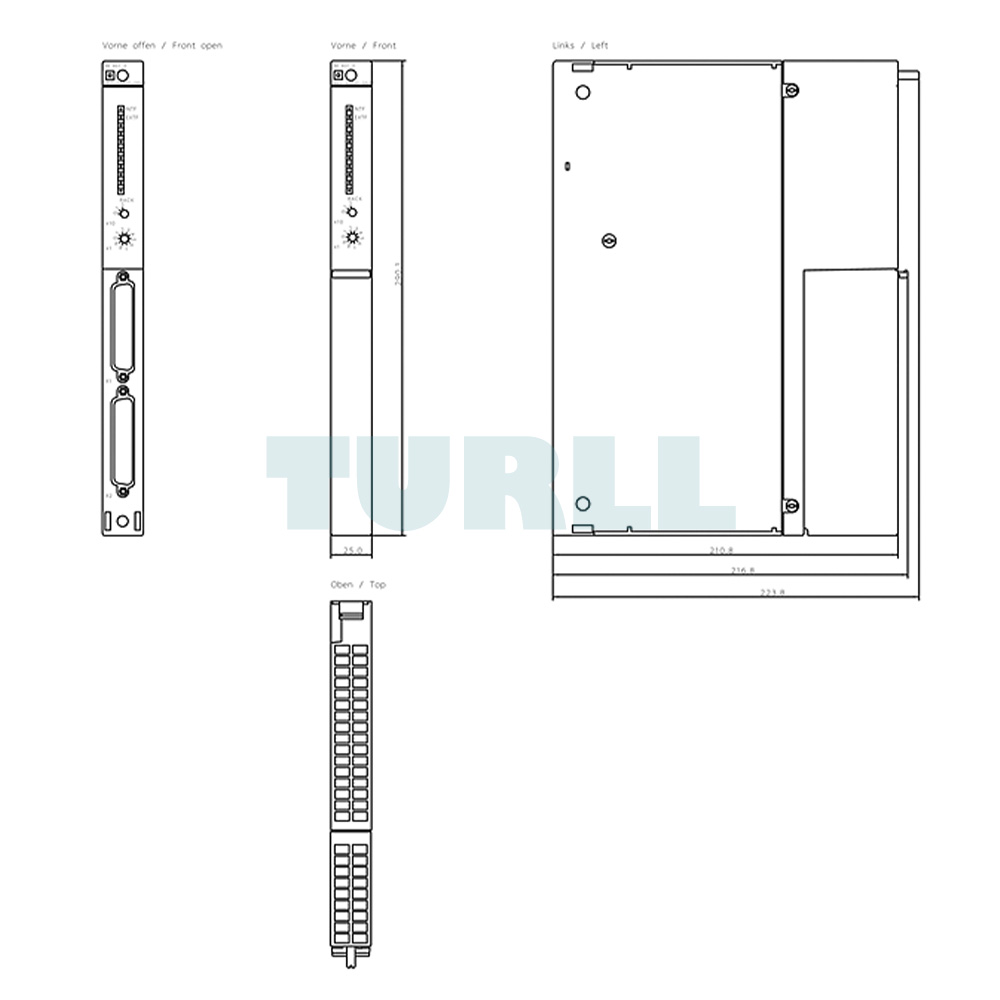

Design

The module is compatible with various expansion units including UR1, UR2, ER1, and ER2. Key design features include:

• 2 status LEDs to indicate operational faults
• Input interface for 468-1 cable connection from the previous module
• Output interface for cascading to the next module using a 468-1 cable
• Terminating connector requirement at the final interface position
• Rack coding switch for unique identification
• Battery infeed socket for external battery connection during PSU replacement

Download

Data Sheet (PDF)

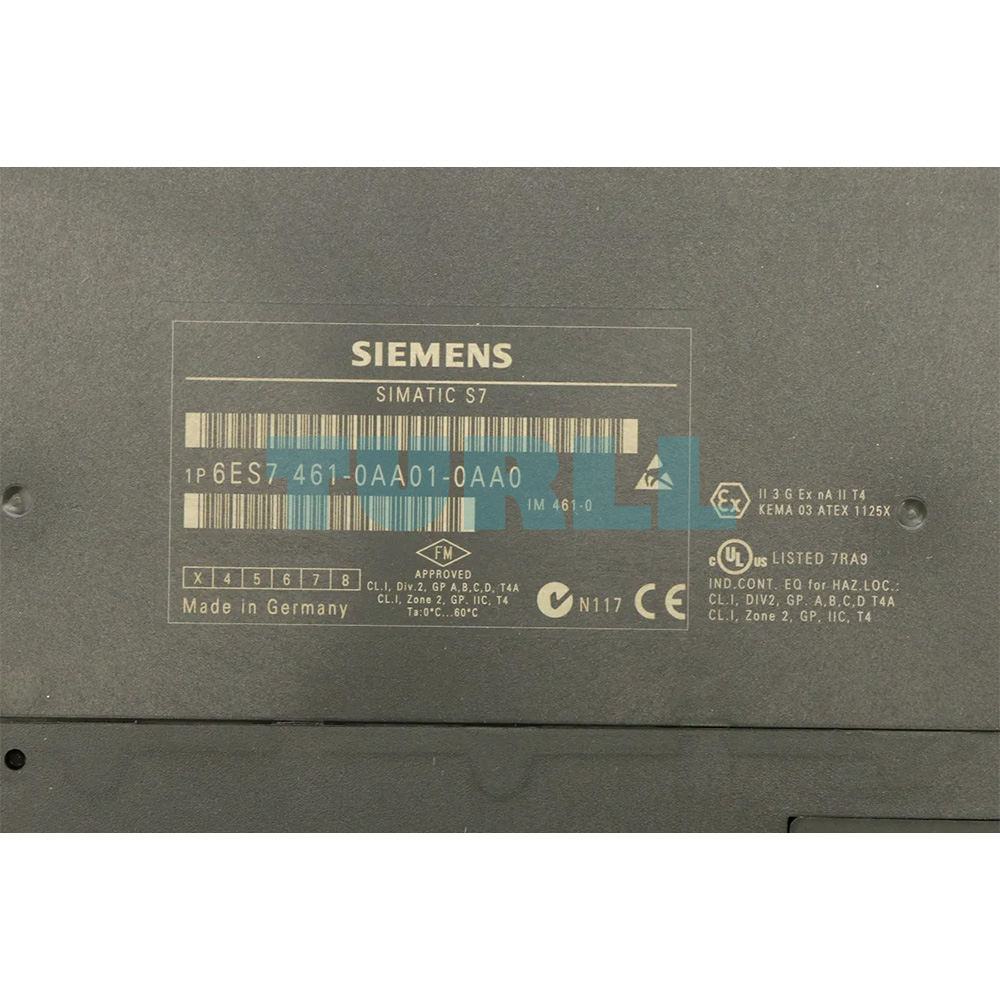

Product Code: 6ES7461-0AA01-0AA0
