6ES7468-1CC50-0AA0 SIEMENS Exclusive SIMATIC S7-400 IM Cable with C-Bus 25m Original Brand New

6ES7468-1CC50-0AA0 SIEMENS Exclusive SIMATIC S7-400 IM Cable with C-Bus 25m Original Brand New

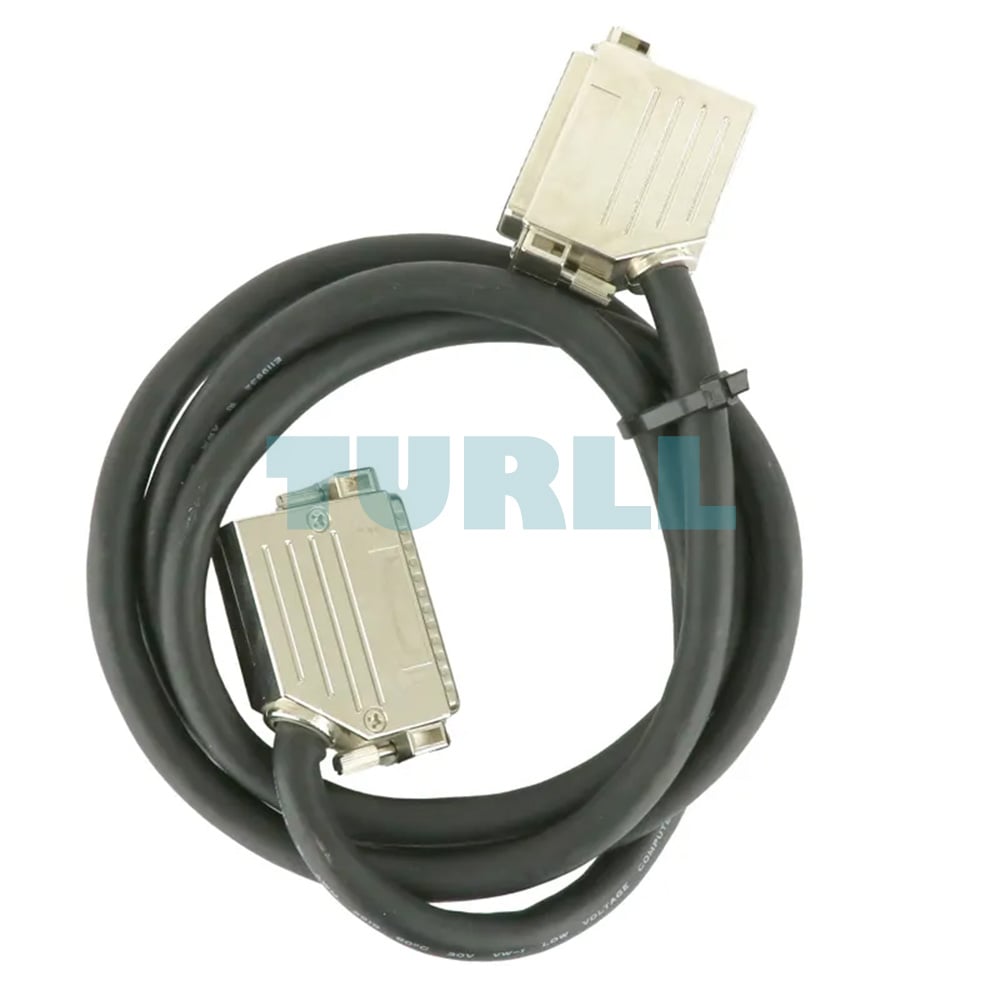

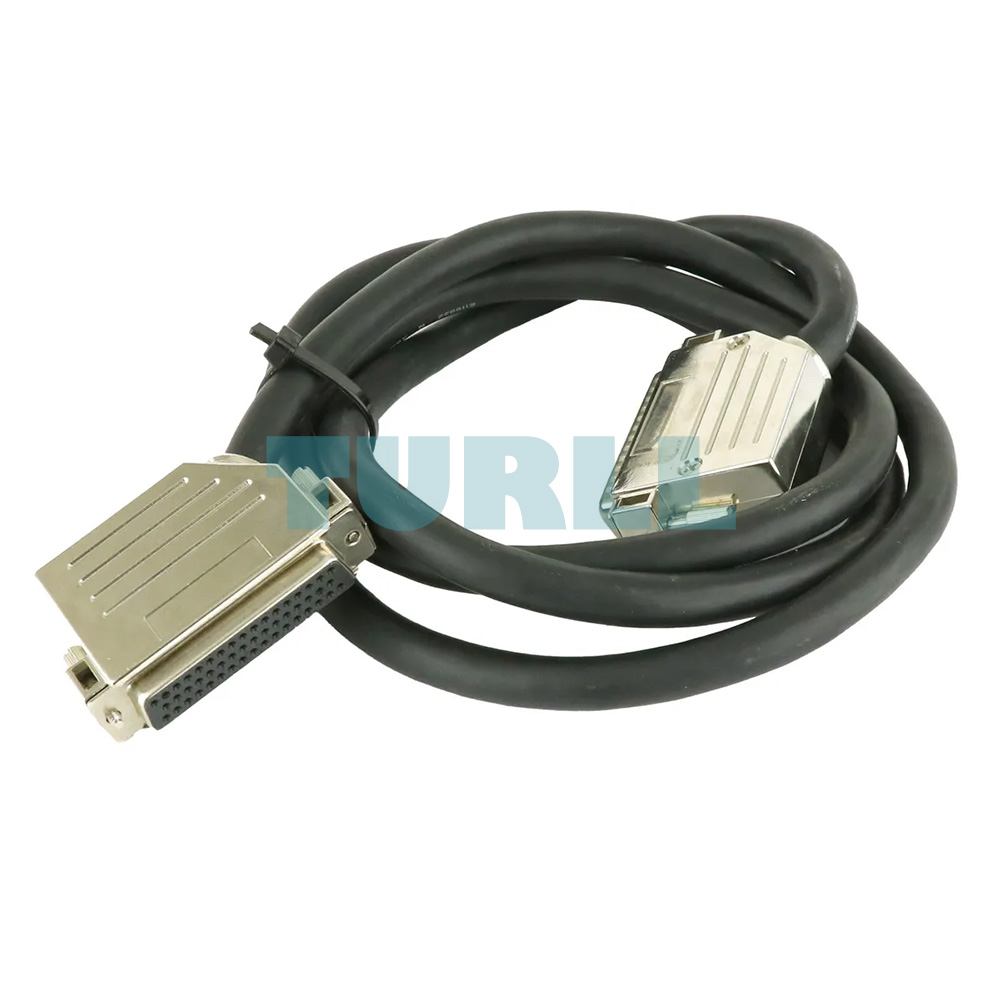

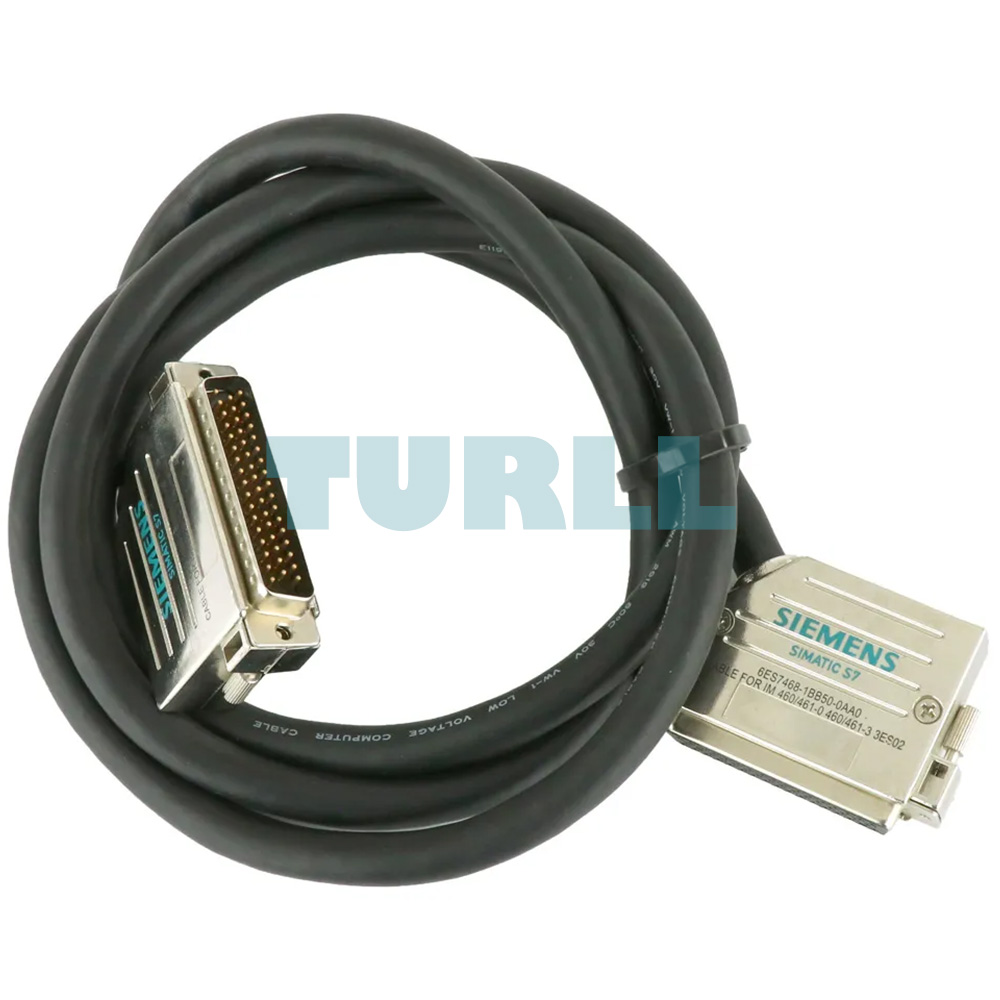

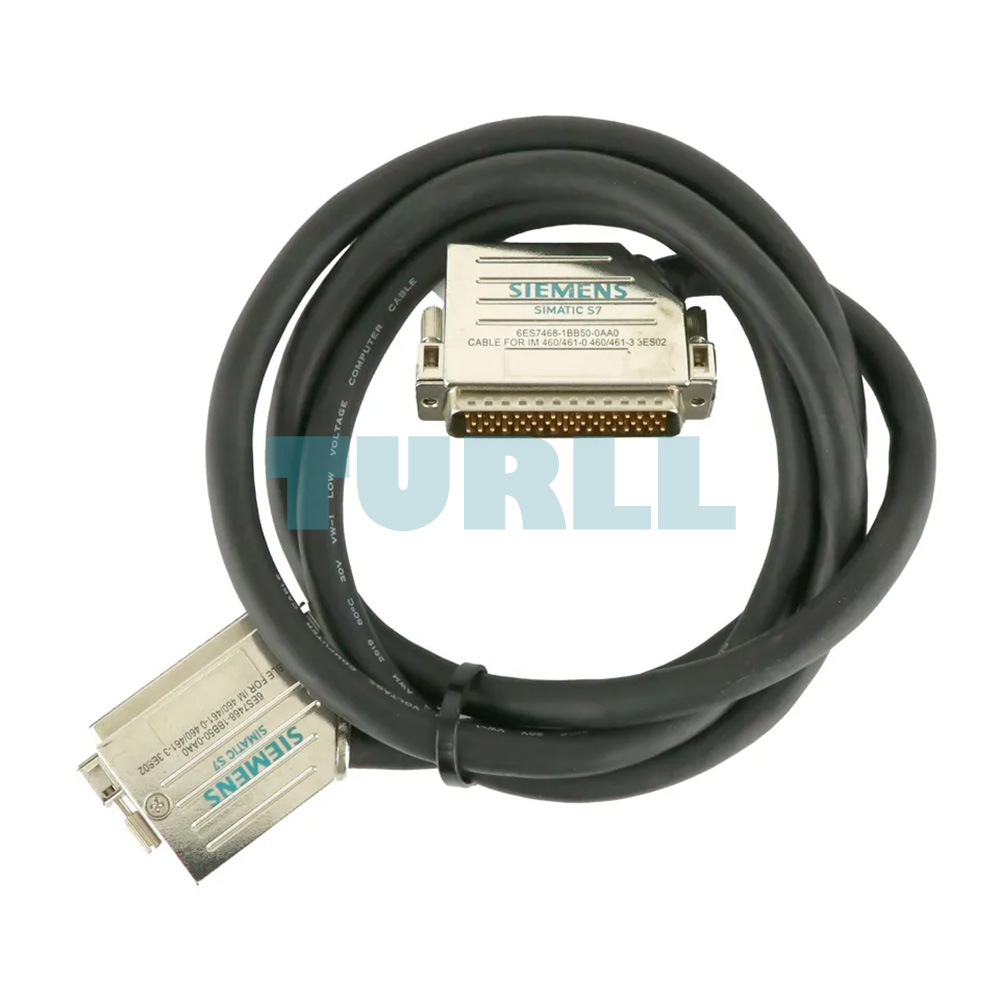

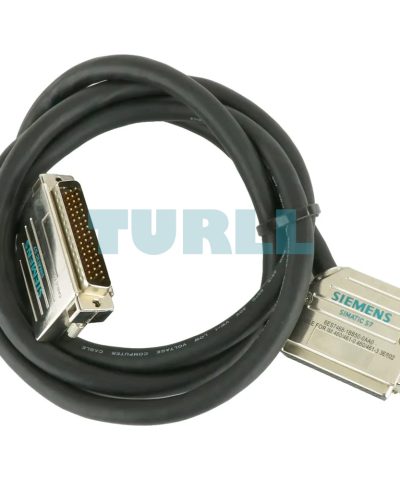

The 6ES7468-1CC50-0AA0 SIEMENS SIMATIC S7-400 IM cable is a high-performance communication cable with integrated C-bus, designed specifically for distributed expansion in industrial environments. With a length of 25 meters, this cable provides stable and reliable data transfer between interface modules within an S7-400 automation system.

Ideal for connecting IM 461-3 modules, the cable facilitates the transmission of signals across P and K buses, supporting expansion over distances up to 102 meters. It is fully pluggable and offers excellent compatibility with SIMATIC modular hardware, particularly in scenarios requiring consistent communication across racks.

Overview

This IM interface cable is used to establish a connection between interface modules in an expanded SIMATIC S7-400 system. It supports distributed configurations and ensures seamless data transmission across system components. Key features include:

• Supports distributed expansion up to 102 meters
• Transfers data via P and K Bus
• Fully pluggable into expansion units
• Exclusive compatibility with IM 460-3 modules

Design

The IM 461-3 interface module, compatible with this cable, is engineered for use with various expansion modules such as UR1, UR2, ER1, and ER2. The module design includes:

• Two LEDs for fault diagnostics
• One input interface for connecting upstream modules via this 468-1 cable
• One output interface for downstream connections (requires terminator at the last module)
• Rack number coding switch
• Battery infeed socket for external battery support

Download

Data Sheet (PDF)

Product Code: 6ES7468-1CC50-0AA0
