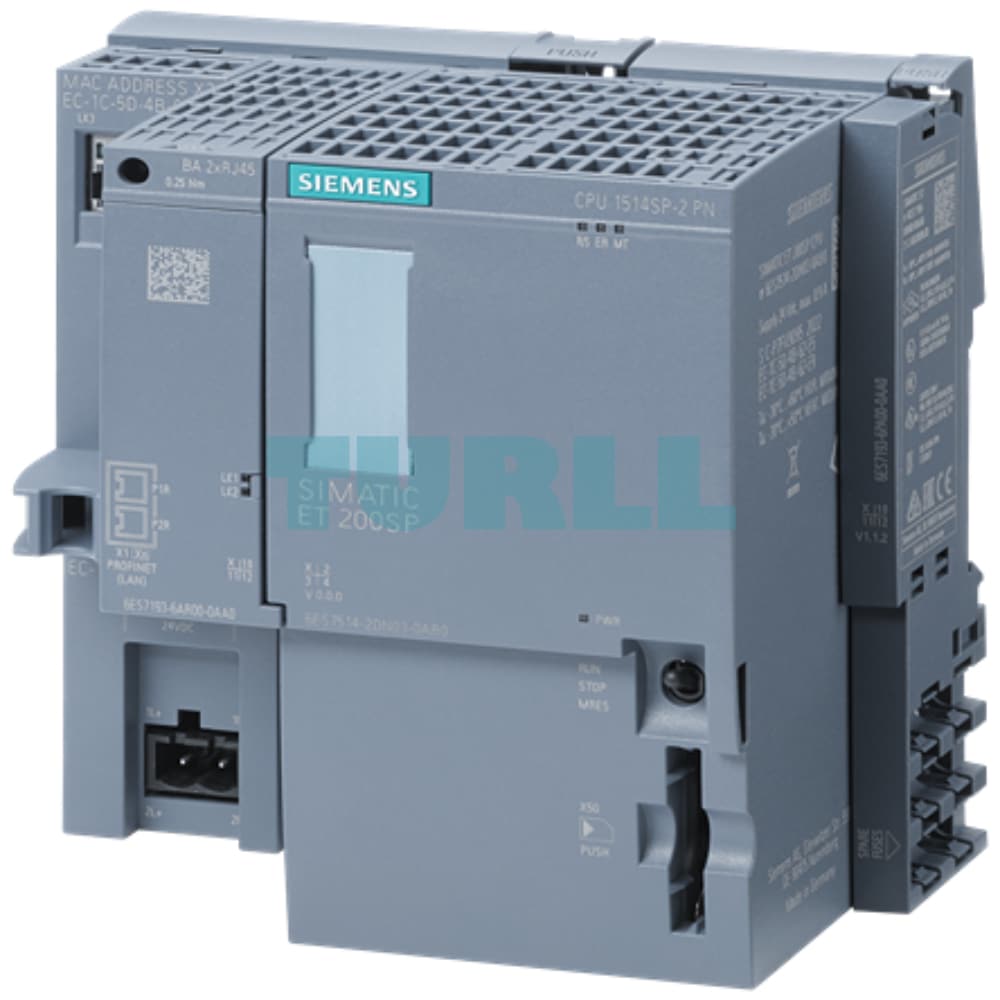

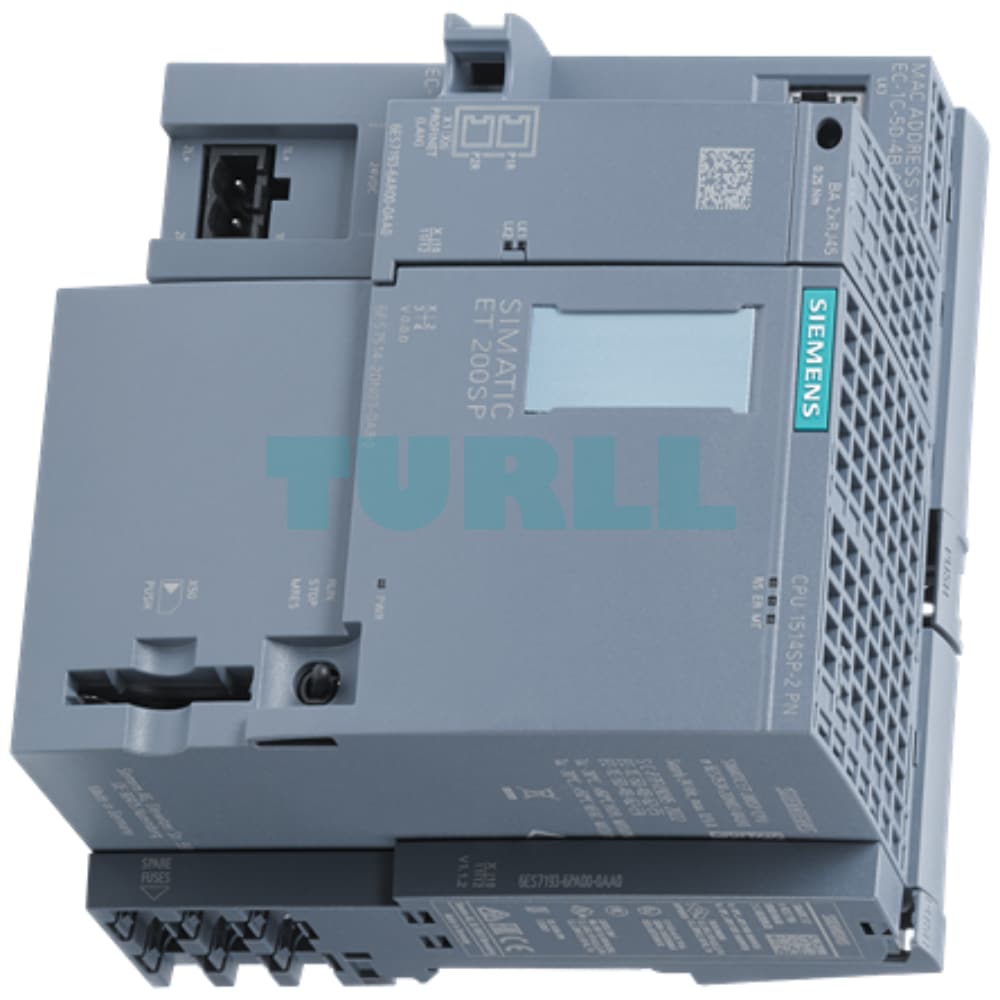

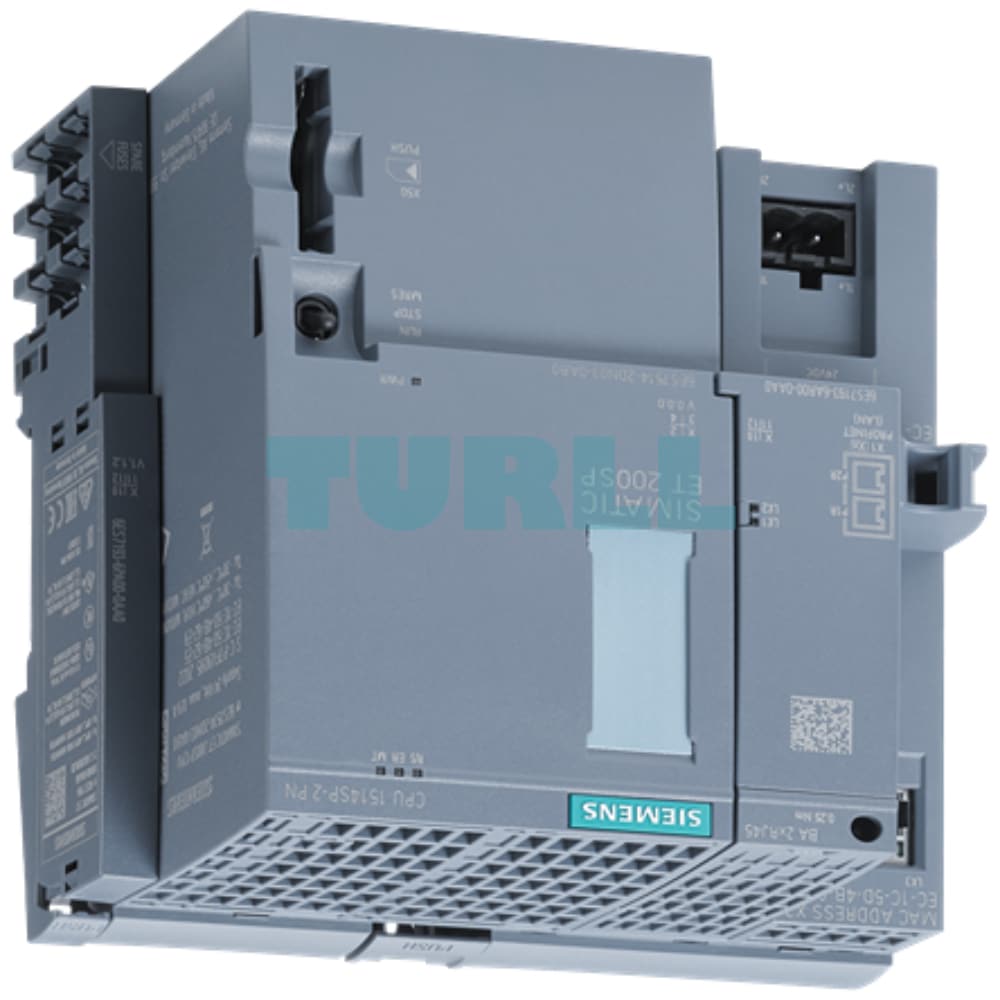

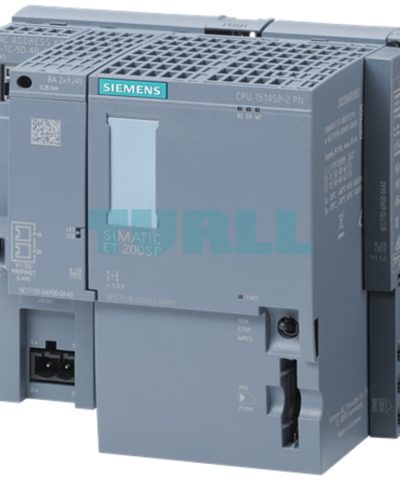

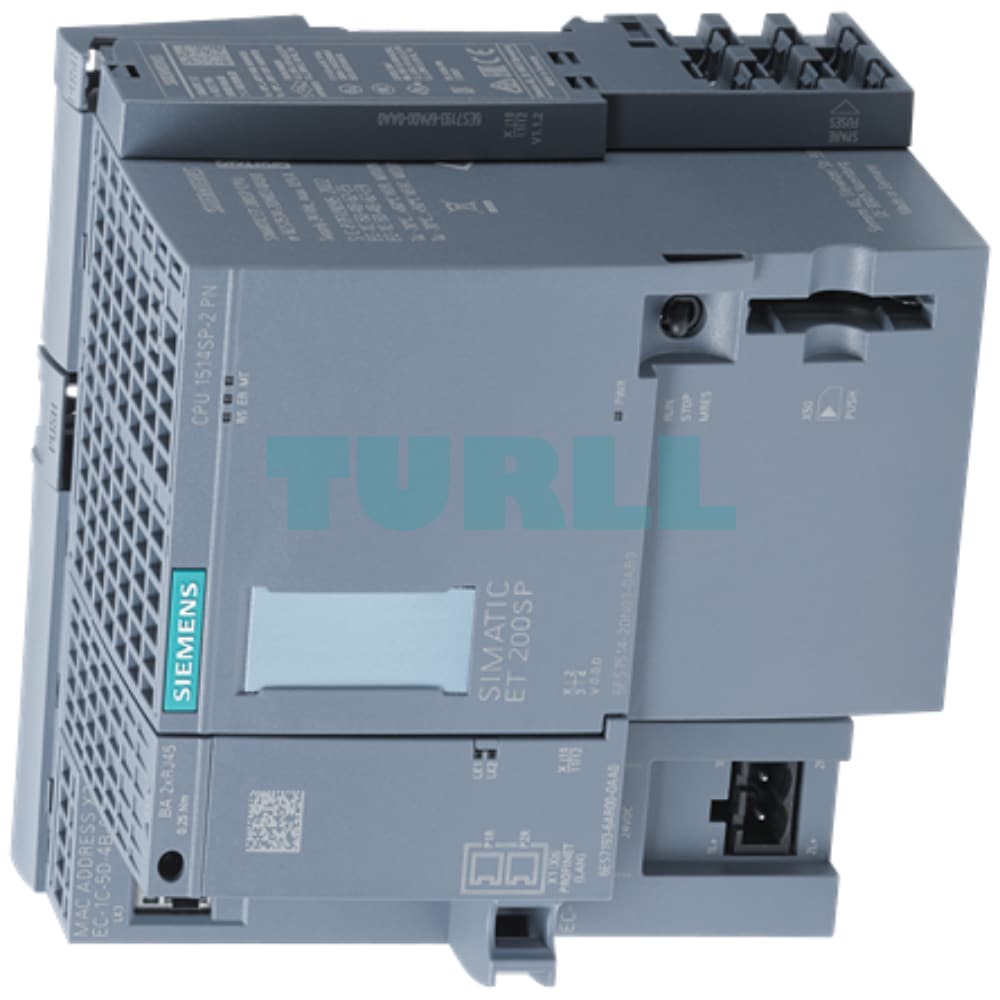

6ES7514-2DN03-0AB0 Siemens SIMATIC DP CPU 1514SP-2 PN Original Brand New
$3,827.47
6ES7514-2DN03-0AB0
Siemens SIMATIC DP, CPU 1514SP-2 PN for ET 200SP, central processing unit with work memory 600 KB for program and 3.5 MB for data, 1st interface: PROFINET IRT with 2-port switch, 2nd interface: PROFINET RT, 6 ns bit performance, SIMATIC Memory Card required, BusAdapter required for 1st interface
[ez-toc]
Overview
- CPU 1514SP-2 PN for SIMATIC ET 200SP based on S7-1500 CPU 1515-2 PN
- For applications with medium/high requirements regarding program scope, networking and processing speed, for distributed configuration via PROFINET IO or PROFIBUS DP
- Increase in availability of systems and machines. The additional integrated PROFINET interface with separate IP address can be used for network separation, for connecting further PROFINET IO RT devices, or for high-speed communication as an I-Device, for example.
- PROFINET IO controller for up to 128 IO devices
- PROFINET I-Device for connecting the CPU as an intelligent PROFINET device with a SIMATIC or third-party PROFINET IO controller
- PROFINET shared I-Device for 4 controllers
- PROFINET IO IRT interface with integrated 3-port switch
- Additional PROFINET interface with separate IP address
- Isochronous mode on PROFINET
- With multiple communication options:
PG/OP communication, PROFINET IO, open IE communication (TCP, ISO-on-TCP and UDP), web server and S7 communication (with loadable FBs) - OPC UA server and client (data access) as runtime option for easy connection of the SIMATIC ET 200SP to third-party devices/systems
- Optional PROFIBUS DP master for 125 PROFIBUS DP slaves (with CM DP module 6ES7545-5DA00-0AB0)
- Optional PROFIBUS DP slave (with CM DP module 6ES7545-5DA00-0AB0)
- Configuration control (option handling)
- Integrated Motion Control functionalities for controlling speed-controlled, positioning and synchronized axes (gearing), support for external encoders, output cams/cam tracks and probes
Note
SIMATIC Memory Card required for operation of the CPU.
BusAdapter is not included in scope of delivery and is to be ordered separately.
Application
The CPU 1514SP-2 PN is the CPU for applications with medium/high requirements for processing performance and speed of response in discrete production technology. The CPU 1514SP-2 PN can be used as a PROFINET IO controller or as distributed intelligence (PROFINET I-Device). The integrated PROFINET IO IRT interface is designed as a 3-port switch so that a linear topology can be set up in the system via port 1 and 2, and so that a programming device/PC or HMI device can also be connected via port 3.
When used as an I-Device, the CPU 1514SP-2 PN enables distributed preprocessing of process data locally and only delivers the information actually required to the higher-level PLC. This has the following advantages:
- Reduced load on the central PLC
- Short response times to critical local signals
- Less load on the bus system due to smaller data volumes
- Faster set-up due to pretested units and parallel commissioning
- Increased availability and flexibility due to autonomous machine units
- Clear-cut configuration
The CPU 1514SP-2 PN operates completely independently of the central PLC. If it fails, the CPU 1514SP-2 PN simply continues running.
The bit-modular design of the ET 200SP I/O system, together with the CPU 1514SP-2 PN, enables functionally oriented station design.
In addition, the CPU offers comprehensive control functionalities via easy-to-configure blocks as well as the ability to connect drives via standardized PLCopen blocks.
Design
The CPU 1514SP-2 PN CPU is snapped directly onto the DIN rail. It has:
- A powerful processor:
The CPU achieves command execution times as low as 25 ns per binary instruction. - A large work memory:
600 KB for program, 3.5 MB for data - SIMATIC Memory Cards as load memory;
permit additional functions such as firmware update, datalog and archives - Bit-modular expandability for maximum flexibility;
up to 64 I/O modules (I/O, technology, and communications modules) in any combination. Station width up to 1 m. - Mixed configuration with ET 200AL;
It is possible to integrate up to 16 I/O modules of the ET 200AL (IP65/IP67) I/O system in an installation of the scalable I/O system ET 200SP (IP20) via a “BU-Send” BaseUnit and a “BA-Send” BusAdapter. - PROFINET IO IRT interface with 3 integrated switch ports:
- Port 1 and 2 via BusAdapter
(The CPU 1514SP-2 PN is supplied without a BusAdapter and can also be operated without a BusAdapter.
A suitable BusAdapter (BA 2xRJ45, BA 2xFC, BA 2xSCRJ, BA SCRJ/RJ45, BA SCRJ/FC, BA 2xLC, BA LC/RJ45 or BA LC/FC) can be ordered separately if required. - Port 3 integrated RJ45 socket
- Port 1 and 2 via BusAdapter
- Integrated communication functions:
- PG/OP communication
- PROFINET IO
- Open IE communication (TCP, ISO-on-TCP and UDP)
- OPC UA server/client (data access)
- Web server
- S7 communication
- S7 routing
- Data record routing
- Maintenance-free data backup without battery
- Diagnostics displays for errors (Error), operation (RUN/Stop), maintenance (MT), power supply (PWR) and one link LED per port
- Optional labeling using light gray or yellow labeling strips. There is a choice of 2 materials:
- Foil and roll with 500 strips, for thermal transfer roll printer
- Paper (280 g/m2), DIN A4 sheets with 100 strips each, for laser printer
- The ET 200SP CPU can be equipped with an equipment labeling plate
- Different PROFINET connection types by means of BusAdapter
- In standard applications with moderate mechanical and EMC loads, SIMATIC BusAdapters with an RJ45 interface can be used, e.g. BusAdapter BA 2xRJ45.
- For machines and systems in which higher mechanical and/or EMC loads act on the devices, a SIMATIC BusAdapter with connection via FastConnect (FC) or fiber-optic cable (SCRJ or LC) is recommended. Likewise, all SIMATIC BusAdapters with a fiber-optic cable connection (SCRJ, LC) can be used with the increased loads.
- BusAdapters with connections for fiber-optic cables can be used to cover high potential differences between two stations and/or high EMC loads.
- Dark BaseUnit as first BaseUnit behind the ET 200SP CPU when using an AC I/O module or AI Energy Meter ST as the first I/O module
Scope of delivery:
CPU 1514SP-2 PN including server module, 24 V DC connector and cover for BusAdapter port (BusAdapter must be ordered separately).
Function
- Performance
- High-speed command processing
- High-performance network connection:
CPU is equipped with a PROFINET IO IRT (3-port switch) as the standard interface
- Integrated technology
- Connection of analog and PROFIdrive-capable drives via standardized blocks (PLCopen)
- Integrated Motion Control functionalities for controlling speed-controlled, positioning and synchronized axes (gearing), support for external encoders, output cams/cam tracks and probes
- Trace functions for all CPU tags, both for diagnostics in real time as well as for sporadic error detection
- Extensive control functionalities, e.g. easily configurable blocks for automatic optimization of the control parameters for optimum control quality
- Isochronous mode
- Synchronous coupling of distributed signal acquisition, signal transmission, and program execution to the PROFINET cycle with constant bus cycle time
- Security Integrated
- Password-based know-how protection against unauthorized read-out and modification of program blocks
- Copy protection for tying individual blocks to the serial number of the SIMATIC Memory Card: The block can only run if the configured memory card is inserted in the CPU.
- 4-stage authorization concept: Communication to operator panels can also be restricted.
- Manipulation protection: The controller recognizes changed or unauthorized transmissions of the engineering data.
- Integrated system diagnostics
- System diagnostics information is displayed consistently and in plain text in the TIA Portal, operator panels and web server, even for messages from the drives, and is updated even if the CPU is in STOP mode.
- Integrated in the firmware of the CPU, no special configuration is required
- Configuration control (option handling) in central setup
- Various hardware configurations can be stored in the controller:
Modification of the configuration in the user program (startup OB100),
Retrofitting of options at end of configuration;
use of placeholder modules is possible
- Various hardware configurations can be stored in the controller:
- SIMATIC Memory Card (required for operation of the CPU)
- Used as plug-in load memory or for updating the firmware.
- Also for storing additional documents or csv files (for recipes and archives)
- Creation of data blocks and storage/reading of data via SFCs of the user program
- Datalog (archives) and recipes
- Storage of csv files for recipes and archives on the SIMATIC Memory Card;
easy access to plant-relevant operating data using Office tools or via web server - Easy access to machine configuration data by means of a Web browser or SD card reader (two-way data exchange from and to the controller)
- Storage of csv files for recipes and archives on the SIMATIC Memory Card;
- Programming
- Programming with STEP 7 Professional, V13 update 3 and higher
6ES7514-2DN03-0AB0
Siemens SIMATIC DP, CPU 1514SP-2 PN for ET 200SP, central processing unit with work memory 600 KB for program and 3.5 MB for data, 1st interface: PROFINET IRT with 2-port switch, 2nd interface: PROFINET RT, 6 ns bit performance, SIMATIC Memory Card required, BusAdapter required for 1st interface
Visit 6ES7514-2DN03-0AB0
For more our products visit turll.com
| Weight | 0.340 kg |
|---|---|
| Dimensions | 133.00 × 135.00 × 82.00 mm |
