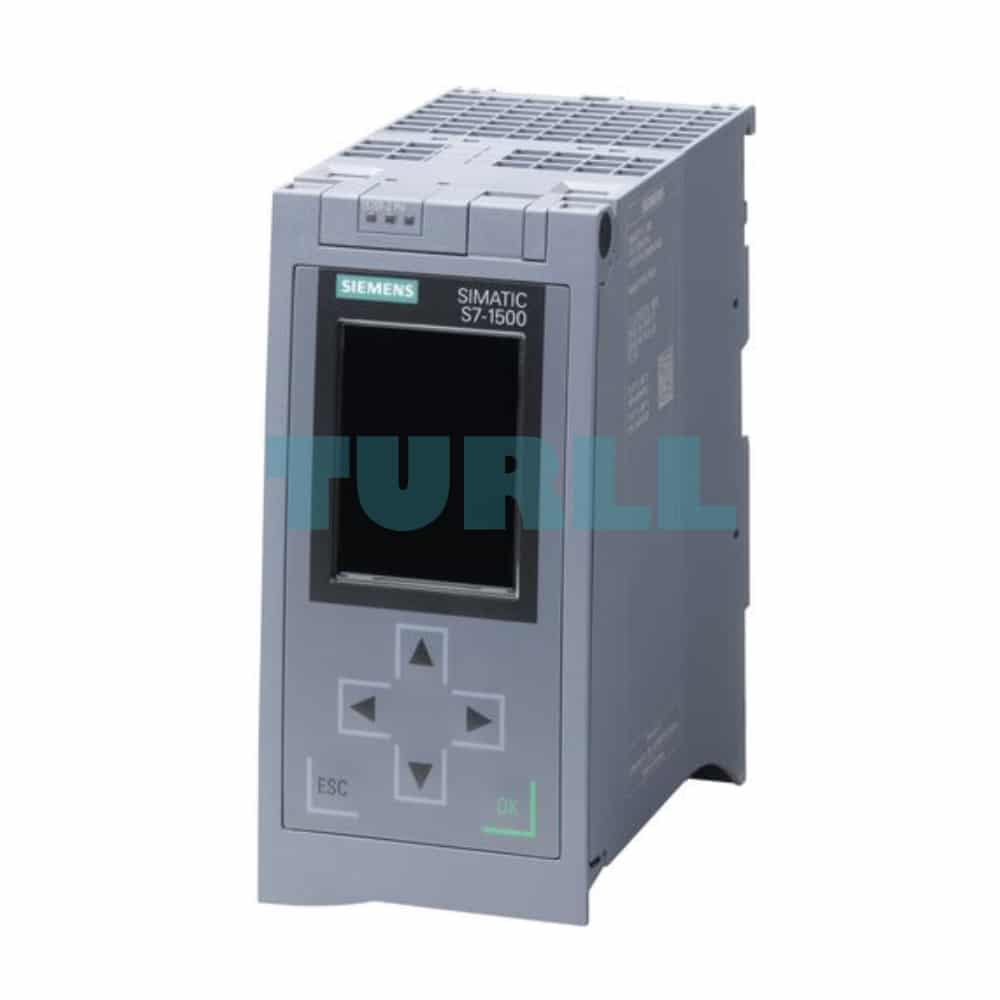

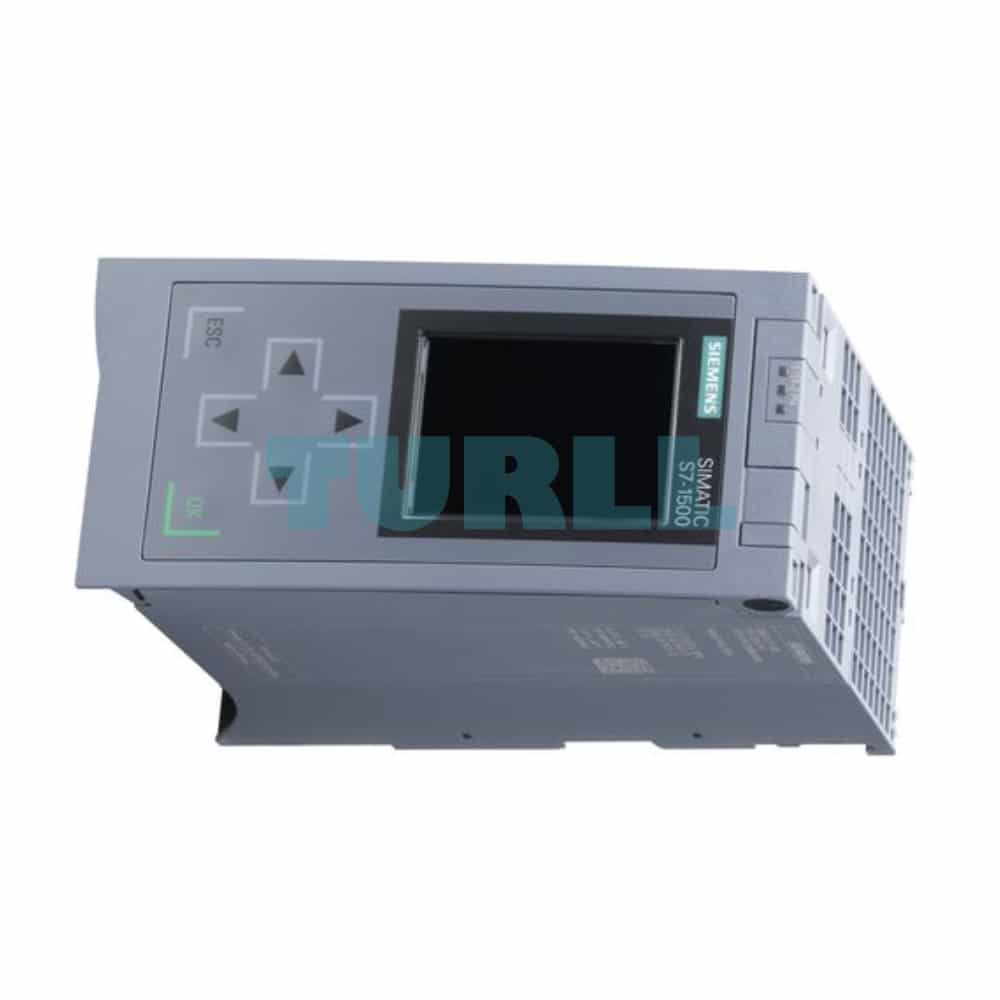

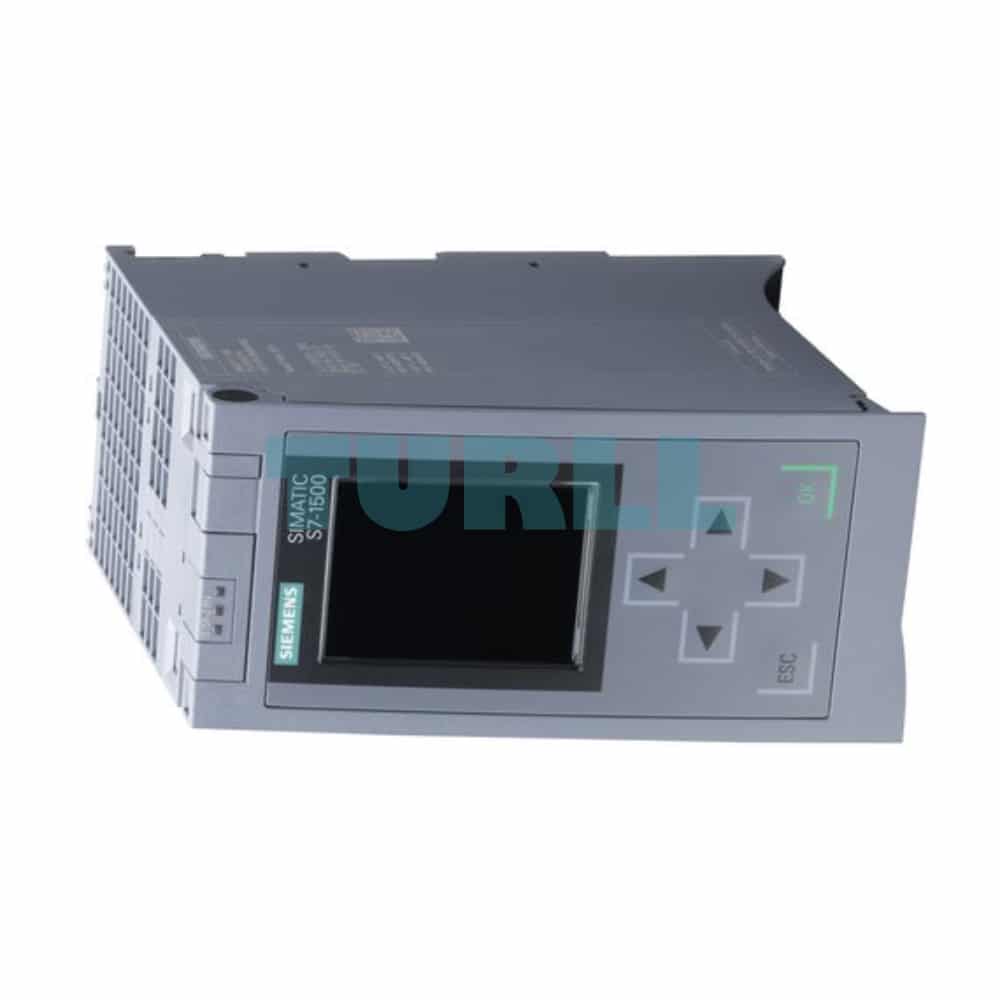

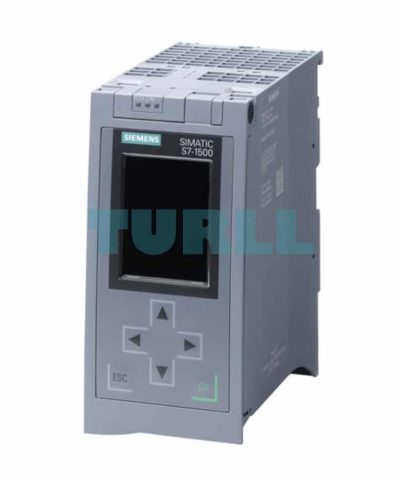

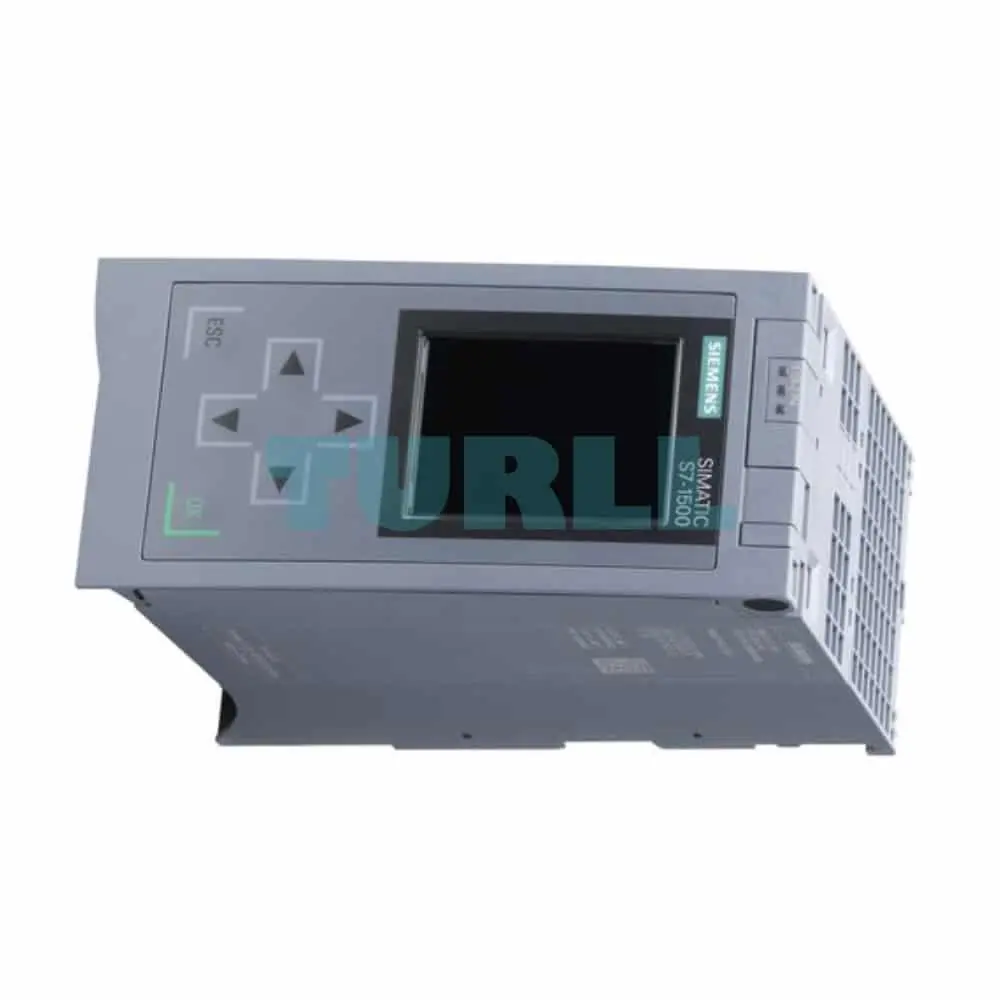

6ES7515-2RN03-0AB0 Siemens SIMATIC S7-1500R CPU 1515R-2 PN Original Brand New
$2,902.76
6ES7515-2RN03-0AB0 SiemensĀ
SIMATIC S7-1500R, CPU 1515R-2 PN central processing unit with work memory 1 MB for program and 4.5 MB for data, 1st interface: PROFINET RT with 2-port switch, 2nd interface: PROFINET, SIMATIC Memory Card required
Overview
- The CPU for applications with medium/high requirements for program scope, networking and processing speed, and with increased requirements for availability.
- High processing speed for binary and floating-point arithmetic
- Used as central controller with distributed I/O
- PROFINET IO RT interface with 2-port switch
- Additional PROFINET interface with separate IP address
- PROFINET IO controller for operating distributed I/O on PROFINET
Note:
SIMATIC Memory Card required for operation of the CPU
Application
The CPU 1515R-2 PN is the CPU with a large program and data memory for applications which have higher requirements for availability compared with standard CPUs. It can be used as the PROFINET IO controller. The integrated PROFINET IO RT interface is configured as a 2-port switch, enabling a ring topology required for SIMATIC S7-1500R to be set up in the system. The additional integrated PROFINET interface with separate IP address can be used, for example, for network separation.
Design
The CPU 1515R-2 PN features:
- A powerful processor:
The CPU achieves a command execution time as low as 20Ā ns per binary command. - Large work memory:
1 MB for program, 4.5 MB for data - SIMATIC Memory Cards as load memory
- Display with functions for
- Display of overview information such as station name, plant designation, location designation, etc.
- Displaying of diagnostic information
- Displaying of module information
- Showing display settings
- Setting of IP addresses
- Setting of date and time
- Displaying operating mode (redundant or non-redundant)
- Displaying status (stop, primary or backup)
- Resetting of the CPU to factory settings
- Disabling/enabling the display
- Enabling of protection levels
- PROFINET IO RT interface for connecting distributed I/O via PROFINET
Function
- Performance
- Faster command processing, depending on the CPU type, language extensions and new data types
- Even shorter response times of the CPUs due to considerably faster backplane bus
- High-performance network connection:
Each CPU is equipped with PROFINET IO RT (2-port switch) as standard interface.
- Security Integrated
- Password-based know-how protection against unauthorized read-out and modification of program blocks
- Copy protection for tying individual blocks to the serial number of the SIMATIC Memory Card: The block can only run if the configured memory card is inserted in the CPU.
- 4-level authorization concept:
Communication to operator panels can also be restricted. - Manipulation protection:
The controller recognizes changed or unauthorized transmissions of the engineering data.
- Design and handling
- Display of overview information:
E.g. Station name, plant designation, location identifier, etc., diagnostic information, module information, display settings. - Possible operations on the display:
Set addresses, set date and time, select operating mode of CPU, reset CPU to factory settings, disable/enable display, activate protection levels.
- Display of overview information:
- Integrated system diagnostics
- System diagnostics information is displayed consistently and in plain text in the display, TIA Portal and operator panels, even for messages from the drives, and updated even if the CPU is in STOP mode.
- Integrated in the firmware of the CPU, no special configuration is required
- SIMATIC Memory Card (required for operation of the CPU)
- Used as plug-in load memory or for updating the firmware.
- Also for storing additional documents or csv files (for recipes and archives)
- Programming of the standard program section
- Programming with STEPĀ 7Ā V15.1
6ES7515-2RN03-0AB0 Siemens
SIMATIC S7-1500R, CPU 1515R-2 PN central processing unit with work memory 1 MB for program and 4.5 MB for data, 1st interface: PROFINET RT with 2-port switch, 2nd interface: PROFINET, SIMATIC Memory Card required
| Weight | 0.512 kg |
|---|---|
| Dimensions | 155 × 158 × 80 mm |
