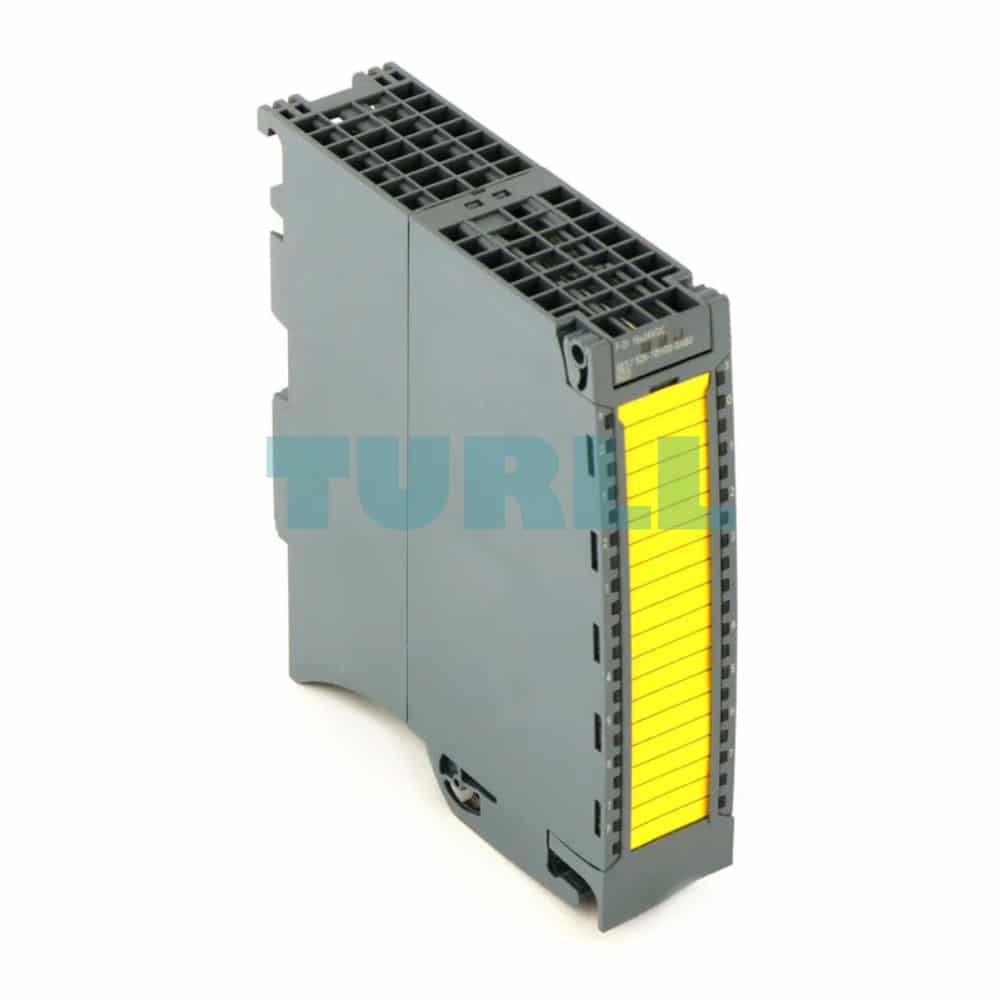

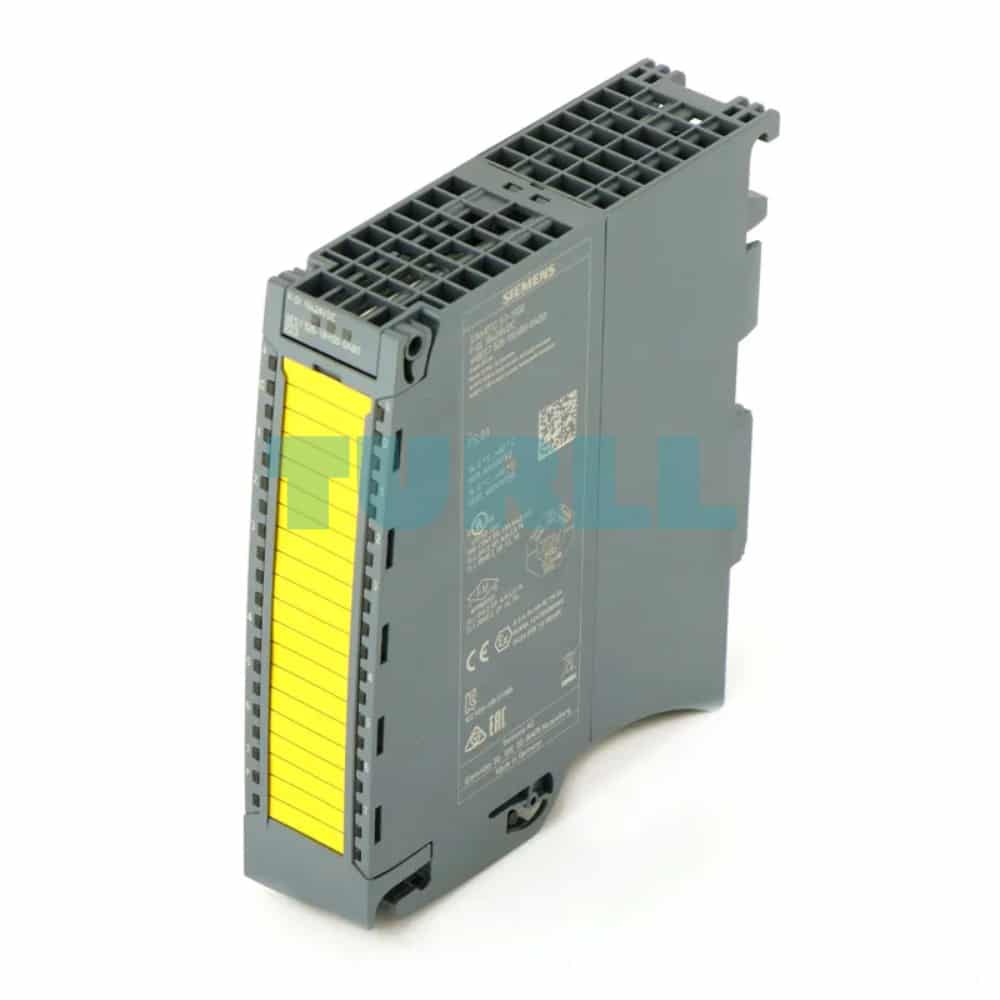

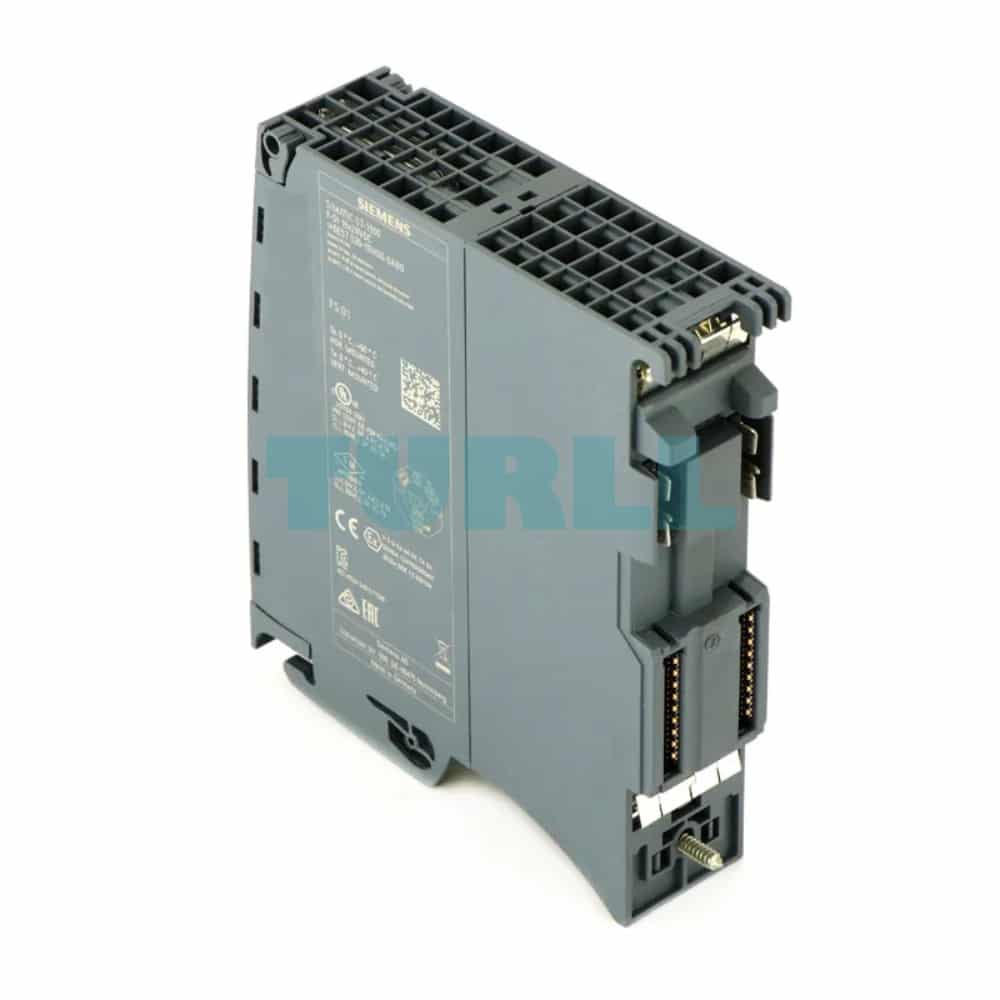

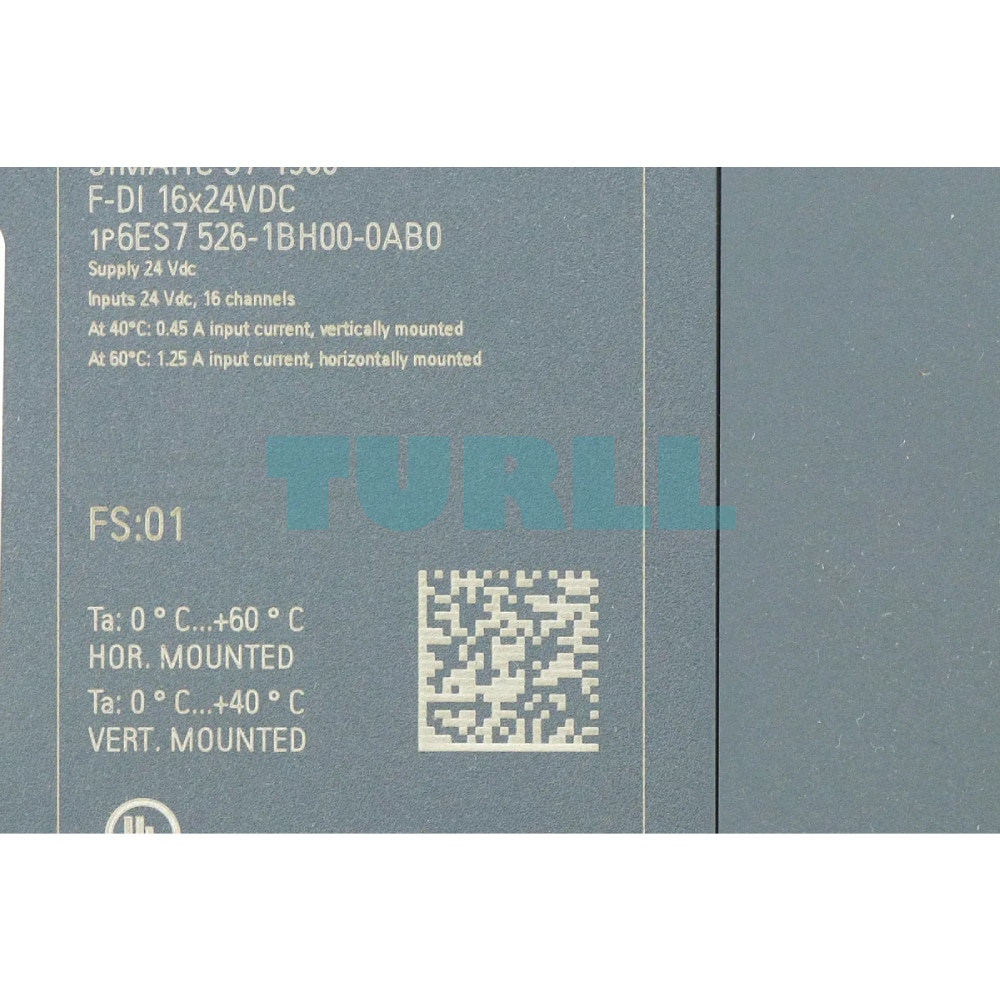

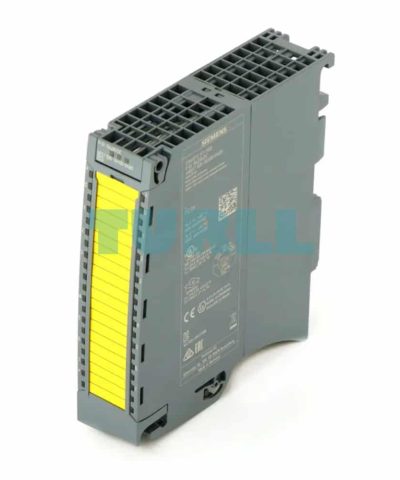

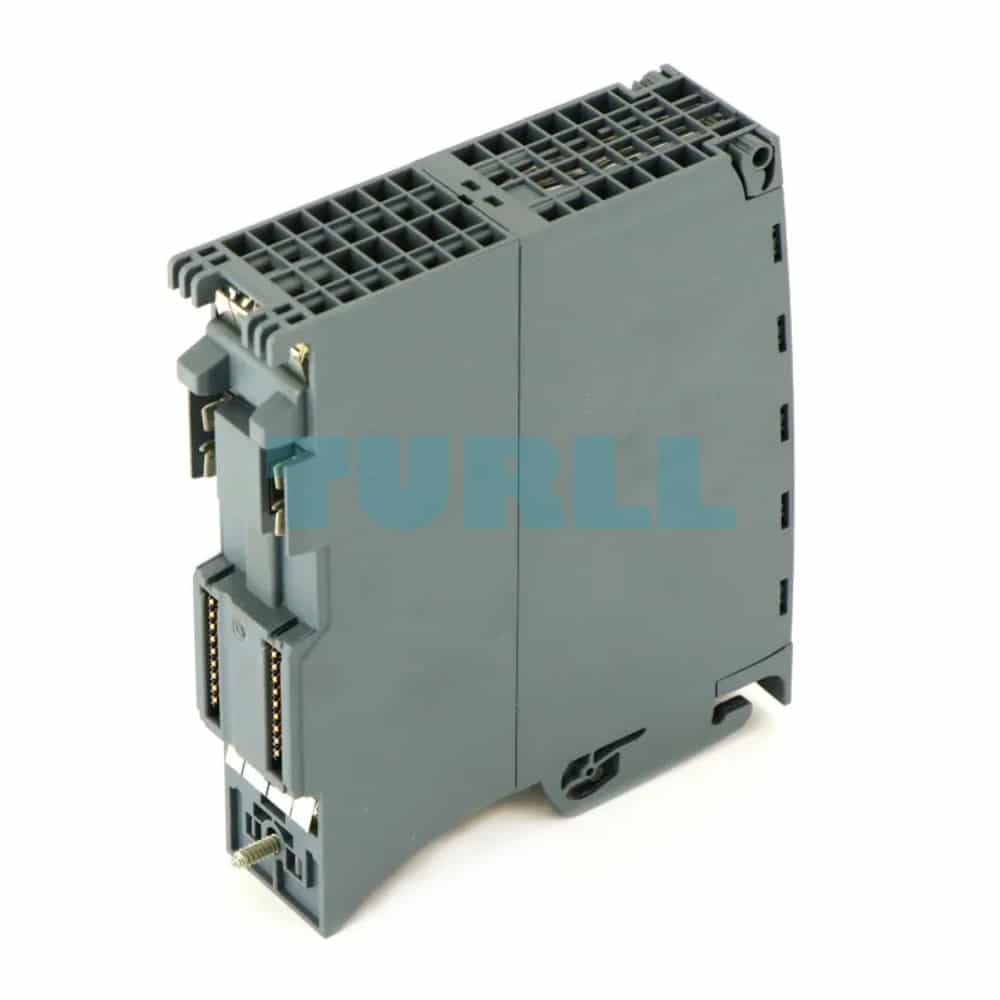

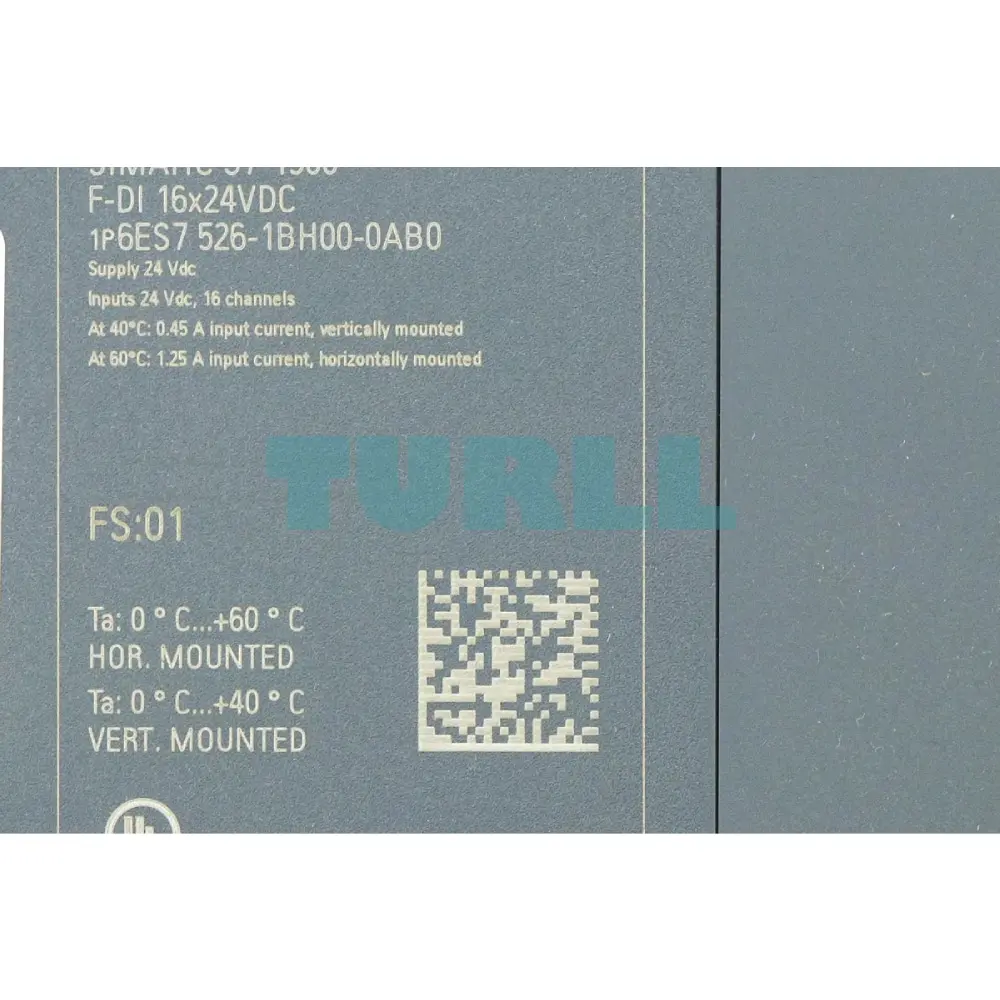

6ES7526-1BH00-0AB0 Siemens SIMATIC S7-1500 Digital F-Input Module Original Brand New
$741.40
6ES7526-1BH00-0AB0
Siemens SIMATIC S7-1500, F digital input module, F-DI 16x 24 V DC PROFIsafe; 35 mm width; up to PL E (ISO 13849-1)/ SIL 3 (IEC 61508)
[ez-toc]
Overview
Fail-safe digital input module:
F-DI 16x24VDC PROFISAFE
Important features:
- 16-channel fail-safe digital input module for ET 200MP/S7-1500
- For fail-safe reading of sensor information (1 or 2 channels)
- Provides integral discrepancy evaluation for 2-out-of-2 signals
- 4 internal sensor supplies (incl. test function) onboard
- Certified up to SIL 3 (IEC 61508), PL e (ISO 13849)
- LED display for error, operation, supply voltage and status
- Clear module labeling
- Plain text identification of the module type
- Complete Article No.
- 2D matrix code (order and serial number)
- Connection diagram
- Hardware and firmware version
- Optional labeling accessories
- Labeling sheets, yellow
- The modules support PROFIsafe in both PROFIBUS and PROFINET configurations. Can be used with all fail-safe SIMATIC S7-1500 F-CPUs in the central configuration, as well as ET 200MP distributed I/O with all other SIMATIC S7 F-CPUs.
Application
Using fail-safe ET 200MP/S7-1500 modules makes it possible to implement safety-related application requirements as an integral part of the overall automation. The safety functions required for fail-safe operation are integrated in the modules. Communication with the fail-safe SIMATIC S7 CPUs is performed by means of PROFIsafe.
The modules can be operated both in centralized and distributed configurations.
6ES7526-1BH00-0AB0
Siemens SIMATIC S7-1500, F digital input module, F-DI 16x 24 V DC PROFIsafe; 35 mm width; up to PL E (ISO 13849-1)/ SIL 3 (IEC 61508)
Visit 6ES7526-1BH00-0AB0
For more our products visit turll.com
| Weight | 0.333 kg |
|---|---|
| Dimensions | 151.00 × 151.00 × 47.00 mm |
