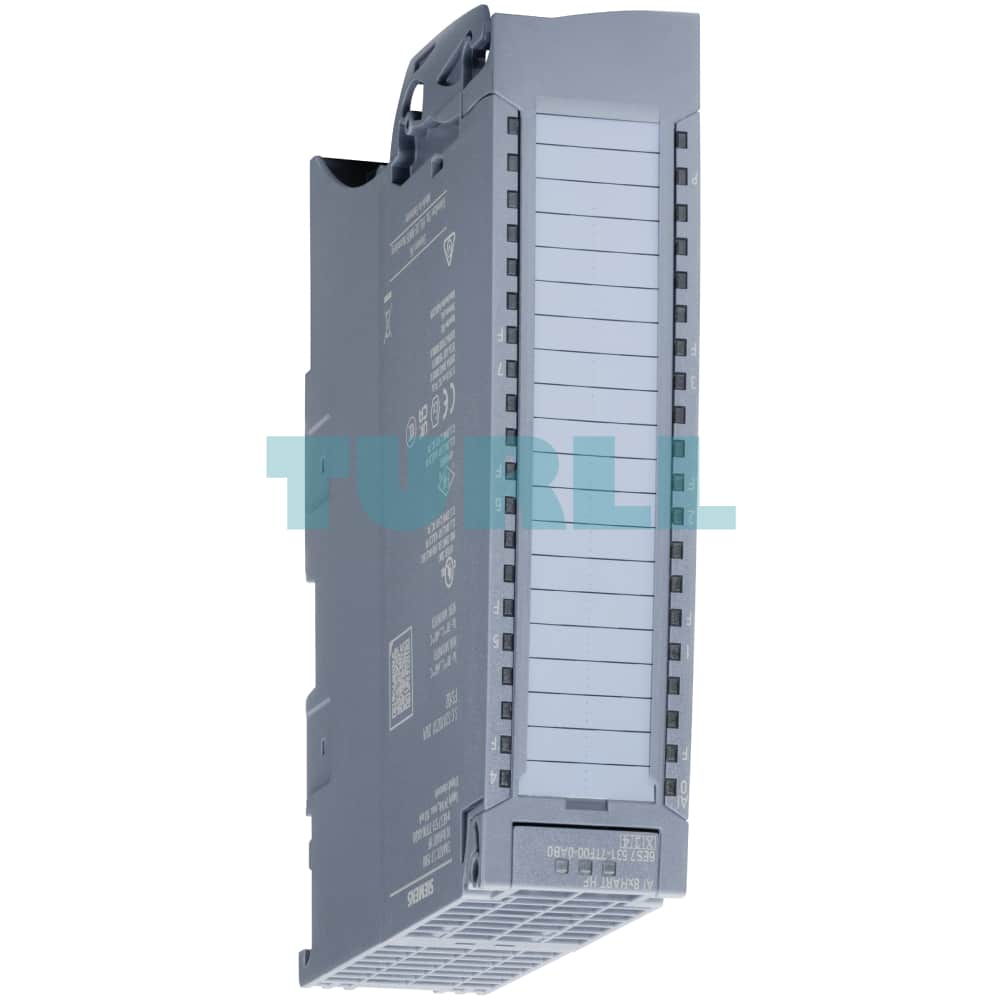

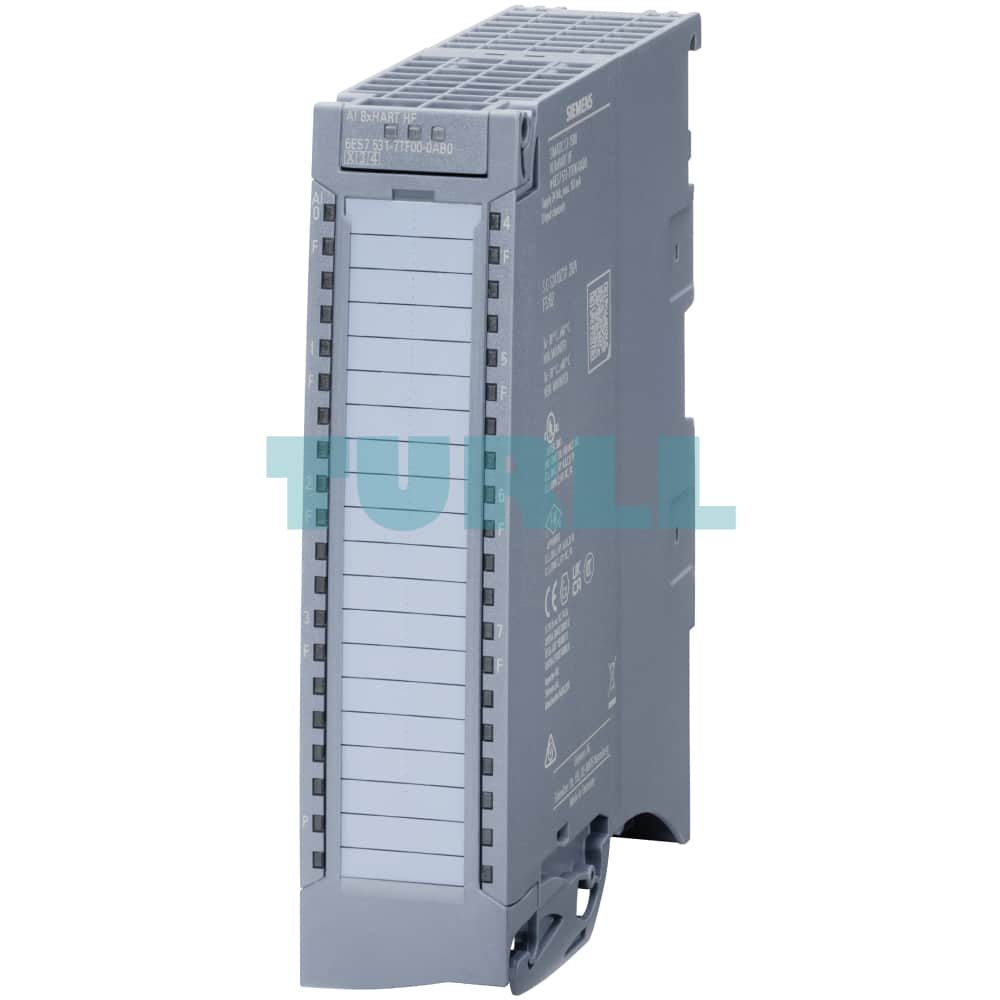

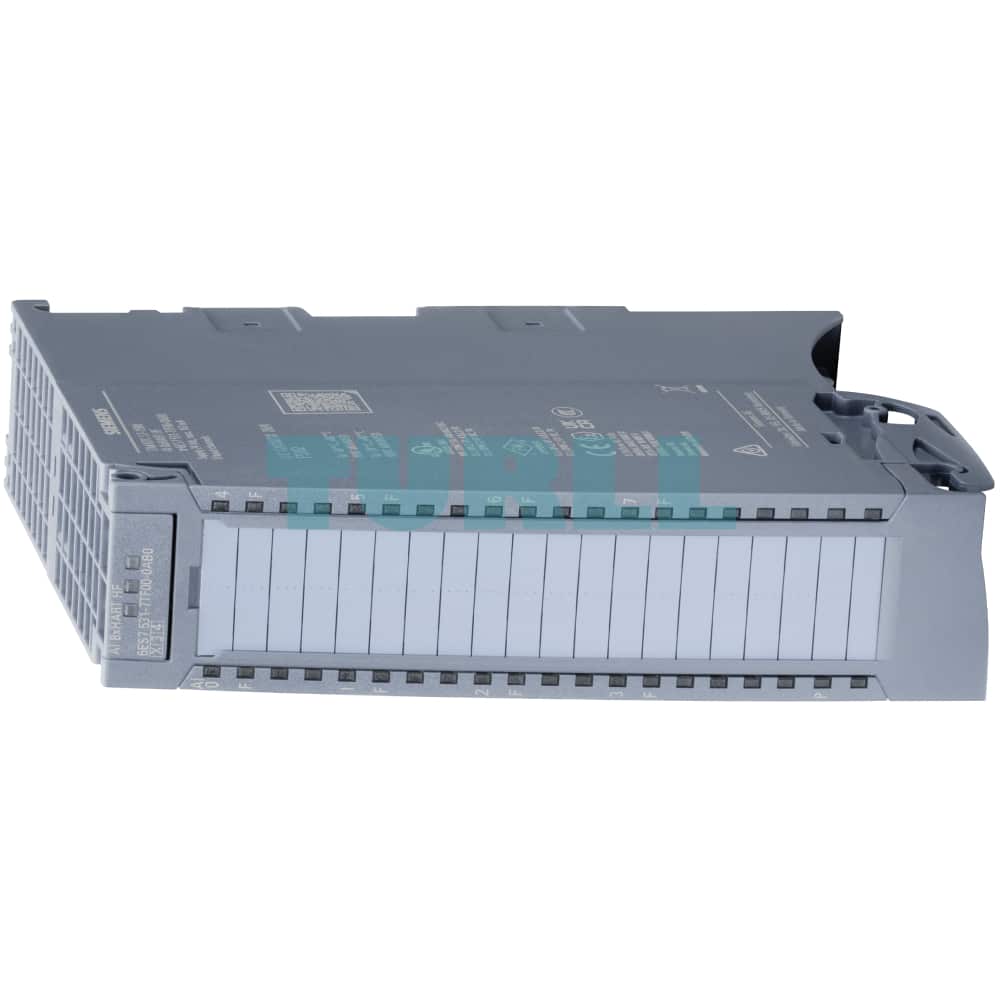

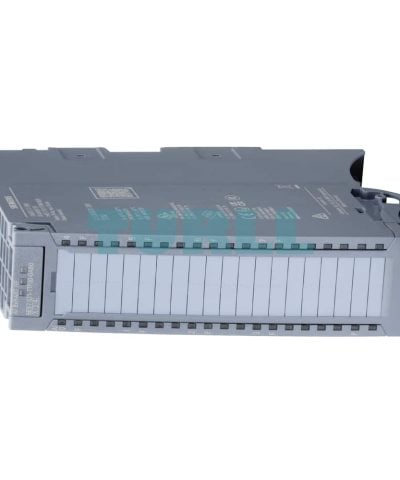

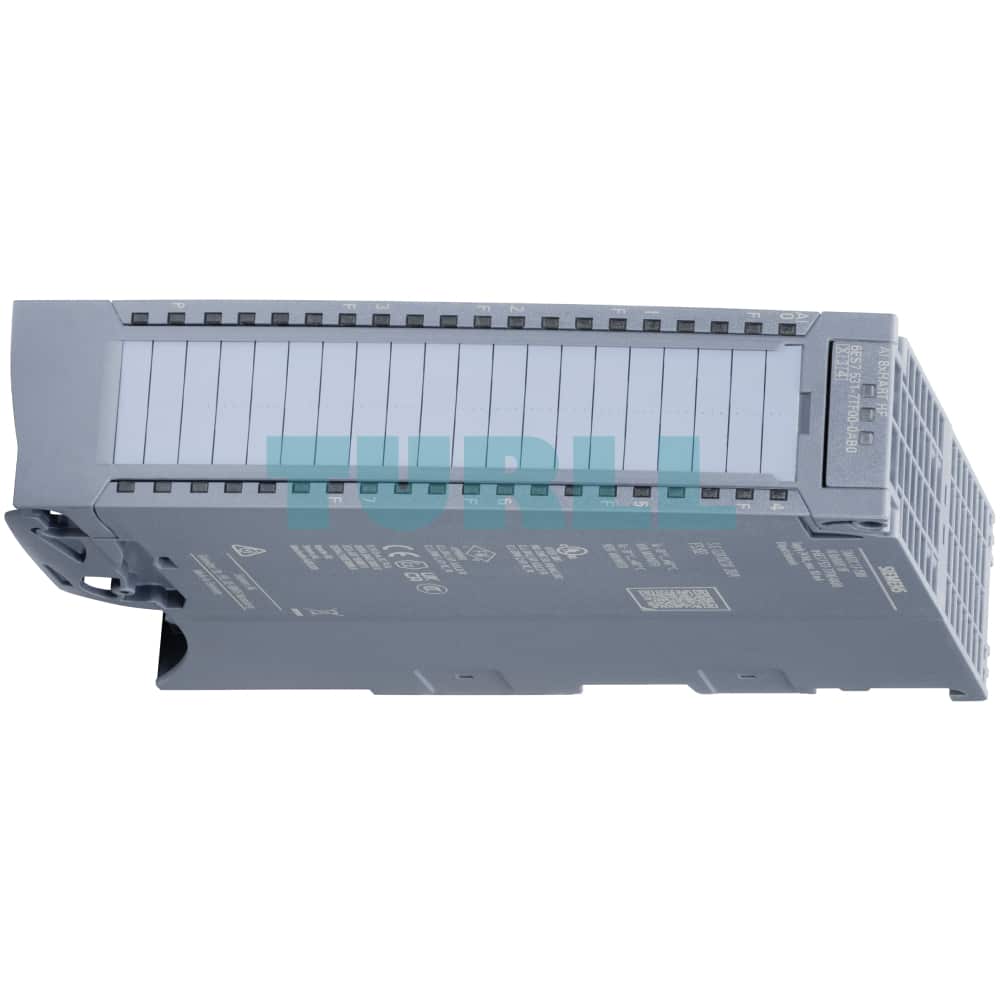

6ES7531-7TF00-0AB0 Siemens SIMATIC S7-1500 Analog Input Module Original Brand New
$982.70
6ES7531-7TF00-0AB0
Siemens SIMATIC S7-1500, analog input module AI 8xHART HF, accuracy 0.1%, 8 channels in groups of 4, common mode voltage: 30 V AC/60 V DC, diagnostics; hardware interrupts calibrate in RUN; delivery including infeed element, shielding bracket and shield terminal
Global Express Shipping
DHL / FedEx / UPS
100% Original & Brand New
Factory Sealed Box with 1-Year Warranty
Secure Payment
SSL ENCRYPTED
[ez-toc]
Overview
- 4, 8 or 16-channel analog input modules
- Optionally with extremely short conversion times
- For the connection of analog sensors without additional amplifiers
- Even solves more complex automation tasks
- Analog input module for cell voltage measurement on electrolyzers and fuel cells
Application
Analog input modules record process signals such as pressure or temperature and forward them in digitalized format (16-bit format) to the PLC. They are suitable for measuring current (2-wire and 4-wire transducers), voltage, and resistance, as well as for the connection of resistance thermometers and thermocouples (measurement types depend on the module). An 8-channel module that supports the HART protocol is also available.
The following analog input modules are available:
- AI 8xU/I/R/RTD BA
Analog input module with 8 channels; 16-bit resolution; accuracy +/-0.5%; one potential group; 4 V common mode voltage; parameterizable diagnostics; hardware interrupts (two upper and lower limit values); 8 channels RTD.
Module width 35 mm - AI 16xI BA;
Analog input module with 16 channels; 16-bit resolution; accuracy +/-0.5%; one potential group; 8 V common mode voltage; parameterizable diagnostics; hardware interrupts (two upper and lower limit values); 16 channels for current measurement.
Module width 35 mm - AI 16xU BA;
Analog input module with 16 channels; 16-bit resolution; accuracy +/-0.5%; one potential group; 8 V common mode voltage; parameterizable diagnostics; hardware interrupts (two upper and lower limit values); 16 channels for voltage measurement (measuring ranges from +/- 1V).
Module width 35 mm - AI 4xU/I/RTD/TC ST
Analog input module with 4 channels; 16 bit resolution; accuracy +/-0.3 %; one potential group; 10 V common mode voltage; parameterizable diagnostics; hardware interrupts (two upper and lower limit values); calibration during runtime.
Module width 25 mm - AI 8xU/I/RTD/TC ST
Analog input module with 8 channels (4 channels for R/RTD measurement); 16-bit resolution; accuracy +/-0.3%; one potential group; 10 V common mode voltage; parameterizable diagnostics; hardware interrupts (two upper and lower limit values); calibration during runtime.
Module width 35 mm - AI 8xU/I HS
Analog input module with 8 channels; 16-bit resolution; accuracy +/-0.3%; one potential group; 10 V common mode voltage; parameterizable diagnostics; hardware interrupts (two upper and lower limit values); high-speed module with 8 channels in 125 µs; isochronous mode; calibration during runtime.
Module width 35 mm - AI 8xU/R/RTD/TC HF
Analog input module with 8 channels; 16-bit resolution; accuracy +/-0.1%; one potential group; 30 V AC / 60 V DC common mode voltage; parameterizable diagnostics; hardware interrupts (two upper and lower limit values); calibration during runtime; characteristic linearization according to GOST 9. Channel for TC compensation or “real” measurement channel; fast mode.
Module width 35 mm - AI 8xU/I HF
Analog input module with 8 channels; 16-bit resolution; accuracy +/-0.1%; one potential group; 30 V AC / 60 V DC common mode voltage; parameterizable diagnostics; hardware interrupts (two upper and lower limit values); calibration during runtime.
Module width 35 mm - AI 8xHART HF;
Analog input module with 8 channels; 16-bit resolution; accuracy +/-0.1%; one potential group; 30 V AC / 60 V DC common mode voltage; parameterizable diagnostics; hardware interrupts (two upper and lower limit values); calibration during runtime.
Module width 35 mm - AI 24xCVM HF;
Analog input module for cell voltage measurement, AI 24xCVM HF, up to 24-bit resolution, accuracy: 0.1%, 24 channels in groups of 12, insulation voltage: 600 V DC, diagnostics, hardware interrupts for calibration in RUN mode; delivery including infeed element, shielding bracket and shield terminal: Front connector (push-in) included;
Note: Module is not suitable for regular voltage measurement of +/- 5 V!
Design
- Mounting on the S7-1500 DIN rail using a single screw
- 35 mm modules: Standardized 40-pin front connector using screw terminal or push-in technology (cannot be used for 25 mm modules)
- 25 mm modules: Standardized 40-pin front connector using push-in technology (cannot be used for 35 mm modules)
- Connectable core cross-sections: 0.25 mm2 to 1.5 mm2 (AWG 24 to 16), regardless of front connector used
- Prewiring position of the front connector
- Front flap with expandable cable compartment, even if fully wired
- Integrated shielding concept (tool-free installation)
- Unambiguous labeling on the front of module:
- Module type
- Article number
- Hardware and firmware version
- Channel numbers labeling
- Cabling diagram
Included in the scope of delivery:
- Power supply element, shield bracket, and shield terminal
- One labeling strip for manual labeling
- One U connector
- Printed front door
Function
- Uniform display and diagnostics concept:
- Module status display for ERROR (red LED) and RUN (green LED)
- Channel status display (channel activated or deactivated, green LED) or diagnostics display (red LED)
- Display for monitoring the 24 V DC supply voltage (green LED)
- Supported functions:
- Consistently high resolution of 16 bits
- Identification and maintenance data IM0 to IM3
- Firmware update
- Channel-specific parameter assignment
- Hardware interrupts; two upper and two lower limits can be parameterized
- Channel-granular diagnostics (depends on measurement type/measuring range)
- Isochronous mode (dependent on the module)
- Calibration during runtime (dependent on the module)
6ES7531-7TF00-0AB0
Siemens SIMATIC S7-1500, analog input module AI 8xHART HF, accuracy 0.1%, 8 channels in groups of 4, common mode voltage: 30 V AC/60 V DC, diagnostics; hardware interrupts calibrate in RUN; delivery including infeed element, shielding bracket and shield terminal
Visit 6ES7531-7TF00-0AB0
For more our products visit turll.com
| Weight | 0.396 kg |
|---|---|
| Dimensions | 164.00 × 191.00 × 41.00 mm |
