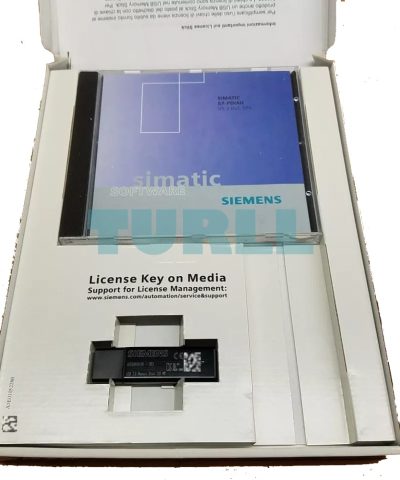

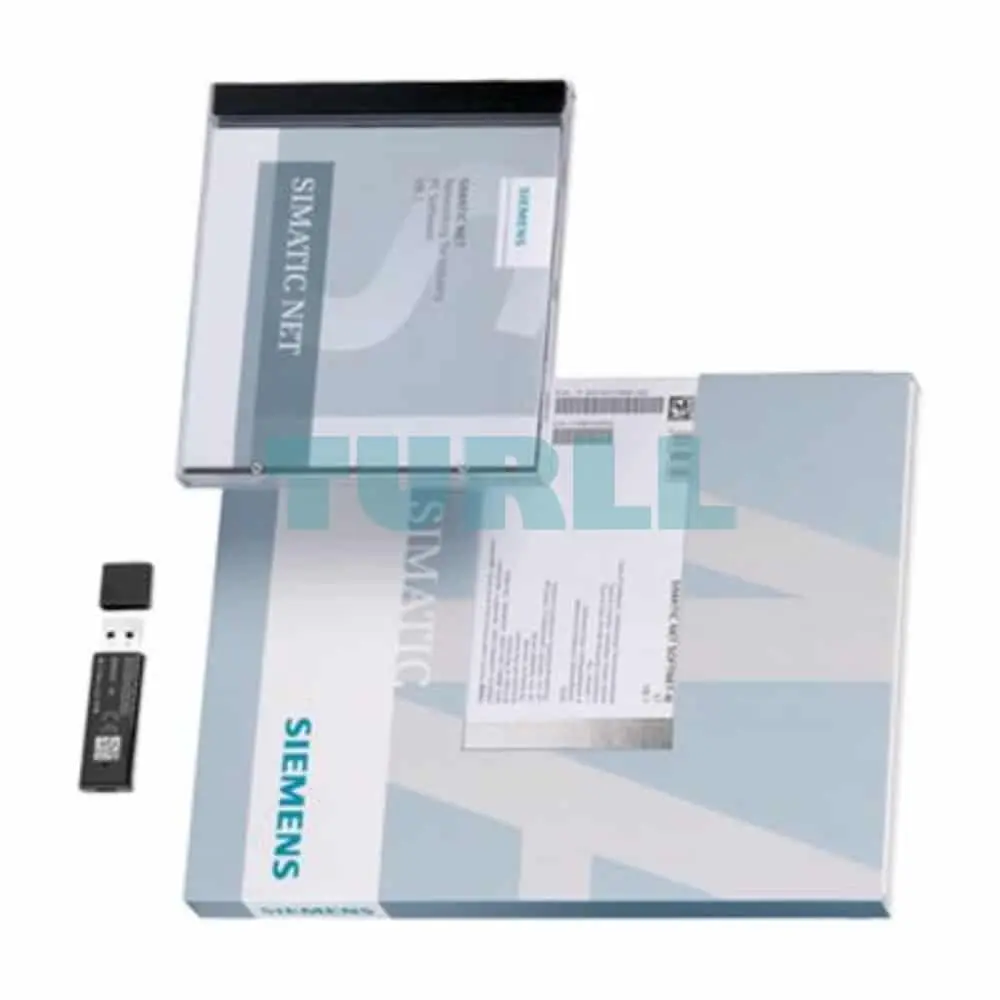

6ES7840-0CA01-0YX2 Siemens SIMATIC S7-PDIAG Software Update Service Original Brand New
$285.15
6ES7840-0CA01-0YX2
Siemens SIMATIC S7, S7-PDIAG Software Update Service within the framework of this contract, you will receive for one year all up-to-date software versions. the contract is extended automatically by 1 year if it is not canceled 3 months prior to expiration. Period of delivery and service: 1 year from date of invoice Requirement for conclusion: current version of the software
[ez-toc]
Overview
- For configuration of process diagnostics with SIMATIC S7
- Increases the availability of machines and production plants and provides supports with fault analysis and elimination on-site
- For use on the SIMATIC S7-300, S7-400
Licensing
- S7-PDIAG V5.7 is delivered with a floating license. The floating license allows installation of the software on any number of computers. This means one user per license can use the software independently of the computer used and without being tied to a specific workstation. The number of licenses acquired determines the number of computers on which the software can be used simultaneously.
- An upgrade to version 5.7 is available for users of previous versions.
You can find more information on the Software Update Service, license types, Online Software Delivery and handling your SW licenses with the Automation License Manager under this link.
Application
SIMATIC S7-PDIAG increases the availability of machines and production plants and provides optimal support to personnel for on-site fault analysis and correction.
S7-PDIAG supports the configuring of process diagnostics for SIMATIC with the LAD, FBD or IL programming languages. Using process diagnostics it is possible to recognize faulty states outside the automation system (such as limit switch not reached).
In conjunction with SIMATIC HMI display units and the special process diagnostics option package SIMATIC ProAgent, it is possible to design a powerful system:
- To display errors in user-defined text
- To display the cause signal (criteria analysis) at link level
- To clear process errors
Design
S7-PDIAG is an important component of the SIMATIC process diagnostics together with S7-GRAPH, S7-HiGraph and ProAgent.
A scalable hardware platform is provided by the standard S7-300/S7-400 programmable logic controllers and SIMATIC Panels OP/TP 270, MP 270/370 and WinCC.
Function
S7-PDIAG
- Configuration for detection of process faults:
S7-PDIAG permits definition of signal monitoring (including criteria analysis) and the associated message texts within the LAD/CSF/IL editor. - Configured FB call (optional) on diagnostics event
- Online modification of monitoring times
- Supporting troubleshooting:
In addition to the display and detection of process faults, S7-PDIAG and ProAgent provide the user with the facility to control or modify movements and operating modes directly from the HMI display unit.
SIMATIC ProAgent
The SIMATIC ProAgent option package provides the following essential functionality for the SIMATIC HMI on the basis of a standardized user interface (identical for S7-PDIAG and S7-GRAPH):
- Fault indication with time stamp and message status (e.g., first-up)
- Fault determination, criteria analysis, and display of process signals causing the fault
- Supporting troubleshooting through movement displays and changes in operating mode with which the machine components can be driven for troubleshooting (e.g., counterclockwise/clockwise movement)
6ES7840-0CA01-0YX2
Siemens SIMATIC S7, S7-PDIAG Software Update Service within the framework of this contract, you will receive for one year all up-to-date software versions. the contract is extended automatically by 1 year if it is not canceled 3 months prior to expiration. Period of delivery and service: 1 year from date of invoice Requirement for conclusion: current version of the software
Visit 6ES7840-0CA01-0YX2
For more our products visit turll.com
| Weight | 0.011 kg |
|---|---|
| Dimensions | 185.00 × 175.00 × 35.00 mm |
