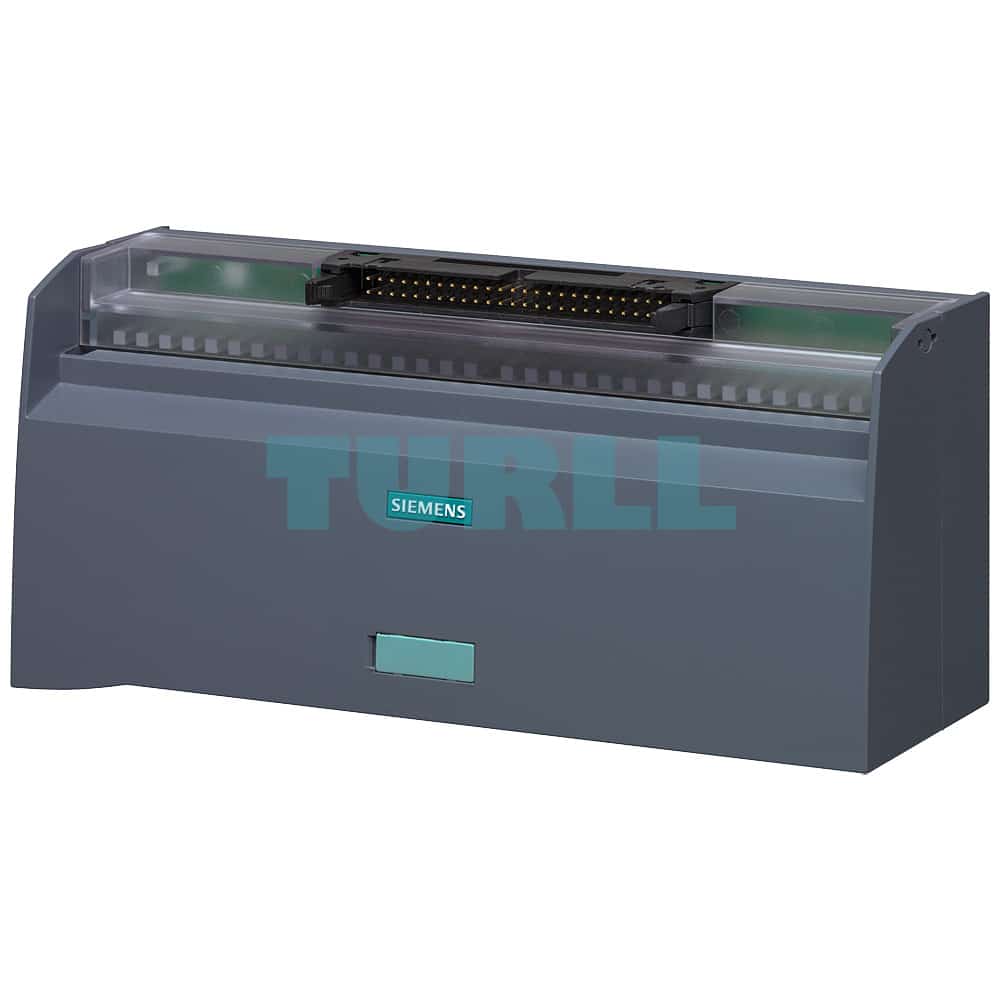

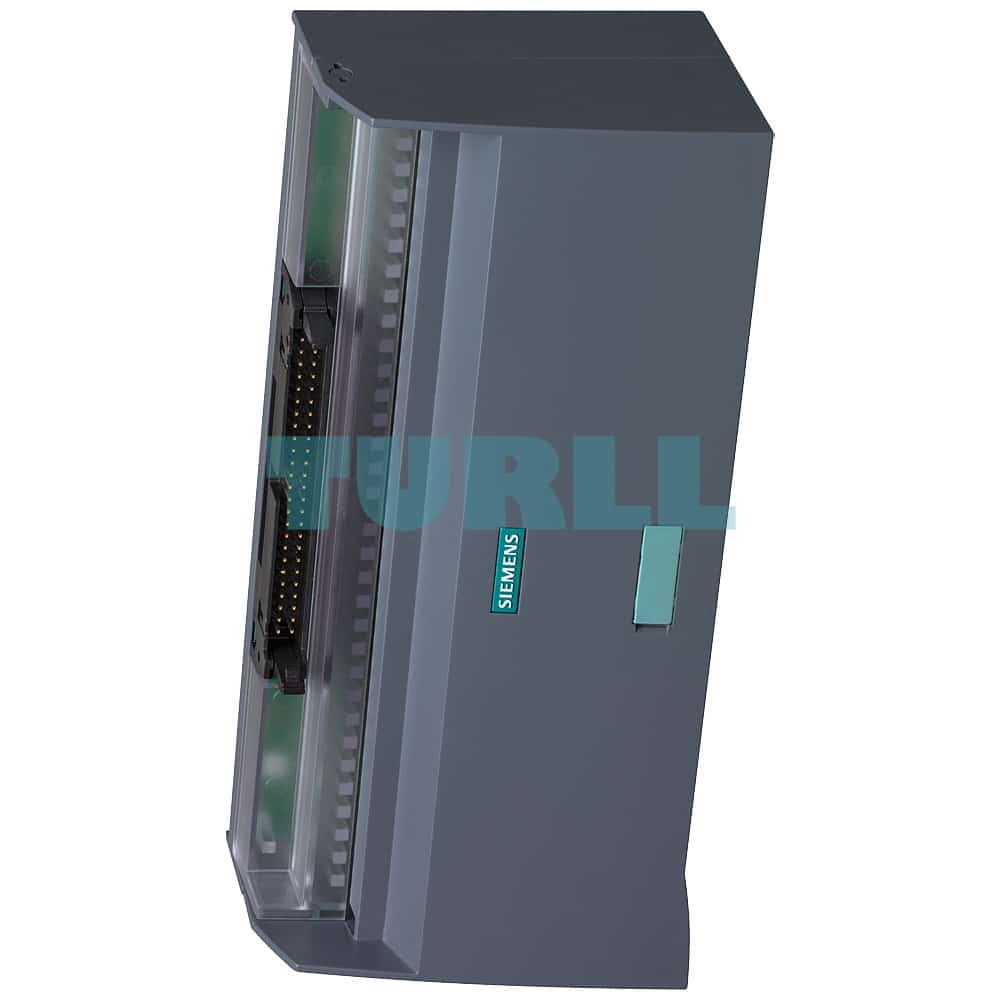

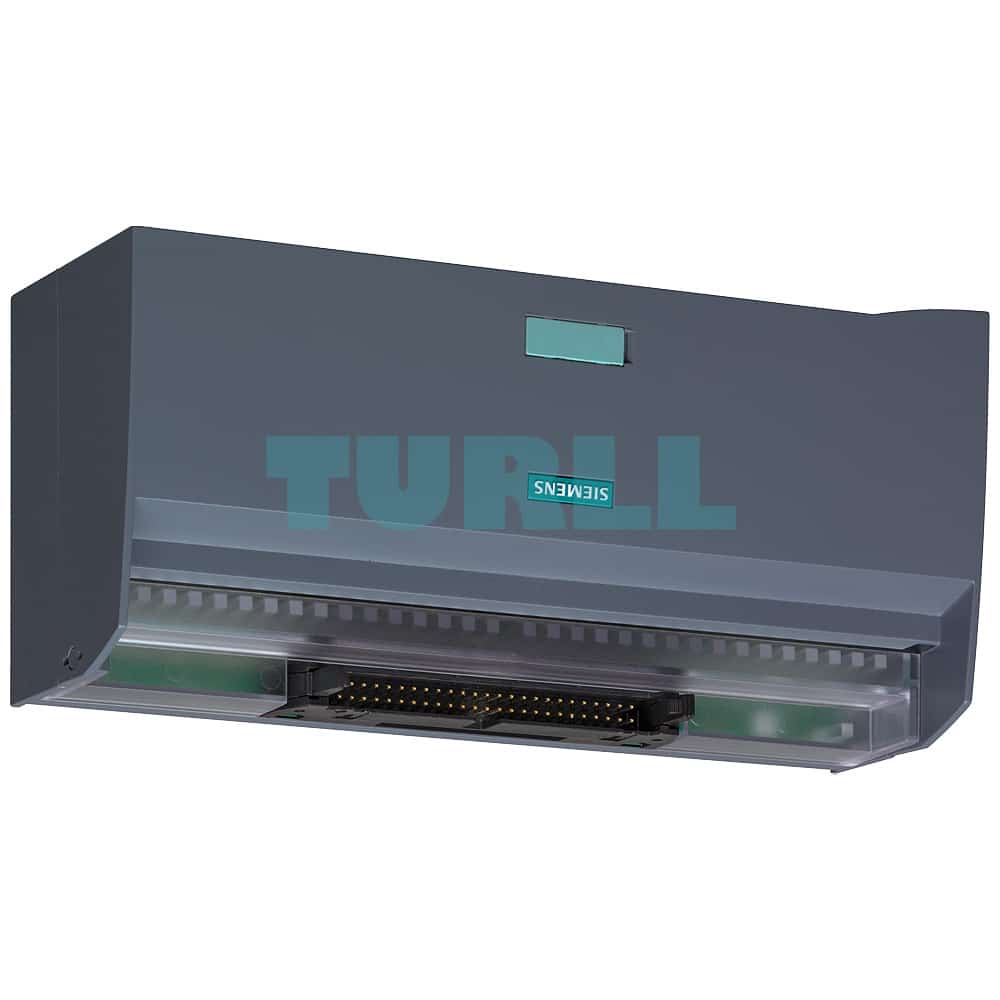

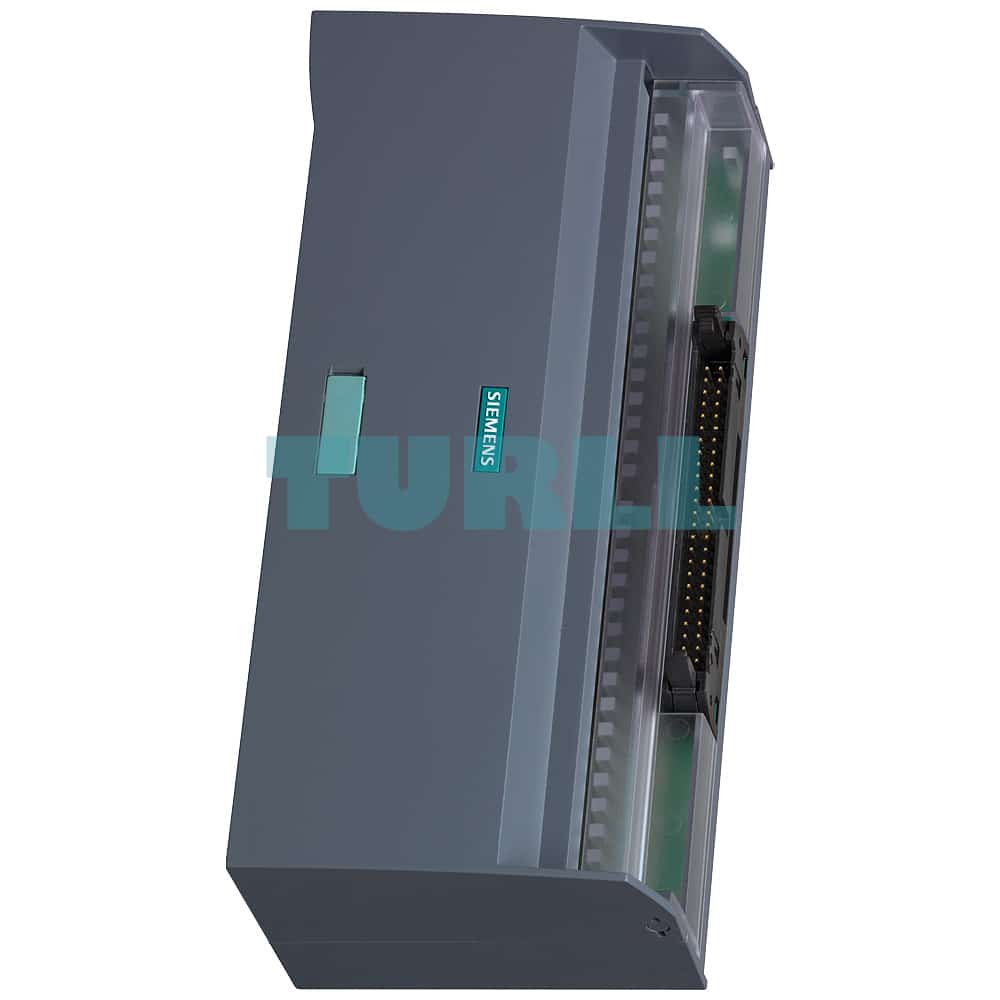

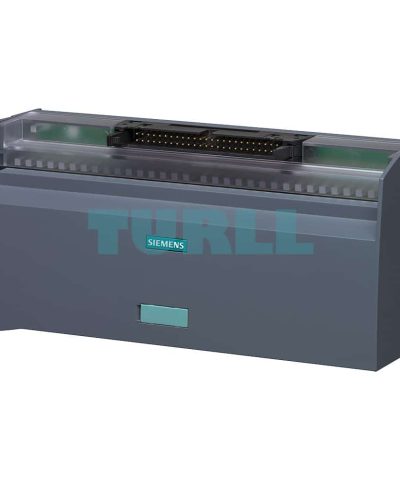

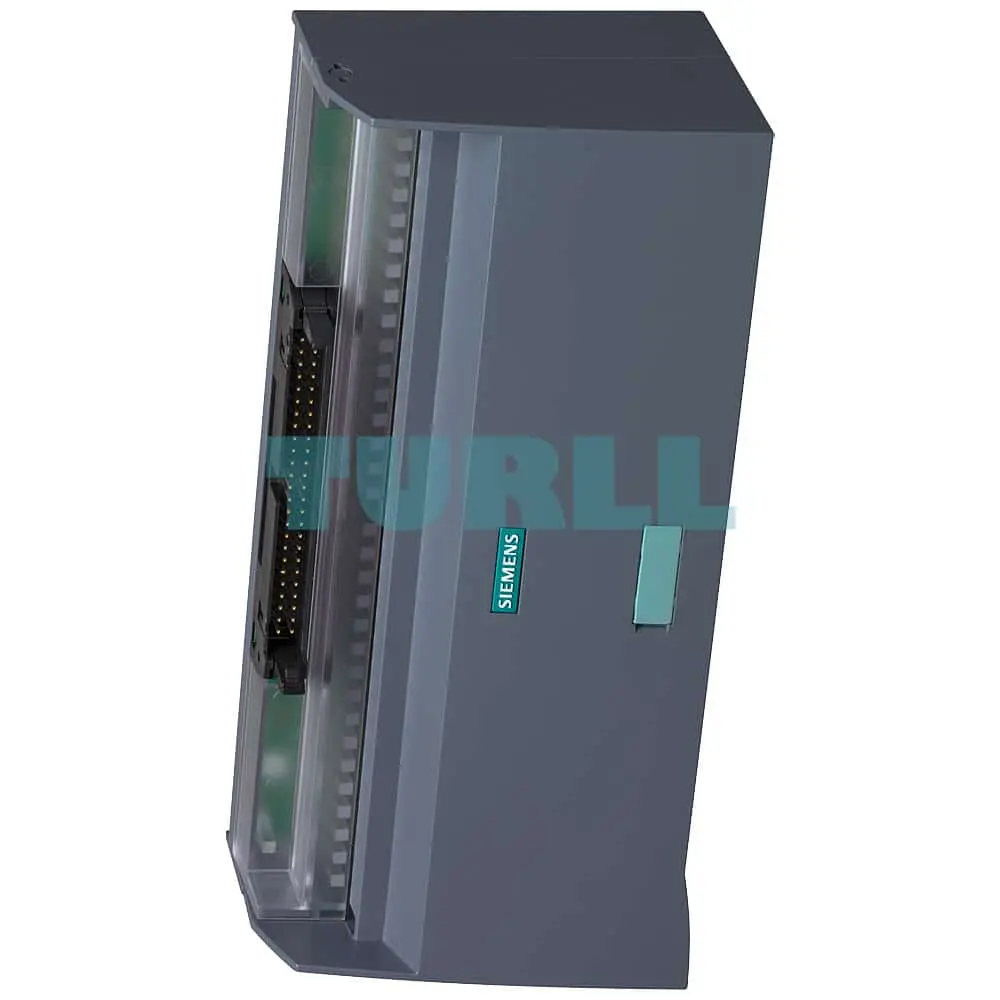

Siemens 6ES7924-2CA20-0BC0 TP3 connection module, 32 channels, push-in terminal with LED indicators, ideal for SIMATIC automation systems.
The 6ES7924-2CA20-0BC0 Siemens connection module TP3 is an advanced and reliable solution for industrial automation applications, offering 32 channels with push-in terminals and integrated LED indicators. Designed for seamless compatibility with SIMATIC S7-300, ET 200M, S7-1500, and ET 200MP controllers, this module provides a secure and efficient interface between field I/O devices and the control system. The push-in terminal technology ensures fast, tool-free wiring while maintaining strong, vibration-resistant connections, ideal for high-demand environments.
This connection module includes a 50-pole IDC connector, enabling organized cabling and reducing wiring errors. It mounts easily onto DIN rails, offering flexibility for integration into compact control cabinets. The integrated LEDs assigned to each signal path simplify diagnostics, clearly indicating the active status of signals, while a dedicated power LED enhances system monitoring and maintenance efficiency.
Engineered to support up to 4 connection modules per front connector module, this TP3 connection module allows routing of up to 32 channels via appropriate connecting cables, streamlining installation and saving space. The system permits a distance of up to 30 meters between the controller and the connection module, giving designers greater flexibility in layout and configuration.
Each connection module is designed with robust housing and provides optional insertable labels for clear identification, supporting system clarity and long-term serviceability. Accessories such as customized labels ensure the connection modules can be uniquely marked to match any system documentation requirements.
This product is ideal for automation integrators, system builders, and engineers looking for a dependable, compact, and service-friendly connection module that simplifies setup, improves diagnostics, and enhances overall system reliability.
Key technical details include:
32 channels with push-in terminals for secure, tool-free connection
Integrated LED indicators for signal path monitoring and a dedicated power supply LED
50-pole IDC connector supporting neat and efficient cabling
Compatible with SIMATIC S7-300, S7-1500, ET 200M, and ET 200MP systems
DIN rail mountable design for straightforward installation
Suitable for applications where the module may be located up to 30 m from the controller
Visit 6ES7924-2CA20-0BC0
More product visit Turll.com
| SKU / Model | 6ES7924-2CA20-0BC0 |
|---|---|
| Weight | 0.34 kg |
| Dimensions | 38 × 177 × 80 mm |
