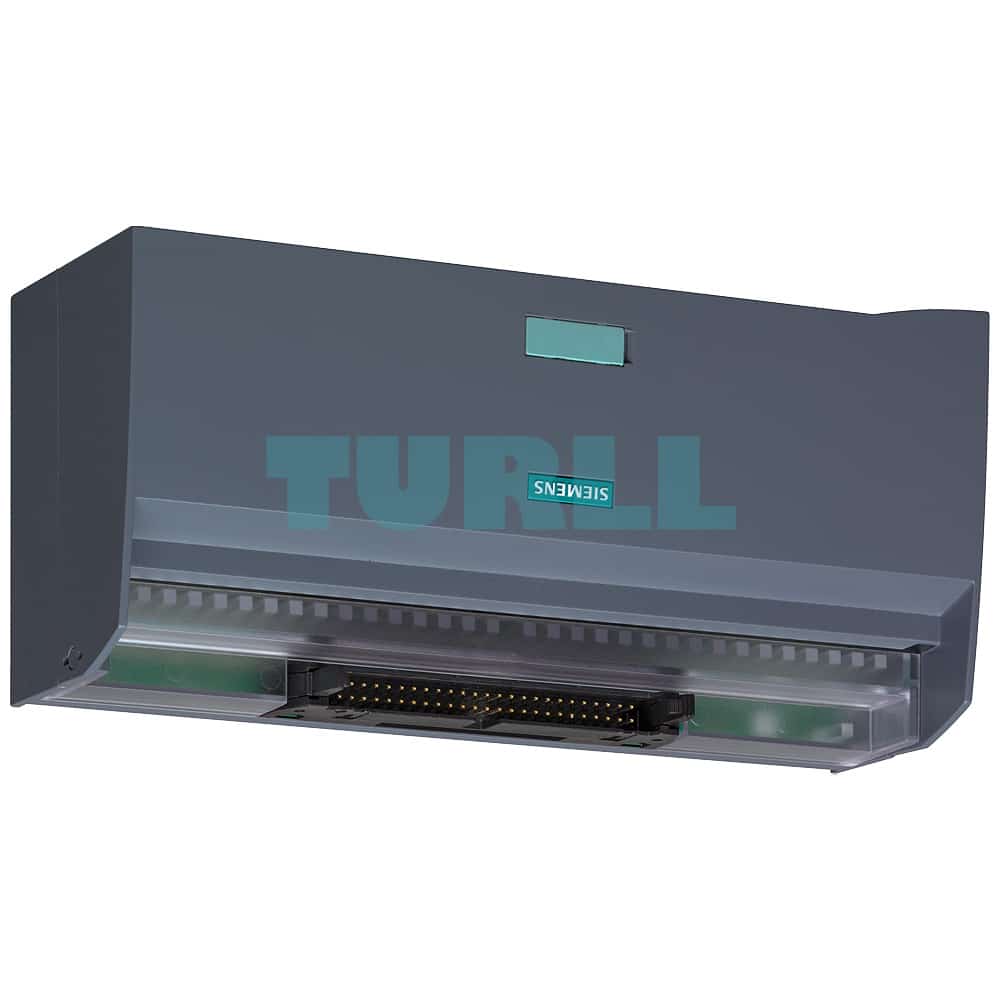

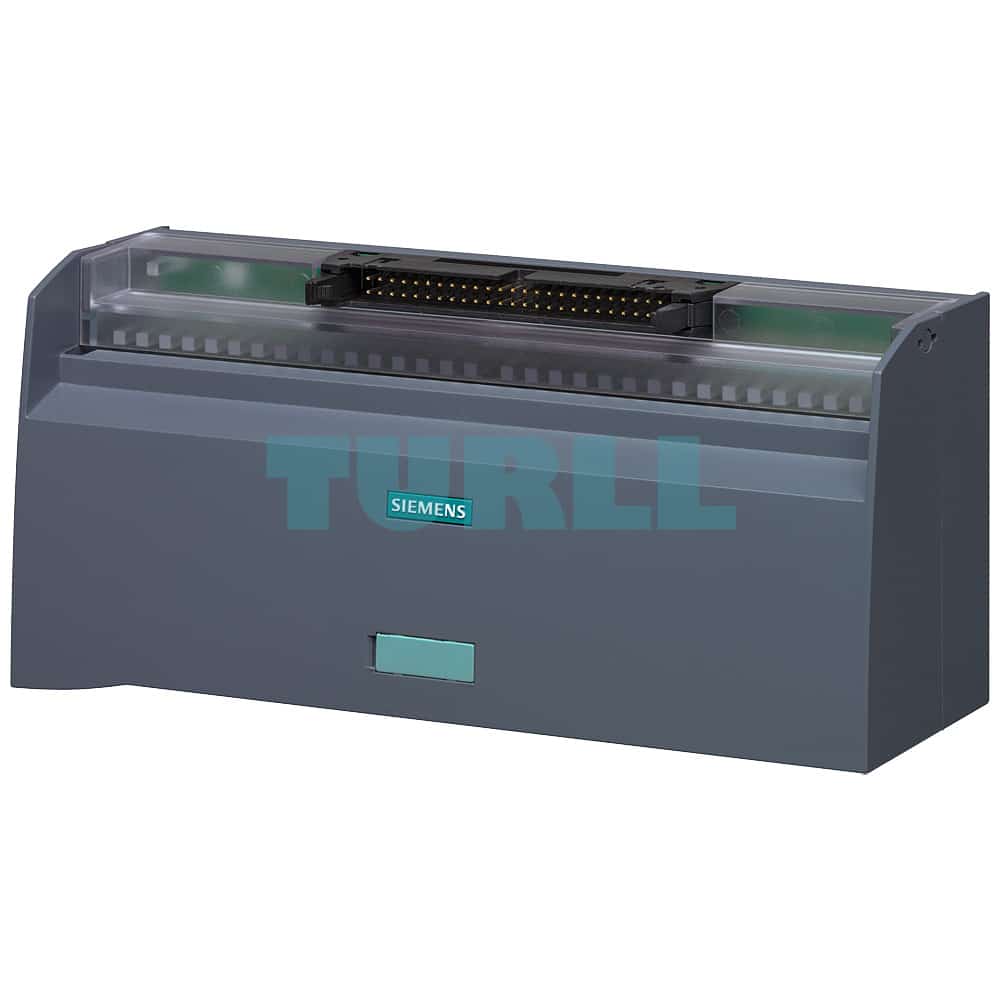

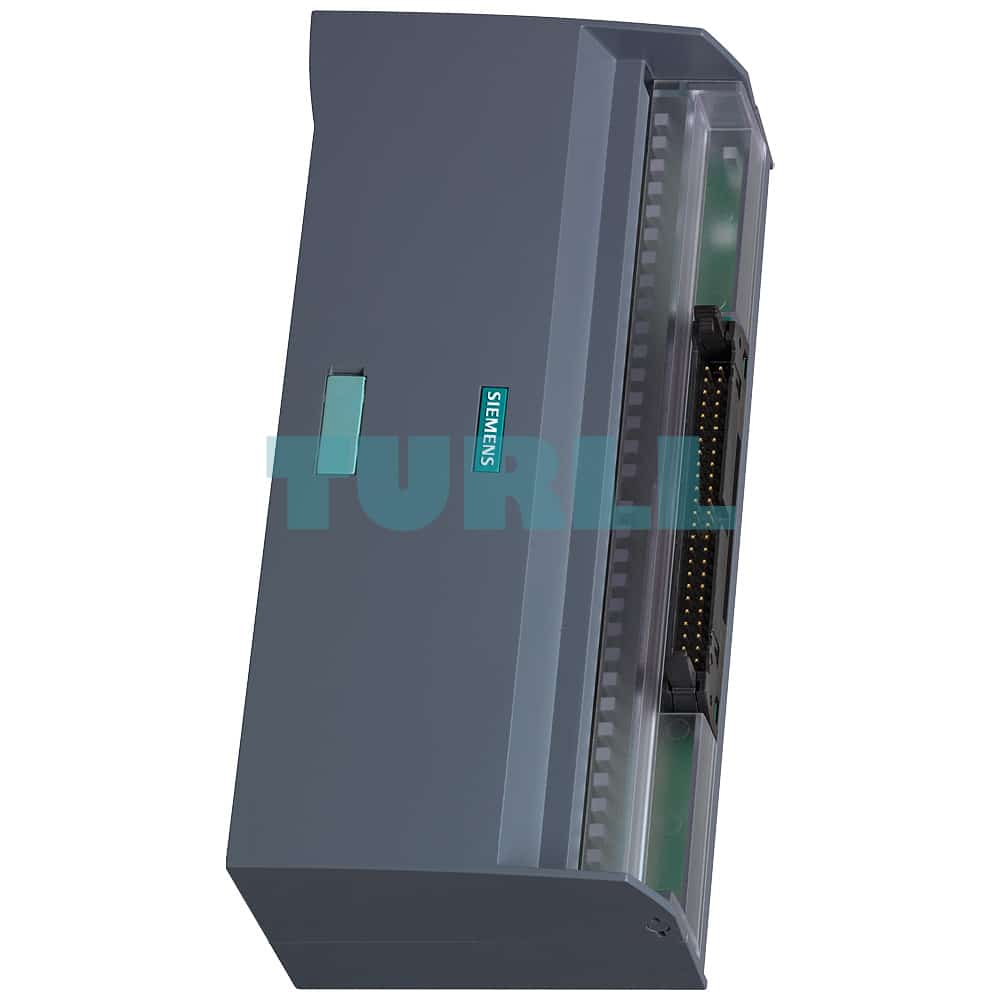

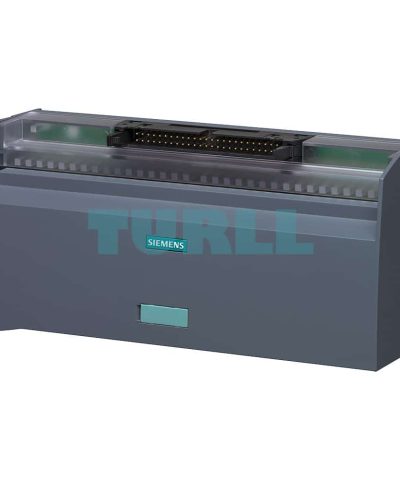

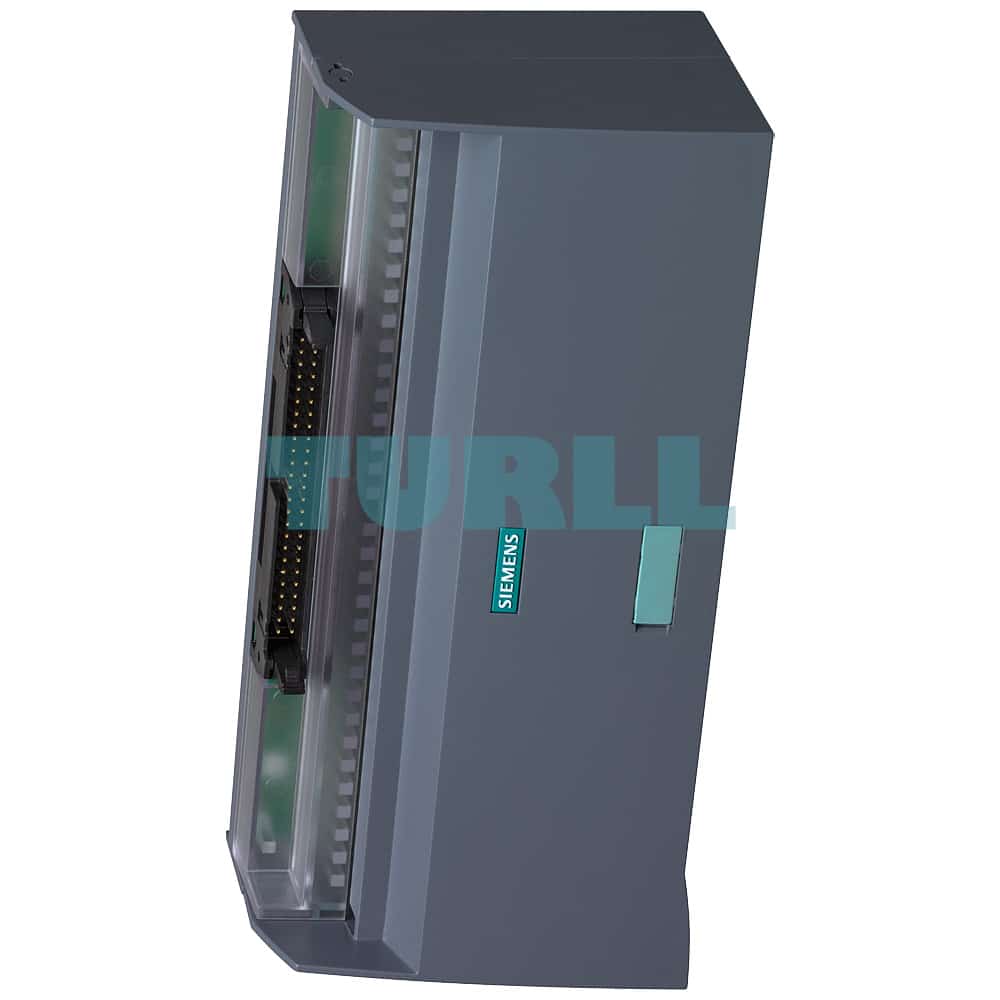

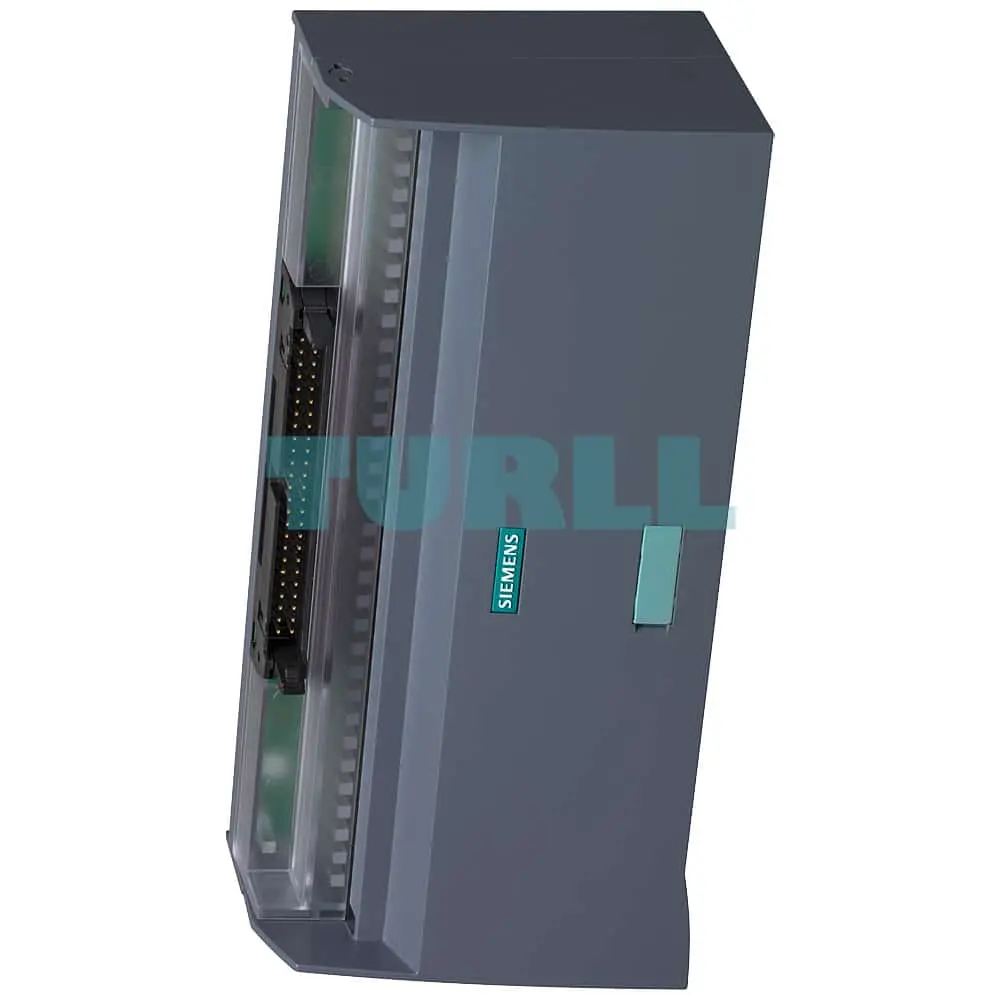

6ES7924-2CC20-0AC0 SIEMENS Connection module TPA 3-tier for analog Modules of the SIMATIC S7-1500 Push-in terminal without LED Original Brand New

6ES7924-2CC20-0AC0 SIEMENS Connection module TPA 3-tier for analog Modules of the SIMATIC S7-1500 Push-in terminal without LED Original Brand New

The 6ES7924-2CC20-0AC0 Siemens connection module TPA is engineered for analog modules of the SIMATIC S7-1500 automation system. This 3-tier connection module utilizes push-in terminals without LED indicators, offering a secure, vibration-resistant, and maintenance-friendly connection option. Designed for seamless integration, it ensures optimal reliability and efficiency in industrial automation environments.

This connection module enables structured and clean wiring for SIMATIC S7-1500 analog modules through its 50-pole IDC connector, supporting rapid installation and minimizing cabling errors. It mounts directly onto a DIN rail, replacing traditional terminal strips and providing a modern and compact solution ideal for control cabinets with limited space.

The module allows flexible configuration where up to 4 connection modules can be attached per front connector module, depending on system design. When paired with the correct cabling, up to 32 channels can be routed via a single line to the module, optimizing space usage and simplifying maintenance. Its passive construction makes it suitable for pure signal transmission applications, where no additional electronics are required.

A distance of up to 30 meters between the SIMATIC S7 controller and the connection module can be achieved, subject to system requirements and design considerations. The 6ES7924-2CC20-0AC0 is compatible with insertable labels for clear and durable system identification, supporting both initial installation and future maintenance.

This connection module supports a variety of system configurations and is part of Siemens’ extensive range of industrial automation solutions. It offers a robust, flexible, and user-friendly design, making it a preferred choice for system integrators and automation engineers seeking high performance and dependability.

Key features:

• TPA 3-tier connection module for SIMATIC S7-1500 analog modules

• Push-in terminals without LED indicators for quick and secure wiring

• 50-pole IDC connector ensures tidy and reliable cable connections

• Suitable for DIN rail mounting in compact spaces

• Allows up to 30 m distance between module and controller

• Compatible with system labeling accessories for easy identification
