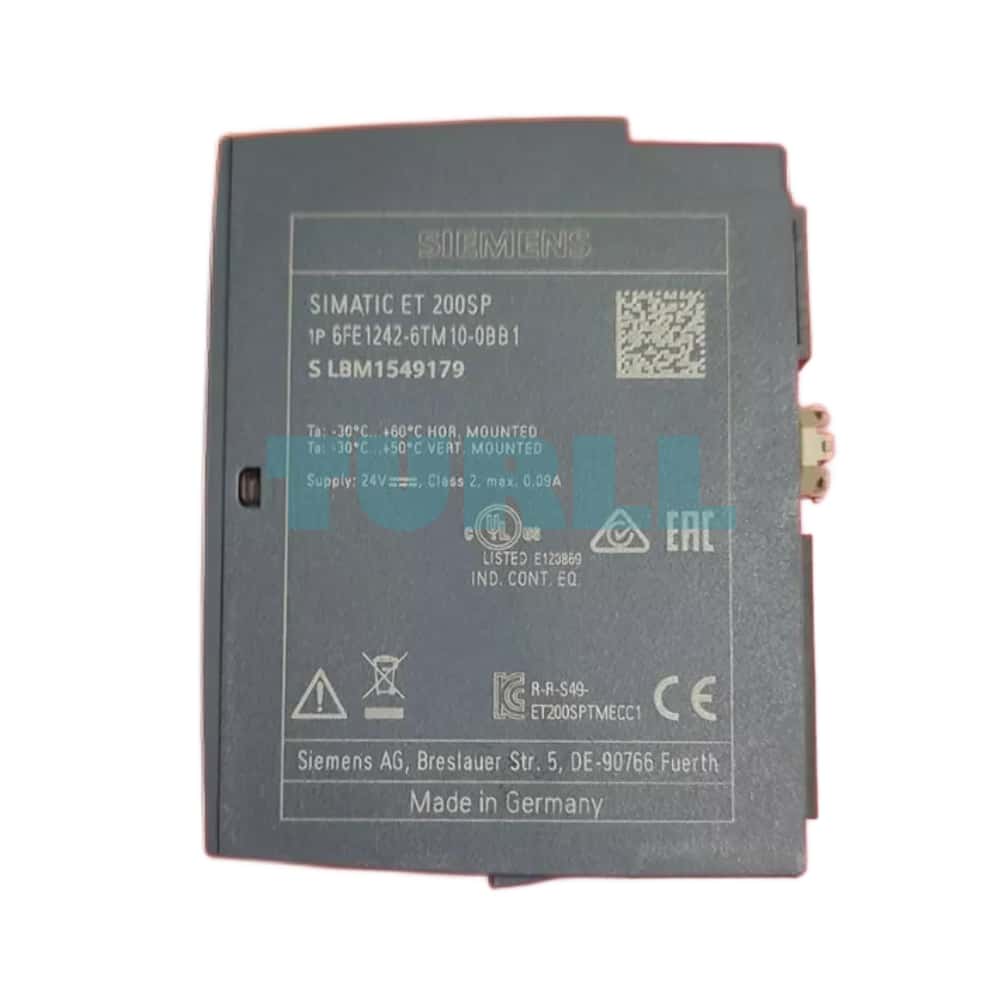

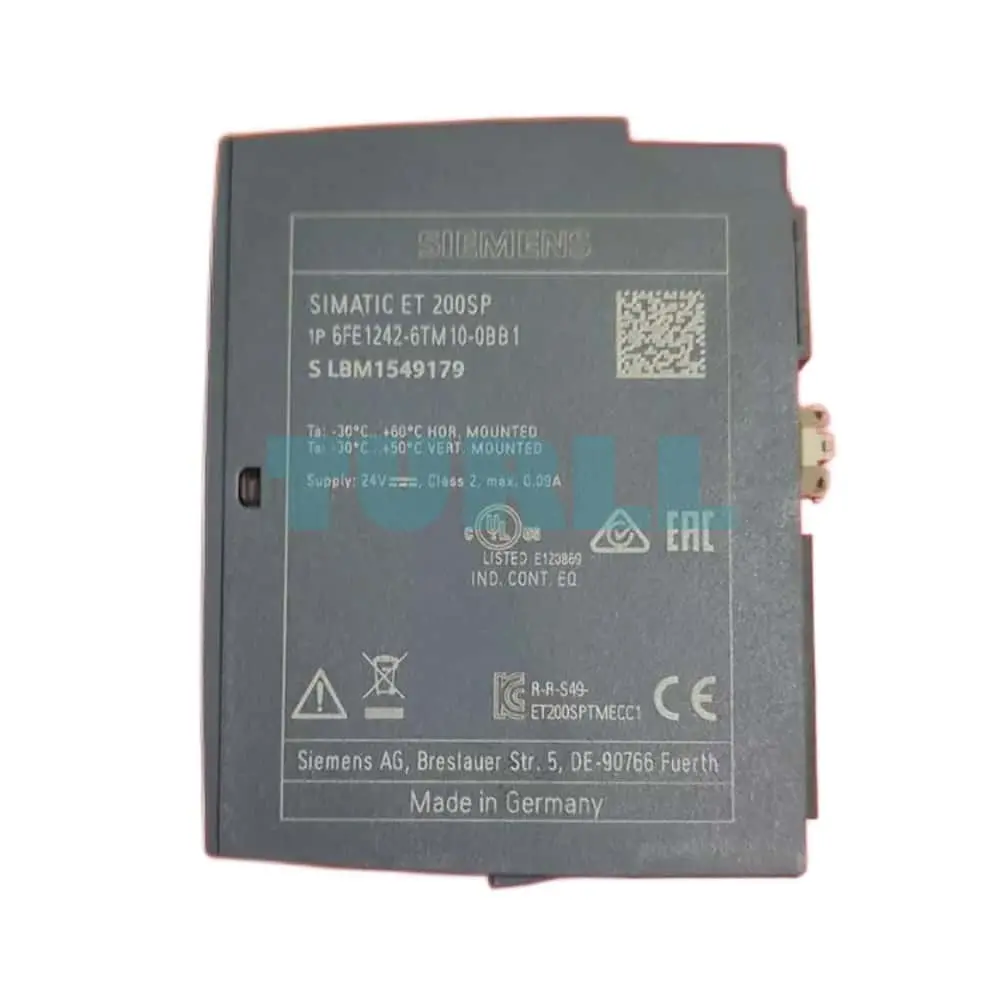

6FE1242-6TM10-0BB1 Siemens SIMATIC ET 200SP TM ECC 2xPWM ST Original Brand New

SIPLUS and SIMATIC Electrical Charging Controllers are the key components in infrastructure solutions for the conductive charging of electric vehicles.

They perform the following functions:

• Detection of the charging cable and its permissible current carrying capacity
• Transfer of the maximum charging current from the charging station to the electric vehicle
• Evaluation of the status signals from the electric vehicle:
  • Ready for charging
  • Charging
  • Charging with ventilation
• Cost-optimized, space-saving charging infrastructure solutions due to compact design based on SIMATIC ET 200SP.

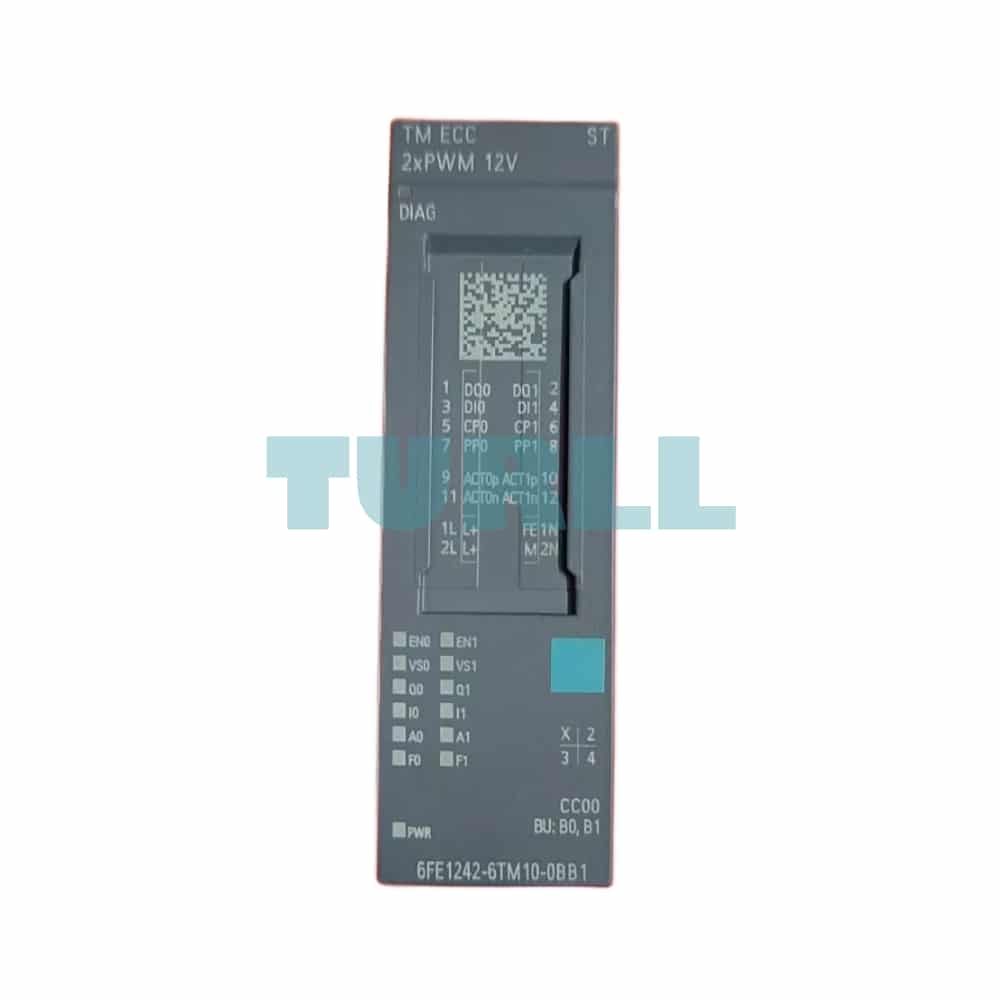

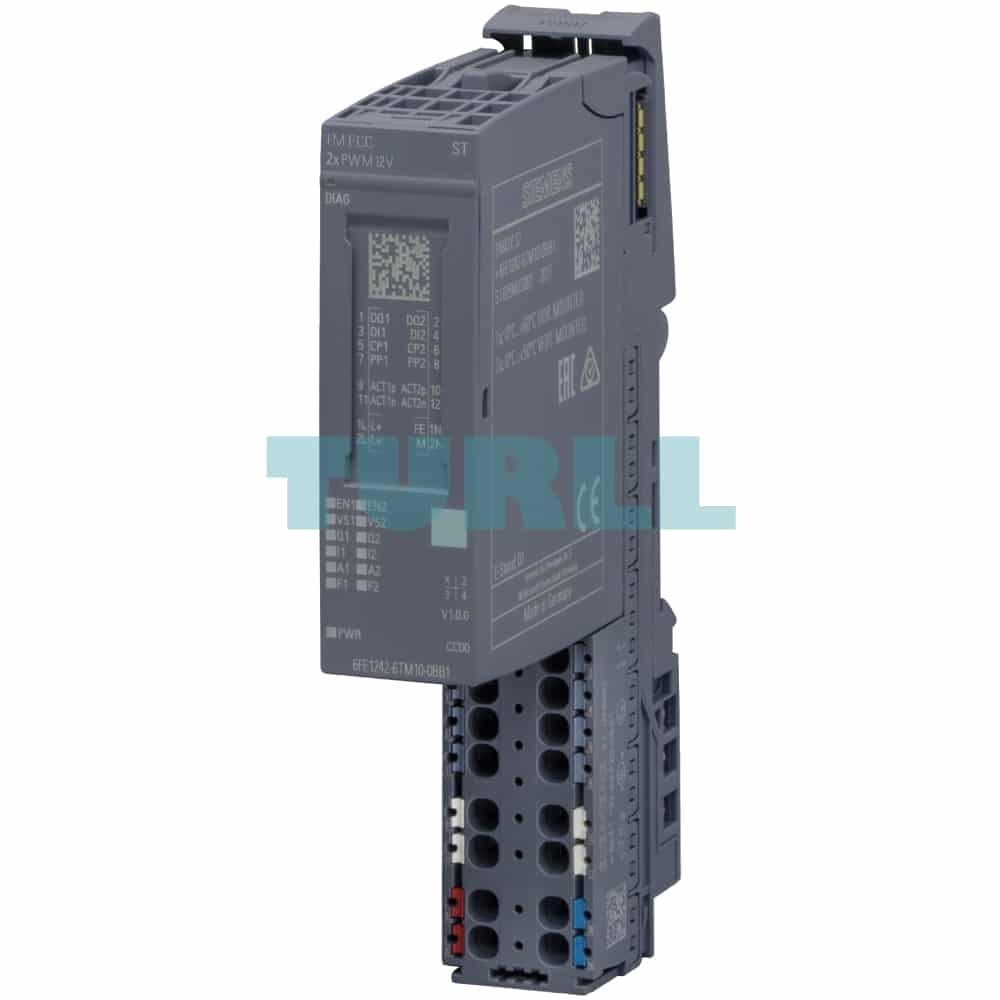

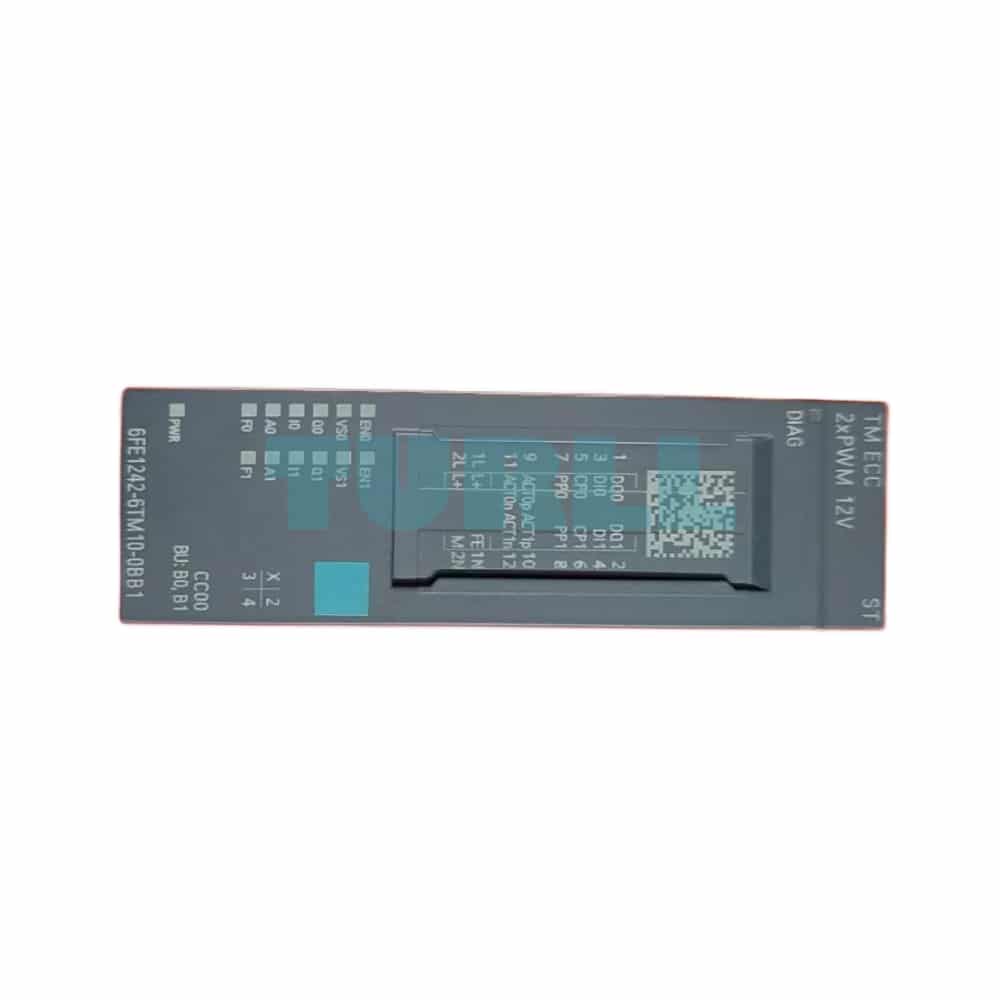

ET 200SP TM ECC 2xPWM ST AC module

• Control of charging outputs according to IEC 61851 by parameterizable SIMATIC ET 200SP TM ECC 2xPWM ST charging controller
• Control of load tap-off
• Control of connector lock
• Evaluation of connector lock or load contactor status

ET 200SP TM ECC PL ST DC module

• The SIMATIC ET 200SP TM ECC PL ST charging controller fully controls a DC charging process according to DIN SPEC 70121.
• The following sequences are performed:
  • Session Setup
  • Service Discovery
  • Service and Payment Selection
  • Contract Authentication
  • Charge Parameter Discovery
  • Power Delivery
  • Charging Status
  • Cable Check
  • Pre Charging
  • Current Demand
  • Welding Detection
  • Session Stop

Accessories: Calibration Kit TM ECC CCS2

Expansion kit for calibration of the power line signal strength of an EVSE.

• According to DIN SPEC 70121 / ISO15118 or design guidelines for CCS charging stations Type 2
• Suitable for the SIMATIC ET 200SP TM ECC PL ST technology module
