6GK1561-3AA02 SIEMENS Communications Processor CP 5613 A3 PCI Card Original Brand New

6GK1561-3AA02 SIEMENS Communications Processor CP 5613 A3 PCI Card Original Brand New

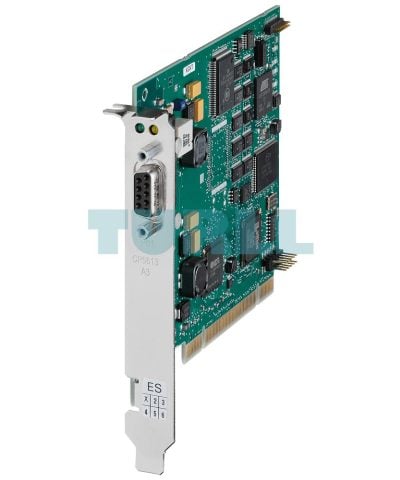

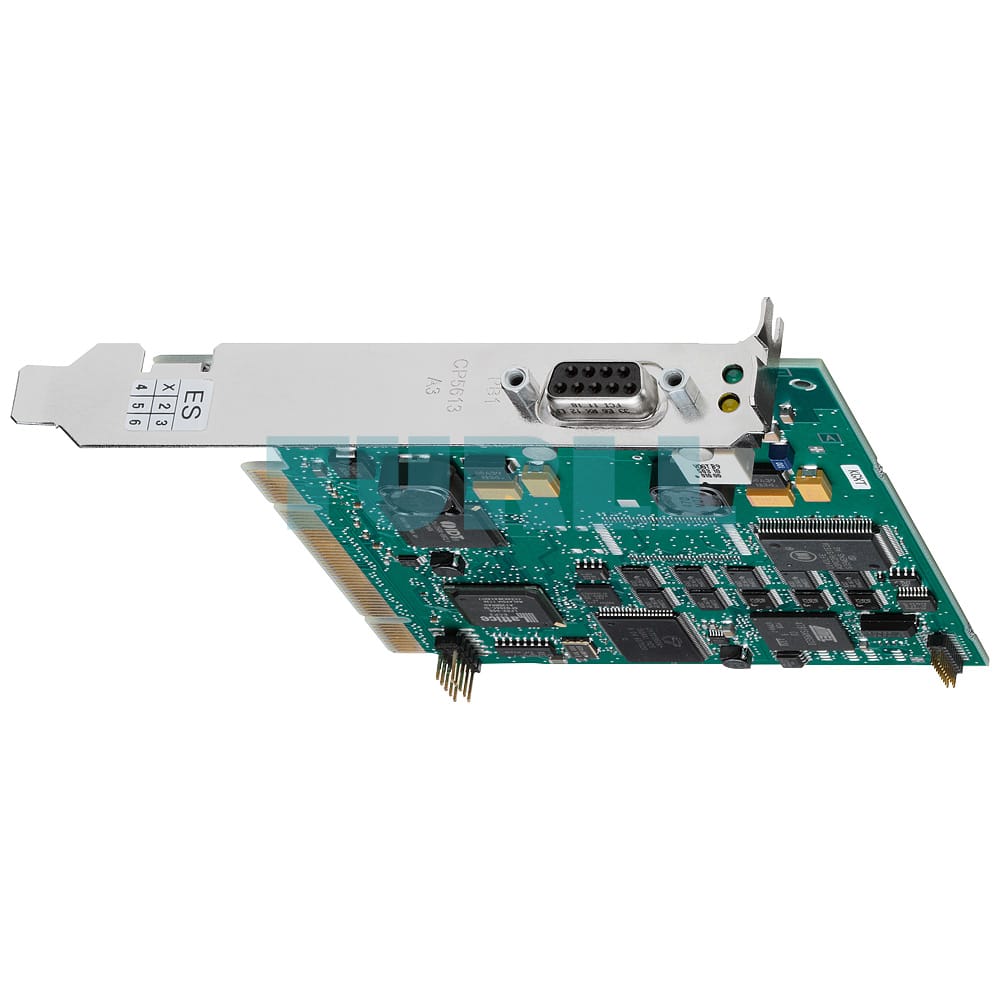

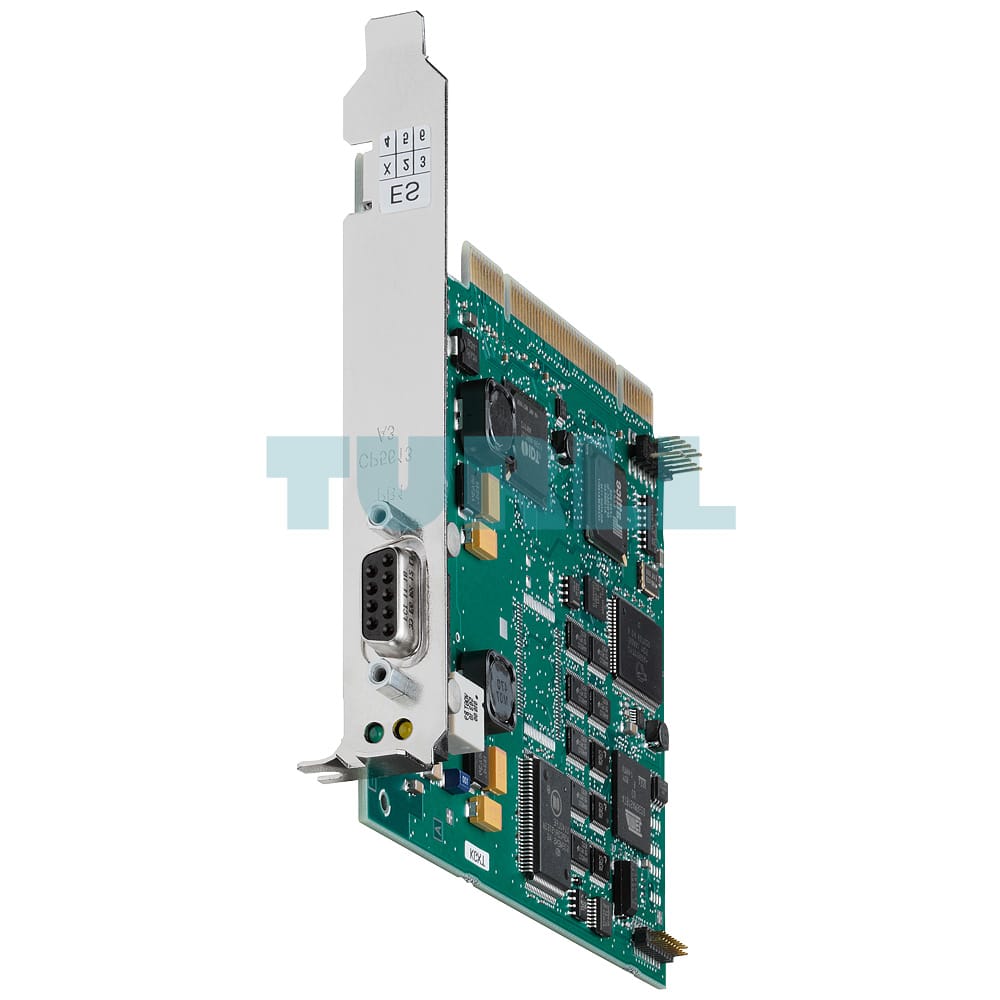

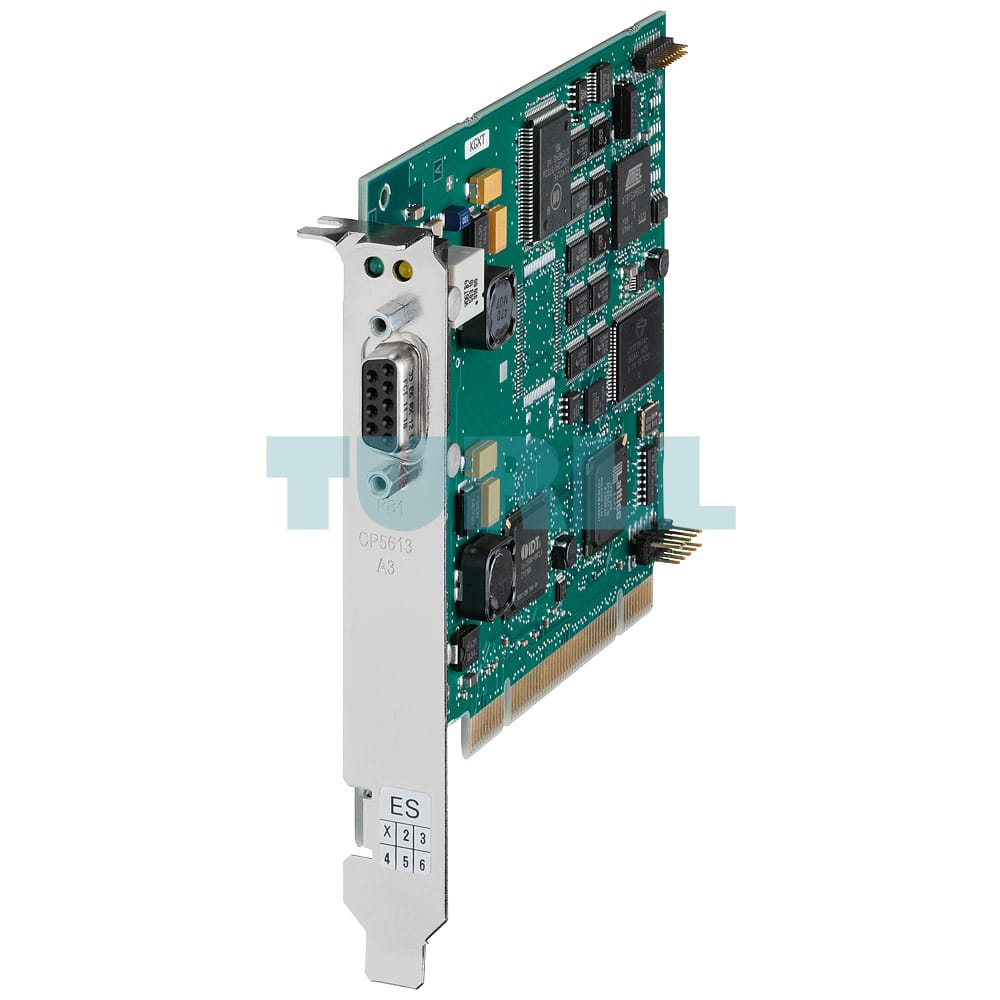

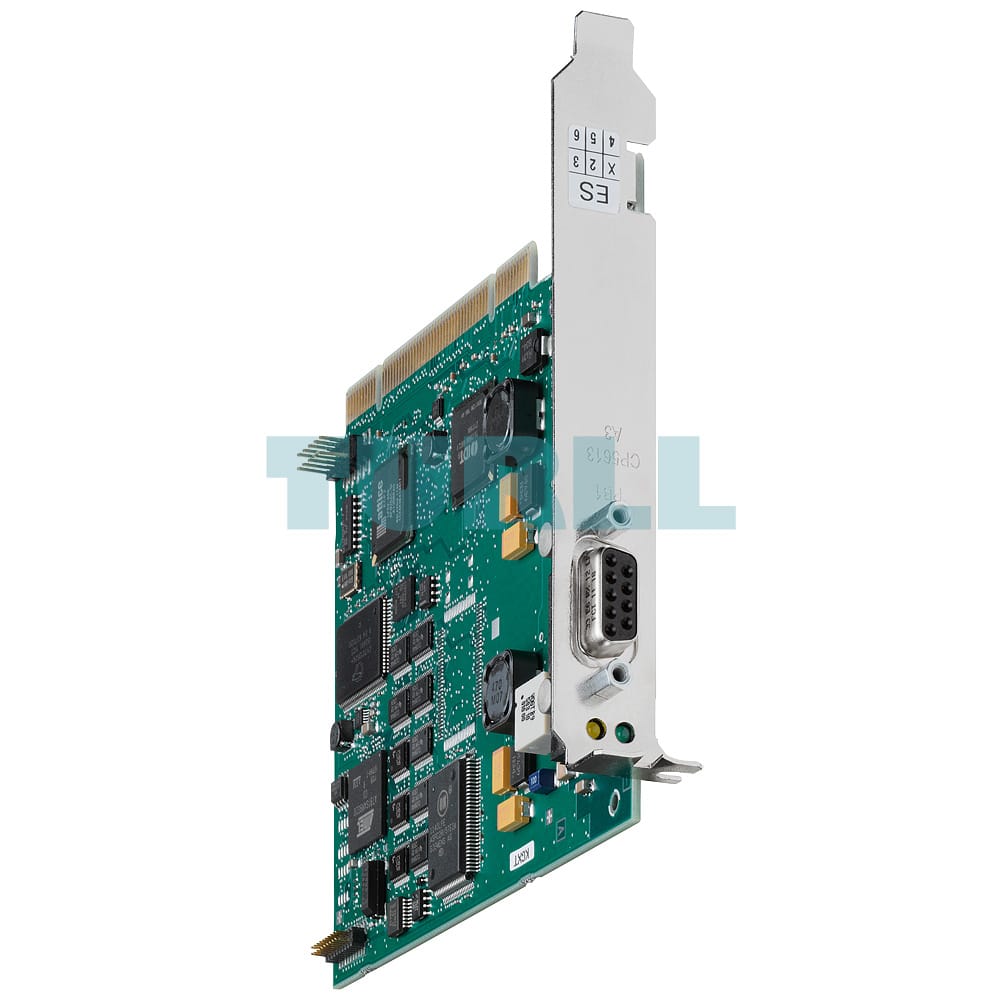

The 6GK1561-3AA02 Siemens Communications Processor CP 5613 A3 is a high-performance PCI card designed for reliable and flexible connection of PCs and SIMATIC PG/PCs to PROFIBUS networks at speeds of up to 12 Mbps. This original Siemens solution integrates a powerful 32-bit PCI card (33/66 MHz; 3.3/5 V universal keyed) equipped with its own microprocessor to ensure efficient offloading of communication tasks from the host CPU.

The module supports extensive communication services including PROFIBUS DP master functionality as per IEC 61158/61784, PG/OP communication with STEP 7, S7 communication via the HARDNET-PB S7 software package, and open communication using the FDL interface (SEND/RECEIVE). The card offers comprehensive diagnostic options to support easy installation, commissioning, and smooth operation, complemented by direct dual-port RAM access for superior performance.

Key features include multiprotocol and parallel operation with up to four CPs, an event and filter mechanism to reduce CPU load, and support for motion control applications requiring constant bus cycle times. The module ships with all necessary configuration tools, DP-Base software, and manuals on DVD (languages: German and English), ensuring quick setup and seamless integration into existing automation environments.

The short PCI card format fits both 3.3V and 5V PCI slots, and can operate as a 32-bit card in 64-bit PCI-X slots. PROFIBUS connection is via a 9-pin D-sub socket, with LED indicators for diagnostics. Flexible connection options include standard electrical PROFIBUS cabling, bus connectors, and compatibility with optical link modules (OLM or OBT) using appropriate cables like the PROFIBUS 830-1T.
