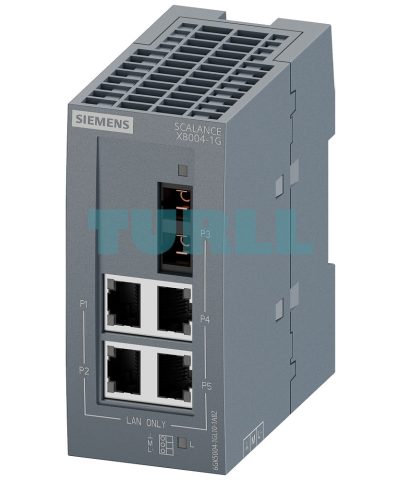

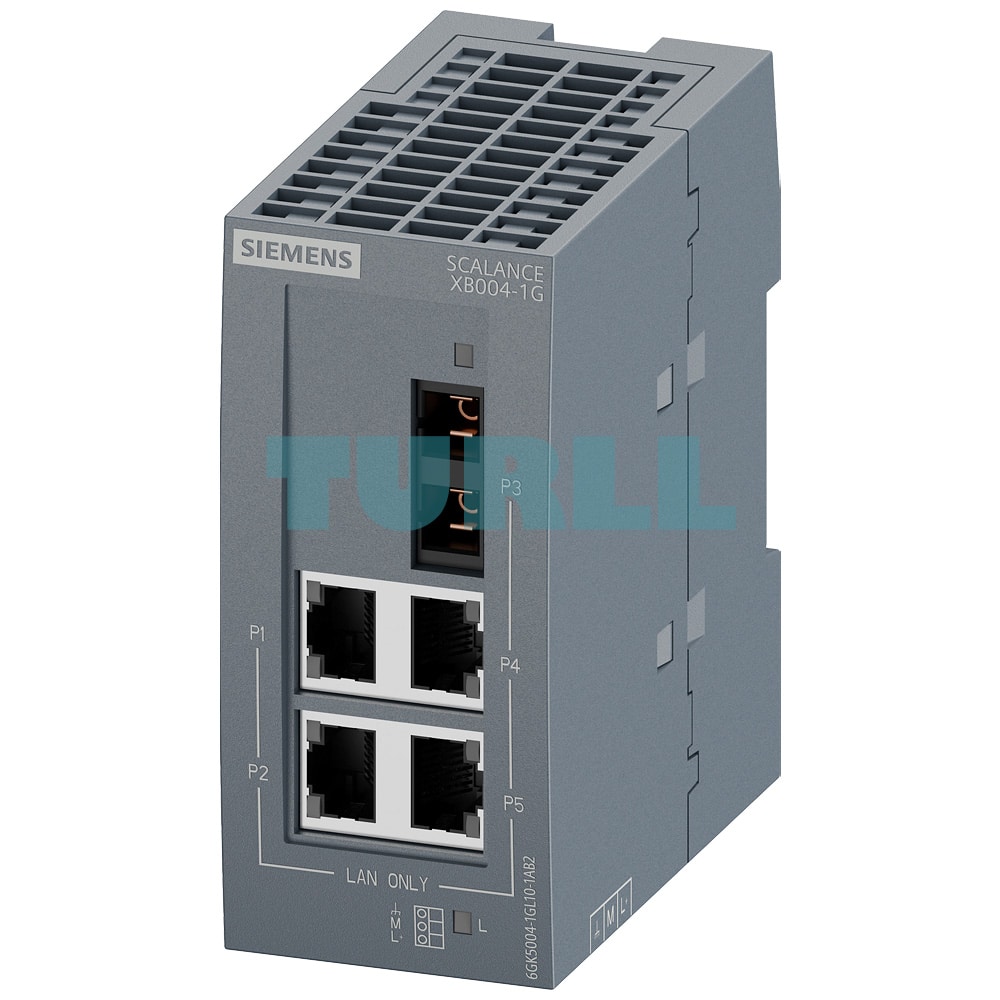

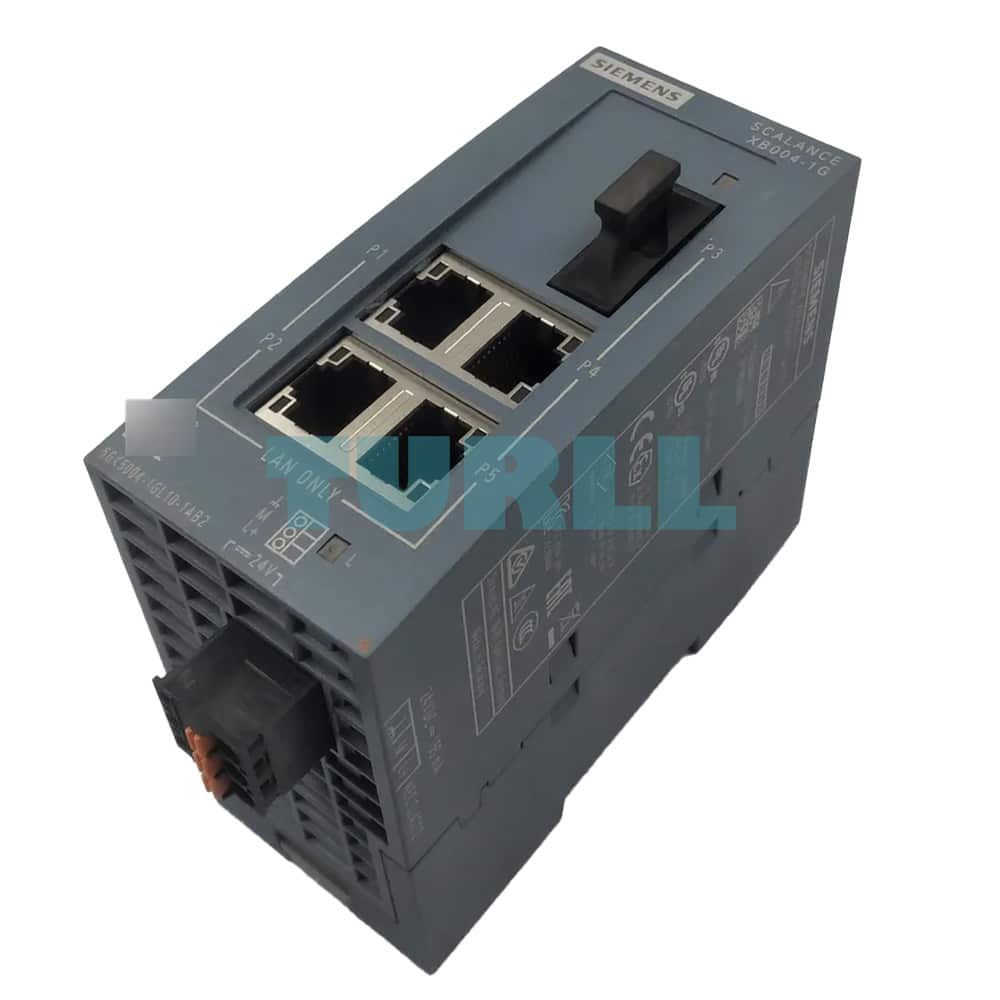

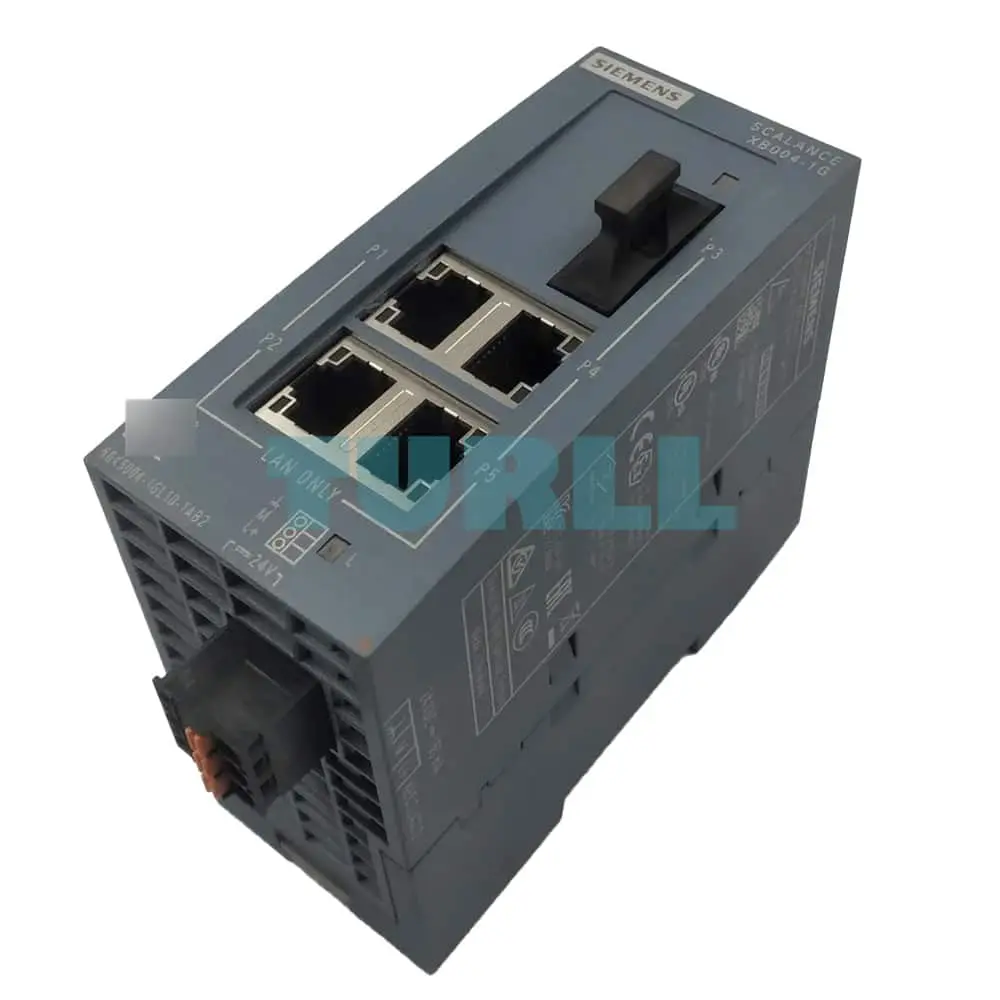

6GK5004-1GL10-1AB2 SIEMENS SCALANCE XB004-1G Unmanaged Industrial Ethernet Switch Original Brand New
$755.12
6GK5004-1GL10-1AB2 SIEMENS SCALANCE XB004-1G unmanaged Industrial Ethernet switch with 4x RJ45 ports 10/100/1000 Mbps and 1x 1000 Mbps SC port, IP20, 24V DC.
6GK5004-1GL10-1AB2 SIEMENS SCALANCE XB004-1G unmanaged Industrial Ethernet Switch Original Brand New
The SCALANCE XB004-1G unmanaged switch is an industrial-grade Ethernet device suitable for establishing small star and line network topologies in demanding environments. It is designed to support high-speed connections with four RJ45 ports offering 10/100/1000 Mbit/s and one optical SC port at 1000 Mbit/s for multimode glass fiber, providing reliable data transfer over distances up to 750 meters.

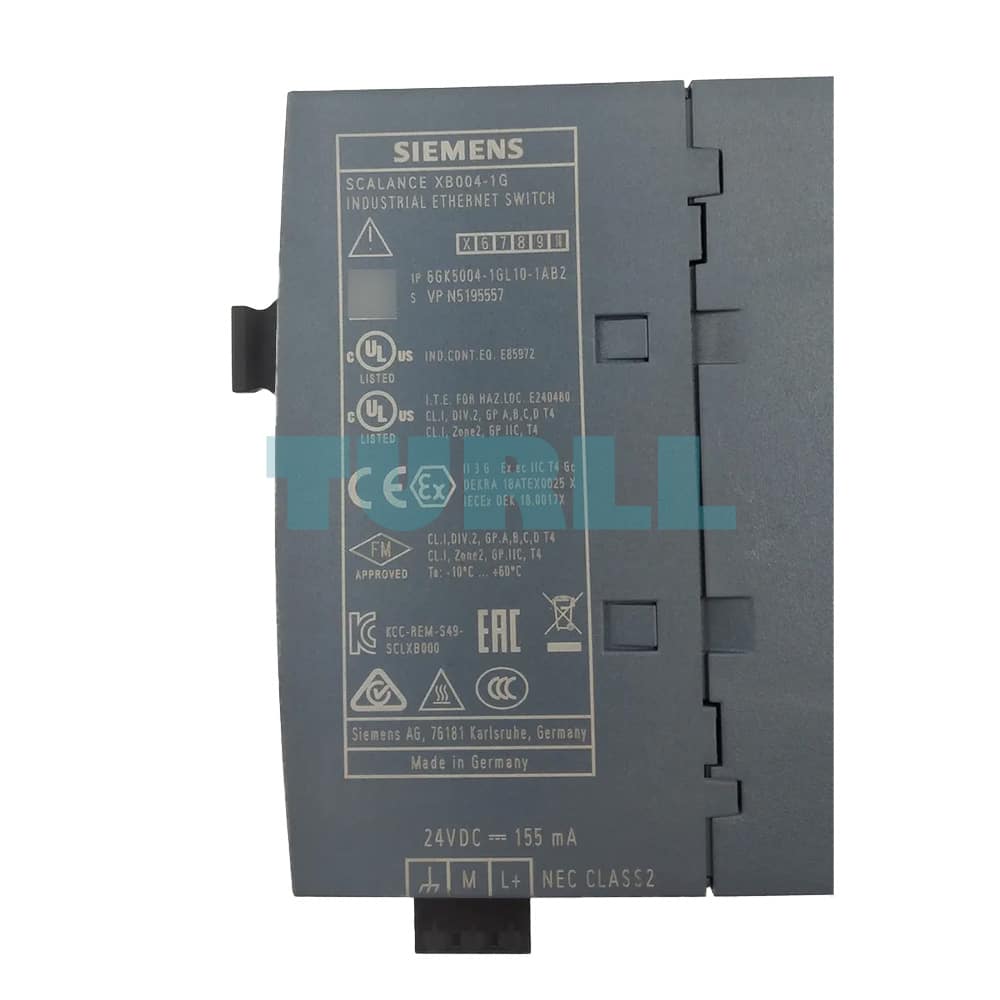

This industrial switch is engineered for DIN rail mounting but can also be installed on a wall if required. It is rated IP20 and operates with a 24 V DC power supply. The unit includes diagnostic LEDs for monitoring power and link status per port, as well as data activity, helping ensure smooth operation and easy troubleshooting.

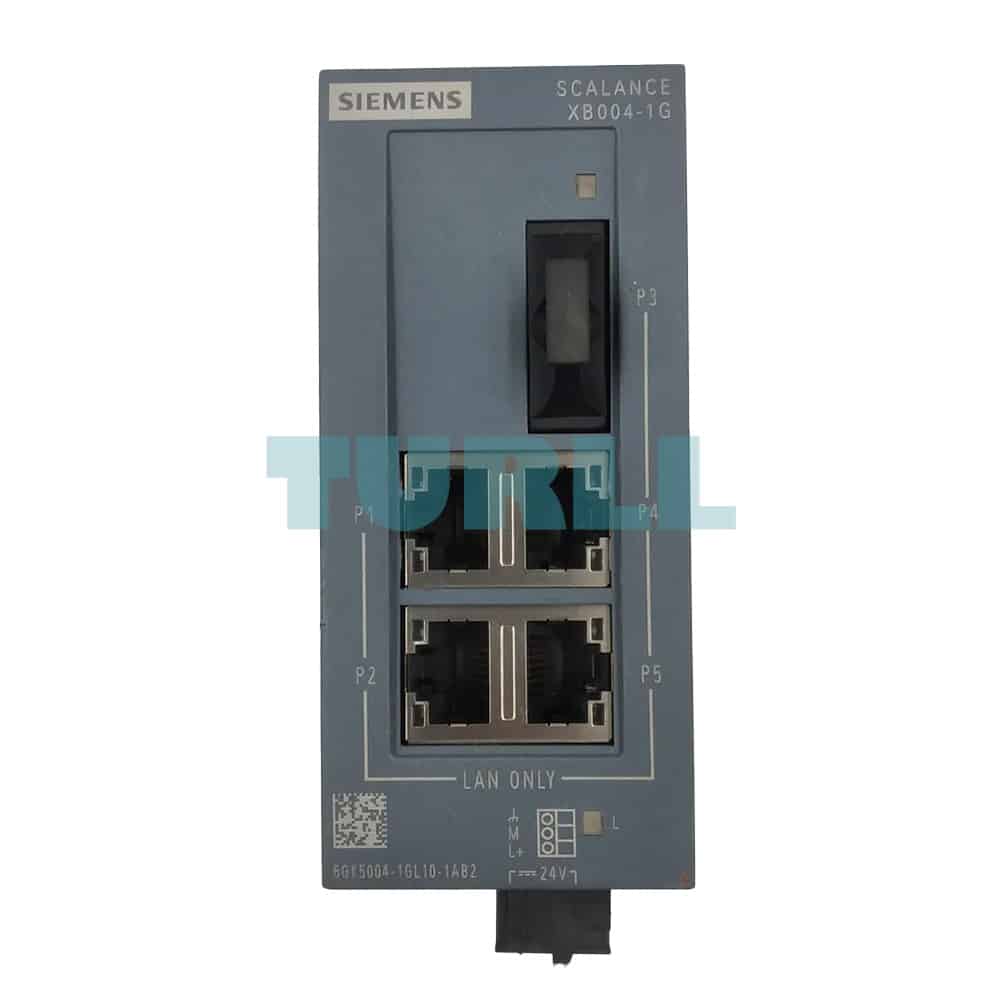

The SCALANCE XB-000 series supports automatic detection of transmission speed with autosensing and autocrossing, simplifying installation by adapting to different network configurations without manual adjustments. Data connections are positioned on the front for accessibility, while power is connected via a 3-pin terminal block at the bottom.
This unmanaged switch provides direct connectivity for twisted pair cables up to 100 meters, and for fiber optic applications, it supports standard multimode cabling. The device is part of a modular family designed for dependable operation in industrial communication networks.
Visit 6GK5004-1GL10-1AB2
More product visit Turll.com
| Weight | 0.294 kg |
|---|---|
| Dimensions | 45 × 87 × 100 mm |
