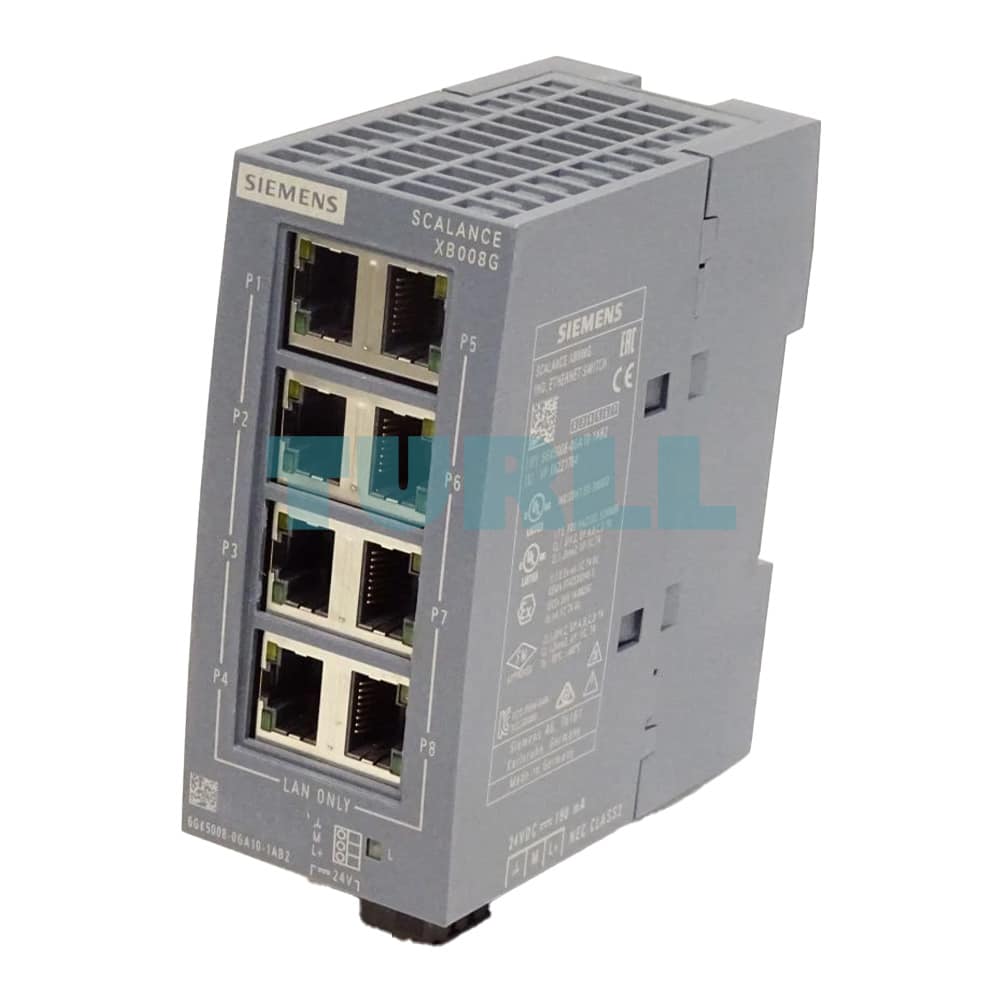

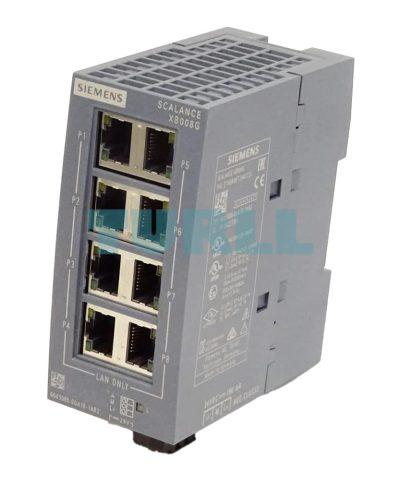

6GK5008-0GA10-1AB2 SIEMENS SCALANCE XB008G Unmanaged Industrial Ethernet Switch Original Brand New
$755.12
6GK5008-0GA10-1AB2 is a SCALANCE XB008G unmanaged Industrial Ethernet switch from Siemens with 8x Gigabit RJ45 ports, LED diagnostics, and IP20 enclosure. Designed for compact industrial star and line network topologies.
SIEMENS SCALANCE XB008G – 6GK5008-0GA10-1AB2
SCALANCE XB008G unmanaged Industrial Ethernet Switch for 10/100/1000 Mbit/s; for setting up small star and line topologies; LED diagnostics, IP20, 24 V DC power supply, with 8x 10/100/1000 Mbit/s RJ45 ports electrical. Manual available as a download.
Overview
The unmanaged Industrial Ethernet switches of the SCALANCE XB-000 line are ideal for setting up small Industrial Ethernet networks in line and star topologies. Their enclosures are suitable for space-saving installation in control cabinets or boxes on standard DIN rails.
Product Variants
- SCALANCE XB005 / XB008: 5 or 8 x 10/100 Mbps RJ45 ports
- SCALANCE XB005G / XB008G: 5 or 8 x 10/100/1000 Mbps RJ45 ports
- SCALANCE XB004-1: 4 x RJ45, 1 x SC (multimode, up to 5 km)
- SCALANCE XB004-2: 4 x RJ45, 2 x SC (multimode, up to 5 km)
- SCALANCE XB004-1LD / XB004-2LD: single-mode SC ports up to 26 km
- SCALANCE XB004-1G: 4 x RJ45 (Gigabit), 1 x SC multimode up to 750 m
- SCALANCE XB004-1LDG: 1 x SC single-mode up to 10 km
Design Features

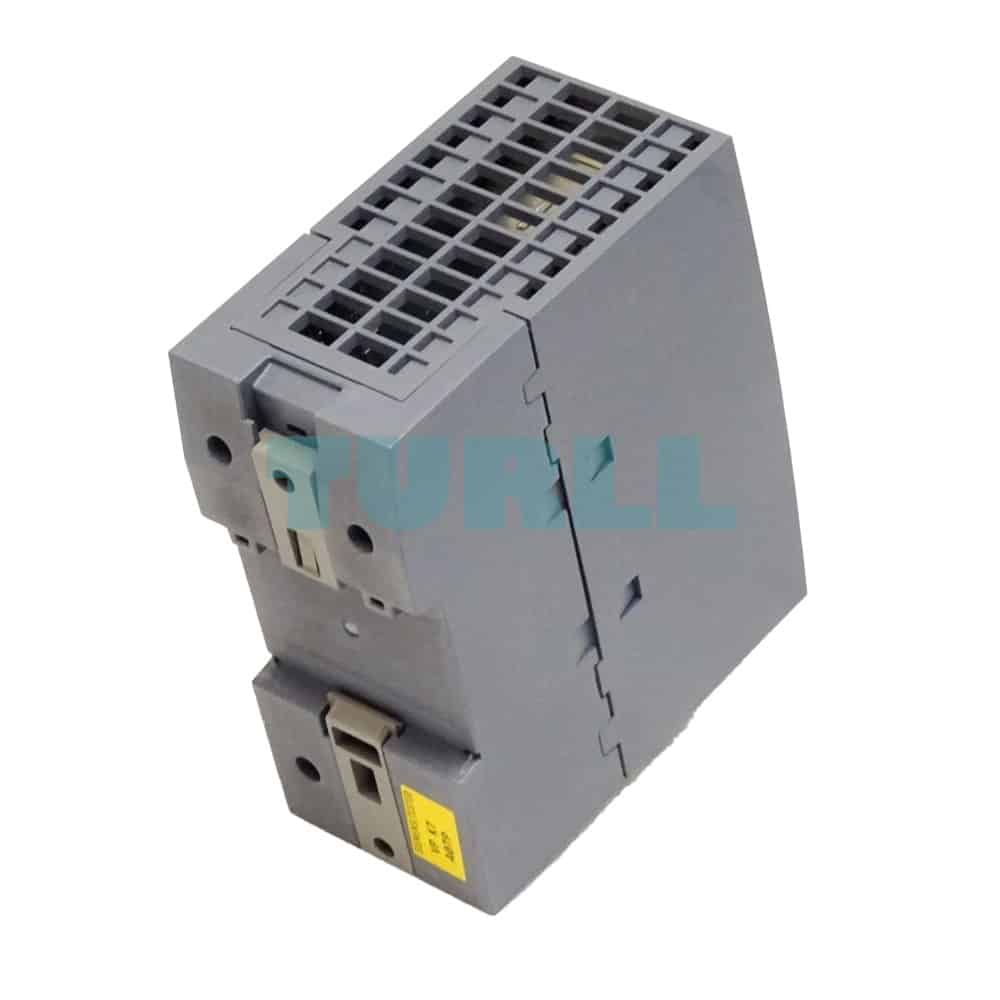

The SCALANCE XB-000 Industrial Ethernet switches are optimized for DIN rail mounting. Wall mounting is also possible.
The SCALANCE XB-000 switches feature:
- A 3-pin terminal block for connecting the supply voltage (1 x 24 V DC) and functional grounding
- An LED for indicating status information (power)
- LEDs for indicating status information (link status and data exchange) per port
Port Types Available
- 10/100 BaseTX or 10/100/1000 BaseTX electrical RJ45 ports: automatic detection of data transmission rate (10 or 100 Mbps), with autosensing and autocrossing function for connecting IE TP cables up to 100 m
- 100 BaseFX SC multimode: up to 5 km
- 100 BaseFX SC single-mode: up to 26 km
- 1000 BaseSX SC multimode: up to 750 m
- 1000 BaseLX SC single-mode: up to 10 km

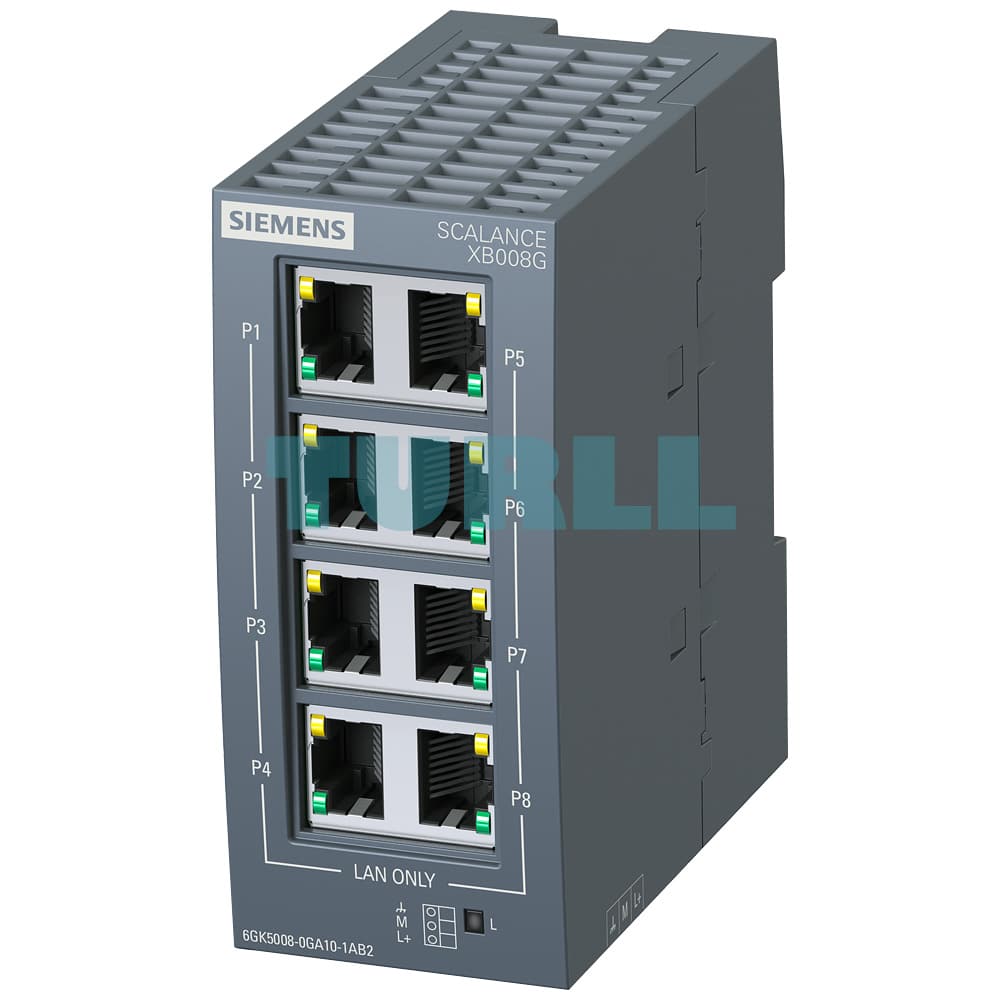

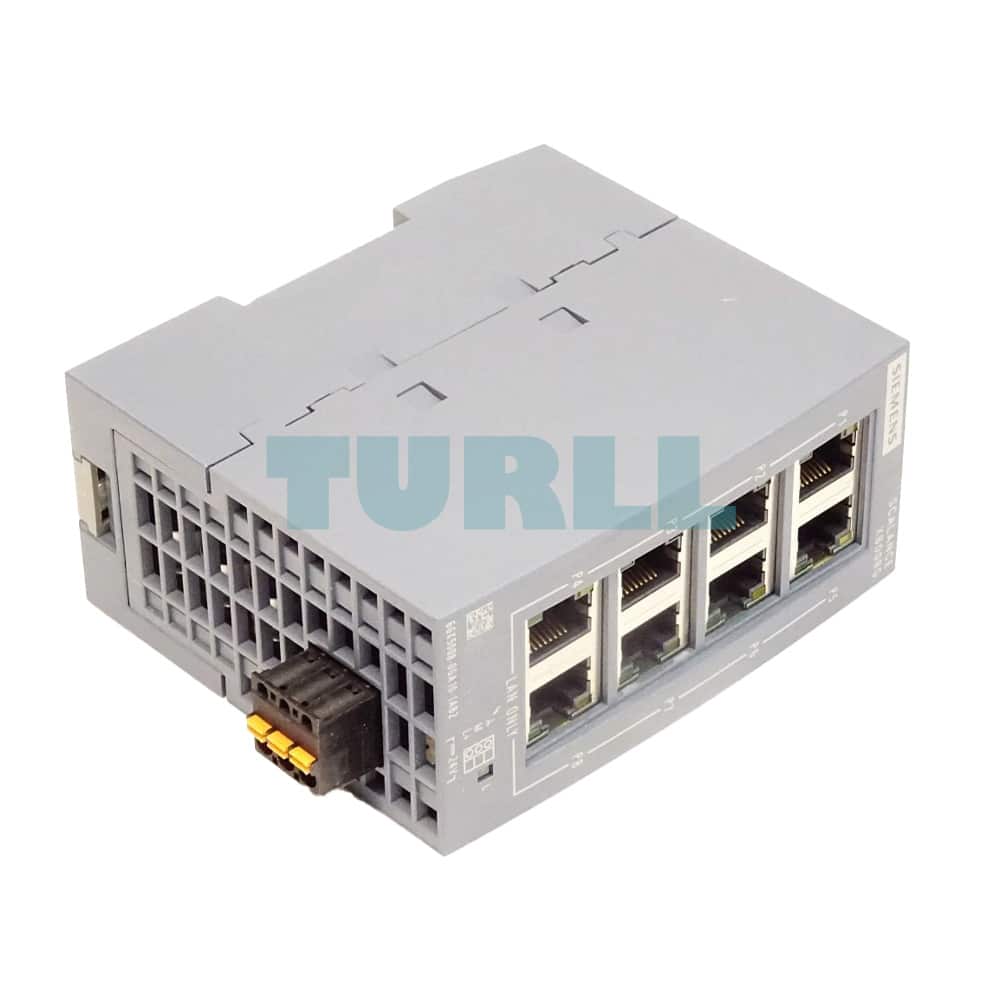

All connections for data cables are located at the front, and the connection for the power supply is at the bottom.

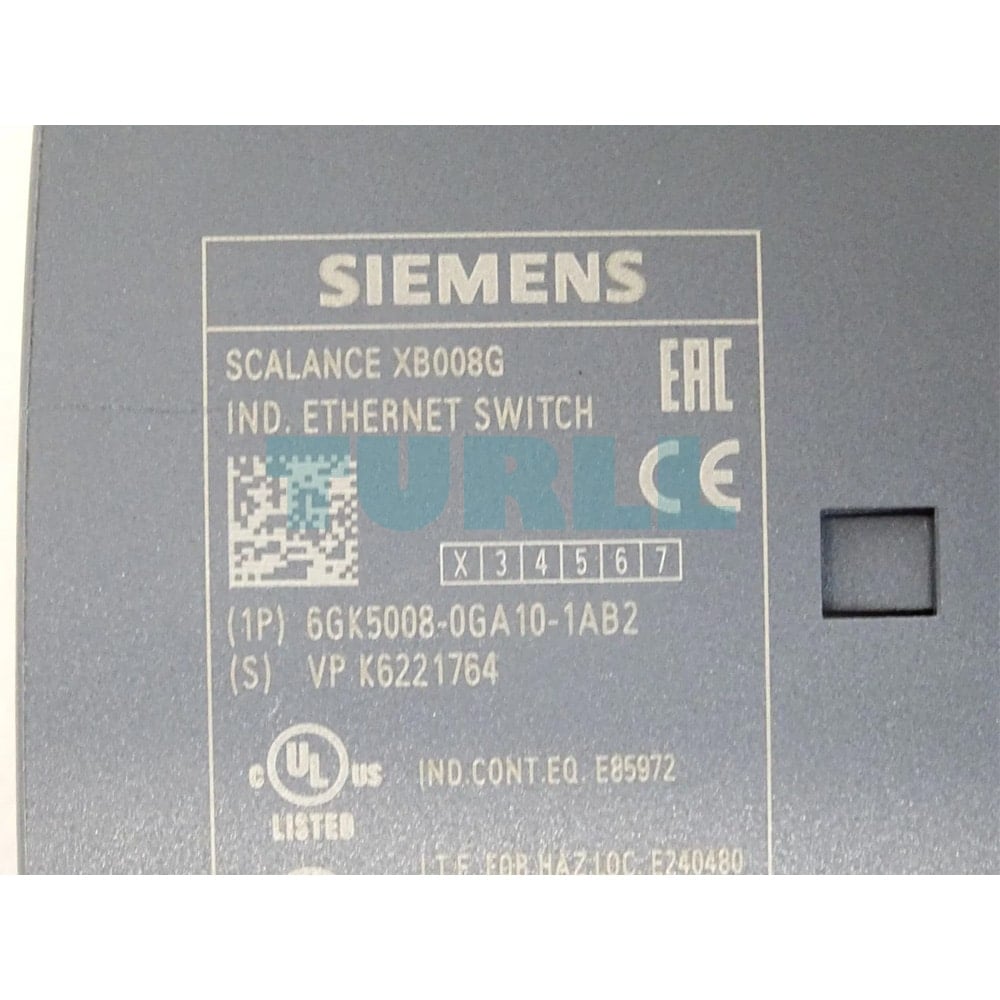

Product code: 6GK5008-0GA10-1AB2
More Siemens products available at Turll.com
| Weight | 0.334 kg |
|---|---|
| Dimensions | 60 × 125 × 147 mm |
