6GK5104-0BA00-1SA2 SIEMENS SCALANCE TAP104 Text Access Port to Telegram Cable Original Brand New

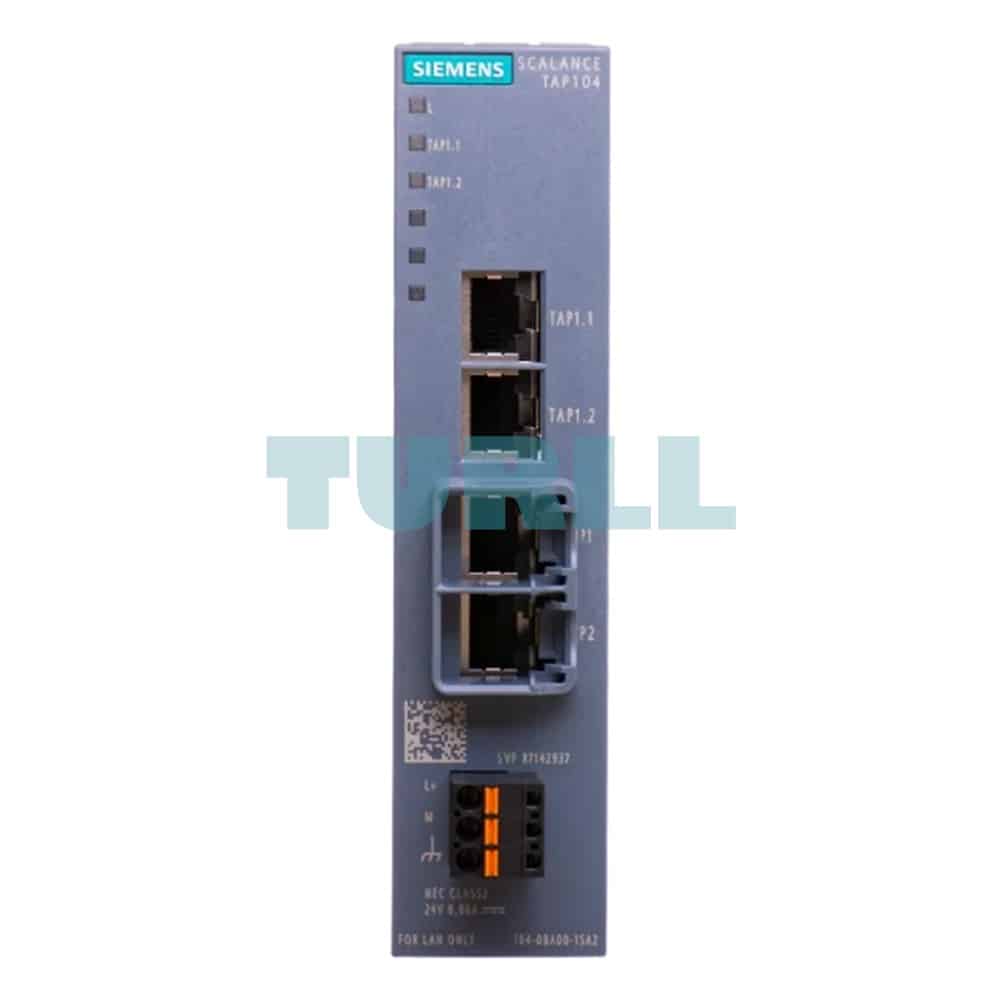

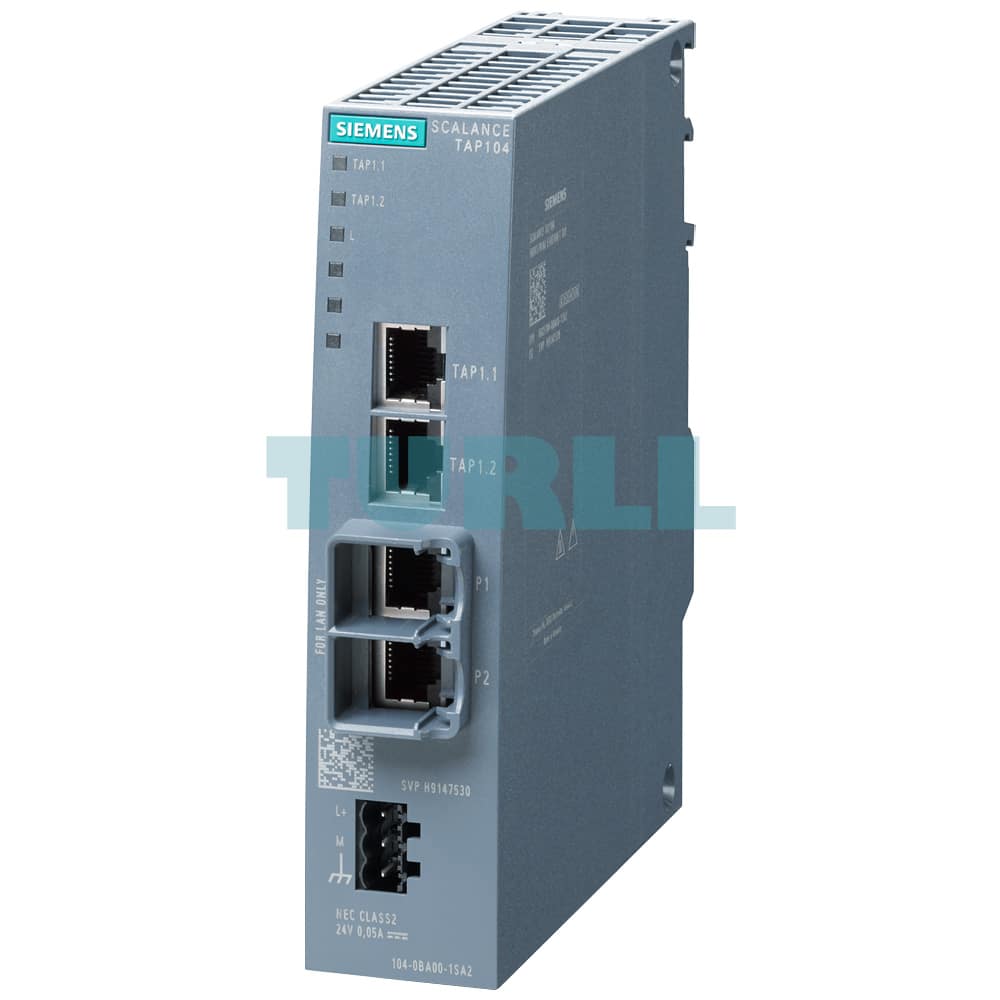

SIEMENS SCALANCE TAP104 – 6GK5104-0BA00-1SA2

SCALANCE TAP104 Text access port to telegram cable, 2 x RJ45 ports, 10/100 Mbit/s, LED diagnostics, 24 V DC supply voltage. Manual available as a download.

Overview

The SCALANCE TAP104 unmanaged Industrial Ethernet Test Access Port is ideally suited to exporting message frames in 10/100 Mbps Industrial Ethernet (particularly PROFINET) networks. Exported message frames can be analyzed with the aid of commercially available diagnostic software for the purpose of diagnosing data communication. The SCALANCE TAP104 can be integrated directly between the connection of two active network stations.

Key Features

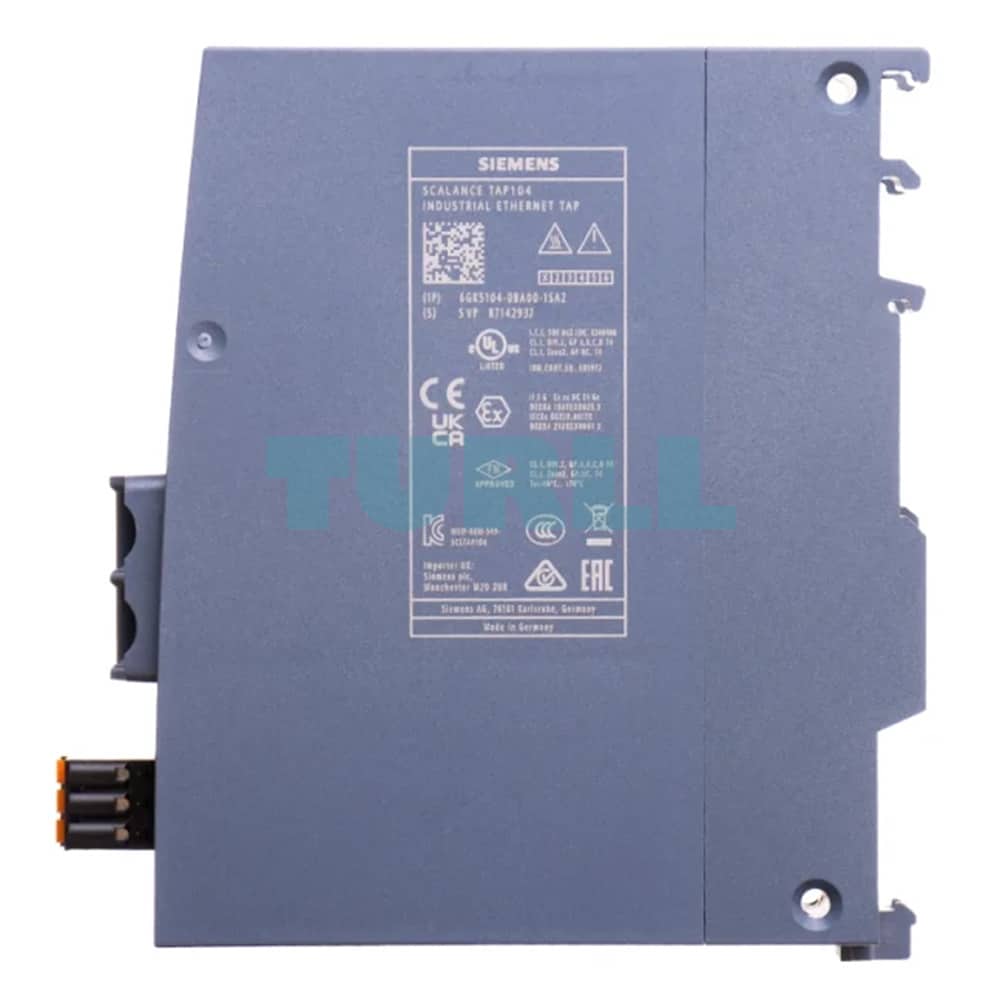

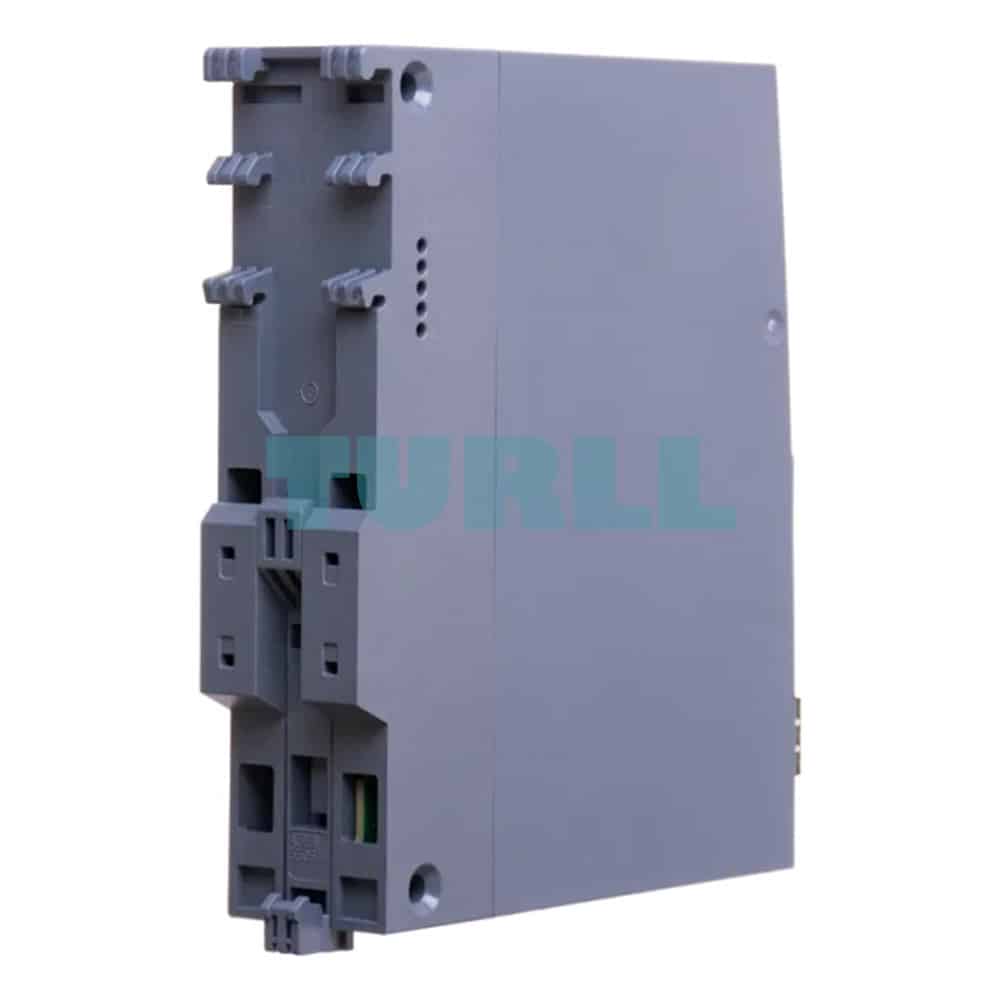

• Rugged plastic enclosure in SIMATIC S7-1500 design for space-saving DIN rail or wall mounting
• Compatible with SIMATIC S7-1500 and S7-300 mounting rails
• RJ45 plug-in connectors with securing collar for extra strain and bending protection
• Additional RJ45 ports without collars for diagnostics and network port differentiation
• Diagnostics via LED indicators: power and data traffic
• No reduction in cable length when installed between two components
• Can be integrated into the network even in de-energized condition, only activated when diagnostic is needed

Product Variants

SCALANCE TAP104 with 2 electrical network ports and 2 electrical TAP ports

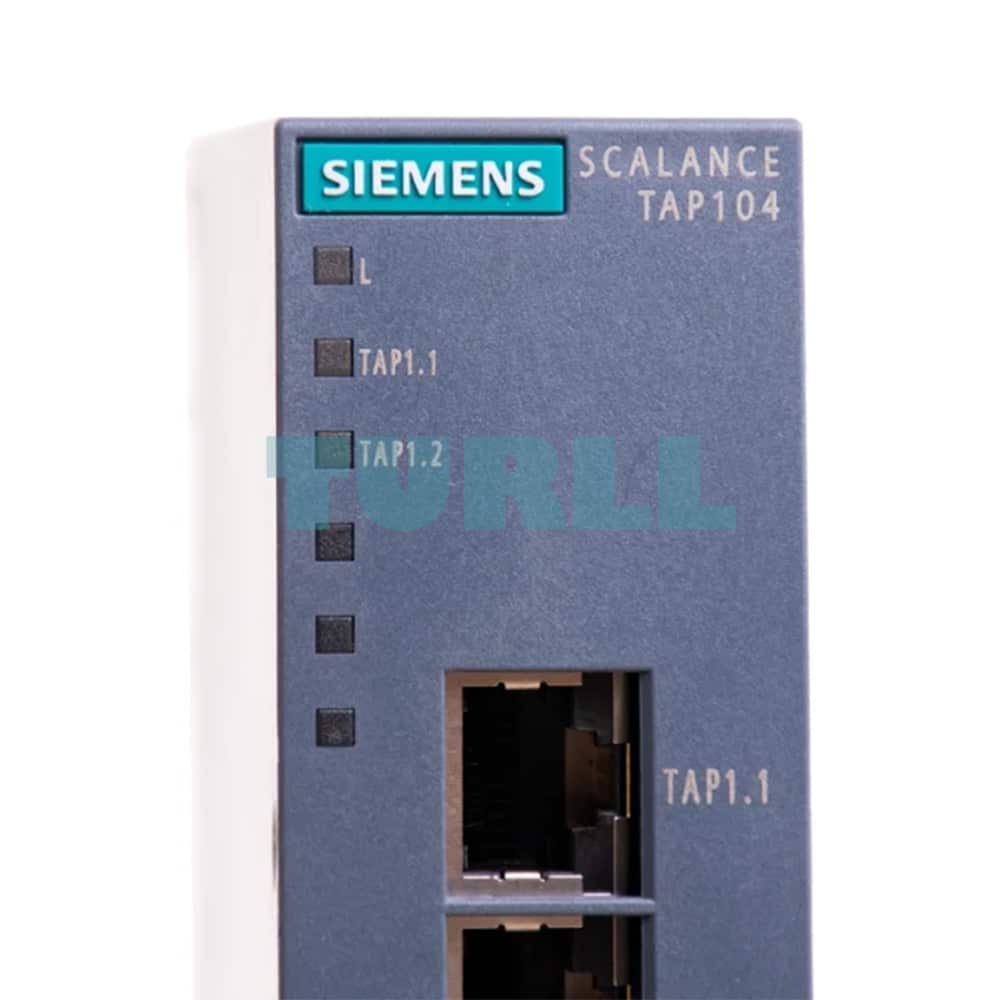

Diagnostics on the device by means of LEDs (power, data traffic at TAP)

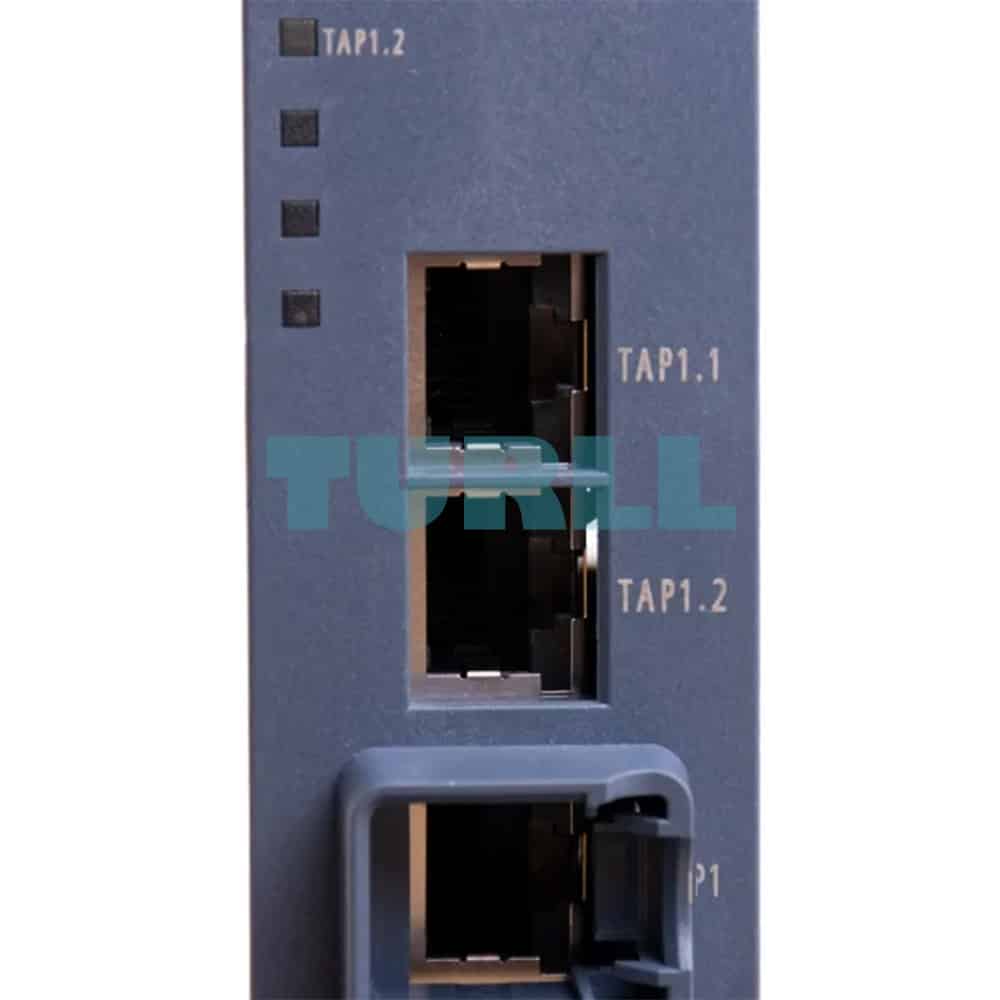

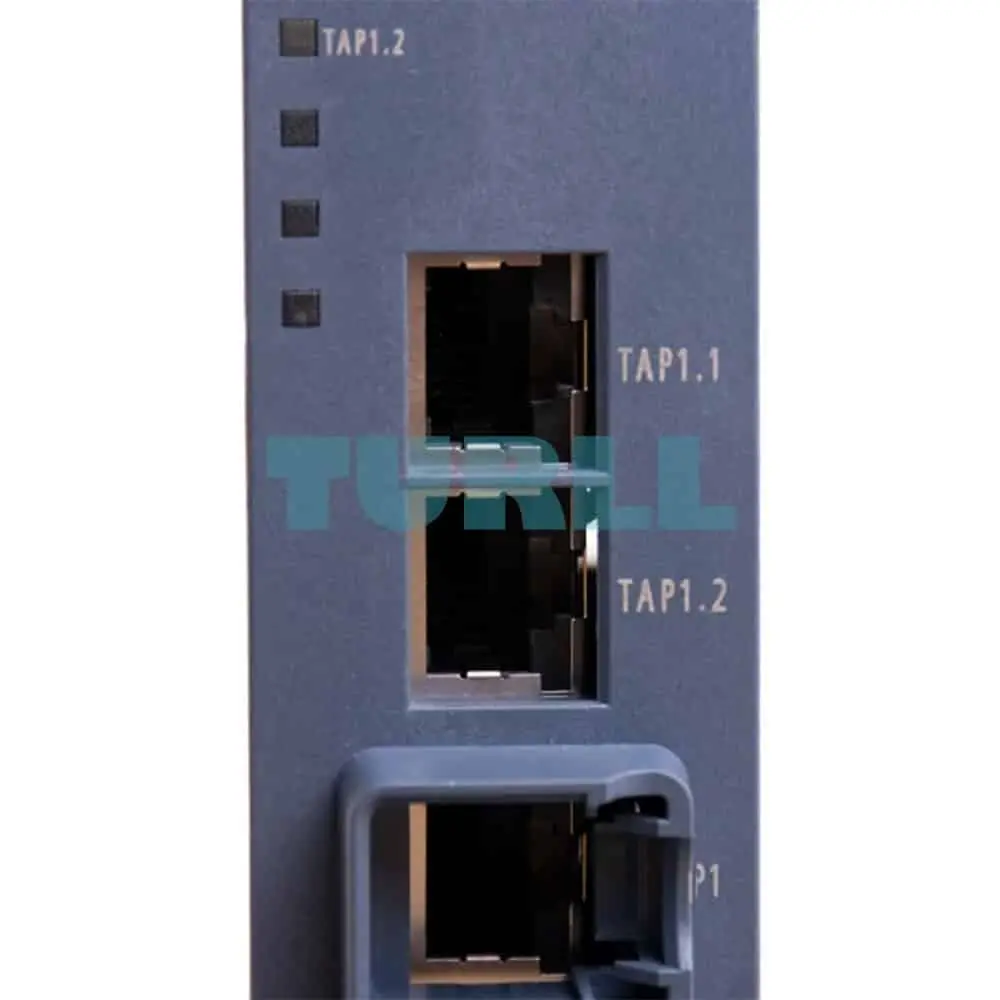

The RJ45 ports are suitable for industrial use and have additional securing collars, optimized for connecting the IE FC RJ45 plug 180

Product code: 6GK5104-0BA00-1SA2
