6GK5201-3BH00-2BD2 SIEMENS SCALANCE XF201-3P IRT Managed IE IRT Switch Original Brand New
$1,496.34
6GK5201-3BH00-2BD2 is a SIEMENS SCALANCE XF201-3P IRT managed switch with 1x RJ45 port, 3x SC RJ POF ports, integrated redundancy and diagnostics, and SIMATIC ET 200S slim housing for space-constrained industrial installations.

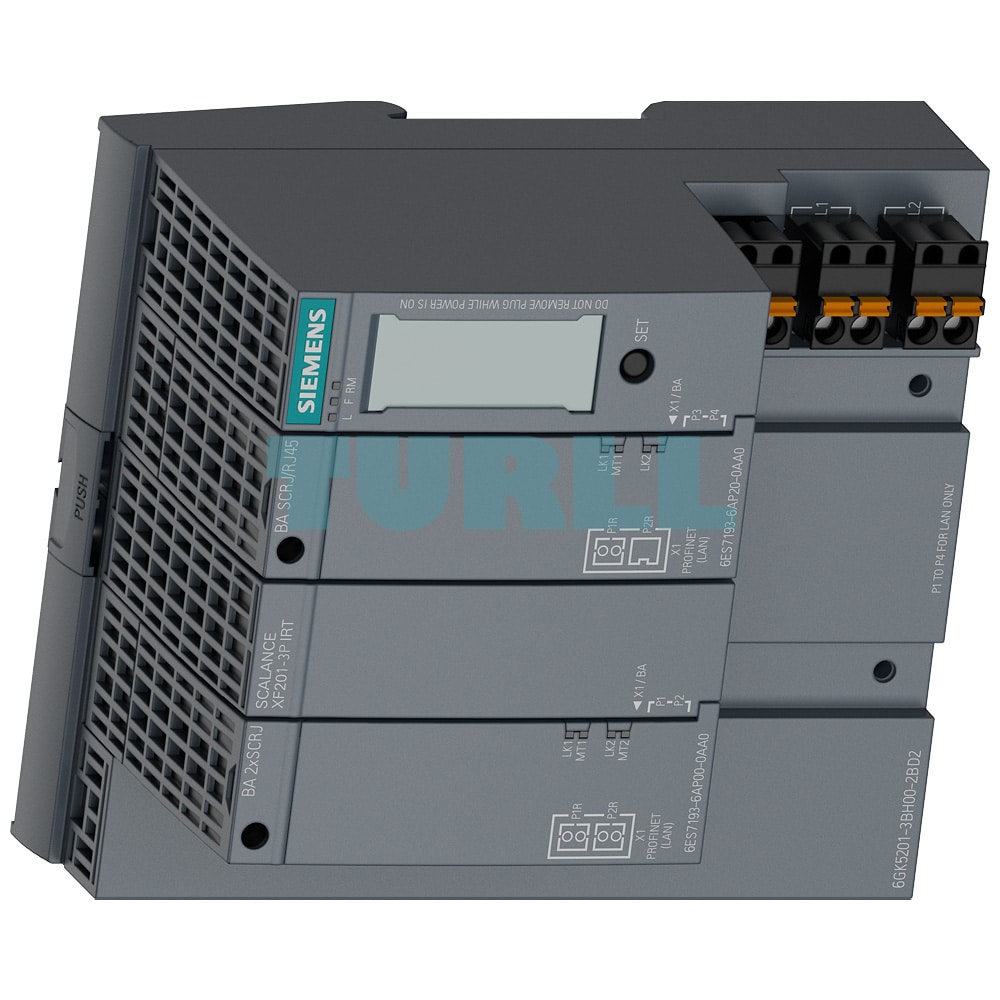

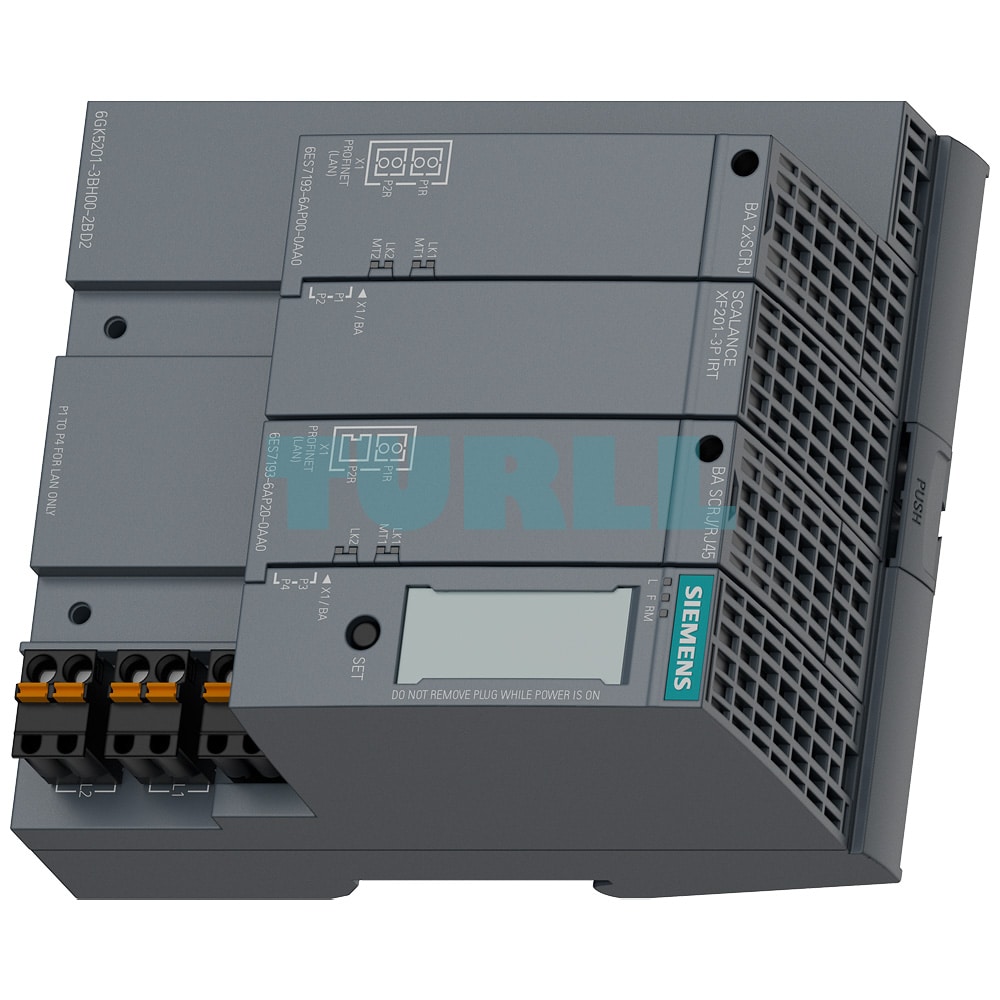

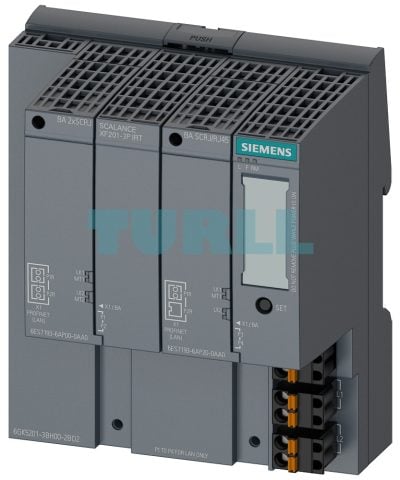

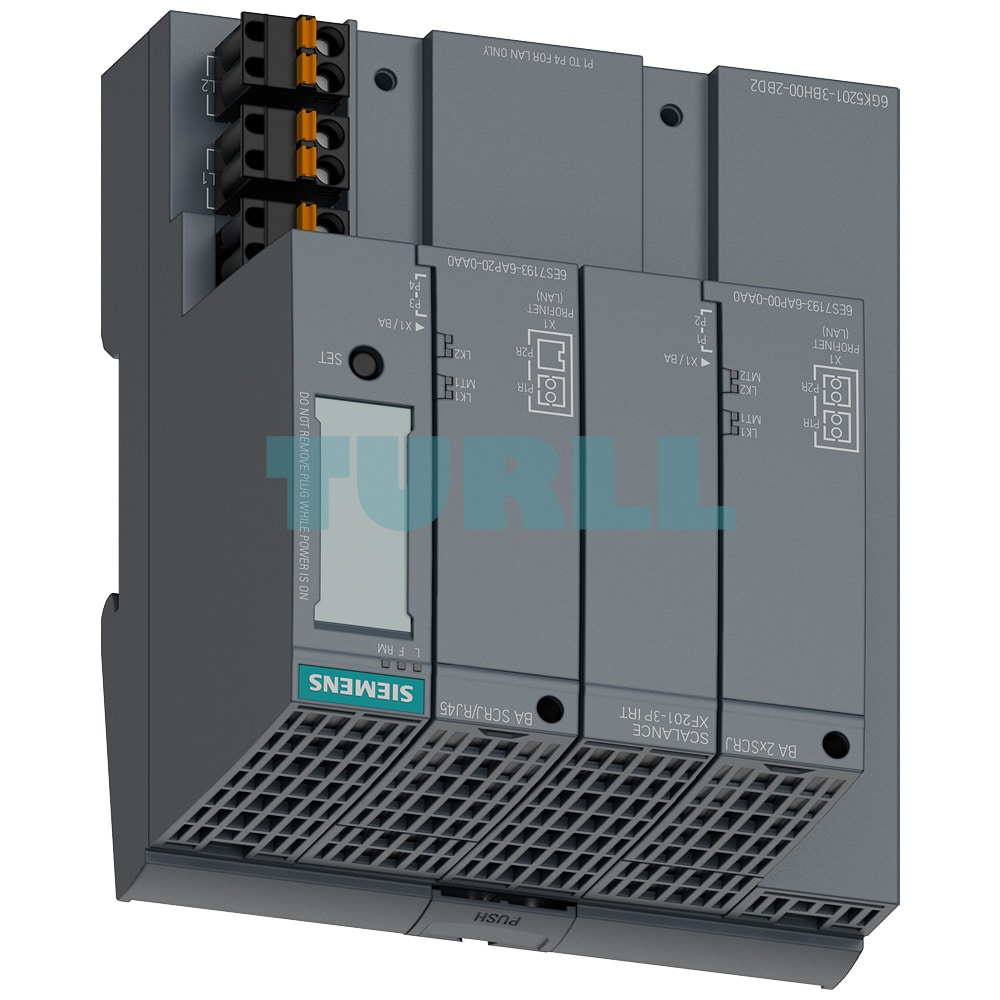

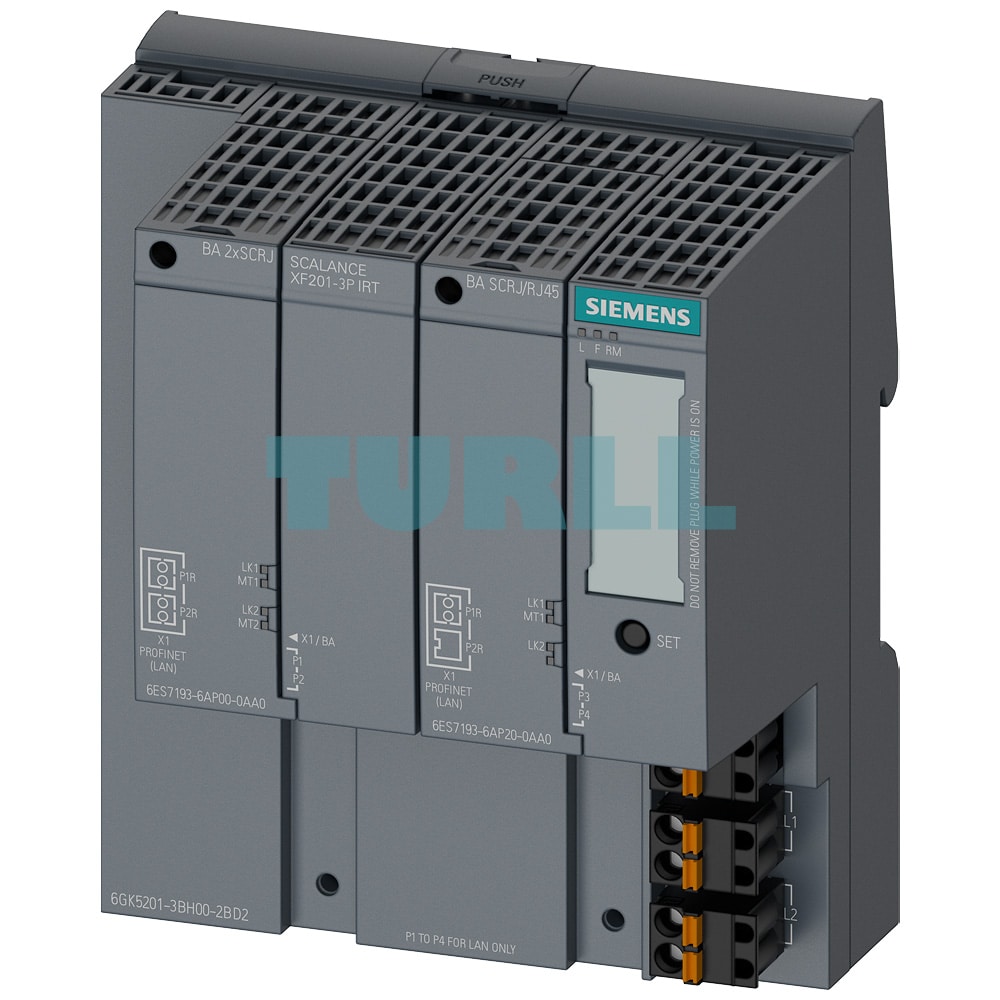

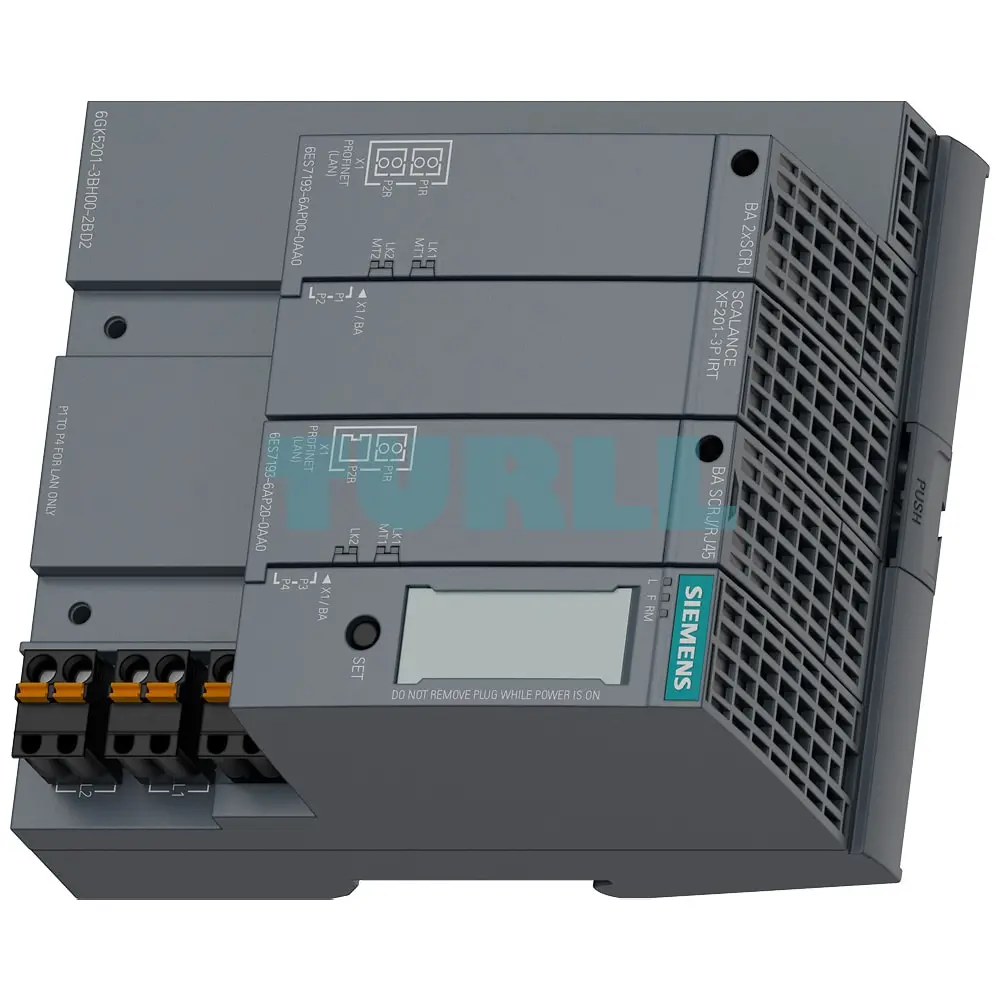

SIEMENS SCALANCE XF201-3P IRT – 6GK5201-3BH00-2BD2
SCALANCE XF201-3P IRT is a managed IE IRT switch from Siemens with 1x 10/100 Mbps RJ45 electrical port and 3x 100 Mbps POF SC RJ optical ports. Features include error signaling contact via SET pushbutton, redundant power supply, integrated Redundancy Manager, PROFINET IO device support, and advanced network diagnostics. Comes with pre-assembled bus adapter. Manual available on CD-ROM. C-PLUG optional.
Overview
The SCALANCE XF-200IRT and XF-200BA IRT switches are designed for real-time, deterministic Industrial Ethernet communication at 10/100 Mbps in line, star, or ring topologies.
- Suitable for up to four connected devices
- Compact SIMATIC ET 200S form factor (75 mm width) for space-saving in small control enclosures
- Integrated Redundancy Manager enables fast Ethernet ring topologies with seamless media redundancy
- Full diagnostics via PROFINET, SNMP, integrated web server, or SINEC NMS
- Automatic email notification for remote alerts and diagnostics
Product Variants
- SCALANCE XF204IRT – 4x electrical ports, SIMATIC ET 200S format
- SCALANCE XF204-2BA IRT – 2x ports for SIMATIC ET 200SP BusAdapters
- SCALANCE XF202-2P IRT – 2x electrical + 2x POF SC RJ ports
- SCALANCE XF201-3P IRT – 1x electrical + 3x POF SC RJ ports (this unit)
Design Features
- Compact and slim enclosure ideal for small control boxes
- Redundant 24 V DC power input via 4-pin terminal block
- 2-pin terminal block for floating error signaling contact
- SET button to configure diagnostics mask
- Visual diagnostics via LEDs (power, link, traffic, signal status)
- Industry-grade mechanical locking for stable connection via SC RJ and RJ45 ports
Port Types Available
- 1 x 10/100 BaseTX RJ45 port: supports autosensing and autocrossing
- 3 x 100 Mbps POF SC RJ ports: plastic optical fiber, ideal for EMI-prone environments
- PROFINET IRT-ready for real-time industrial communication
Product code: 6GK5201-3BH00-2BD2
More Siemens products available at Turll.com
| Weight | 0.3 kg |
|---|---|
| Dimensions | 190 × 250 × 141 mm |
