6GK5224-4GS00-2FC2 SIEMENS SCALANCE XC224-4C G EEC Managed IE Switch Full Gigabit Rugged Version Original Brand New

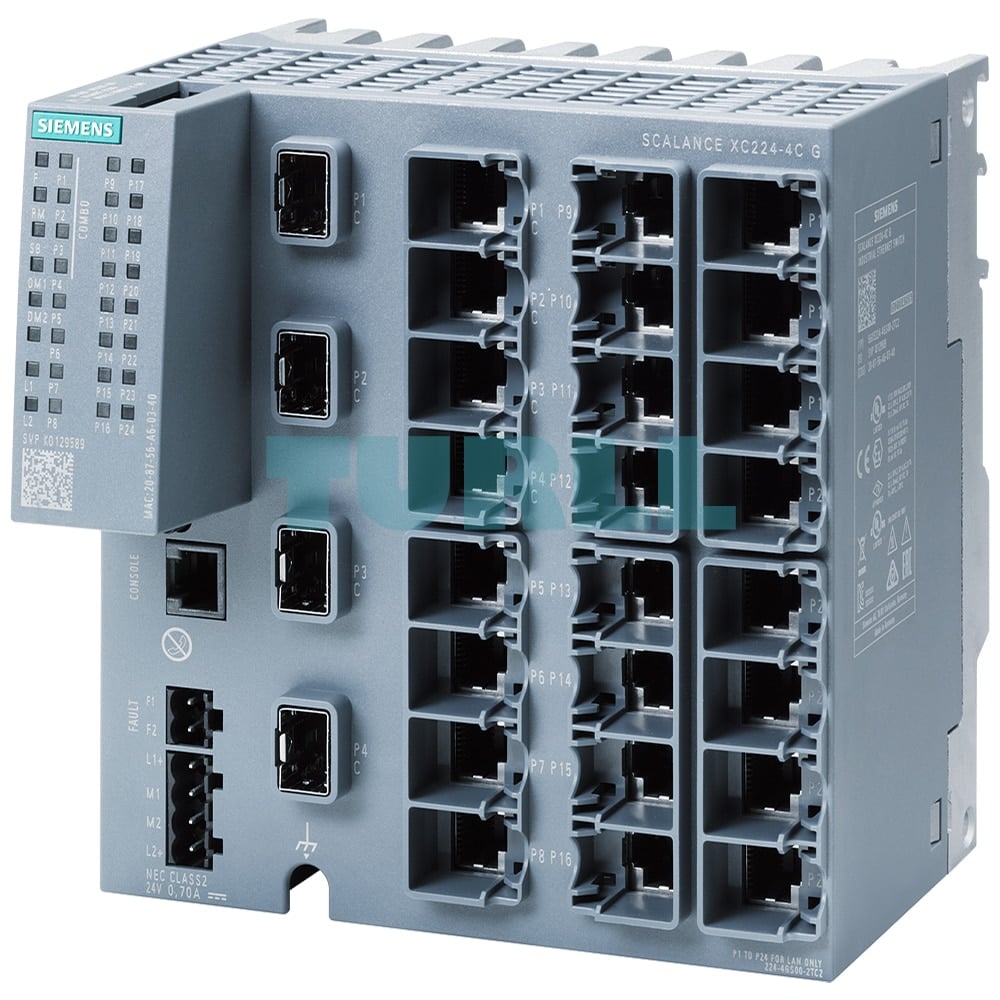

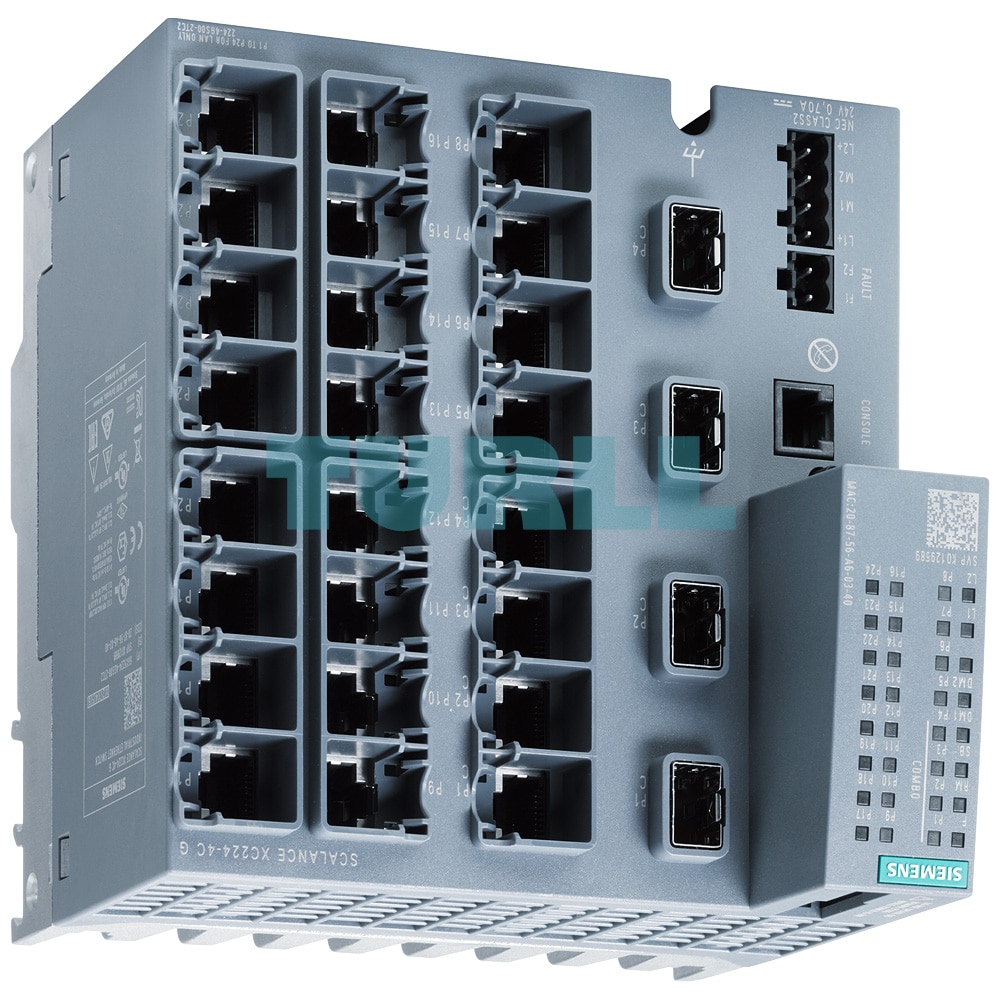

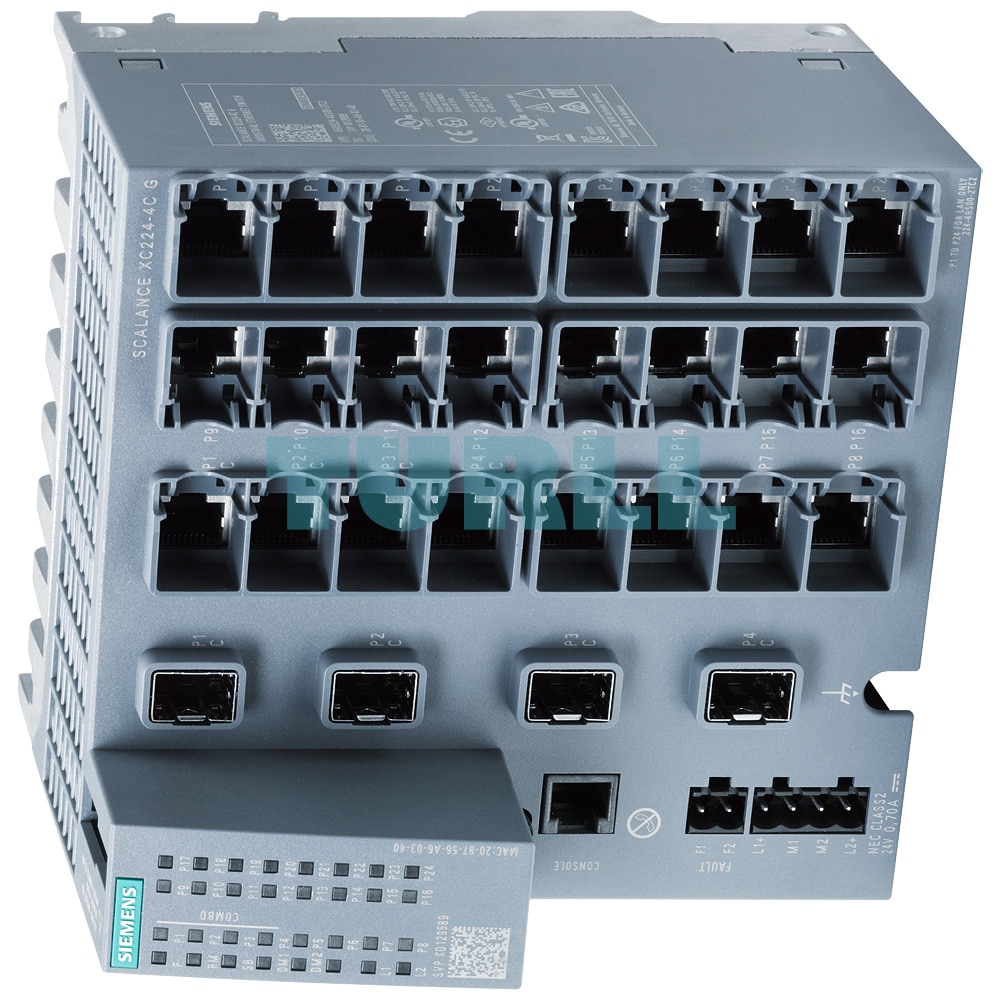

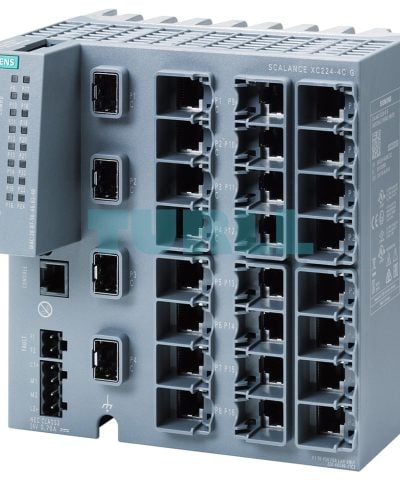

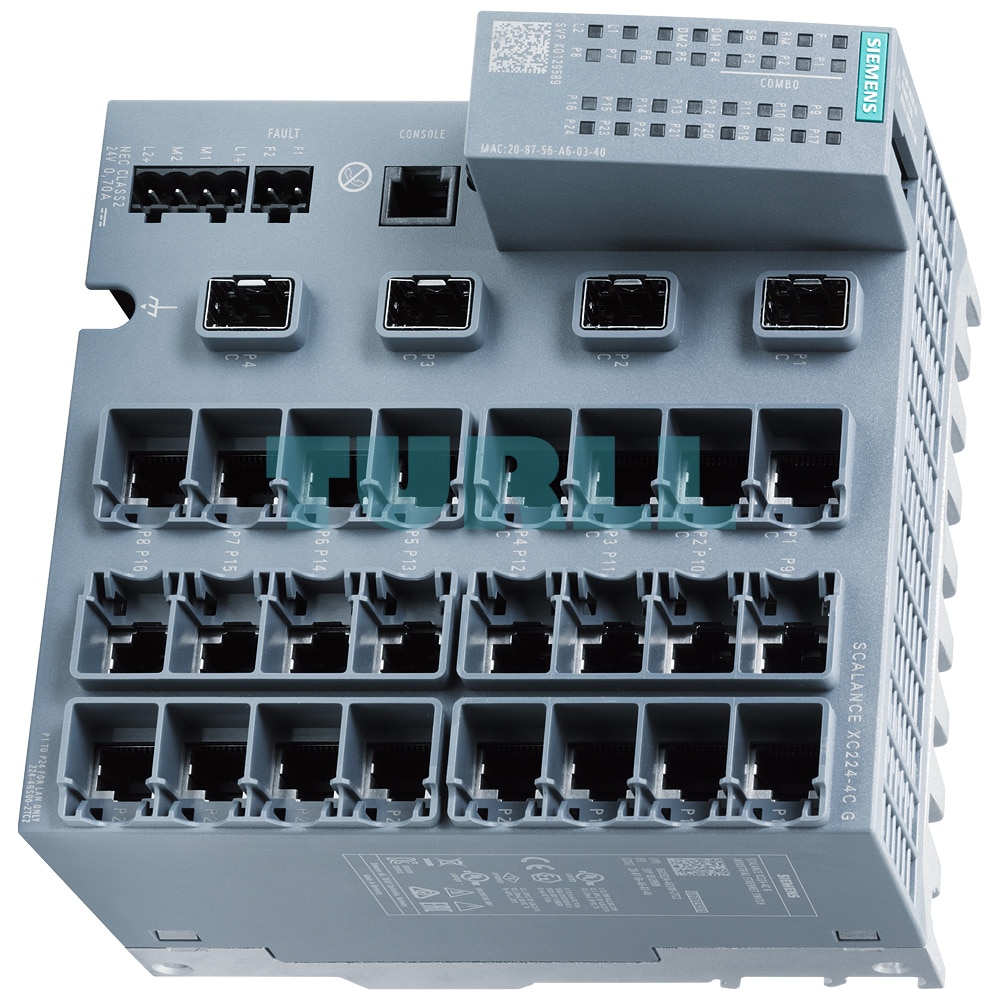

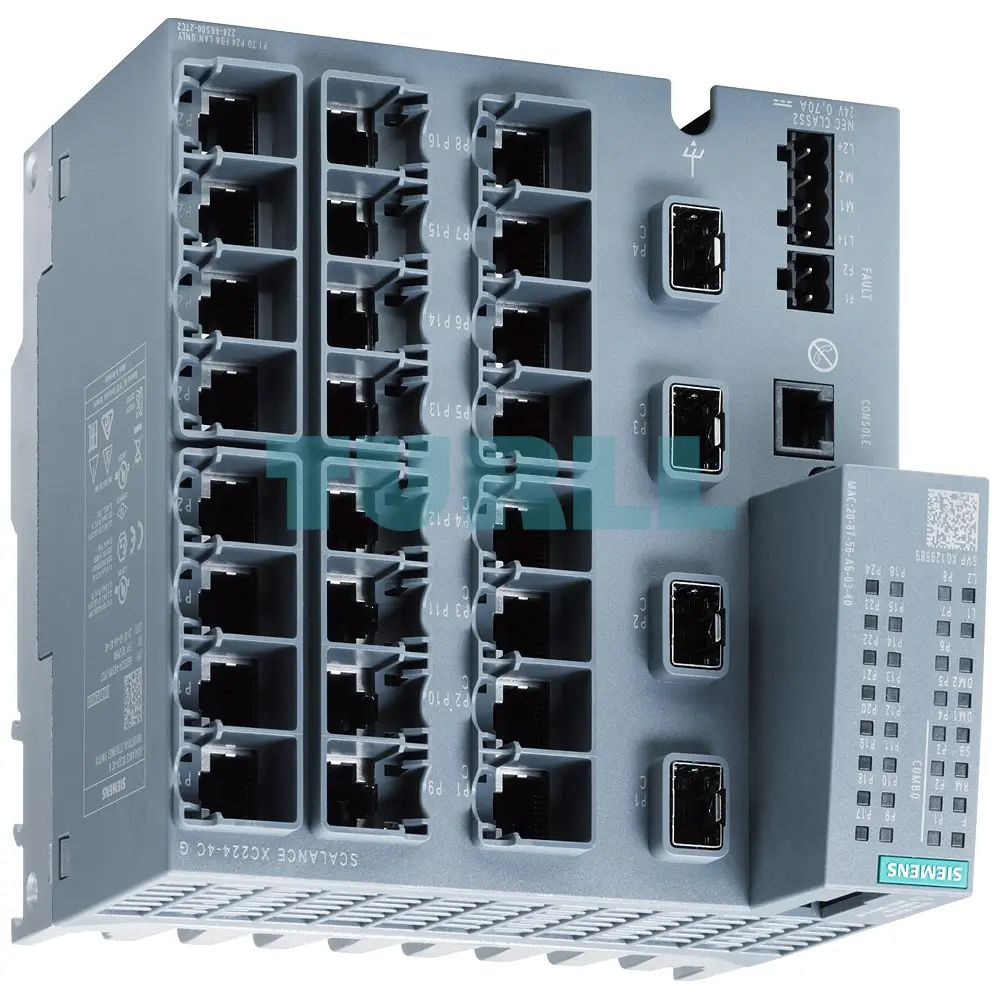

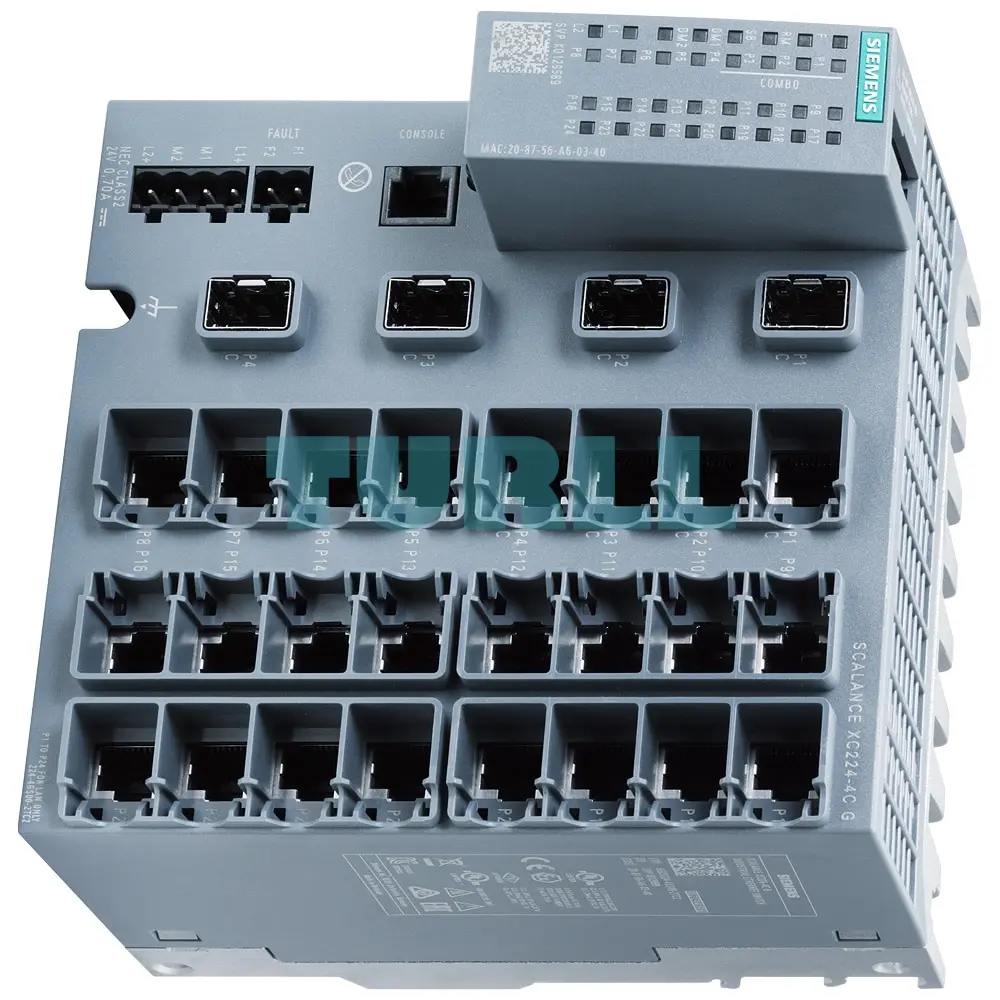

SIEMENS SCALANCE XC224-4C G EEC – 6GK5224-4GS00-2FC2

Full-gigabit managed Layer 2 Industrial Ethernet switch with 20x 10/100/1000 Mbps RJ45 ports and 4x combo ports (RJ45/SFP). Engineered for rugged environments with conformal-coated PCBs, -40 °C to +70 °C temperature range, redundant power supply, and NAMUR NE21 compliance. IEC 62443-4-2 certified for security-critical installations. Delivered with default PROFINET; EtherNet/IP optional via firmware.

Overview

The SCALANCE XC224-4C G EEC is part of the XC-200EEC family, optimized for secure and extended-environment deployment in process automation.

• 20x RJ45 Gigabit + 4x combo ports (mutually exclusive SFP/RJ45)
• Supports VLAN segmentation, IGMP snooping, and IEEE 1588v2 PTP
• Full diagnostics via LED, SNMP, web UI, SINEC NMS, and email alerts
• Redundant power input with 24 V DC terminal
• Industrial protocols switchable: PROFINET / EtherNet/IP
• Coated PCBs, –40 °C to +70 °C, max. installation 4000 m
• NAMUR NE21 standard and H-Sync compatibility (S7-1500R support)

Product Variants

• XC224-4C G EEC (this unit): 20x RJ45 + 4x combo
• XC216-4C G EEC: 12x RJ45 + 4x combo
• XC206-2SFP G EEC: 6x RJ45 + 2x SFP
• XC208G EEC: 8x RJ45 full gigabit
• XC208 EEC / XC216EEC: 8 / 16x RJ45 10/100 Mbps

Design

• Rugged IP20 housing in SIMATIC S7-1500 footprint
• DIN rail, wall, and S7 mounting compatible
• 4-pin terminal block (push-in): 2 x 24 V DC redundant input
• 2-pin push-in terminal for floating signal contact
• LEDs show power, port mode, link, signal, redundancy status
• SET button for local configuration
• C-PLUG slot for fast swap and backup

Port Types Available

• 20 x 10/100/1000BaseTX RJ45 ports
• 4 x Combo (RJ45 or SFP):
  • RJ45 autosensing/autocross
  • SFP slot (1000BASE-X supported)
• 1 x Console port (RJ11 RS232)

Product code: 6GK5224-4GS00-2FC2
