6GK5308-2FP10-2AA3 SIEMENS SCALANCE X308-2LH+ Managed Plus IE Switch Long-Distance SC Fiber Original Brand New

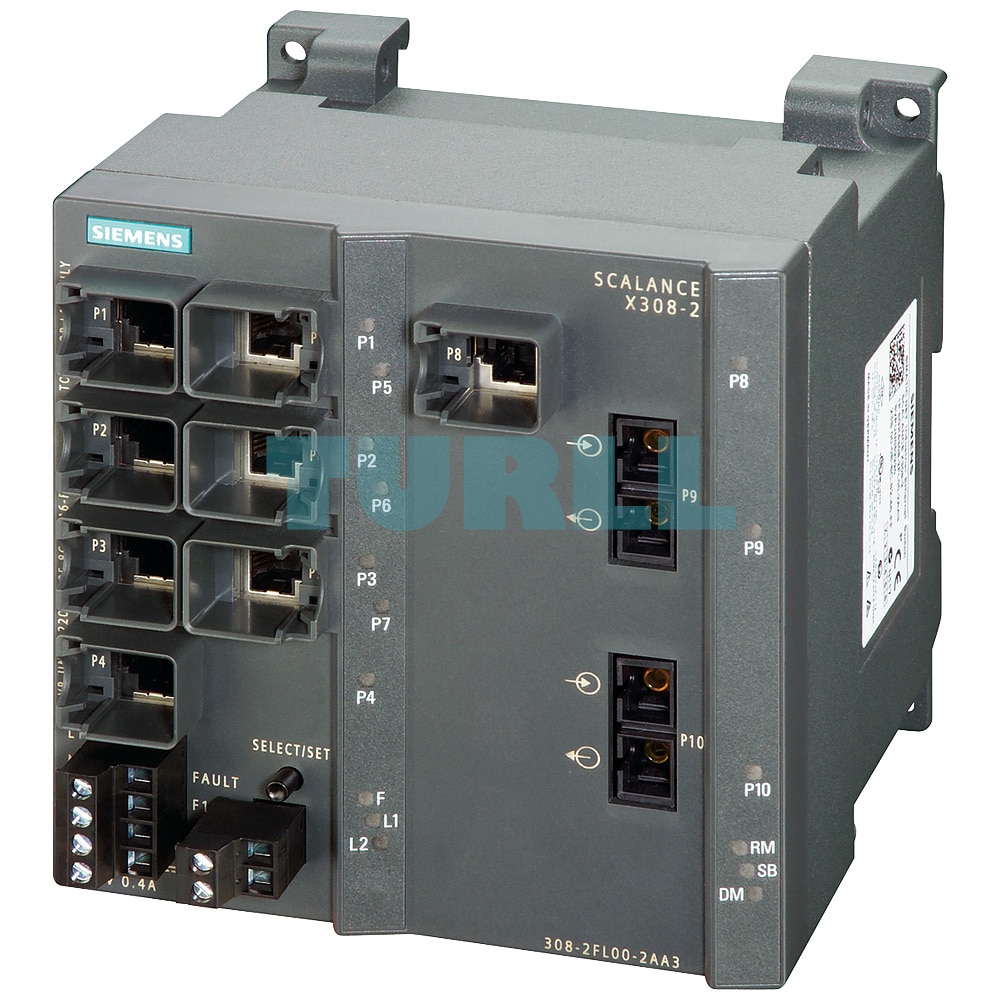

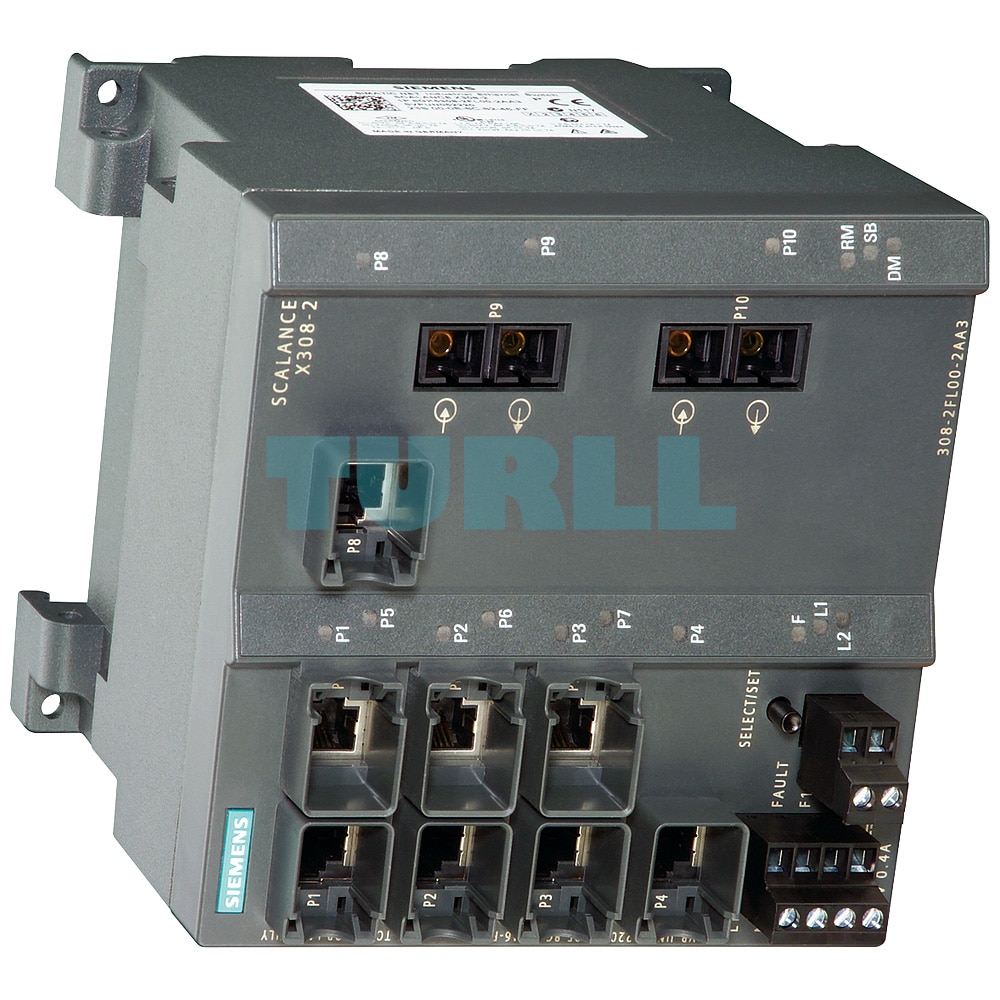

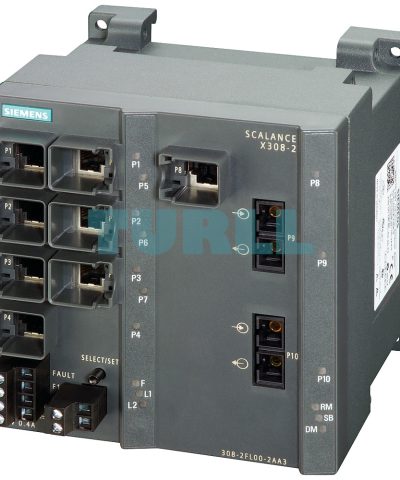

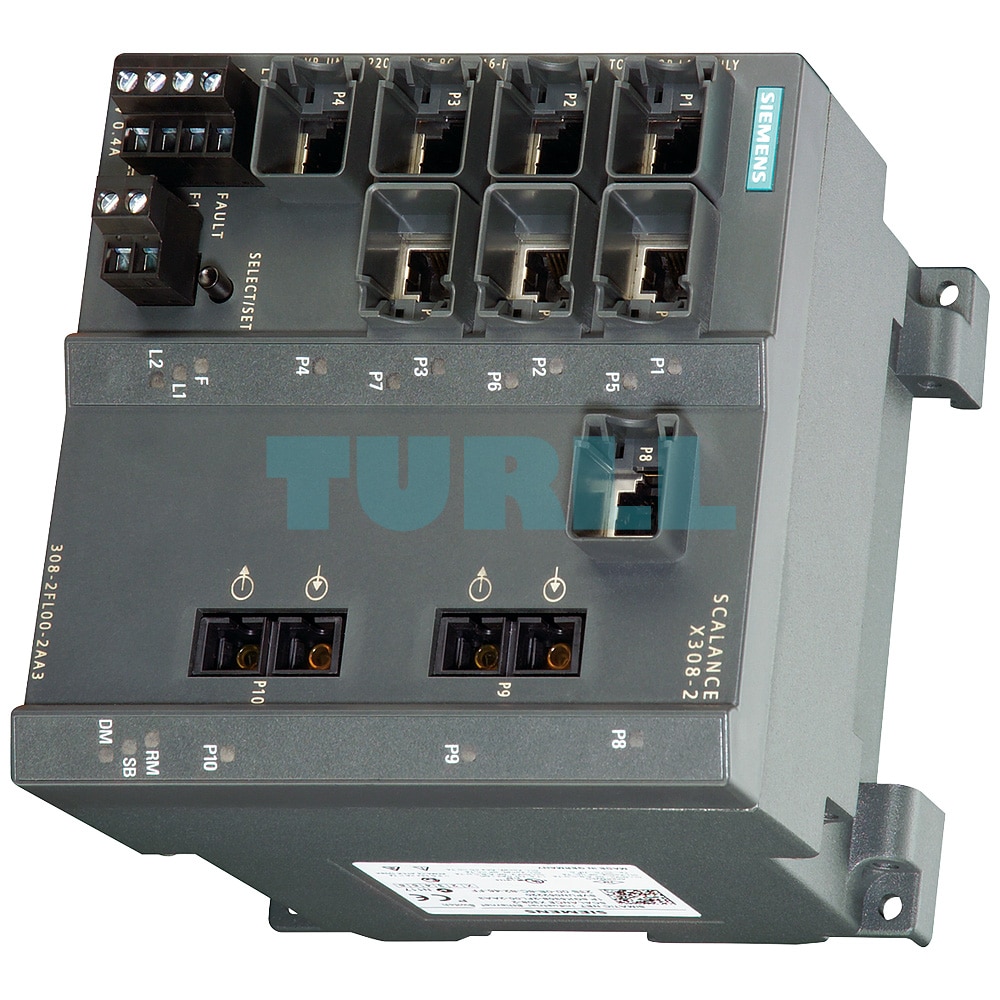

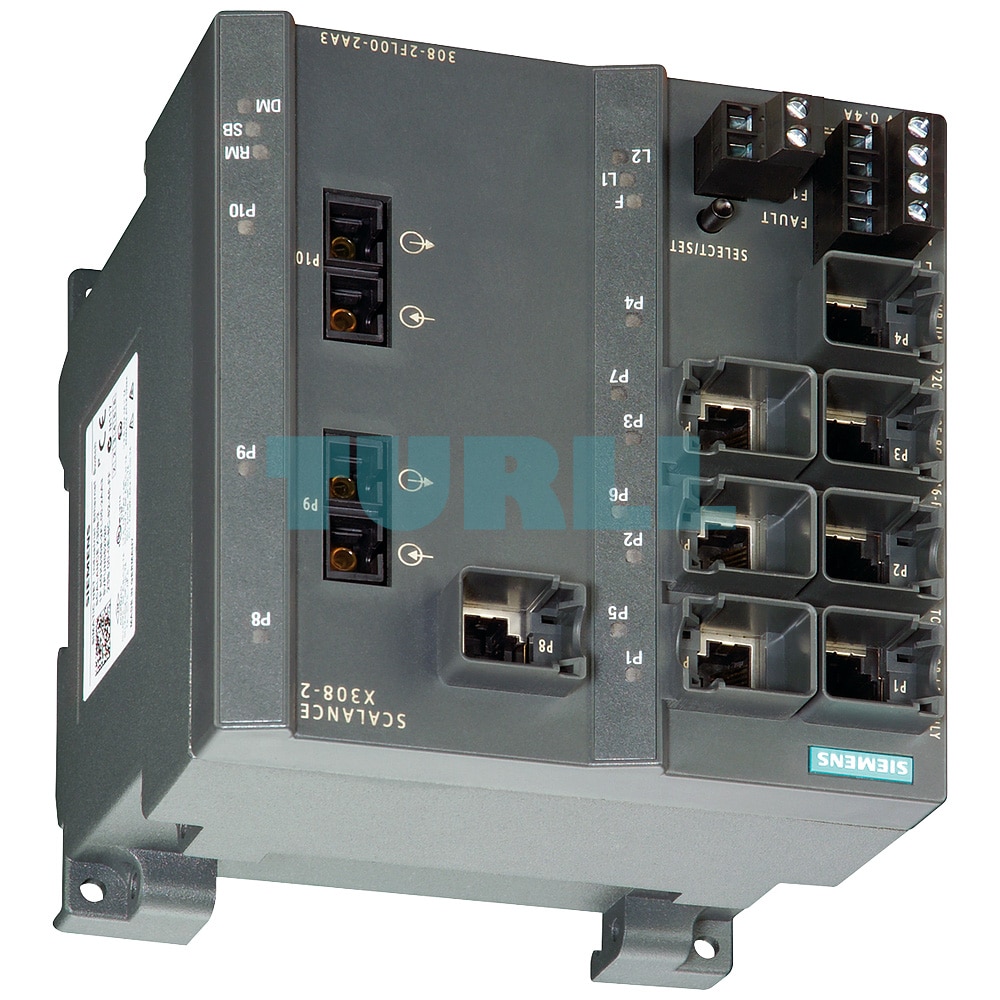

SIEMENS SCALANCE X308-2LH+ – 6GK5308-2FP10-2AA3

High-performance managed plus Industrial Ethernet switch featuring 2x 1000 Mbps SC single-mode fiber ports for long-range communication, 1x 10/100/1000 Mbps RJ45 uplink, and 7x 10/100 Mbps RJ45 ports. Equipped with integrated redundancy manager, PROFINET IO support, diagnostics LEDs, and office-grade Layer 2 features. C-PLUG included for simple configuration and backup handling.

Overview

The SCALANCE X308-2LH+ enables robust and redundant network architectures across large industrial environments where long-distance fiber backbone and local RJ45 edge connectivity are critical.

• 2x SC single-mode fiber ports for long-haul Gigabit transmission
• 1x Gigabit copper RJ45 uplink + 7x Fast Ethernet RJ45 for field equipment
• Integrated Redundancy Manager for seamless MRP ring recovery
• Diagnostic interfaces include PROFINET IO, SNMP, web server, and CLI
• Advanced Layer 2 functions: VLAN segmentation, RSTP, IGMP snooping
• SELECT/SET button for on-site alarm configuration
• LED diagnostics for port activity, power, redundancy, and signal status
• Floating signaling contact for external alerting systems

Design

• Compact IP20-rated housing, optimized for DIN-rail installation
• Redundant 24 V DC power input via 4-pin terminal block
• Floating 2-pin terminal block for signal contact output
• RS232 console interface (RJ11) for CLI access
• C-PLUG slot for rapid device replacement and parameter transfer

Port Types Available

• 2 x 1000BaseFX SC single-mode fiber optic ports
• 1 x 10/100/1000BaseTX RJ45 (auto-negotiation/crossover)
• 7 x 10/100BaseTX RJ45 ports
• 1 x Console port (RS232 via RJ11)

Product code: 6GK5308-2FP10-2AA3
