6GK5334-2TS01-4AR3 SIEMENS SCALANCE XRM334 Exclusive Managed IE Switch Brand New Original

6GK5334-2TS01-4AR3 SIEMENS SCALANCE XRM334 Exclusive Managed IE Switch Brand New Original

SCALANCE XRM334 managed Layer 2 IE switch; 19″ rack-mountable; 24x 100/1000 Mbps RJ45 ports; 2x 1G/2.5G/5G/10G RJ45 ports; 8x 1G/10G SFP+ ports; LED diagnostics; error signaling contact; select/set button; PROFINET IO device; network management; integrated redundancy manager; office features (RSTP, VLAN, IGMP); CLP included; dual 230 V AC power supply

Overview

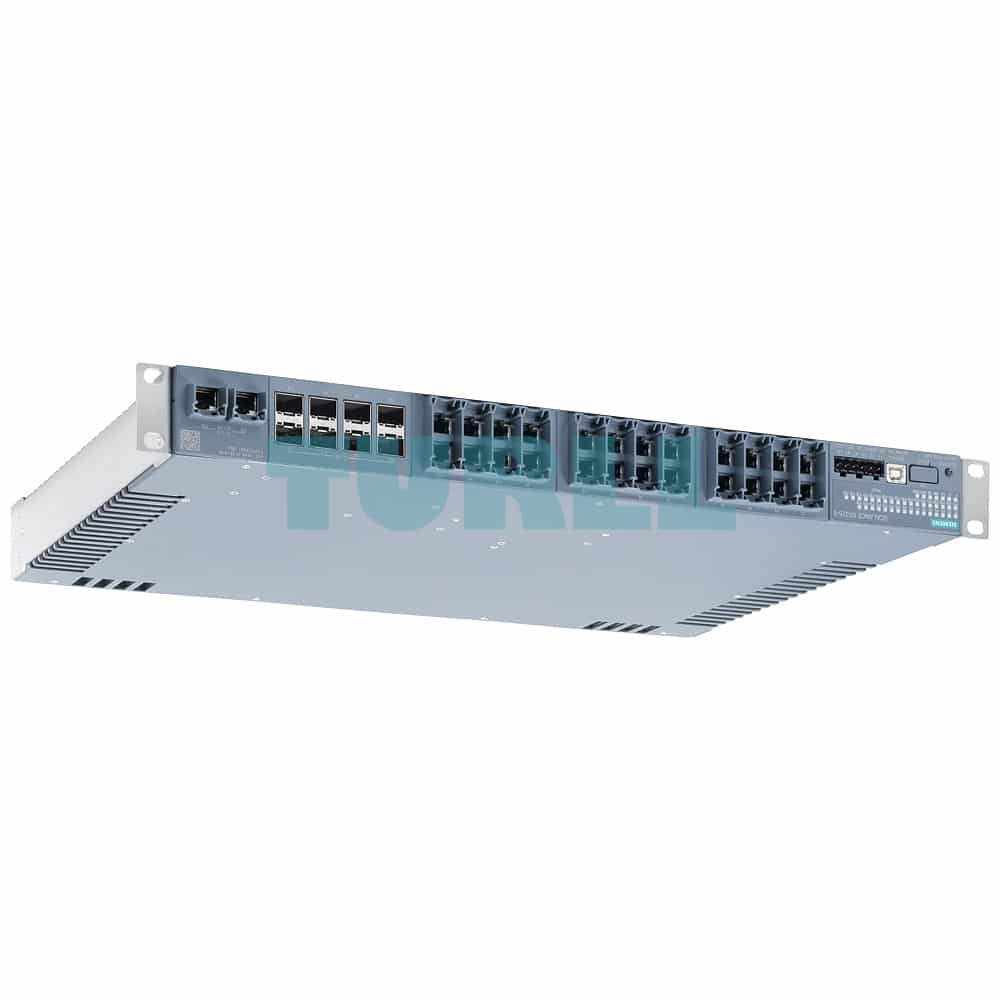

The Siemens SCALANCE XRM334 (6GK5334-2TS01-4AR3) is an exclusive 19-inch rack-mounted managed Layer 2 Industrial Ethernet switch from the XRM-300 series, designed for high-performance industrial networks with data rates up to 10 Gbps. It features 24 Fast/Gigabit RJ45 ports, 2 multi-rate RJ45 uplinks (up to 10 Gbps), and 8 SFP+ ports for high-speed optical connectivity.

This variant includes dual 230 V AC power inputs for redundant operation and runs on the new XRM operating system, enabling future functionalities such as PROFINET over TSN and bumpless redundancy. It supports PROFINET IO diagnostics, integrated redundancy protocols, and advanced VLAN segmentation. With LED diagnostics, CLP configuration memory, and rugged IP20 housing, the XRM334 is an exclusive solution for scalable, secure, and resilient industrial automation infrastructure.

Key Features

• 24 x 100/1000 Mbps RJ45 electrical ports
• 2 x 1G/2.5G/5G/10G RJ45 multi-rate uplink ports
• 8 x 1G/10G SFP+ ports for optical uplinks
• IEC 62443-4-2 certified; PROFINET IO and EtherNet/IP compatible
• Integrated redundancy manager (MRP, RSTP, MSTP, eRSTP)
• LED diagnostics and select/set pushbutton
• Console port and signaling contact
• VLAN, IGMP snooping, ACL, IEEE 802.1X
• Dual 230 V AC power supply via IEC plug
• IP20 metal enclosure; fanless design
• Operating temperature: –25 °C to +60 °C
• 19″ rack-mountable; low installation depth

Product Code: 6GK5334-2TS01-4AR3 More Siemens products at Turll.com
