6NH3112-3BA00-1XX2 SIEMENS Exclusive Battery Enclosure for RTU3000C Original Brand New

6NH3112-3BA00-1XX2 SIEMENS Exclusive Battery Enclosure for RTU3000C Original Brand New

The SIEMENS 6NH3112-3BA00-1XX2 is a robust battery enclosure designed to hold two D-cell (mono) batteries for powering the SIMATIC RTU3000C family of remote terminal units. This enclosure provides a reliable power option in energy self-sufficient environments where no direct power connection is available. Batteries must be purchased separately. The product is engineered for field deployment in harsh environments and enables seamless integration with RTU3000C via plug connectors and DIN rail mounting.

Overview

This battery module allows SIMATIC RTU3000C to operate autonomously in remote monitoring and control applications. Up to two such battery modules can be connected to one RTU3000C, and each module can be expanded with one or two additional battery expansion cases to increase capacity. It is especially suitable for field devices deployed in energy-isolated areas and supports critical operations by maintaining system uptime even when solar or external power is unavailable.

• Battery enclosure accommodates 2x D-size lithium-metal batteries
• Ideal for SIMATIC RTU3000C autonomous power operation
• Connects directly via plug interface; DIN rail mountable
• Rugged enclosure designed for temperatures from -40 °C to +70 °C
• Expandable design with support for up to two additional battery modules

Design

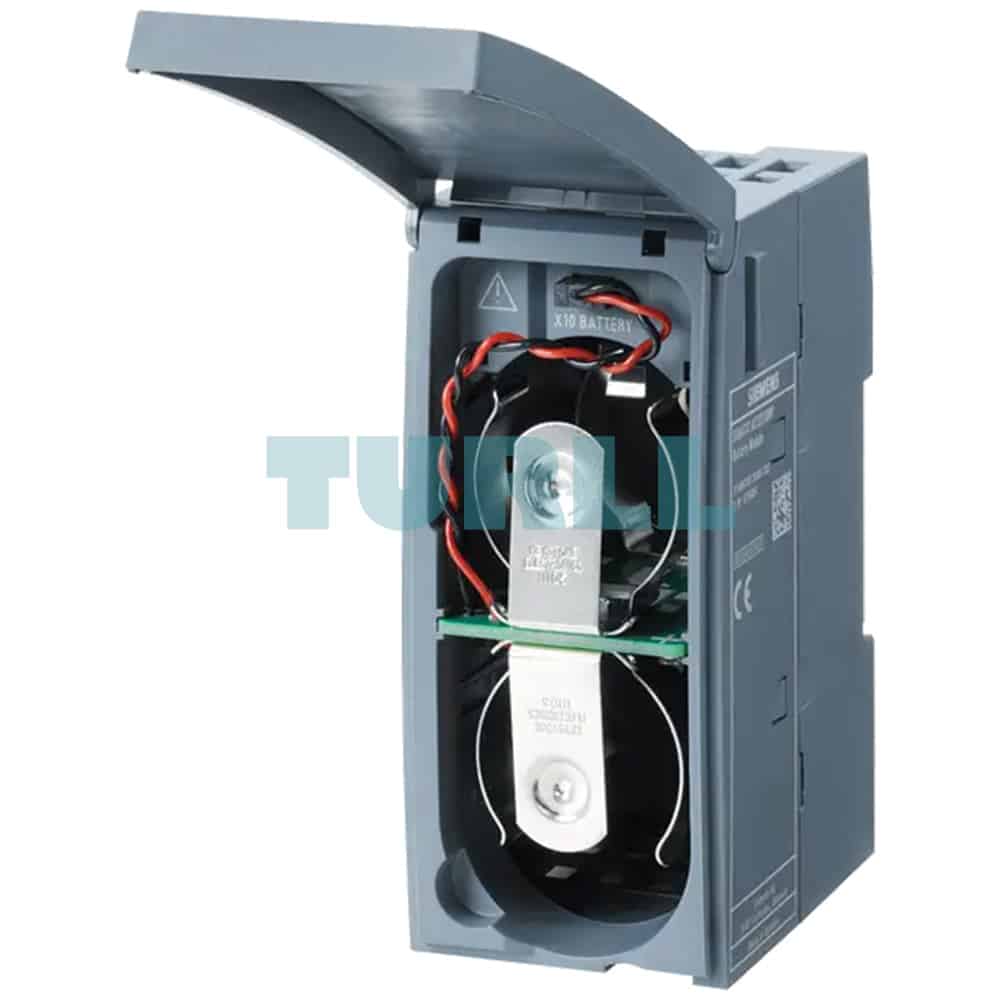

• Compact plastic housing with battery holder for two mono cells (D-size)
• Direct plug-in to RTU3000C; extension port for further modules
• Approved battery types: SAFT LSH20, EVE 34615M
• Battery requirements: 3.6V, 1800 mA continuous, 4000 mA pulse, short-circuit protection
• Battery dimensions: Max Ø33.4 mm, Max height 61.5 mm

Product Link: 6NH3112-3BA00-1XX2
