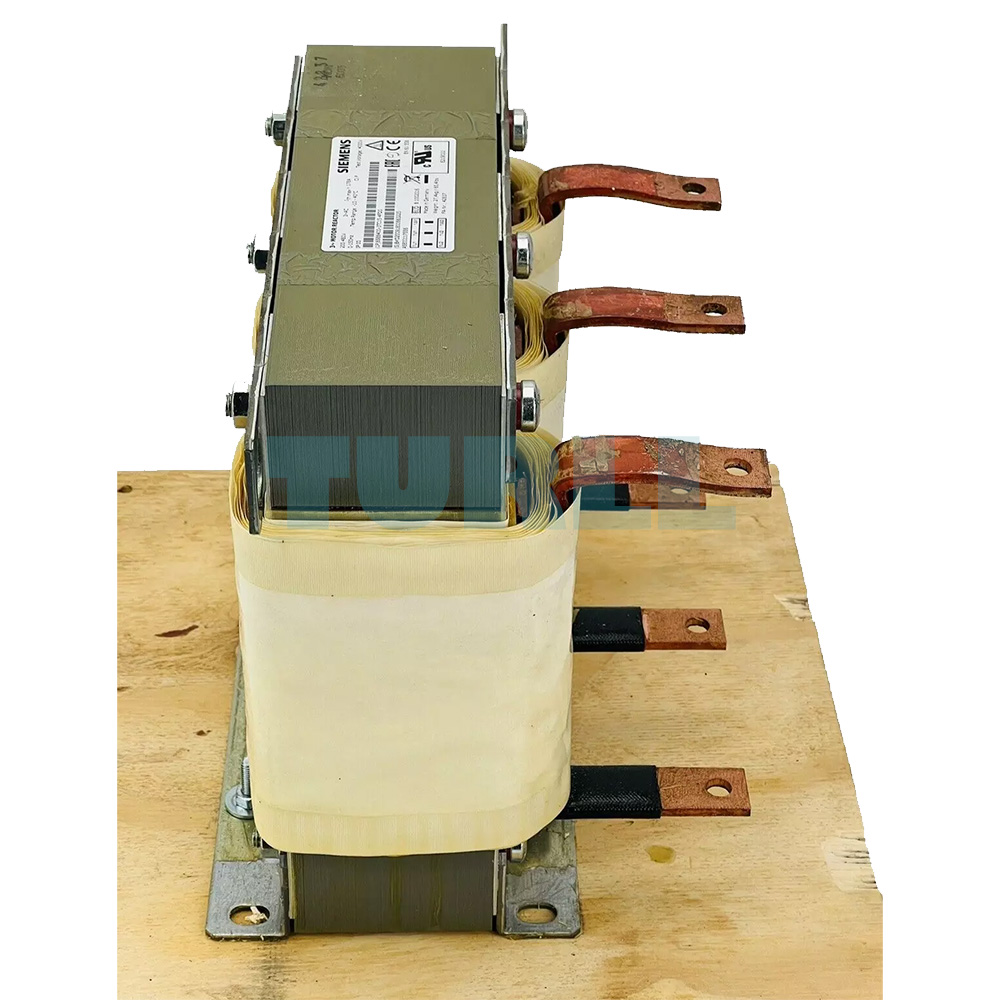

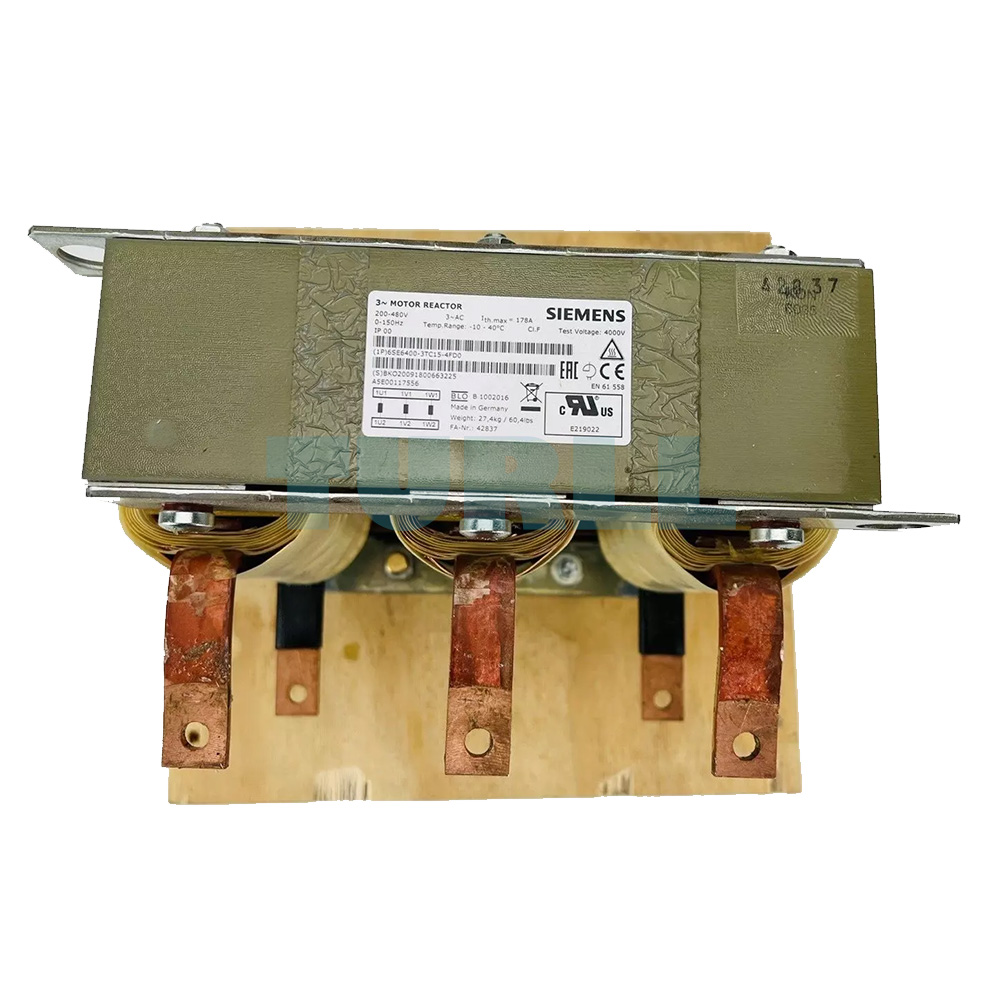

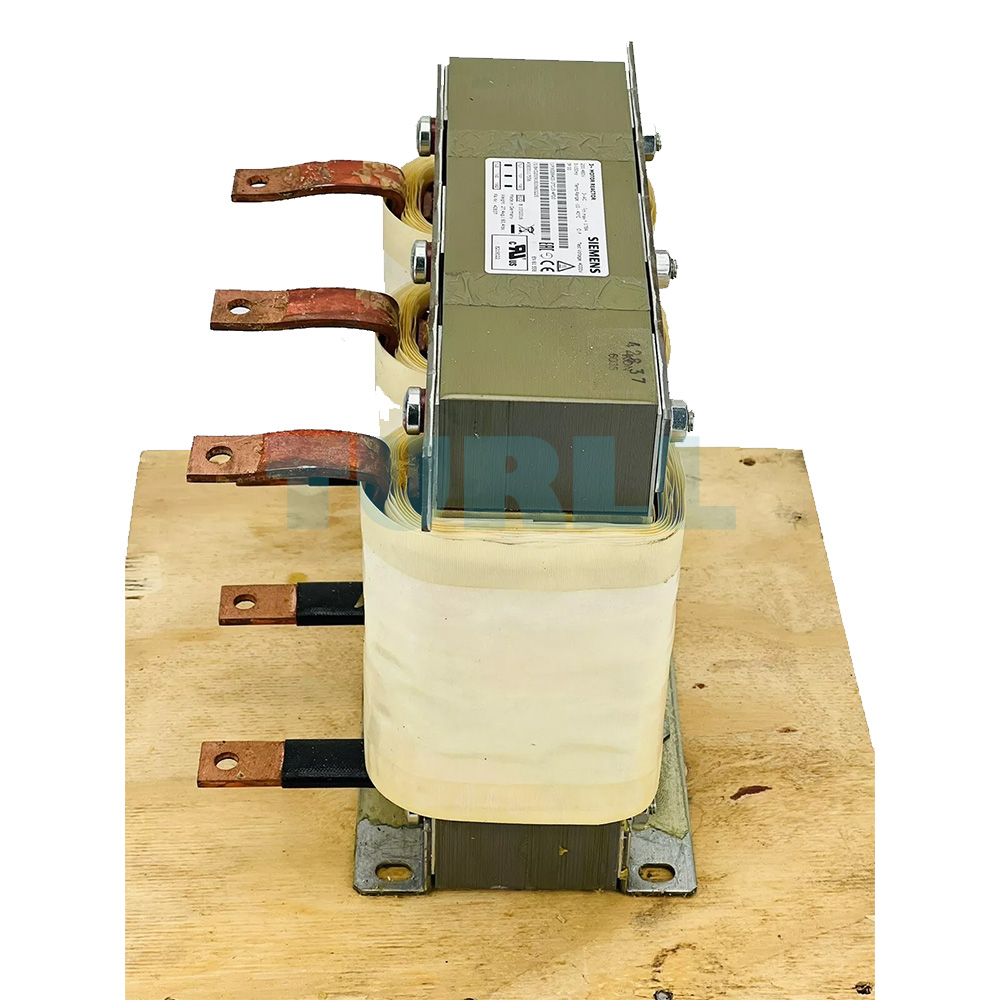

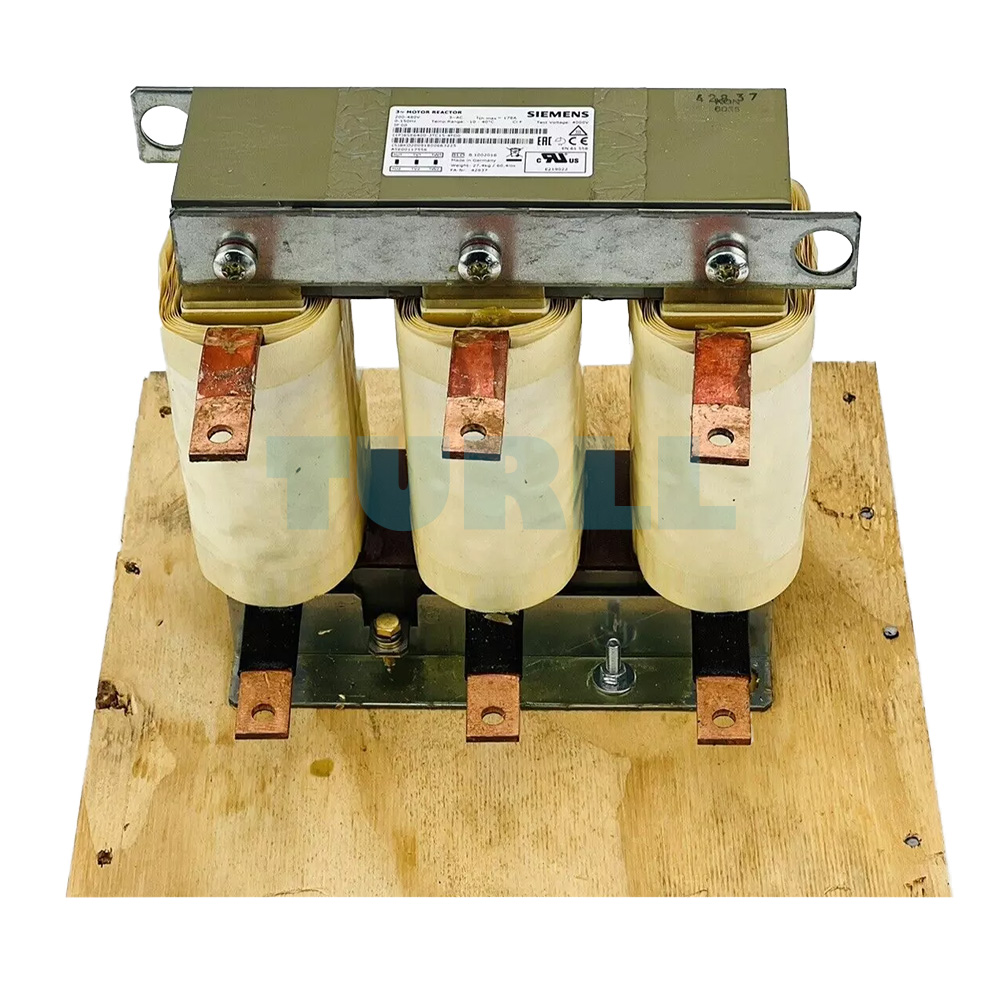

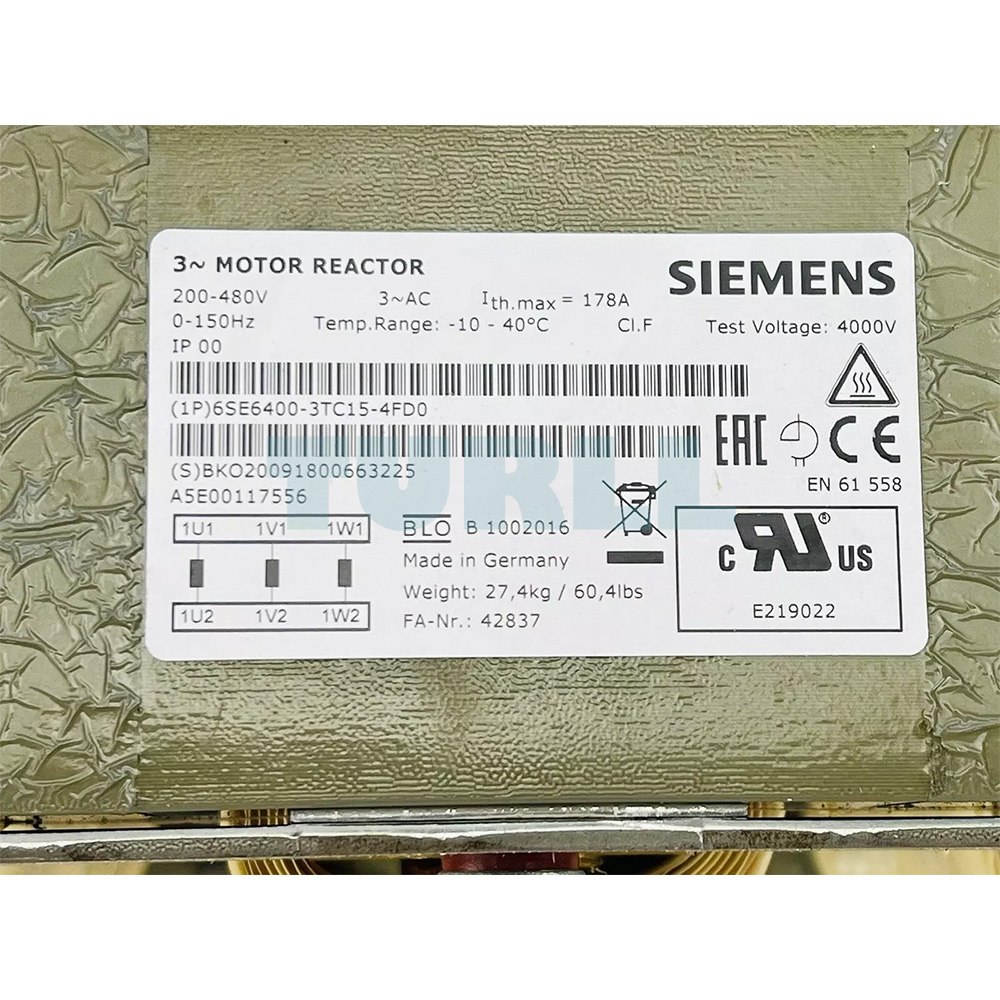

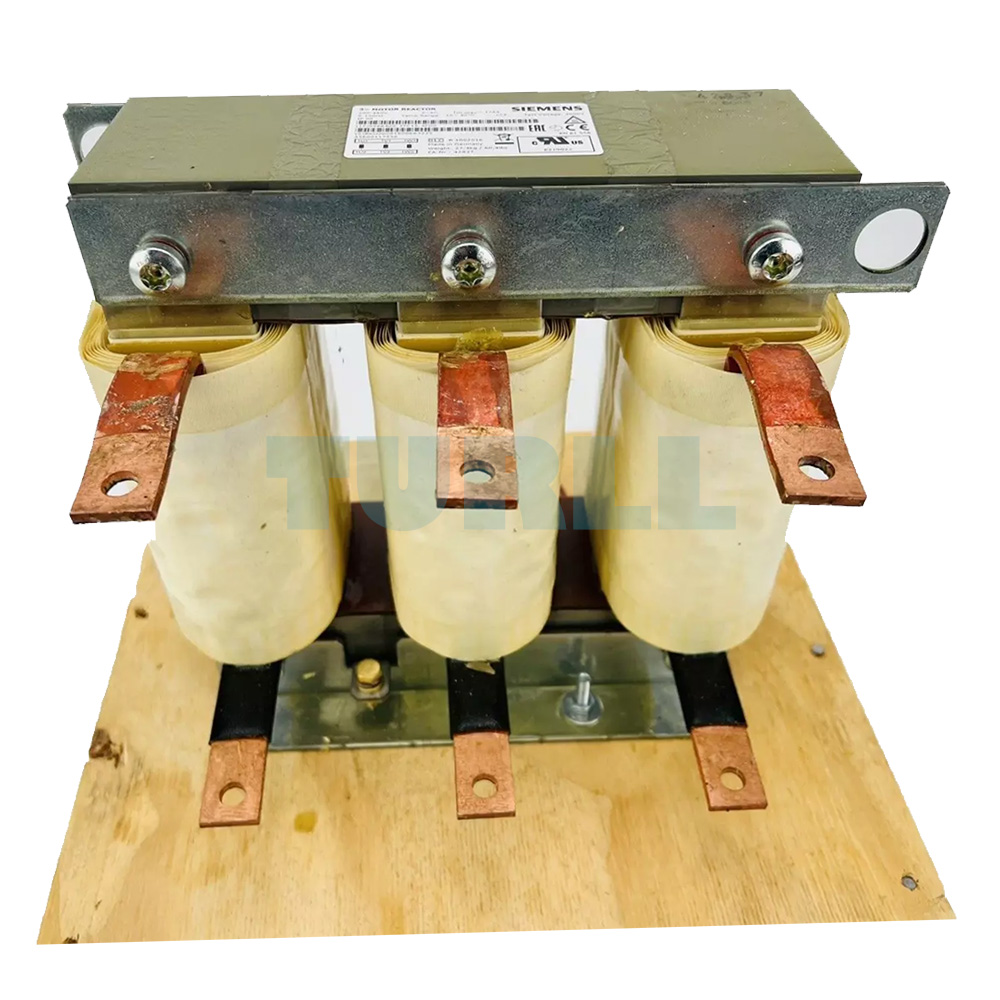

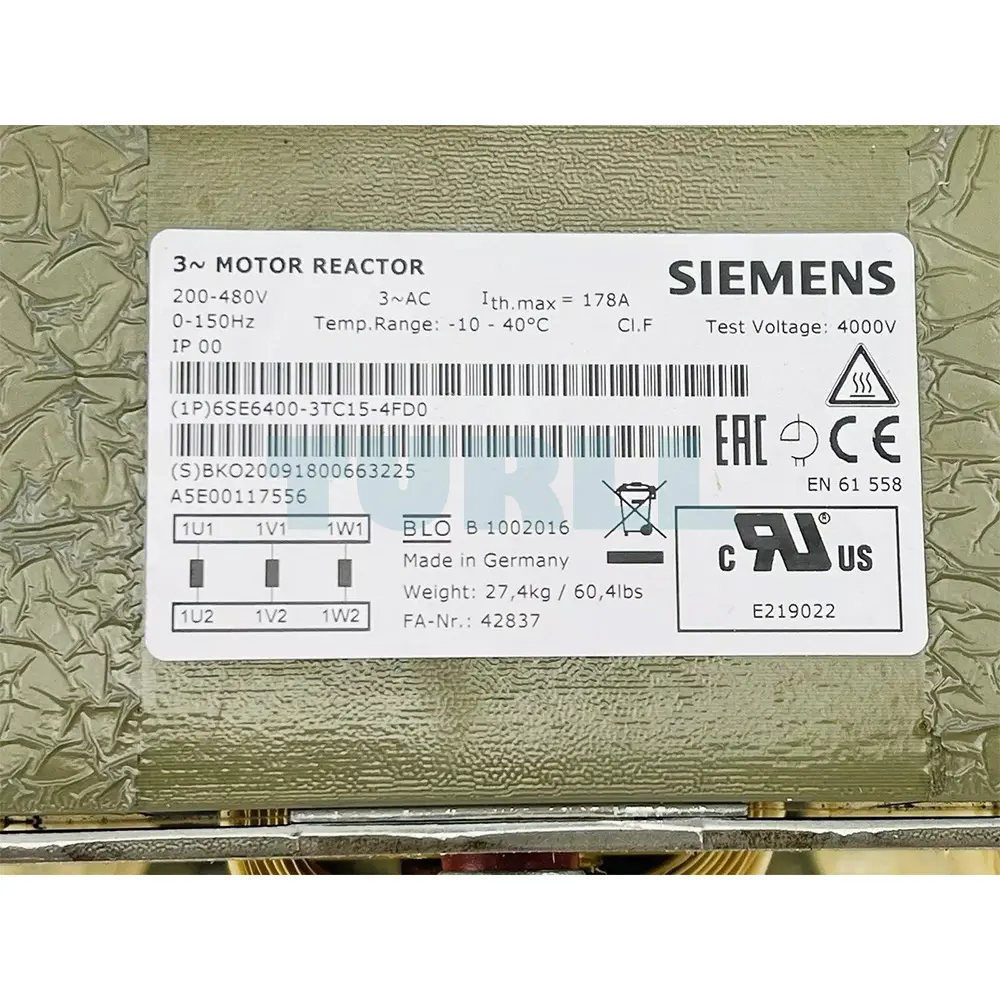

6SE6400-3TC15-4FD0 SIEMENS Exclusive Output Reactor Original Brand New

6SE6400-3TC15-4FD0 SIEMENS Exclusive Output Reactor Original Brand New

The 6SE6400-3TC15-4FD0 SIEMENS output reactor is a high-quality component engineered for reliable performance within MICROMASTER 4 drive systems. Developed for demanding industrial environments, this reactor helps protect equipment, enhance operational stability, and support longer motor cable installations. Its design is optimized for systems operating between 200 and 480 V AC, accommodating applications where efficiency, durability, and controlled output behavior are essential. As a stand-alone FS F unit with an inductance rating of 0.033 mH, it contributes significantly to ensuring smoother power delivery.

This output reactor is particularly effective in reducing voltage rise rates and minimizing current peak amplitudes. Modern inverter technology often relies on fast-switching IGBTs that generate rapid polarity changes in motor cables with high capacitance. Without proper output conditioning, these reversals create current peaks that impact the long-term stability and longevity of connected components. By inserting this reactor between the drive and the motor, polarity transitions occur more gradually, which reduces unnecessary electrical stress and improves system reliability.

The 6SE6400-3TC15-4FD0 SIEMENS output reactor is well suited for installations that require extended cable lengths without compromising performance. The reactor also supports improved electromagnetic compatibility, making it valuable in areas with sensitive control electronics. For enhanced effectiveness, the unit should be mounted as close as possible to the Power Module to maintain proper inductive behavior.

Overview

This reactor is designed specifically for PM230 Power Modules of frame size FSA. It ensures the safe operation of long-cable motor systems by mitigating current peaks, stabilizing switching behavior, and contributing to consistent operation across varied industrial conditions.

Important considerations include a maximum permissible output frequency of 200 Hz and a maximum pulse frequency of 4 kHz. Following these parameters ensures optimal performance and extended equipment life.

Key Features

• Reduces dv/dt for smoother power output
• Minimizes current peaks created by long motor cables
• Supports longer cable installations without electrical stress
• Enhances system stability and operational lifespan
• Optimized for MICROMASTER 4 and PM230 Power Modules

Product Code: 6SE6400-3TC15-4FD0
